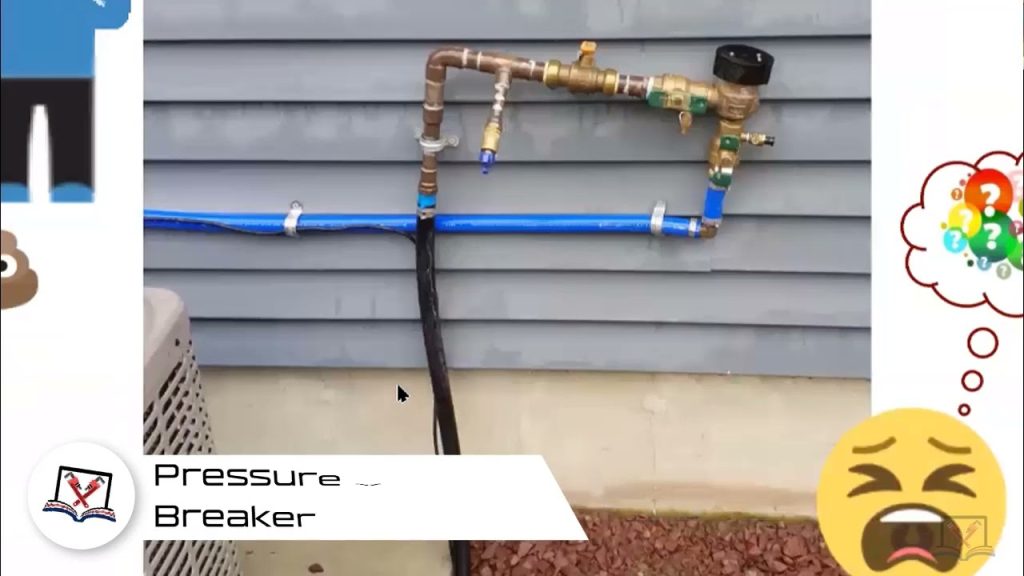

How to Plumb In a Pressure Vacuum Breaker with SharkBite

If you’re installing or replacing an outdoor irrigation system, a pressure vacuum breaker (PVB) is essential to prevent contaminated water from flowing back into your clean water supply. But what if you don’t want to sweat over soldering copper pipes or dealing with complex fittings? That’s where SharkBite push-to-connect fittings come in. In this guide, you’ll learn exactly how to plumb in a pressure vacuum breaker with SharkBite—safely, efficiently, and without specialized tools.

What Is a Pressure Vacuum Breaker (PVB)?

A Pressure Vacuum Breaker (PVB) is a type of backflow prevention device required by plumbing codes for irrigation systems, commercial buildings, and other applications where non-potable water could contaminate the public water supply.

According to the Environmental Protection Agency (EPA), backflow incidents affect thousands of U.S. households annually—many due to improper or missing PVB installation. A properly installed PVB creates an air gap that breaks suction, stopping reverse flow when pressure drops in the main line.

💡 Did You Know? The Uniform Plumbing Code (UPC) and International Plumbing Code (IPC) both require PVBs to be installed at least 12 inches above the highest point of downstream piping.

Why Use SharkBite Fittings for PVB Installation?

SharkBite fittings have revolutionized residential plumbing since their introduction. They allow for tool-free, solder-free connections on copper, PEX, CPVC, and even PE-RT pipes. Here’s why they’re ideal for PVB installs:

⚠️ Note: Always check local plumbing codes. Some jurisdictions may require certified backflow testers or licensed plumbers for PVB installation.

Tools & Materials You’ll Need

Before you begin, gather these items:

• SharkBite-compatible PVB assembly (e.g., Febco 765 or Watts 825 series with ¾” or 1″ ports)
• SharkBite slip couplings (if adjusting pipe length)
• SharkBite male or female adapters (to match your pipe type)
• Pipe cutter
• Deburring tool
• Measuring tape
• Teflon tape (for threaded PVB connections)
• Support brackets (PVBs must be securely mounted)

✅ Pro Tip: Use SharkBite’s official pipe insertion depth chart—even 1/16″ short can cause leaks. For ¾” PEX, insert 15/16″; for 1″ copper, insert 1-1/8″.

Step-by-Step: How to Plumb In a Pressure Vacuum Breaker with SharkBite

Follow these steps carefully to ensure a safe, code-compliant installation.

Step 1: Turn Off Water & Drain Lines

Shut off the main water supply. Open downstream faucets to relieve pressure and drain residual water. Never work on a pressurized line.

Step 2: Choose the Right Location

Install the PVB at least 12 inches above the highest sprinkler head or outlet in your system. Mount it vertically on a wall or post using manufacturer-recommended brackets. Never install horizontally or underground.

Step 3: Cut & Prepare Pipes

Use a pipe cutter to make clean, square cuts. Deburr the inside and outside edges—any burr can damage the SharkBite O-ring and cause failure.

Step 4: Dry-Fit the Assembly

Assemble the PVB with SharkBite adapters without pushing them in fully. Measure to ensure proper alignment and clearance. Mark pipe insertion points with a permanent marker.

Step 5: Connect SharkBite Fittings

Push each pipe firmly into the SharkBite fitting until it clicks. You should hear a slight “snap” and see the release collar move slightly. Do not twist—push straight in.

🔍 Verification Tip: Use a SharkBite depth gauge or ruler to confirm full insertion. Partial insertion is the #1 cause of leaks.

Step 6: Secure & Test

Mount the PVB securely. Turn water back on slowly. Check for leaks at all connections. Let the system run for 5–10 minutes. If no leaks appear, your install is successful.

Common Mistakes to Avoid

Even experienced DIYers make these errors:

• ❌ Installing below the 12-inch height requirement → Violates code and risks backflow.
• ❌ Using SharkBite on galvanized pipe → Not compatible; use a dielectric union instead.
• ❌ Skipping pipe deburring → Causes internal damage and premature failure.
• ❌ Over-tightening threaded PVB ports → Can crack brass bodies. Hand-tight + 1–2 turns with wrench is enough.

📊 According to a 2023 study by the Plumbing-Heating-Cooling Contractors Association (PHCC), 68% of PVB failures were due to improper installation—not product defects.

SharkBite vs. Traditional Soldering: Which Is Better for PVBs?

For most homeowners, SharkBite offers the best balance of speed, safety, and reliability—especially for outdoor PVB installs where access is limited.

FAQ Section

Q1: Can I install a PVB with SharkBite on PEX pipe?

Yes! SharkBite fittings are fully compatible with PEX-A, PEX-B, and PEX-C. Just ensure you use the correct insertion depth and support the PVB properly—PEX can flex under pressure.

Q2: Do I need a permit to install a PVB?

In most U.S. municipalities, yes. Backflow prevention devices often require permits and annual testing by a certified professional. Check with your local building department.

Q3: How high does a PVB need to be installed?

Per UPC and IPC, at least 12 inches above the highest downstream outlet (e.g., sprinkler head). Some states like California require 18–30 inches—always verify local codes.

Q4: Can SharkBite fittings be buried?

Not directly. While SharkBite fittings are rated for behind-wall and underground use, they must be installed inside a protective conduit if buried. For PVBs, above-ground mounting is required anyway.

Q5: What’s the difference between a PVB and an RPZ?

A PVB protects against backsiphonage only and is used for irrigation. An RPZ (Reduced Pressure Zone) protects against both backpressure and backsiphonage and is required for higher-risk applications (e.g., chemical plants). Learn more on Wikipedia’s backflow prevention page.

Q6: How often should I test my PVB?

Annually, as required by most state plumbing codes. Testing ensures internal check valves and air inlets function correctly. Hire a certified backflow tester—DIY testing isn’t legally valid.

Conclusion

Now you know how to plumb in a pressure vacuum breaker with SharkBite—safely, quickly, and in full compliance with modern plumbing standards. Whether you’re upgrading an old irrigation system or installing a new one, this method saves time, reduces risk, and delivers professional results without the hassle of soldering.

✅ Key Takeaways:

• Always install PVB ≥12″ above the highest outlet.
• Use proper SharkBite insertion depth and support.
• Verify local codes and testing requirements.
