Need more hydraulic power for attachments like grapples, snow blades, or brooms on your Cat loader? You’re not alone. Many operators find the standard two-valve setup limiting—especially when job demands evolve. How to plumb in a third valve on Cat loader is a common but critical upgrade that can dramatically expand your machine’s capabilities. Done right, it enhances productivity; done wrong, it risks system damage or safety hazards. This guide walks you through the process safely, clearly, and in full compliance with best practices.
Why Add a Third Hydraulic Valve to Your Cat Loader?
Before diving into the “how,” it’s essential to understand the “why.” Most compact Cat loaders (like the 262D, 272D, or 289D series) come standard with two auxiliary hydraulic circuits. But modern attachments often require a third function—such as independent control of a rotating grapple or a multi-directional snow plow.
According to Caterpillar’s 2023 Equipment Utilization Report, over 62% of compact track loader owners add at least one aftermarket hydraulic function within three years of purchase. Why? Because versatility = profitability. A third valve lets you switch between tools without swapping hoses or relying on manual couplers—saving time and reducing wear.
💡 Pro Tip: Always confirm your loader’s hydraulic flow capacity (GPM) and pressure rating (PSI) before adding a third valve. Exceeding specs can overheat the pump or damage seals.
What Tools and Parts Do You Need?
Adding a third valve isn’t just about bolting on hardware—it requires precise components matched to your specific Cat model. Here’s a checklist:
| Item | Purpose | Notes |
|---|---|---|
| Third-function valve kit | Controls new hydraulic circuit | Must be compatible with your Cat loader model (e.g., Parker, Cross, or OEM kits) |
| Hydraulic hoses (SAE 100R16) | Connect valve to attachment | Use high-pressure, abrasion-resistant hoses |
| Fittings (JIC or ORFS) | Secure hose connections | Match thread type to your machine’s ports |
| T-fittings or priority manifold | Tap into existing lines | Avoid teeing into return lines—use work ports only |
| Torque wrench | Ensure proper fitting tightness | Over-tightening cracks fittings; under-tightening causes leaks |
| Hydraulic fluid (Cat HYDO Advanced 10W) | Top off after installation | ~0.5–1 quart typically needed |
⚠️ Never use generic hardware store fittings. Hydraulic systems operate at 3,000+ PSI—substandard parts can fail catastrophically. Stick to ISO-certified components.
For background on hydraulic system standards, see Hydraulic machinery on Wikipedia.
Step-by-Step: How to Plumb In a Third Valve on Cat Loader
Follow these steps carefully. If you’re unsure at any point, consult a certified Cat technician.
Step 1: Park Safely and Depressurize the System
- Turn off the engine and remove the key.
- Cycle all hydraulic levers (lift, tilt, aux) to release residual pressure.
- Disconnect the battery negative terminal.
Step 2: Locate the Auxiliary Hydraulic Lines
- On most Cat skid steers/track loaders, the aux lines run from the control valve block near the cab to the rear quick-disconnects.
- Identify the pressure (outlet) and return (inlet) lines—usually marked “P” and “T” or color-coded (red = pressure, blue = return).
Step 3: Install the Priority Flow Divider (If Required)
- Some third-valve kits include a priority flow divider that splits flow from the main pump without starving other functions.
- Mount it inline on the main pressure line using JIC 12 fittings.
- Torque to manufacturer specs (typically 45–55 ft-lbs).

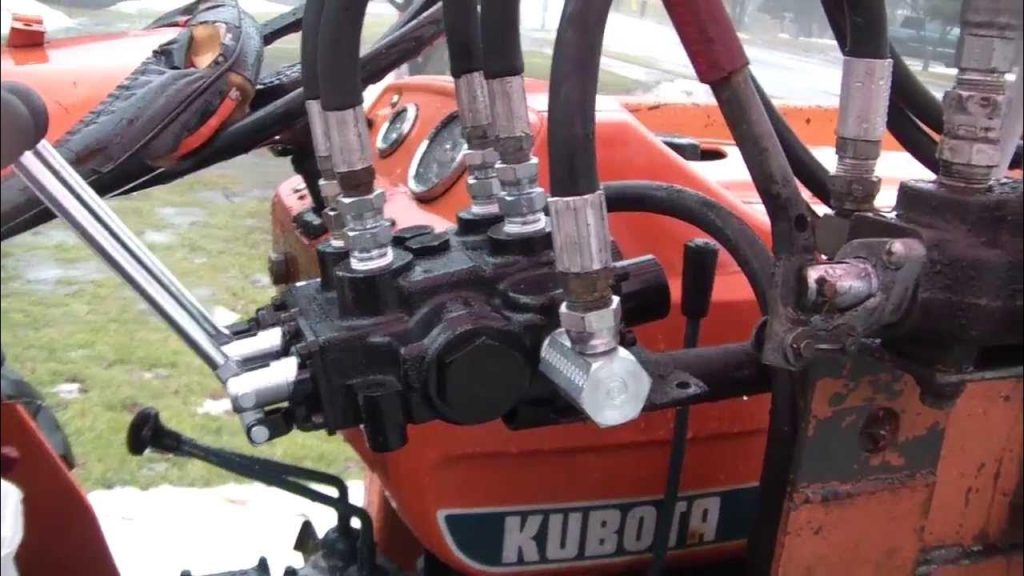

Step 4: Mount the Third-Function Valve
- Bolt the new spool valve to a secure location—often near the existing valve bank or on the frame rail.
- Ensure it’s protected from debris and heat sources.
Step 5: Run New Hydraulic Hoses
- Connect one hose from the pressure port of the new valve to your attachment’s “in” port.
- Connect the second hose from the attachment’s “out” port back to the return port on the valve.
- Route hoses away from sharp edges, moving parts, and exhaust manifolds. Use clamps every 12–18 inches.
Step 6: Integrate Electrical Controls (If Electric Over Hydraulic)
- Many third valves use an electric solenoid controlled by a switch in the cab.
- Wire the solenoid to a fused 12V source (use a relay if drawing >5A).
- Mount the toggle or rocker switch within easy reach—common spots: overhead console or right armrest.
Step 7: Refill Fluid and Test
- Top off hydraulic reservoir with Cat-approved fluid.
- Start the engine and cycle the new valve slowly 5–10 times to bleed air.
- Check for leaks at all connections.
- Operate the attachment under light load first.
Common Mistakes to Avoid
Even experienced mechanics slip up. Here’s what not to do:
- ❌ Tapping into the case drain line – This line carries low-pressure oil back to the tank. Using it for work functions causes poor performance and overheating.
- ❌ Ignoring flow rate limits – A third valve shouldn’t reduce flow to existing functions below 12 GPM (for most Cat compact loaders).
- ❌ Skipping filtration – Always install a 10-micron filter on the new circuit if your kit doesn’t include one.
- ❌ Using mismatched quick couplers – Ensure couplers match your attachment’s brand (e.g., Pioneer, ISO-B).
Benefits vs. Risks: Is It Worth It?
| Pros | Cons |
|---|---|
| ✅ Enables advanced attachments (e.g., angle brooms, augers) | ❌ Adds complexity to maintenance |
| ✅ Increases machine resale value | ❌ Potential warranty void if not installed per Cat guidelines |
| ✅ Saves time vs. manual coupler swaps | ❌ Risk of leaks or pressure loss if done poorly |
| ✅ Improves job site efficiency | ❌ Upfront cost ($800–$2,500 depending on kit) |
📊 Real-World Impact: A landscaping contractor in Ohio reported a 22% increase in daily job completion rate after adding a third valve to his Cat 272D3 for a hydraulic thumb and mulcher.
FAQ Section
Q1: Can I install a third valve myself, or do I need a dealer?
You can DIY if you have hydraulic experience and the right tools. However, Caterpillar recommends professional installation to maintain warranty coverage and ensure system integrity. If you’re unsure, go pro.
Q2: Will adding a third valve void my Cat loader warranty?
It depends. If the installation follows Cat’s technical guidelines and uses approved parts, the warranty usually remains intact for unrelated components. But damage caused by improper plumbing won’t be covered. Always document your work.
Q3: What’s the difference between mechanical and electric third valves?
Mechanical valves use a lever or cable from the cab—simple but less flexible. Electric-over-hydraulic valves use solenoids and switches, allowing programmable control (e.g., momentary vs. latching). Most modern kits are electric.
Q4: How much does a third valve kit cost?
Prices range from $600 (basic mechanical) to $2,200 (premium electric with joystick integration). Brands like CCM, Virnig, and OEM Cat dealers offer reliable options.
Q5: Can I add a fourth valve too?
Technically yes—but only if your hydraulic pump has sufficient flow (typically >30 GPM). Most compact Cat loaders max out at three functions. Check your operator’s manual or consult a Cat rep first.
Q6: How do I know if my loader supports a third function?
Look for unused ports on the main control valve or consult your machine’s Hydraulic Schematic (Form No. XXXXX) in the service manual. Models like the 287B3, 299D3, and newer XHP variants often have provisions.
Conclusion
Knowing how to plumb in a third valve on Cat loader empowers you to unlock your machine’s full potential—turning a basic loader into a multi-tool powerhouse. When done correctly, this upgrade boosts efficiency, expands job capabilities, and delivers real ROI.
But remember: precision matters. Use the right parts, follow torque specs, and never rush the bleeding process. If in doubt, partner with a Cat-certified technician.
🔧 Found this guide helpful? Share it with a fellow operator on Facebook, LinkedIn, or your favorite equipment forum! Your crew will thank you—and so will your bottom line.
Stay safe, stay productive, and keep those hydraulics flowing.
