How To Plumb Nitrous Hard Line For Fogger LT1

Are you looking to unlock the hidden potential of your LT1 engine? Installing a nitrous oxide system can dramatically increase horsepower, but proper installation is crucial for both performance and safety. If you’re wondering how to plumb nitrous hard line for fogger LT1, you’ve come to the right place. This comprehensive guide will walk you through every step, ensuring your installation is done correctly the first time.

Nitrous oxide systems have been a staple in performance automotive culture for decades. When installed properly, they can add 100-300+ horsepower to your engine reliably. However, improper plumbing can lead to catastrophic engine failure. Let’s dive into the details of getting your fogger system installed correctly.

What Is a Fogger Nitrous System and Why Choose It for Your LT1?

Before we jump into the plumbing process, it’s essential to understand what makes a fogger system unique and why it’s particularly well-suited for the LT1 platform.

Understanding Fogger Nozzles

A fogger nitrous system uses specialized nozzles that atomize the nitrous oxide and fuel mixture into a fine mist before it enters the intake manifold. This creates better distribution across all cylinders compared to direct-port systems.

Key advantages of fogger systems:

• Better cylinder-to-cylinder distribution – ensures each cylinder receives equal amounts of nitrous and fuel
• Cooler intake charges – the atomization process helps reduce intake air temperatures
• Simpler installation – requires fewer components than plate or direct-port systems
• Ideal for forced induction applications – works exceptionally well with supercharged or turbocharged LT1 engines

The LT1 engine, particularly the Gen V LT1 found in modern Corvettes and Camaros, responds exceptionally well to nitrous oxide due to its robust bottom end and efficient combustion chamber design.

What Tools and Materials Do You Need?

Proper preparation is half the battle when installing a nitrous system. Here’s everything you’ll need before starting:

Essential Tools

• Flaring tool kit (for creating proper flare fittings)
• Tube cutter (specifically designed for stainless steel or aluminum tubing)
• Wrench set (metric and SAE)
• Torque wrench
• Drill with appropriate bits (if mounting brackets are needed)
• Deburring tool
• Thread sealant (rated for high pressure and nitrous oxide)

Required Materials

• Stainless steel hard line tubing (typically 3/8″ or 1/2″ diameter)
• AN fittings (appropriate size for your system, usually -6 or -8 AN)
• Fogger nozzle kit (matched to your desired horsepower gain)
• Solenoid valves (nitrous and fuel)
• Mounting brackets and hardware
• High-pressure nylon braided lines (for connections to bottles and regulators)

Pro Tip: Always use stainless steel tubing for nitrous lines. Aluminum can work but is more prone to cracking under vibration and thermal cycling.

Step-by-Step Guide: How To Plumb Nitrous Hard Line For Fogger LT1

Now let’s get into the actual installation process. Follow these steps carefully for a professional-quality installation.

Step 1: Plan Your Route

Before cutting any tubing, map out the entire path your hard lines will take from the nitrous bottle to the fogger nozzles. Consider the following:

• Keep lines as short as possible to minimize pressure drop
• Avoid heat sources like exhaust manifolds and headers
• Ensure adequate clearance from moving parts and suspension components
• Plan for serviceability – you may need to disconnect lines for maintenance

For LT1 applications, the most common route runs along the firewall or frame rails, depending on your vehicle configuration.

Step 2: Cut and Prepare the Tubing

Using your tube cutter, cut the stainless steel tubing to the required lengths. Remember the old carpenter’s adage: measure twice, cut once.

Important guidelines:

• Make clean, square cuts
• Deburr both inside and outside edges thoroughly
• Clean the tubing ends with brake cleaner or acetone
• Inspect for any cracks or imperfections

Step 3: Create Proper Flare Fittings

This is arguably the most critical step in the entire process. Poor flare fittings are the number one cause of nitrous leaks.

Creating a perfect flare:

1. Insert the tube into the flaring tool to the correct depth
2. Apply even pressure while forming the flare
3. The flare should be smooth, symmetrical, and free of cracks
4. Test fit with the AN fitting before final assembly

According to industry standards, a proper 37-degree AN flare should have no visible tool marks and should seat perfectly against the fitting face.

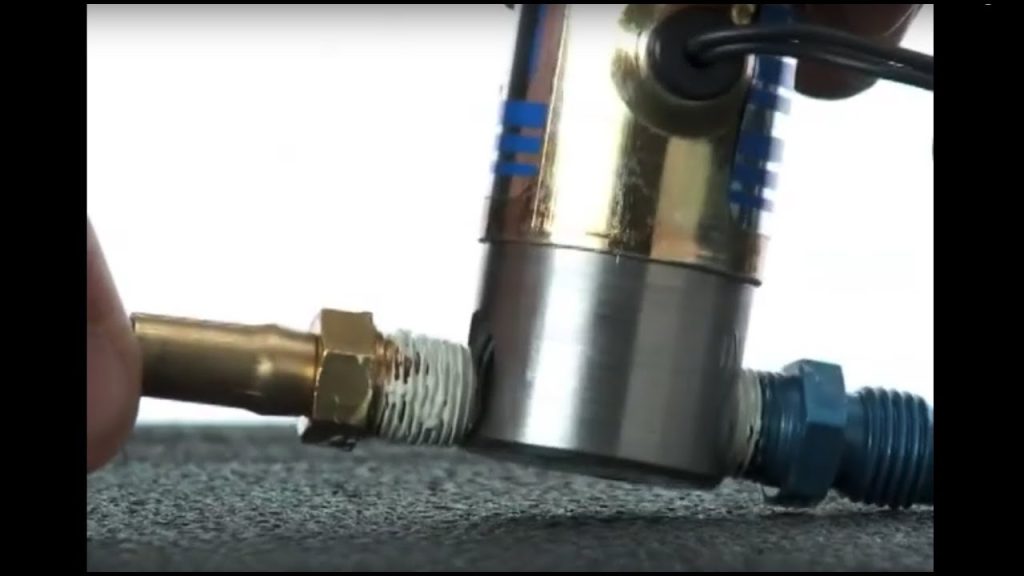

Step 4: Install Solenoid Valves

Mount your nitrous and fuel solenoids in accessible locations. For LT1 installations, common mounting points include:

• Firewall bracket (driver or passenger side)
• Inner fender well (with proper protection from debris)
• Custom bracket attached to existing engine mounts

Ensure solenoids are mounted vertically with the flow arrow pointing in the correct direction. Use thread sealant rated for nitrous service on all fittings.

Step 5: Run and Secure Hard Lines

With your tubing prepared and solenoids mounted, it’s time to run the hard lines:

1. Start from the solenoid and work toward the fogger nozzles
2. Use proper clamps every 12-18 inches to secure lines
3. Leave slight slack at connection points to prevent stress
4. Double-check clearances throughout the entire route

Safety note: Never route nitrous lines near electrical wiring without proper separation. A leak could cause a short circuit or fire.

Step 6: Install Fogger Nozzles

The fogger nozzles mount directly into the intake manifold. For LT1 engines:

• Locate the optimal position (typically 6-8 inches before the throttle body)
• Drill and tap holes according to the nozzle manufacturer’s specifications
• Use proper thread sealant on nozzle threads
• Ensure nozzles are oriented correctly for optimal spray pattern

Step 7: Connect Fuel Lines

Your fogger system requires a dedicated fuel supply. Connect high-pressure fuel lines from your fuel rail or regulator to the fuel solenoid, then to the fogger nozzles.

Fuel pressure considerations:

• Most fogger systems require 45-65 PSI fuel pressure
• Use a separate fuel regulator if necessary
• Ensure your fuel pump can handle the additional demand

Step 8: Pressure Test the System

Never skip this step! Before connecting to your nitrous bottle, pressure test the entire system:

1. Use compressed air or nitrogen at 50-75 PSI
2. Apply soapy water to all fittings
3. Look for bubbles indicating leaks
4. Fix any leaks before proceeding

For more information on nitrous oxide safety protocols, visit Wikipedia’s article on nitrous oxide.

Step 9: Electrical Connections

Wire your solenoids to a reliable power source with an appropriate fuse. Most installations use:

• Arming switch (mounted in the cabin)
• Wide-open-throttle switch or pedal-mounted microswitch
• Relay to handle current draw
• 15-20 amp fuse for circuit protection

Step 10: Initial Startup and Tuning

With everything connected:

1. Start with a small nitrous shot (50-75 HP equivalent)
2. Monitor air/fuel ratios closely
3. Adjust jetting as needed for optimal performance
4. Gradually increase shot size as confidence grows

Common Mistakes to Avoid When Plumbing Nitrous Lines

Even experienced builders make mistakes. Here are the most common pitfalls:

FAQ Section

Q1: What size hard line should I use for a fogger LT1 setup?

A: For most LT1 fogger applications producing 150-250 horsepower, 3/8″ stainless steel tubing is sufficient. For larger shots exceeding 250 HP, consider upgrading to 1/2″ tubing to minimize pressure drop. The key is matching line size to your expected flow requirements.

Q2: Can I use aluminum tubing instead of stainless steel?

A: While aluminum tubing is lighter and easier to work with, stainless steel is strongly recommended for nitrous applications. Aluminum is more susceptible to work hardening, cracking under vibration, and corrosion from moisture in the nitrous system. The extra cost of stainless steel is worth the reliability and safety benefits.

Q3: How far should fogger nozzles be from the throttle body?

A: Optimal placement is typically 6-10 inches upstream from the throttle body. This distance allows adequate time for the nitrous/fuel mixture to atomize and mix with incoming air while ensuring even distribution to all cylinders. Placement too close can result in poor distribution; too far can cause reversion issues.

Q4: Do I need to upgrade my fuel system for a fogger setup?

A: Yes, in most cases. A fogger system adding 150+ HP will significantly increase fuel demand. Ensure your fuel pump can deliver adequate volume, and consider upgrading to larger injectors if running above 200 HP shot. A dedicated fuel pressure regulator is also recommended to maintain consistent pressure during nitrous activation.

Q5: How often should I inspect my nitrous hard lines?

A: Perform a visual inspection before every use and a thorough inspection with pressure testing every 6 months or after any impact event. Look for signs of corrosion, cracking, loose fittings, or chafing. Replace any questionable components immediately – never take chances with nitrous systems.

Q6: What’s the difference between wet and dry fogger systems?

A: A wet fogger system introduces both nitrous and fuel through the fogger nozzles, while a dry system only introduces nitrous, relying on the existing fuel system to add extra fuel. Wet systems are more common with fogger setups because they provide better control over the air/fuel ratio and are generally safer for beginners.

Conclusion

Learning how to plumb nitrous hard line for fogger LT1 might seem daunting at first, but with careful planning, quality materials, and attention to detail, you can achieve a professional-quality installation that will serve you well for years. The key takeaways are:

• Plan your route carefully before cutting any tubing
• Invest in quality materials – don’t cut corners on safety-critical components
• Create perfect flare fittings – this is where most failures occur
• Pressure test thoroughly before ever connecting to a nitrous bottle
• Start conservative with your nitrous shot and work your way up

Remember, the goal isn’t just to make power – it’s to make power safely and reliably. Take your time, double-check your work, and enjoy the incredible performance gains that a properly installed fogger system can provide to your LT1 engine.

Did you find this guide helpful? Share it with your fellow car enthusiasts on social media and help spread the knowledge! Don’t forget to bookmark this page for future reference as you work on your project.

Happy building, and stay safe out there!
