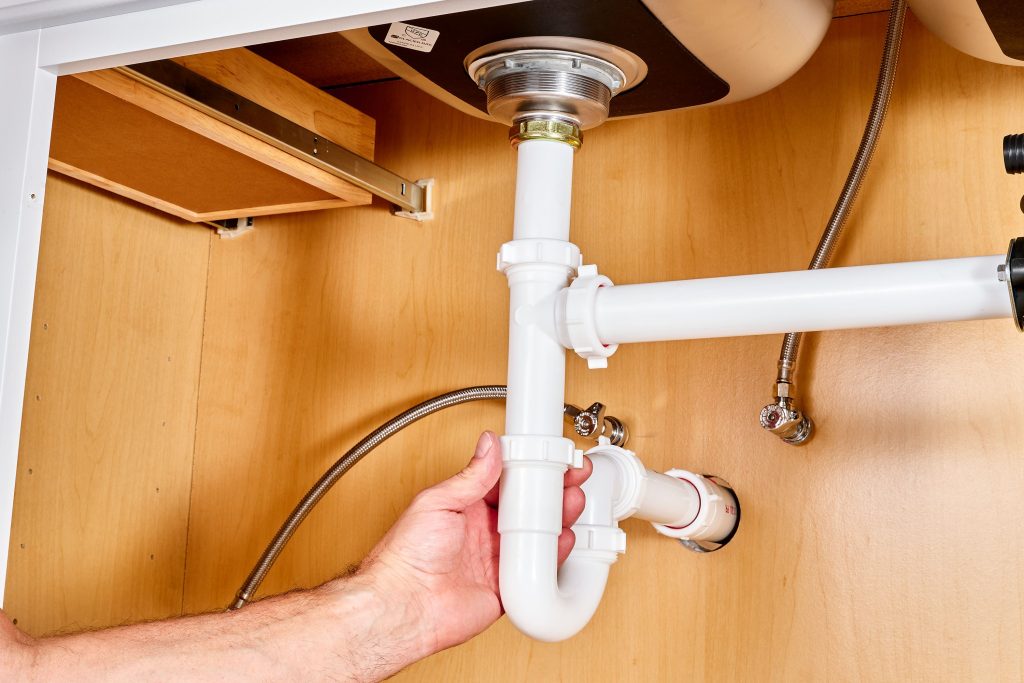

Mastering PVC Pipe Slope With 45 Angles: A Pro Guide

Have you ever dealt with a slow-draining sink or a recurring clog in your basement? Often, the culprit isn’t what’s going down the drain, but how the pipes are angled underneath it. Getting the gradient right is critical for gravity-fed systems, and using the wrong fittings can lead to stagnant water and serious blockages. If you are wondering how to plumb PVC pipe slope with 45 angles, you are in the right place. This guide will walk you through the precise calculations and installation steps needed to ensure your drainage system flows smoothly for years to come.

Why Use 45-Degree Angles Instead of 90s?

Before we dive into the measurements, it is crucial to understand why professional plumbers prefer 45-degree angles for horizontal runs. Many DIYers make the mistake of using sharp 90-degree elbows in their drainage lines. While this saves space, it creates significant turbulence.

When wastewater hits a sharp 90-degree turn, it slams into the outer wall of the fitting. This causes two major issues:

1. Solids Separation: Heavy waste separates from the water and settles at the bottom of the elbow.
2. Flow Restriction: The sudden change in direction reduces the velocity of the water, making it harder to push debris through the rest of the line.

By using two 45-degree fittings separated by a short piece of pipe (often called a “street” or “nipple”), you create a gradual curve. This maintains the momentum of the water and keeps solids suspended in the flow. According to general plumbing standards, this gentle transition is essential for maintaining the integrity of your slope.

For more detailed technical specifications on fluid dynamics in piping, you can refer to resources on Hydraulics to understand how pressure and flow interact in closed systems.

Understanding the Golden Rule: The 1/4 Inch Per Foot Slope

The most critical concept in drainage plumbing is the slope, also known as the “fall” or “gradient.” For standard residential PVC drain lines (typically 1.5 to 3 inches in diameter), the universal standard is 1/4 inch of drop per foot of horizontal run.

What Does This Mean in Practice?

If you are running a pipe that is 10 feet long, the end of the pipe must be 2.5 inches lower than the beginning.

• Too Flat: Water moves too slowly, allowing solids to settle and cause clogs.
• Too Steep: Water moves faster than the solids, leaving waste behind to dry out and stick to the pipe walls.

Note: Always check your local building codes, as they may have specific variations.

How To Plumb PVC Pipe Slope With 45 Angles: Step-by-Step

Now, let’s get into the practical application. Here is how you combine the correct slope with 45-degree fittings for a seamless installation.

Step 1: Measure and Mark Your Run

Start by measuring the total horizontal distance your pipe needs to cover. Let’s assume you have a 6-foot run.

• Calculate the total drop needed: $6\text{ feet}\times 0.25\text{ inches}=1.5\text{ inches}$6 feet×0.25 inches=1.5 inches.
• Mark your starting point (high end) and your ending point (low end) on the wall or framing studs. Ensure the ending point is exactly 1.5 inches lower than the start.

Step 2: Dry Fit the 45-Degree Fittings

Never glue your pipes immediately. Always dry fit first.

• Take your first 45-degree elbow and attach it to your starting pipe.
• Connect a short piece of PVC (about 2–3 inches) to the other end of the 45.
• Attach the second 45-degree elbow to complete the turn.
• Pro Tip: Point the opening of the second 45-degree elbow directly toward your next destination point. This ensures your angle is aligned with your slope.

Step 3: Check the Angle Alignment

Hold the assembled 45-degree turn against your marked line. Because you are using two 45s, you have created a smooth 90-degree turn, but it is spread out over a longer distance.

• Use a torpedo level or a digital angle finder.
• Place the level on the straight section of the pipe following the 45-degree turn.
• Adjust the position until the bubble indicates a 1/4 inch per foot slope. You may need to use pipe hangers or straps to hold the pipe at this exact angle before gluing.

Step 4: Glue and Assemble

Once the slope and angle are perfect:

1. Clean the ends of the pipes and the inside of the fittings with PVC primer (purple cleaner).
2. Apply PVC cement generously to both surfaces.
3. Push the pieces together firmly and give them a quarter-turn twist to distribute the glue.
4. Hold for 30 seconds. Do not let go, or the joint may slip out of alignment.
5. Wipe away excess glue.

Step 5: Verify the Flow

After the glue has set (wait at least 15–20 minutes), perform a water test. Pour a bucket of water down the line. It should disappear quickly without gurgling or backing up. If it pools, check your slope again.

Common Mistakes to Avoid When Using 45s

Even experienced DIYers can trip up on these details. Here is what to watch out for:

• Using “Long Sweep” vs. Standard 45s: For main drain lines, always use long sweep 45s if available. They offer an even gentler curve than standard 45s, further reducing friction.
• Ignoring the “Back Pitch”: Ensure your pipe doesn’t dip in the middle. A sagging pipe creates a “belly” where water collects. Use enough hangers (every 4 feet for horizontal PVC) to keep the line straight.
• Gluing in Cold Weather: If you are working in a garage or basement below 40°F (4°C), the PVC cement may not cure properly. Use cold-weather cement or warm the pipes slightly before assembly.

FAQ Section

Q1: Can I use a single 90-degree elbow instead of two 45s?

A: You can, but it is not recommended for horizontal drainage lines. A single 90-degree elbow creates a sharp turn that traps debris. Two 45-degree fittings create a smoother transition that maintains water velocity and prevents clogs. However, 90-degree elbows are acceptable for vertical drops where gravity is doing all the work.

Q2: What if I don’t have enough space for two 45-degree fittings?

A: If space is tight, consider using a long-sweep 90-degree elbow. These are specifically designed for drainage and have a much wider radius than standard 90s. They are a good compromise between space-saving and flow efficiency.

Q3: How do I calculate the slope for pipes larger than 3 inches?

A: For pipes 4 inches and larger, the required slope often decreases to 1/8 inch per foot. Larger pipes have more volume and can move waste effectively with less gradient. Always consult your local plumbing code for the exact requirements based on pipe diameter.

Q4: Do I need to support the pipe between the 45-degree fittings?

A: Generally, no. The short nipple connecting the two 45s is rigid once glued. However, you must support the pipe within 12 inches of the fitting assembly and every 4 feet thereafter to prevent sagging.

Q5: Can I use 45-degree angles for vent pipes?

A: Yes, 45-degree angles are excellent for vent pipes as well. They allow air to flow freely and prevent condensation from pooling in sharp corners. The slope rules are less critical for vents since they carry air, not waste, but keeping them clean and clear is still vital.

Conclusion

Learning how to plumb PVC pipe slope with 45 angles is a skill that pays dividends in the longevity and reliability of your home’s plumbing system. By avoiding sharp 90-degree turns and adhering to the 1/4 inch per foot slope rule, you ensure that waste moves efficiently out of your home. Remember, patience during the dry-fit phase saves hours of headache later.
