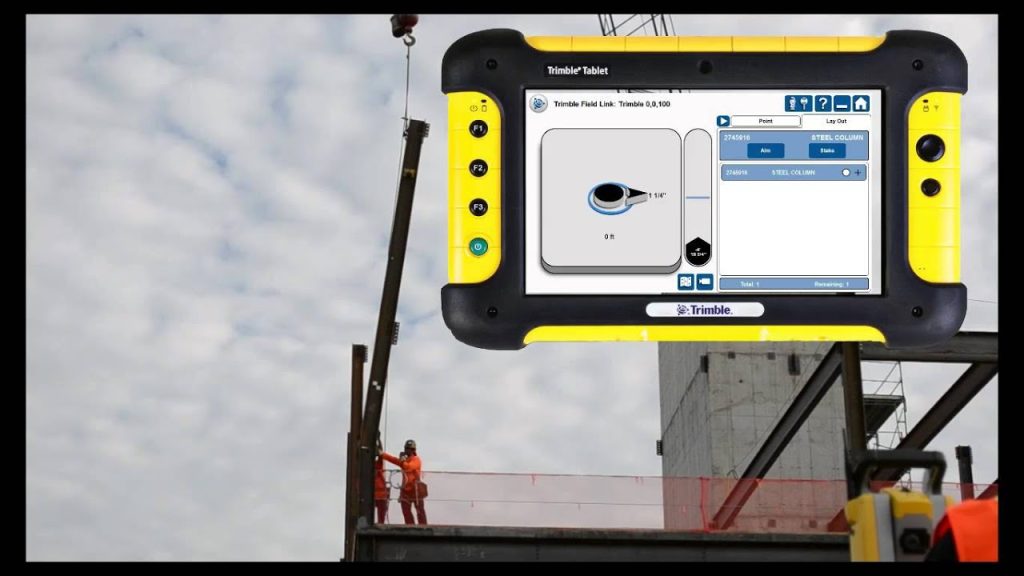

Plumb Structural Steel with a Total Station: Pro Guide

Ensuring that structural steel columns are perfectly vertical is not just a matter of aesthetics; it is critical for the structural integrity and safety of any building. Even a slight deviation can compound as you build higher, leading to costly rework or dangerous instability. If you are wondering how to plumb structural steel with a total station, you are looking for precision, efficiency, and reliability in your surveying workflow. This guide will walk you through the exact steps professionals use to achieve millimeter-level accuracy on the job site.

Why Use a Total Station for Steel Plumbing?

Before diving into the “how,” it is essential to understand the “why.” Traditional methods like using a plumb bob or optical plummet are still valid, but they have limitations. A plumb bob is susceptible to wind, vibration, and human error in reading the swing. An optical plummet requires clear line-of-sight from top to bottom, which is often obstructed by decking or other trades.

A total station offers distinct advantages:

• Precision: Modern instruments offer accuracy within 1-2 millimeters over long distances.
• Speed: You can check multiple points quickly without waiting for a bob to settle.
• Data Recording: Digital records provide proof of compliance for inspectors and engineers.
• Flexibility: You can work from a distance, avoiding interference from ground-level activities.

According to industry standards, vertical tolerance for steel columns is typically tight. For example, the American Institute of Steel Construction (AISC) specifies strict tolerances for column plumbness. Using advanced technology ensures you stay well within these limits. For more details on general surveying principles, you can refer to Wikipedia’s entry on Surveying.

Essential Equipment Checklist

You cannot achieve high-quality results with poor tools. Before heading to the field, ensure you have the following:

1. High-Precision Total Station: Ideally, one with motorized tracking and reflectorless measurement capabilities.
2. Prism Pole with Circular Bubble: Ensure the bubble is calibrated.
3. Steel Targets or Reflective Tape: For attaching to the steel column if using reflectorless mode.
4. Communication Radios: To coordinate between the instrument operator and the rod person.
5. Field Book or Data Collector: For recording measurements immediately.

Step-by-Step Guide: How To Plumb Structural Steel With A Total Station

This process assumes you already have established control points on the ground. If not, you must perform a resection or traverse to establish your station position first.

Step 1: Instrument Setup and Leveling

The foundation of accurate plumbing is a perfectly leveled instrument.

1. Set up your tripod over the known control point. Make sure the tripod head is roughly level and stable.
2. Mount the total station and secure it tightly.
3. Use the circular bubble to roughly level the instrument by adjusting the tripod legs.
4. Use the electronic bubble (or tubular bubble) to fine-tune the leveling using the foot screws.
5. Crucial Check: Rotate the instrument 90 degrees and check the level again. Repeat until the bubble remains centered in all positions.

Step 2: Backsight and Orientation

Accuracy depends on correct orientation.

1. Aim at your backsight point (another known control point).
2. Lock the horizontal motion.
3. Set the horizontal angle to the known bearing or zero out the instrument, depending on your project’s coordinate system.
4. Measure the distance and angle to verify the backsight coordinates match your expected values. If the discrepancy is more than 2-3mm, re-check your setup.

Step 3: Establishing the Reference Line

To plumb a column, you need to compare its current position against its theoretical design position.

1. Input the design coordinates of the column base and the column top into your total station’s stakeout function.
2. The total station will calculate the required horizontal angle and distance to the theoretical centerline of the column.

Step 4: Measuring the Column Base

1. Place the prism pole at the base of the column. Most steel columns have center marks or bolt holes that indicate the center.
2. Measure the position. Record the deviation (Delta X and Delta Y) from the design coordinate.
3. If the base is not yet grouted or fixed, adjust it now. If it is fixed, note the offset. You will need to account for this offset when checking the top.

Step 5: Measuring the Column Top

This is the critical step for determining plumbness.

1. Aim the total station at the top of the column.
   • Option A (Prism): If accessible, hold the prism at the top center mark.
   • Option B (Reflectorless): If the column is too high or inaccessible, use reflective tape on the column face. Measure multiple points on the face to calculate the center.
2. Record the horizontal position of the top.
3. Compare the top’s position to the base’s position.

Step 6: Calculating Plumbness

Plumbness is the difference between the top and bottom positions relative to the vertical axis.

• Formula: Plumb Error = (Top Coordinate - Base Coordinate) - Design Verticality
• Ideally, if the base is on target, the top should also be on target.
• If the base has an offset, the top must have the same offset to be considered plumb.

Example:

• Design X: 100.000m
• Base Actual X: 100.005m (Offset +5mm)
• Top Actual X: 100.005m (Offset +5mm)
• Result: The column is plumb, even though it is shifted 5mm from the design line.

If the Top Actual X was 100.015m, the column is leaning 10mm away from the base offset.

Common Challenges and Solutions

Best Practices for Accuracy

To ensure your data holds up to engineering scrutiny, follow these professional tips:

• Double-Check Your Work: Never rely on a single measurement. Take at least two sets of readings for both the base and the top.
• Monitor Temperature: Extreme temperatures can affect steel dimensions and instrument electronics. Allow your equipment to acclimate to the ambient temperature.
• Use Correct Prism Constants: Ensure your total station is set to the correct prism constant (usually -30mm or 0mm) for your specific prism. An incorrect setting introduces a systematic error.
• Communicate Clearly: Miscommunication between the instrument operator and the rod person is a leading cause of errors. Use clear hand signals or radios.

FAQ Section

1. What is the acceptable tolerance for plumb structural steel?

Tolerances vary by project specifications and local codes. However, the AISC Code of Standard Practice typically allows a tolerance of 1/500 of the height of the column, or 1 inch in 20 feet, whichever is less. Always consult the project’s structural drawings for specific requirements.

2. Can I plumb steel without a prism?

Yes, modern total stations have reflectorless (EDM) technology that can measure distances to surfaces without a prism. This is useful for high columns where sending a person up is unsafe. However, ensure the surface is clean and perpendicular to the beam for the best accuracy.

3. How do I account for a column base that is already out of position?

If the base is fixed and off-center, the column is still considered “plumb” if the top is offset by the exact same amount and direction. You are measuring verticality, not just position. Document the base offset clearly in your report so the structural engineer can approve the deviation.

4. What is the best time of day to plumb steel?

Early morning or late afternoon is ideal. Midday sun can cause thermal expansion in the steel, potentially bending the column slightly. It can also cause heat shimmer, which affects the laser beam’s accuracy.

5. Do I need to adjust for Earth’s curvature?

For typical building heights (under 100 meters), Earth’s curvature and refraction corrections are negligible for plumbing purposes. However, for very tall skyscrapers, your total station software may automatically apply these corrections if enabled. Check your instrument settings.

6. How often should I recalibrate my total station?

Professional surveyors recommend annual calibration by a certified technician. Additionally, perform field checks weekly to verify the collimation axis and level bubble accuracy.

Conclusion

Learning how to plumb structural steel with a total station is a vital skill for any modern construction surveyor. By combining precise instrument setup, careful measurement techniques, and a thorough understanding of offsets, you can ensure that every column stands true. This not only keeps the project on schedule but also guarantees the safety and longevity of the structure.

Remember, technology is only as good as the operator. Take your time, double-check your backsights, and communicate effectively with your team.
