Are you frustrated by sluggish pneumatic actuators that slow down your production line? Many facility managers and maintenance technicians struggle with inefficient air flow, leading to wasted energy and reduced cycle times. Knowing how to plumb up quick exhaust pneumatic cylinders is the secret weapon to instantly boosting retraction or extension speeds without upgrading your entire compressor system. In this guide, we will walk you through the exact steps to install these valves correctly, ensuring your machinery runs smoother, faster, and more efficiently.
Why Your Pneumatic System Needs a Quick Exhaust Valve
Before diving into the plumbing process, it is crucial to understand why you are adding this component. A standard pneumatic circuit relies on the directional control valve (DCV) to exhaust air back through the ports. However, long tubing lines create resistance (backpressure), which significantly slows down the cylinder’s movement.
A Quick Exhaust Valve (QEV) solves this by allowing air to escape directly at the cylinder port, rather than traveling all the way back to the control valve. This simple addition can increase cycle speeds by up to 30–50% in high-speed applications.
The Physics of Speed
When air is trapped in a long tube, it acts like a spring. By venting it locally, you eliminate the “tunnel effect” of restricted airflow. According to fluid dynamics principles, reducing the path length for exhaust air drastically lowers the pressure drop, allowing the piston to move with less resistance.
Tools and Materials Required
To ensure a professional installation, gather the following items before starting. Using the right tools prevents leaks and ensures a secure fit.
Quick Exhaust Valve: Ensure the port size matches your cylinder (e.g., 1/4″ NPT, 1/2″ BSP).
Thread Sealant: Teflon tape or liquid thread sealant rated for pneumatic systems.
Adjustable Wrenches: Two wrenches are recommended to prevent twisting the cylinder ports.
Flow Control Valves (Optional): For fine-tuning speed after installation.
Leak Detection Solution: Soapy water or a commercial leak detector spray.
Safety Note: Always depressurize the system completely before beginning any work. Lock out/tag out (LOTO) procedures must be followed to prevent accidental activation.

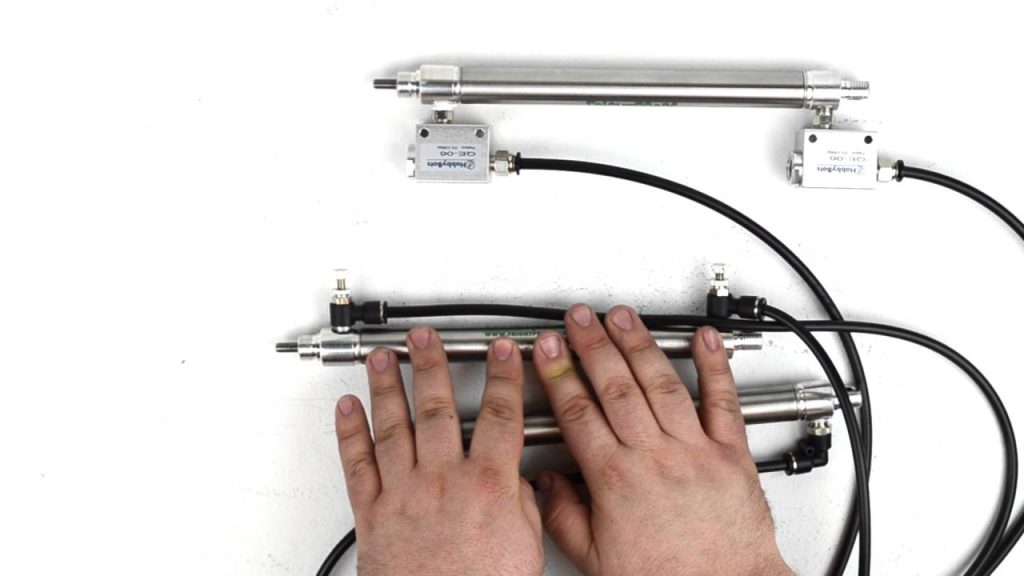

Step-by-Step Guide: How to Plumb Up Quick Exhaust Pneumatic Cylinders
Follow these precise steps to integrate the QEV into your existing circuit. We will focus on a standard double-acting cylinder where we want to speed up the retraction stroke, which is the most common application.
Step 1: Identify the Correct Port
Determine which side of the cylinder you want to accelerate. If you want faster retraction, you will install the QEV on the rod end port. If you need faster extension, install it on the cap end port.
Tip: Most users install QEVs on the rod end because the rod volume is smaller, but backpressure affects it significantly during high-speed returns.
Step 2: Prepare the Threads
Clean the threads on both the cylinder port and the inlet port of the Quick Exhaust Valve. Apply Teflon tape clockwise (2–3 wraps) or a thin layer of liquid sealant.
Warning: Do not let sealant enter the airway. Excess tape shavings can clog the valve mechanism, causing failure.
Step 3: Install the Quick Exhaust Valve
Screw the INLET port of the QEV directly into the cylinder port. Hand-tighten first, then use an adjustable wrench to secure it.
Torque Specification: Tighten until snug, typically 15–20 ft-lbs for brass fittings. Avoid over-tightening, which can crack the cylinder housing.
Step 4: Connect the Supply Line
Connect your main air supply line from the directional control valve to the OUTLET (or sometimes labeled “Cylinder” depending on brand, but usually, the flow goes from DCV to QEV Outlet, then into Cylinder via Inlet? Correction: Let’s clarify the standard QEV plumbing logic below).
Correct Plumbing Logic:
Port 1 (Inlet): Connects to the Directional Control Valve (Supply).
Port 2 (Outlet): Connects directly to the Cylinder Port.
Port 3 (Exhaust): Open to atmosphere (often has a silencer).
Wait, there are two types of mounting:
Direct Mount: The QEV screws directly into the cylinder. The supply line connects to the QEV’s input.
Inline Mount: The QEV is placed in the tubing line near the cylinder.
For this guide, we assume Direct Mount for maximum efficiency.
Revised Step 4: Connect the air supply tubing from your directional control valve to the Input/Supply port of the Quick Exhaust Valve. Use push-to-connect fittings or barbed fittings with clamps as appropriate.
Step 5: Install a Silencer (Muffler)
The exhaust port of the QEV will release air rapidly, creating significant noise. Screw a pneumatic silencer into the exhaust port. This reduces noise levels from ~100 dB to a safer ~75 dB, protecting worker hearing.
Step 6: Pressure Testing and Leak Check
Slowly pressurize the system.
Apply leak detection solution to all connections.
Look for bubbles. If bubbles appear, depressurize, tighten slightly, and retest.
Cycle the cylinder 5–10 times to ensure smooth operation.
Check arrow markings on the QEV body. Air must flow in to extend/retract and out quickly.
Oversized Valve
Wasted space and cost.
Match the QEV port size to the cylinder port size.
Undersized Supply Line
Bottleneck at the input.
Ensure the tubing feeding the QEV is large enough to fill the cylinder quickly.
No Silencer
Excessive noise pollution.
Always install a muffler on the exhaust port.
Optimizing Performance: Fine-Tuning Your Setup
Installing the valve is just the first step. To get the most out of your system, consider these advanced tips:
Use Flow Controls on the Supply Side
While the QEV handles exhaust, you may still want to control the speed of the incoming air. Install a one-way flow control valve on the supply line leading to the QEV. This allows you to slow down the approach if the cylinder slams too hard, while still allowing instant exhaust.
Monitor Air Consumption
Adding a QEV does not increase air consumption; it actually makes the system more efficient by reducing cycle time. However, faster cycling means more cycles per minute. Monitor your compressor load to ensure it can handle the increased frequency.
External Resource for Further Learning
For a deeper understanding of pneumatic symbols and circuit diagrams, refer to the Pneumatics entry on Wikipedia, which provides standardized ISO symbols used in industrial schematics.
FAQ Section
Q1: Can I use a quick exhaust valve on both ends of the cylinder?
A: Yes, you can install QEVs on both the cap and rod ends. This is ideal for applications requiring high speed in both directions, such as sorting machines or pick-and-place robots. Ensure your air supply can handle the rapid demand.
Q2: Does a quick exhaust valve increase air consumption?
A: No, the total volume of air used per stroke remains the same. However, because the cycle time is shorter, you may complete more cycles per minute, which increases the average air consumption rate over time.
Q3: What size quick exhaust valve should I choose?
A: The QEV port size should match the cylinder port size. If your cylinder has a 1/4″ NPT port, use a 1/4″ NPT QEV. Using a smaller valve will restrict flow, negating the benefits. Using a larger valve is safe but adds unnecessary cost and bulk.
Q4: Can I install a QEV far from the cylinder?
A: It is not recommended. The primary benefit of a QEV is eliminating backpressure in the tubing. If you place the valve far from the cylinder, the air still has to travel through the long tube to escape, defeating the purpose. Install it as close to the cylinder port as possible.
Q5: Why is my cylinder jerking after installing a QEV?
A: Jerking is often caused by uneven friction or insufficient lubrication. Fast exhaust can reveal mechanical issues that were masked by slower speeds. Check the cylinder rod for bends, ensure proper lubrication, and consider adding a cushioning adjustment if available.
Q6: Do I need a filter before the quick exhaust valve?
A: Filters should be installed upstream, near the air preparation unit (FRL), not immediately before the QEV. However, ensure your main air supply is clean. Debris can clog the QEV’s internal poppet, causing it to stick open or closed.
Conclusion
Learning how to plumb up quick exhaust pneumatic cylinders is a high-impact, low-cost upgrade for any industrial automation setup. By reducing exhaust backpressure, you unlock faster cycle times, reduce wear on directional valves, and improve overall system responsiveness.
Remember the key takeaways:
Install the QEV as close to the cylinder as possible.
Match the port sizes correctly.
Always use a silencer to protect your team’s hearing.
Test for leaks thoroughly before full operation.
