Mastering Hot Water Recirculating Loops: A Pro Guide

Have you ever stood shivering in the shower, waiting minutes for the water to turn hot? It is a frustrating daily ritual that wastes hundreds of gallons of water annually. Learning how to properly plumb a hot water recirculating loop is the ultimate solution to instant hot water, improved comfort, and significant utility savings.

In this guide, we will break down the complex plumbing concepts into manageable steps. Whether you are building a new home or retrofitting an existing one, understanding the mechanics of a recirculation system will help you make informed decisions. Let’s dive into the details of creating a system that delivers hot water on demand.

Why Install a Hot Water Recirculating Loop?

Before we pick up a wrench, it is essential to understand why this system is worth the investment. Traditional plumbing systems rely on gravity and pressure to push water from the heater to the faucet. When you turn off the tap, the hot water sitting in the pipes cools down. The next time you need hot water, you must flush out this cooled water first.

According to the U.S. Department of Energy, water heating accounts for about 18% of home energy use. A recirculating loop mitigates waste by keeping hot water moving through the pipes, ensuring it is always near the fixture. This not only conserves water but also reduces the strain on your water heater, potentially extending its lifespan.

Understanding the Two Main System Types

When figuring out how to properly plumb a hot water recirculating loop, you must choose between two primary configurations: the Dedicated Return Line and the Comfort System (Retrofit).

1. Dedicated Return Line System

This is the gold standard for new construction. It involves installing a separate pipe that runs from the furthest fixture back to the water heater. A pump pushes hot water through the supply lines and returns the cooling water back to the heater via this dedicated line.

• Pros: Most efficient, consistent temperature, no impact on cold water lines.
• Cons: Requires extensive piping during construction; difficult to retrofit.

2. Comfort System (Under-Sink Retrofit)

This system uses the existing cold water line as the return path. A pump is installed under the sink furthest from the water heater, with a check valve connecting the hot and cold lines.

• Pros: Easy to install in existing homes, lower upfront cost.
• Cons: Cold water may feel lukewarm initially, potential for higher energy use if not timer-controlled.

Step-by-Step: How to Properly Plumb a Hot Water Recirculating Loop

If you are undertaking a new build or a major renovation, installing a dedicated return line is the best approach. Here is the professional workflow.

Step 1: Plan the Loop Layout

Identify the “furthest fixture” from your water heater. This is usually a master bathroom or a kitchen sink on the opposite side of the house. Your loop must extend to this point and return. Sketch a diagram showing the supply line going out and the return line coming back.

Step 2: Select the Right Pump

Not all pumps are created equal. For residential use, look for a bronze-bodied pump designed for potable water. Stainless steel impellers are preferred for durability. Ensure the pump has a built-in timer or thermostat control to prevent it from running 24/7, which wastes electricity.

Step 3: Install the Supply and Return Lines

Use PEX-A or copper piping for both lines. The supply line carries hot water from the heater to the fixtures. The return line should connect to the end of the hot water line at the furthest fixture.

• Pro Tip: Insulate both the supply and return lines with foam pipe insulation. This reduces heat loss and improves the system’s efficiency by up to 20%.

Step 4: Connect the Return Line to the Water Heater

The return line must connect to the cold water inlet of the water heater. This allows the cooled water to be reheated. Install a check valve on the return line before it enters the heater to prevent backflow when the pump is off.

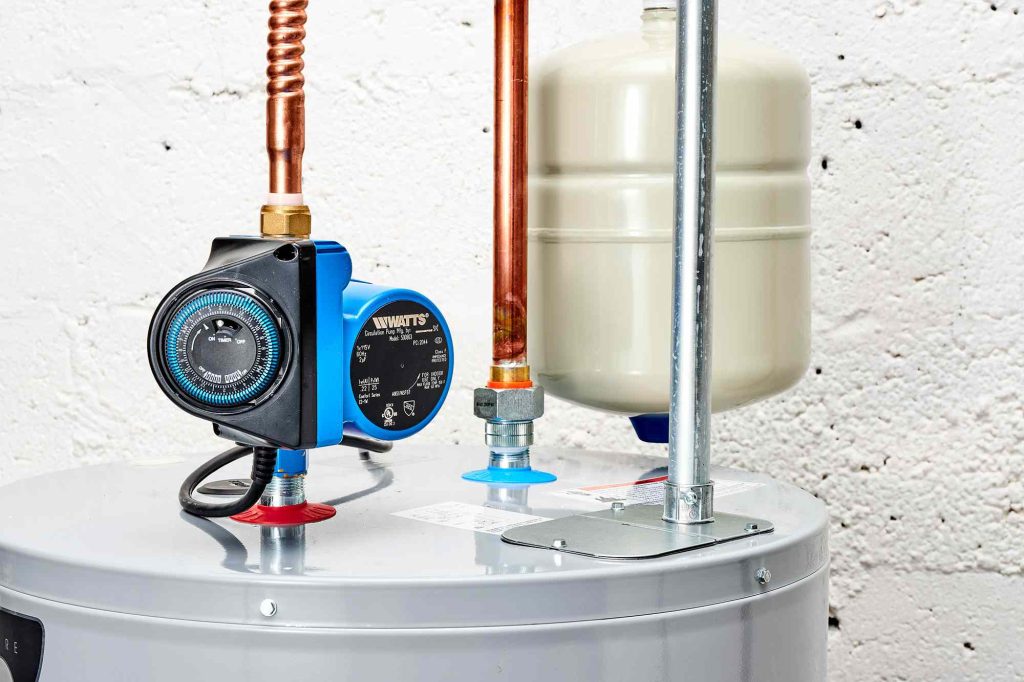

Step 5: Install the Pump and Controls

Mount the pump on the return line, close to the water heater. Connect the electrical components according to the manufacturer’s instructions. If using a timer, set it to operate during peak usage hours (e.g., 6:00 AM – 9:00 AM and 5:00 PM – 9:00 PM).

For more detailed technical specifications on plumbing standards, you can refer to resources like Wikipedia’s page on Water Heating to understand broader industry contexts.

Common Mistakes to Avoid

Even experienced DIYers can stumble when learning how to properly plumb a hot water recirculating loop. Avoid these pitfalls:

• Ignoring Insulation: Uninsulated pipes lose heat rapidly, forcing the pump and heater to work harder. Always insulate.
• Oversizing the Pump: A pump that is too powerful can cause noise and erosion in the pipes. Match the pump’s flow rate to your home’s pipe diameter.
• Skipping the Check Valve: Without a check valve, cold water can push back into the hot line when the pump is off, leading to inconsistent temperatures.
• Running the Pump 24/7: This drastically increases energy bills. Use a timer, aquastat, or smart control to run the pump only when needed.

Maintenance Tips for Longevity

A well-plumbed system requires minimal maintenance, but regular checks ensure optimal performance.

1. Inspect for Leaks: Check the pump connections and valves every six months.
2. Clean the Filter: Many recirculating pumps have a small inlet filter. Clean it annually to prevent debris from clogging the impeller.
3. Test the Timer: Ensure the timer is synchronized with your daily routine. Adjust seasonsally if your usage patterns change.
4. Listen for Noise: Humming or grinding sounds may indicate air in the system or a failing bearing. Bleed the air out or consult a plumber if noises persist.

FAQ Section

Q1: Does a recirculating loop work with tankless water heaters?

Yes, but it requires specific considerations. Tankless heaters need a minimum flow rate to activate. Some models have built-in recirculation pumps, while others require an external pump and a bypass valve. Always check the manufacturer’s guidelines for compatibility.

Q2: How much energy does a recirculating pump use?

Modern energy-efficient pumps consume between 40 to 100 watts. While this adds to your electric bill, the savings from reduced water waste and shorter shower wait times often offset the cost. Using a timer can reduce energy consumption by up to 50%.

Q3: Can I install a recirculating system in an existing home without tearing down walls?

Absolutely. The “Comfort System” or retrofit kit is designed for this purpose. It installs under the sink furthest from the heater and uses the cold water line as the return path. It is a popular DIY project that requires no major demolition.

Q4: Will the cold water taste warm if I use a retrofit system?

Initially, yes. Since the cold line acts as the return path, the water sitting in it may be lukewarm. However, once you run the tap for a few seconds, fresh cold water from the main line will flush it out. Installing a timer minimizes this effect by limiting when the loop is active.

Q5: What size pipe should I use for the return line?

Typically, the return line should be the same diameter as the hot water supply line, often ½ inch or ¾ inch depending on your home’s layout. Using a smaller diameter can restrict flow, while a larger one may slow down the water velocity, causing it to cool before returning.

Q6: Is a professional plumber required for installation?

For a dedicated return line in new construction, a professional is recommended to ensure code compliance and proper integration with the water heater. For retrofit kits, many homeowners successfully complete the installation themselves with basic plumbing tools.

Conclusion

Learning how to properly plumb a hot water recirculating loop transforms your daily routine. No more wasted water, no more shivering waits. By choosing the right system type, following precise installation steps, and maintaining your equipment, you create a luxurious and efficient home environment.

Whether you opt for a dedicated return line during a remodel or a simple under-sink retrofit, the benefits are clear. You save water, reduce energy waste, and gain the convenience of instant hot water.
