Have you ever stared at a leaking pipe under your sink, wishing there was an easier way to fix it without soldering torches or complex threading? You are not alone. Many homeowners and even novice plumbers struggle with traditional connection methods that require significant skill and time. Understanding how to properly use quick connect in plumbing fittings can transform a stressful repair into a simple, ten-minute task. These innovative connectors offer a reliable, leak-free solution that simplifies plumbing projects while maintaining professional-grade integrity.
What Are Quick Connect Plumbing Fittings?
Before diving into the installation process, it is essential to understand what these fittings are. Quick connect fittings, often referred to as “push-to-connect” or “sharkbite-style” fittings, allow you to join pipes without glue, solder, or special tools. They utilize a stainless steel grab ring and an O-ring seal to create a watertight bond instantly.
According to industry standards, these fittings are approved for use behind walls and underground, provided they are installed correctly. This versatility makes them a favorite among professionals who need speed without sacrificing safety. For a deeper technical understanding of fluid power connections, you can refer to general engineering principles on Wikipedia.
Why Choose Quick Connect Over Traditional Methods?
When deciding on a plumbing method, weighing the pros and cons is crucial. Here is a breakdown of why quick connect fittings have become a staple in modern US homes.
Advantages
- Speed: Installation takes seconds per connection.
- No Special Tools: No need for propane torches, crimpers, or glue.
- Versatility: Works with Copper, PEX, CPVC, and PE-RT pipes.
- Removability: Most brands allow you to disconnect and reuse the fitting if needed.
Disadvantages
- Cost: They are generally more expensive than standard copper or PVC fittings.
- Space Requirements: They require slightly more clearance than soldered joints.
- Aesthetics: Some users find them bulkier than traditional fittings.
| Feature | Quick Connect | Soldered Copper | PEX Crimp |
|---|---|---|---|
| Installation Time | Seconds | Minutes | Minutes |
| Tools Required | None (optional deburrer) | Torch, solder, flux | Crimp tool |
| Skill Level | Beginner | Advanced | Intermediate |
| Reusability | Yes | No | No |
Step-by-Step: How To Properly Use Quick Connect In Plumbing Fittings
The most critical part of this guide is the execution. Even the best fitting will fail if the preparation is poor. Follow these exact steps to ensure a leak-free connection every time.
Step 1: Turn Off the Water and Drain Lines
Safety first. Locate your main water shut-off valve and turn it clockwise to close it. Open the lowest faucet in your house to drain any remaining pressure and water from the lines. This prevents messy sprays when you cut the pipe.
Step 2: Cut the Pipe Cleanly
Use a dedicated pipe cutter for copper or PEX. Avoid using a hacksaw if possible, as it can leave jagged edges. If you must use a saw, ensure the cut is perfectly straight. A crooked cut will prevent the O-ring from sealing properly.
Step 3: Deburr and Smooth the Ends
This is the step most beginners skip, leading to leaks.
- For Copper: Use a deburring tool to remove sharp outer edges. Then, use emery cloth or sandpaper to clean the outside of the pipe until it shines. Remove any oxidation or dirt.
- For PEX/CPVC: Ensure the cut end is smooth. Use a chamfering tool to slightly bevel the edge. This helps the pipe slide into the fitting without damaging the internal O-ring.
Pro Tip: The pipe end must be free of scratches, dents, or debris. Even a tiny particle of sand can compromise the seal.

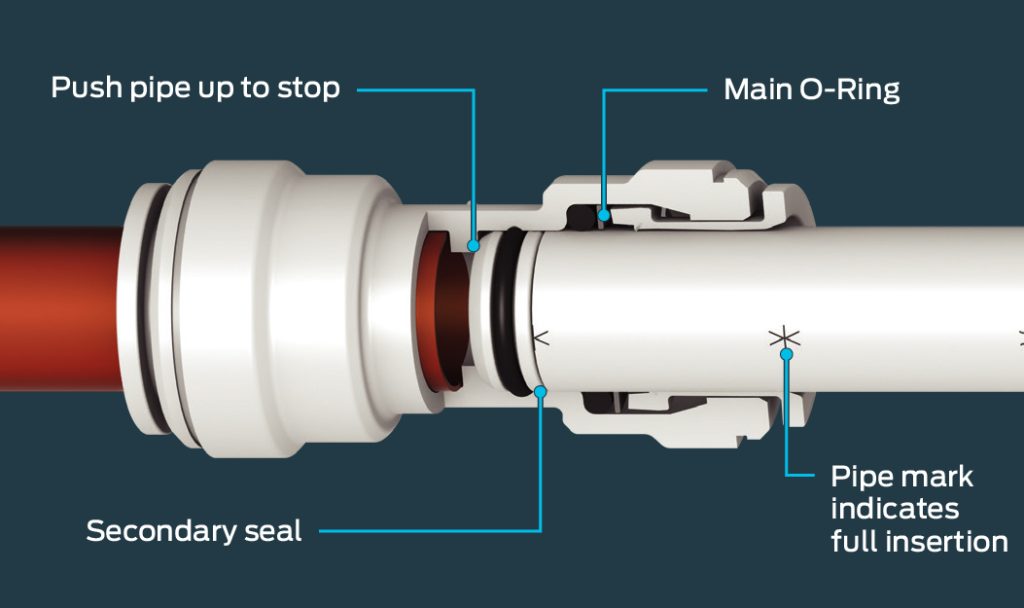

Step 4: Mark the Insertion Depth
Each fitting has a specific insertion depth. Look for the manufacturer’s markings on the fitting body. Use a marker or pencil to draw a line on your pipe at this exact depth. This visual guide ensures you push the pipe in far enough.
- Example: For a 1/2-inch fitting, the insertion depth is typically around 0.95 inches. Check your specific brand’s chart.
Step 5: Push to Connect
Align the pipe with the fitting. Push the pipe straight into the fitting with firm, steady pressure. Do not twist the pipe; just push. You will feel it stop when it hits the internal stop. Check your mark from Step 4 to ensure the pipe has reached the correct depth.
Step 6: Test for Leaks
Turn the water supply back on slowly. Inspect the connection immediately. Look for any drips or mist. It is also wise to place a dry paper towel around the joint for a few minutes to detect minor weeping. If it leaks, turn off the water, release the fitting, inspect the pipe end again, and retry.
Common Mistakes to Avoid
Even with simple tools, errors happen. Here are the most frequent pitfalls:
- Skipping the Deburring Step: Sharp edges on copper pipes can slice the O-ring inside the fitting during insertion.
- Not Pushing Far Enough: If the pipe isn’t fully seated, the grab rings won’t engage properly, leading to blow-offs under pressure.
- Using Damaged Pipe: Never insert a pipe that is scratched, dented, or out-of-round. The seal requires a perfect surface.
- Twisting During Installation: Twisting can misalign the internal components. Always push straight in.
Maintenance and Longevity Tips
Quick connect fittings are designed to last, but proper care extends their life.
- Avoid UV Exposure: If used outdoors, ensure the fittings are shielded from direct sunlight, as UV rays can degrade the plastic components over time.
- Check Periodically: During annual home maintenance checks, visually inspect exposed fittings for signs of corrosion or moisture.
- Pressure Limits: Most quick connect fittings are rated for up to 200 PSI at 73°F. Ensure your home’s water pressure regulator is set correctly (usually between 40–60 PSI) to avoid stressing the connections.
FAQ Section
Q1: Can I use quick connect fittings underground?
Yes, many brands are rated for direct burial. However, you must wrap the fitting in a protective tape or place it in a junction box to protect it from rocks and soil shifting. Always check the manufacturer’s specific guidelines for underground use.
Q2: Do I need special tools to remove a quick connect fitting?
While you can sometimes wiggle them loose, it is highly recommended to use a disconnect clip or tongs. These tools press the release collar evenly, allowing you to pull the pipe out without damaging the fitting or the pipe.
Q3: Are quick connect fittings safe for drinking water?
Yes, reputable brands are NSF/ANSI 61 certified, meaning they meet strict standards for drinking water system components. Always look for the NSF certification mark on the packaging.
Q4: Can I reuse a quick connect fitting after removing it?
Technically, yes, but it is not always recommended. The internal O-ring may have compressed or picked up debris. If you do reuse it, inspect the O-ring carefully and consider replacing it if it looks worn. For critical applications, using a new fitting is safer.
Q5: What pipe types are compatible with quick connect fittings?
Most standard quick connect fittings work with Copper (Types K, L, M), PEX-A, PEX-B, PEX-C, CPVC, and PE-RT. Always verify compatibility with the specific brand you are purchasing, as some may have limitations.
Q6: How long do quick connect fittings last?
Manufacturers typically offer warranties ranging from 25 years to lifetime guarantees. With proper installation and within normal pressure/temperature ranges, they can last as long as the piping system itself.
Conclusion
Learning how to properly use quick connect in plumbing fittings empowers you to handle repairs with confidence and efficiency. By following the steps outlined above—especially the crucial preparation of cutting and deburring—you can achieve professional-quality results without the hassle of soldering or gluing. These fittings are not just a shortcut; they are a reliable, code-compliant solution for modern plumbing needs.
If you found this guide helpful, please share it with your friends on social media or save it for your next DIY project. Happy plumbing!
