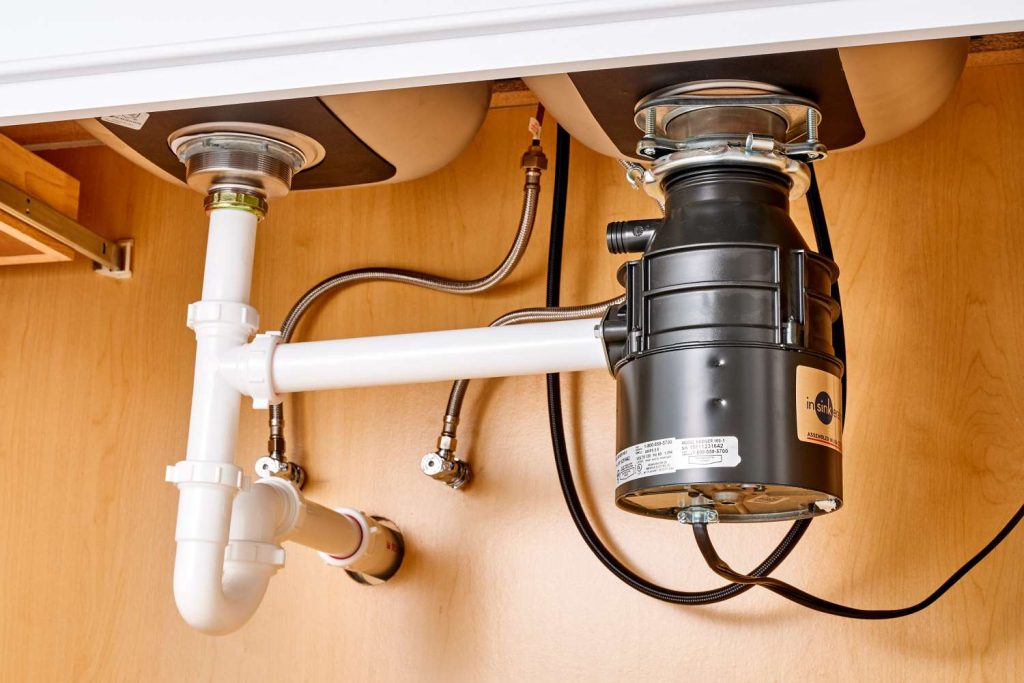

Are you staring at a pile of pipes and fittings, wondering if you can tackle this project yourself without causing a flood? You are not alone; many homeowners feel intimidated by plumbing, but with the right guidance, it is entirely manageable. Understanding how to right install a new sink plumbing layout is the key to saving hundreds of dollars in labor costs while ensuring your home’s water system remains safe and efficient. In this guide, we will walk you through every step, from planning to final testing, so you can approach this task with confidence.
Why Proper Planning Matters Before You Touch a Wrench
Before you buy a single pipe, you must understand that plumbing is not just about connecting tubes; it is about physics and code compliance. A poorly planned layout can lead to slow drains, siphoning issues, and even dangerous sewer gas leaks into your home.
According to the International Residential Code (IRC), proper venting and slope are non-negotiable. If you skip the planning phase, you risk failing inspections or dealing with chronic clogs. Take time to sketch your layout. Identify where the hot and cold water lines enter and where the waste line exits. This blueprint will serve as your roadmap, preventing costly mid-project changes.
Essential Tools and Materials Checklist
Having the right tools makes the difference between a frustrating afternoon and a smooth installation. Do not start until you have gathered these essentials:
- Adjustable Wrenches: Two are better than one for holding nuts steady.
- Pipe Cutter: For clean cuts on copper or PEX pipes.
- Hacksaw: Useful for cutting PVC or ABS drain pipes.
- Teflon Tape: Essential for sealing threaded connections.
- Plumber’s Putty or Silicone Caulk: For creating watertight seals around the sink basin.
- Level: To ensure your sink sits perfectly flat.
- Bucket and Rags: Because spills will happen.
| Material Type | Best Use Case | Pros | Cons |
|---|---|---|---|
| PEX Tubing | Water Supply Lines | Flexible, freeze-resistant, easy to install | Requires special crimping tools |
| Copper Pipe | Water Supply Lines | Durable, long-lasting, high heat tolerance | Expensive, requires soldering skills |
| PVC/ABS | Drain Lines | Cheap, easy to glue, lightweight | Can become brittle over time |
Step 1: Measuring and Mapping Your Space
The first step in learning how to right install a new sink plumbing layout is accurate measurement. Measure the distance from the wall to the center of the drain hole on your sink. Then, measure the height from the floor to the bottom of the sink cabinet.
You need to determine the “rough-in” dimensions. Standard kitchen sinks usually have a drain centered 15–20 inches from the back wall. Bathroom vanities vary more widely. Mark these points clearly on the wall behind the cabinet. If you are replacing an old sink, check if the existing plumbing aligns with your new fixture. If not, you may need to extend or reroute pipes.
Pro Tip: Always add 1–2 inches of slack to your measurements for supply lines. It is easier to trim excess than to stretch a short pipe.
Step 2: Installing the Drain Assembly
The drain assembly is the heart of your sink’s waste system. Start by applying a bead of plumber’s putty or silicone around the underside of the drain flange. Insert the flange into the sink hole from the top.
From underneath, screw on the locking nut and tighten it firmly. Be careful not to overtighten, as this can crack ceramic or thin metal sinks. Once the flange is secure, attach the tailpiece. This vertical pipe connects the sink to the P-trap. Ensure the rubber gasket is in place to prevent leaks.
For more detailed technical standards on drainage systems, you can refer to the Wikipedia page on Drain-Waste-Vent systems to understand the broader engineering principles behind safe wastewater removal.
Step 3: Connecting the P-Trap and Waste Line
The P-trap is crucial because it holds a small amount of water that blocks sewer gases from entering your home. Connect the P-trap to the tailpiece using a slip nut and washer. Hand-tighten first, then give it a quarter-turn with pliers.
Next, connect the other end of the P-trap to the wall drain pipe. If your wall pipe is larger than your P-trap outlet, use a reducer adapter. Ensure the slope of the horizontal pipe leading to the wall is slightly downward (about 1/4 inch per foot) to facilitate gravity-fed drainage.
Common Mistake to Avoid: Do not use excessive force when tightening plastic slip nuts. They can crack easily. If it leaks after hand-tightening, tighten just enough to stop the drip.
Step 4: Setting Up Hot and Cold Water Supplies
Now, focus on the water supply lines. If you are using flexible braided stainless steel hoses, the process is straightforward. Attach one end to the faucet tails and the other to the shut-off valves on the wall.
If you are installing new shut-off valves, turn off the main water supply first. Cut the existing copper or PEX lines, install the new valves using compression fittings, and ensure they are oriented correctly (handle accessible).
Connect the hot water line to the left valve and the cold to the right. This is a universal standard in the US. Use Teflon tape on any threaded connections to ensure a tight seal. Double-check that the lines are not kinked or twisted, as this restricts water flow.
Step 5: Testing for Leaks and Functionality
Never assume your work is done until you have tested it. Turn the water supply back on slowly. Open the faucet and let the water run for a minute to flush out any debris.
While the water runs, inspect every connection you made:
- Check under the sink for drips from the supply lines.
- Fill the sink halfway and then release the stopper. Watch the P-trap and drain connections as the water rushes out.
- Look for any moisture on the floor or cabinet base.
If you see a leak, tighten the connection slightly. If it persists, disassemble, check the gasket or Teflon tape, and reassemble. A dry test is the only acceptable result.
Frequently Asked Questions (FAQ)
Q: Do I need a permit to install a new sink?
A: In most US jurisdictions, minor repairs like replacing a faucet do not require a permit. However, moving pipes, adding new lines, or changing the layout significantly often does. Check with your local building department to avoid fines.
Q: What is the standard height for a kitchen sink drain?
A: The standard height for a kitchen sink drain rough-in is typically between 20 and 24 inches from the finished floor. This allows enough room for the P-trap and disposal unit if applicable.
Q: Can I use PVC for hot water lines?
A: No. Standard PVC is not rated for hot water and can warp or fail. Use CPVC, Copper, or PEX for hot water supply lines. PVC is generally reserved for cold water drains and venting.
Q: Why is my new sink draining slowly?
A: Slow drainage usually indicates a blockage, improper slope, or a venting issue. Ensure your P-trap is clear and that the horizontal drain pipe slopes downward toward the wall. If the problem persists, check if the air admittance valve (if used) is functioning correctly.
Q: How tight should I make the plumbing connections?
A: For plastic slip nuts, hand-tight plus a quarter turn with pliers is sufficient. For metal compression fittings, tighten until snug, then another half-turn. Overtightening is a leading cause of cracked fittings and leaks.
Conclusion
Mastering how to right install a new sink plumbing layout empowers you to take control of your home improvements. By following these steps—planning carefully, using the right materials, and testing thoroughly—you can achieve a professional-quality result that lasts for years. Remember, patience and precision are your best tools.
