Are you staring at a pile of pipes under your counter, feeling overwhelmed by the complexity of connecting water lines and drains? You are not alone; many homeowners hesitate to tackle plumbing projects due to fear of costly leaks or improper fittings. This guide will show you how to rightly install a new sink plumbing layout, ensuring your system is efficient, leak-free, and up to code. By following these professional steps, you can transform a daunting task into a satisfying DIY victory.

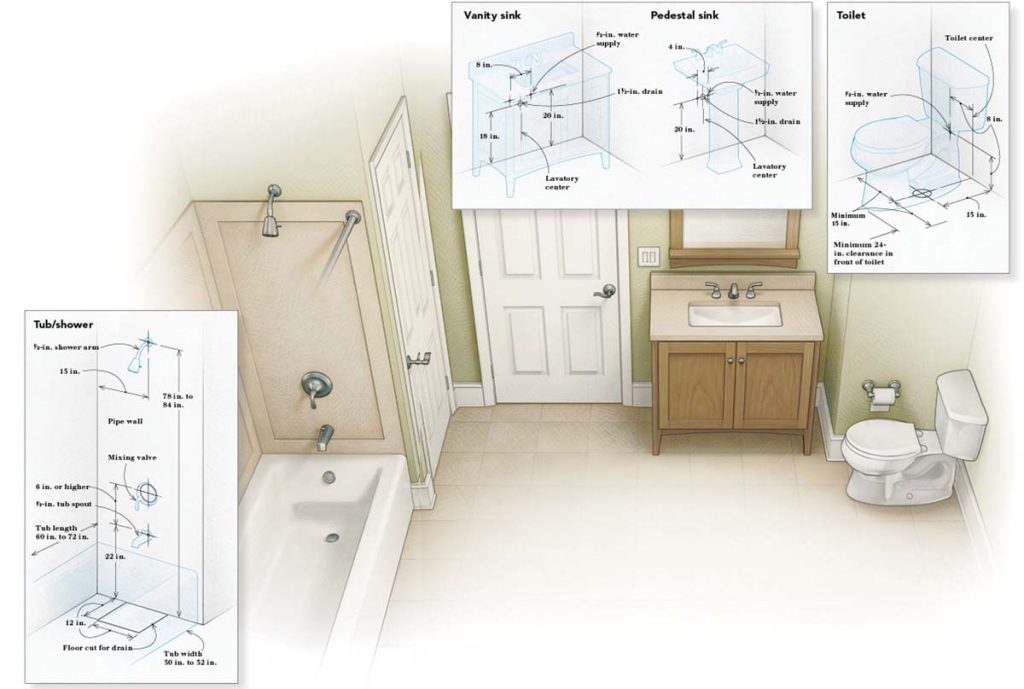

Understanding the Basics of Sink Plumbing
Before picking up a wrench, it is crucial to understand what makes a plumbing layout functional. A standard sink setup consists of two main systems: the water supply lines (hot and cold) and the drainage system (waste and vent).
According to basic fluid dynamics principles, gravity drives the drainage system, meaning your pipes must maintain a specific slope to prevent clogs. The International Plumbing Code (IPC) generally recommends a slope of 1/4 inch per foot for horizontal drain lines. Ignoring this simple rule is the number one cause of slow-draining sinks in newly installed layouts.
Key Components Checklist
- Supply Lines: Flexible braided stainless steel hoses are preferred over rigid copper for DIYers due to ease of installation.
- P-Trap: The U-shaped pipe that holds water to block sewer gases from entering your home.
- Tailpiece: Connects the sink strainer to the P-trap.
- Shut-off Valves: Essential for maintenance without shutting off water to the whole house.
For more detailed technical definitions of plumbing components, you can refer to Wikipedia’s entry on Plumbing.
Tools and Materials You Will Need
Having the right tools prevents frustration and ensures a tight seal. Do not attempt this job with just a pair of pliers.
| Tool/Material | Purpose | Pro Tip |
|---|---|---|
| Adjustable Wrenches (2) | Tightening nuts and connections | Use two to hold one side steady while turning the other. |
| Pipe Cutter | Cutting PVC or copper pipes | Ensures a clean, square cut for better sealing. |
| Teflon Tape | Sealing threaded connections | Wrap clockwise, 3–4 layers thick. |
| Plumber’s Putty | Sealing the sink flange | Creates a watertight bond between sink and counter. |
| Bucket & Rags | Catching residual water | Always place under the work area before disconnecting old pipes. |
Step-by-Step Guide: Installing the Drain Assembly
The drainage system is often where mistakes happen. Follow these steps precisely to avoid future headaches.
1. Prepare the Sink Basin
If you are installing a new sink, apply a 1/4-inch rope of plumber’s putty around the underside of the drain flange. Insert the flange into the sink hole. From underneath, screw on the locking nut and tighten it firmly. Wipe away any excess putty that squeezes out.
2. Install the Tailpiece
Attach the tailpiece to the bottom of the drain flange. Ensure the rubber gasket is seated correctly inside the slip nut. Hand-tighten first, then give it a quarter-turn with your wrench. Over-tightening plastic nuts can crack them.
3. Configure the P-Trap
The P-trap connects the tailpiece to the wall drain pipe.
- Measure the distance between the tailpiece and the wall pipe.
- Cut your PVC pipes to size if necessary.
- Assemble the trap arms using slip nuts and washers.
- Critical Step: Ensure the curve of the “P” faces downward. This water seal is what stops smells.
4. Connect to the Wall Drain
Insert the trap arm into the wall pipe. If there is a gap, use a telescoping tube or a flexible coupler. Tighten all connections securely.
Connecting the Water Supply Lines
Once the drain is secure, move to the water supply. This part is less about geometry and more about precision.
1. Install Shut-Off Valves
If your existing valves are old or corroded, replace them now. Wrap Teflon tape around the threads of the valve stem. Screw the valve onto the water stub-out coming from the wall. Tighten with a wrench until snug.
2. Attach Supply Lines
Connect one end of the flexible supply line to the shut-off valve and the other to the faucet inlet.
- Hot Water: Usually connects to the left inlet (when facing the sink).
- Cold Water: Usually connects to the right inlet.
Note: Do not cross-thread these connections. Start threading by hand to ensure alignment.
3. Pressure Test
Turn on the main water supply slowly. Open the shut-off valves. Check every connection for drips. If you see moisture, tighten the nut slightly. If it persists, disassemble, check the washer, and reassemble.
Common Mistakes to Avoid
Even experienced DIYers make errors. Here are the most frequent pitfalls:
- Ignoring the Vent: Every drain needs a vent to allow air in, preventing vacuum locks. If your sink gurgles when draining, your vent may be blocked or improperly installed.
- Using Old Washers: Always use new rubber or fiber washers provided with your new kit. Old washers harden and fail.
- Over-Tightening: Plastic fittings crack easily. Tighten until resistance is felt, then add only a small fraction of a turn.
- Skipping the Slope: As mentioned earlier, horizontal pipes must slope downward toward the main drain. Flat pipes lead to standing water and debris buildup.
FAQ Section
Q1: Can I install a sink plumbing layout without prior experience?
Yes, but caution is advised. If you are comfortable using basic hand tools and following instructions, you can handle a standard replacement. However, if you need to move pipes through walls or floors, consult a licensed plumber to ensure compliance with local building codes.
Q2: Why is my new sink draining slowly?
Slow drainage usually indicates an airlock or improper slope. Check that your P-trap is aligned correctly and that the horizontal pipe slopes downward at least 1/4 inch per foot. Also, ensure the vent pipe is not obstructed.
Q3: What is the difference between PVC and ABS pipes?
PVC (Polyvinyl Chloride) is white and commonly used for indoor drains. ABS (Acrylonitrile Butadiene Styrene) is black and often used for outdoor or underground applications. Check your local code; some regions prohibit mixing the two without a special transition cement.
Q4: How do I stop a leak at the connection point?
First, try tightening the slip nut slightly. If it still leaks, turn off the water, disassemble the joint, and inspect the washer. Ensure it is not twisted or damaged. Reapply Teflon tape to threaded connections if applicable, and reassemble carefully.
Q5: Is plumber’s putty safe for all sink materials?
No. Avoid using plumber’s putty on porous stones like granite or marble, as the oil in the putty can stain the stone. For these materials, use a 100% silicone sealant instead.
Q6: How long does it take to install a new sink plumbing layout?
For a straightforward replacement using existing hookups, expect to spend 2–4 hours. If you are modifying pipe positions or installing a new vanity, it could take a full day.
Conclusion
Learning how to rightly install a new sink plumbing layout empowers you to save money and gain valuable home maintenance skills. By focusing on proper slope, secure connections, and quality materials, you ensure a system that lasts for years without leaks. Remember, patience is key—rushing leads to mistakes.
If you found this guide helpful, please share it on social media to help friends and family tackle their own plumbing projects with confidence. Happy fixing!
