Are you dreaming of adding a convenient powder room or a full guest bath to your first floor but feel overwhelmed by the logistics? You are not alone; many homeowners hesitate because they believe moving water lines vertically is too complex or expensive. However, understanding how to run plumbing from upstairs into downstairs bathroom spaces can demystify the process and help you plan a successful, code-compliant renovation.
Whether you are hiring a professional or tackling parts of the project yourself, knowing the mechanics behind vertical pipe runs is crucial. This guide will walk you through the essential steps, materials, and considerations to ensure your new bathroom functions perfectly without compromising your home’s structural integrity.
Understanding the Basics: Gravity and Pressure
Before picking up a wrench, it is vital to understand how residential plumbing works. Unlike electrical wiring, which only needs a path, plumbing relies heavily on physics.
The Role of Gravity in Drainage
Drainage systems do not use pumps; they rely on gravity. Waste water must flow downward at a specific slope to prevent clogs and sewer gas backup. When running pipes from an upper floor to a lower level, you are essentially extending this gravitational path.
- Supply Lines: These are pressurized. Water can move up, down, or sideways with equal ease as long as there is pressure from the main line.
- Drain Lines: These are non-pressurized. They must slope downward. This is why running drains from upstairs to downstairs is often easier than the reverse, provided you have access to the main stack.
Why Vertical Runs Are Common
In two-story homes, the most efficient way to add a downstairs bathroom is often to tie into the existing soil stack (the main vertical drain pipe) that already serves the upstairs bathrooms. This minimizes the distance waste needs to travel horizontally before dropping vertically.
Step-by-Step: Planning Your Pipe Route
Successful plumbing starts with a solid plan. Rushing into demolition without a map can lead to costly mistakes.
1. Locate the Main Soil Stack
The soil stack is the large vertical pipe (usually 3–4 inches in diameter) that carries waste to the sewer or septic tank.
- Check your attic, basement, or crawl space.
- Identify where the upstairs bathroom drains connect to this stack.
- Pro Tip: The closer your new downstairs bathroom is to this existing stack, the easier and cheaper the installation will be.
2. Determine the Path for Supply Lines
Cold and hot water lines (typically PEX or Copper) need to reach the new fixtures.
- Hot Water: Consider the distance from your water heater. If the downstairs bathroom is far from the heater, you may experience a delay in hot water. Installing a recirculation pump or a point-of-use tankless heater can solve this.
- Cold Water: Easier to route, but ensure you don’t run lines through exterior walls in freezing climates without proper insulation.
3. Check Local Building Codes
Plumbing codes vary by state and municipality in the US. Most follow the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC).
- Verify required pipe diameters (e.g., toilets usually require a 3-inch drain).
- Confirm venting requirements. Every fixture needs a vent to prevent siphoning and allow air in for smooth drainage.
For more detailed technical standards, you can refer to general plumbing principles outlined on Wikipedia’s Plumbing Page, though always prioritize local municipal codes for legal compliance.
Choosing the Right Materials
Not all pipes are created equal. Using the wrong material can lead to leaks, corrosion, or code violations.
| Material | Best For | Pros | Cons |
|---|---|---|---|
| PEX (Cross-linked Polyethylene) | Supply Lines | Flexible, freeze-resistant, easy to install | Cannot be used outdoors/exposed to UV |
| Copper | Supply Lines | Durable, long-lasting, high heat tolerance | Expensive, requires soldering skills |
| PVC (Polyvinyl Chloride) | Drain/Waste/Vent | Cheap, easy to glue, lightweight | Not for hot water, can become brittle |
| ABS (Acrylonitrile Butadiene Styrene) | Drain/Waste/Vent | Impact resistant, good for cold climates | Black color, not allowed in some jurisdictions |
Expert Insight: According to recent industry surveys, over 60% of new residential construction in the US now uses PEX for supply lines due to its flexibility and resistance to scale buildup.
The Installation Process: A Detailed Overview
Note: If you are not comfortable with these steps, hire a licensed plumber. Improper installation can cause water damage worth thousands of dollars.
Step 1: Framing and Rough-In
Before closing walls, frame the new bathroom space. Mark the exact locations for the toilet flange, sink drain, and shower/tub drain.
- Drill holes in studs for supply lines. Ensure holes are at least 1.25 inches from the edge of the stud to prevent nail punctures.
- Install blocking where heavy fixtures (like wall-mounted sinks) will attach.

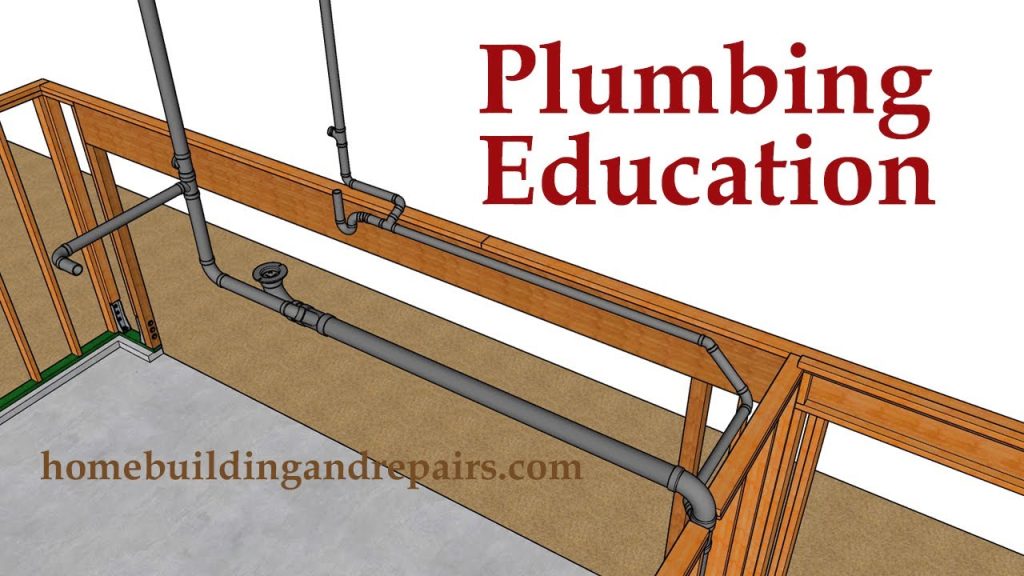

Step 2: Running the Drain Lines
This is the most critical part of learning how to run plumbing from upstairs into downstairs bathroom areas.
- Connect to the Stack: Cut into the existing soil stack using a no-hub coupling or appropriate fittings.
- Maintain Slope: Drain pipes must slope at 1/4 inch per foot for pipes 3 inches in diameter or smaller. Use a level to check this constantly.
- Install Vent Pipes: Run a vent pipe up from the drain line. It must terminate through the roof or connect to an existing vent stack above the highest fixture flood rim.
Step 3: Installing Supply Lines
- Shut off the main water supply.
- Tee off from existing upstairs or basement supply lines.
- Run PEX or copper lines to the new fixture locations.
- Leave enough slack (6–8 inches) at each endpoint for final connections.
Step 4: Pressure Testing
Before closing walls:
- Cap all open ends.
- Turn the water back on.
- Check every joint for leaks. Let the system sit under pressure for at least 15–30 minutes.
- For drains, perform a water test by filling traps and ensuring no leaks occur at joints.
Common Challenges and Solutions
Challenge 1: Limited Ceiling Space
If you are running pipes through a finished ceiling downstairs, you may lack space for the required slope.
- Solution: Use shallow-profile fixtures or consider raising the floor slightly in the new bathroom to accommodate deeper drain pipes.
Challenge 2: Venting Issues
Adding a bathroom far from the main stack can make venting difficult.
- Solution: Install an Air Admittance Valve (AAV). These one-way valves allow air in when needed but prevent sewer gas from escaping. Check local codes, as some areas restrict AAV usage.
Challenge 3: Structural Interference
Running large drain pipes may require cutting through floor joists.
- Solution: Never cut more than 1/6 of the joist depth. If you must cut more, reinforce the joist with sistering or consult a structural engineer.
FAQ Section
Q1: Can I run plumbing pipes through exterior walls?
A: It is generally discouraged, especially in colder climates. Pipes in exterior walls are prone to freezing. If you must, use heavy insulation and heat tape, but interior walls are always safer.
Q2: How much does it cost to add a downstairs bathroom?
A: Costs vary widely based on location and complexity. On average, adding a half-bath costs between $5,000 and $15,000, while a full bath can range from $10,000 to $30,000+. Running plumbing from upstairs can reduce costs if the stack is nearby.
Q3: Do I need a permit for this work?
A: Yes, almost all municipalities require a plumbing permit for adding new fixtures. Unpermitted work can lead to fines and issues when selling your home. Always check with your local building department.
Q4: What is the minimum slope for a drain pipe?
A: For pipes 3 inches in diameter or smaller, the standard slope is 1/4 inch per foot. For larger pipes (4 inches+), it can be 1/8 inch per foot. Too steep can cause solids to separate from water; too flat causes clogs.
Q5: Can I use the same vent for multiple fixtures?
A: Yes, this is called “wet venting” or “common venting.” As long as the pipe size is adequate and the fixtures are within code-specified distances, you can share vents to save material and labor.
Q6: Is PEX better than copper for DIYers?
A: For most DIYers, yes. PEX is flexible, requires fewer fittings, and uses simple crimp or clamp tools. Copper requires soldering (torch work), which poses a fire risk and requires more skill.
Conclusion
Learning how to run plumbing from upstairs into downstairs bathroom spaces is a rewarding challenge that adds significant value and convenience to your home. By respecting the laws of gravity, choosing the right materials like PEX and PVC, and adhering to local building codes, you can ensure a durable and efficient system.
Remember, while DIY can save money, plumbing mistakes can be costly. If you are unsure about venting or structural modifications, consult a licensed professional.
