How To Run The Plumbing For A Shower Pan

Are you staring at a bare concrete slab or wooden subfloor, wondering where to start with your bathroom renovation? You are not alone; improper drainage is one of the leading causes of water damage in US homes, costing homeowners billions annually in repairs. Getting the slope and pipe connections right is critical before you ever lay a tile. In this guide, we will walk you through exactly how to run the plumbing for a shower pan, ensuring a durable, leak-free foundation for your new shower.

Understanding the Basics: Why Slope Matters

Before you cut a single pipe, you must understand the physics of gravity-fed drainage. The primary goal of running plumbing for a shower pan is not just connecting pipes, but creating a consistent downward slope toward the drain.

According to the International Plumbing Code (IPC), which is adopted by most US states, the standard slope for shower drains is 1/4 inch per foot. This means for every foot of horizontal distance from the drain to the wall, the floor must drop 1/4 inch. If the slope is too flat, water will pool, leading to mold and mildew. If it is too steep, water may rush past the drain without clearing debris, causing clogs.

Pro Tip: Always check your local building codes. While the IPC is standard, some municipalities have specific amendments regarding pipe materials or venting requirements.

Step 1: Gathering the Right Materials and Tools

Success in plumbing relies heavily on having the correct components. Using inferior materials can lead to premature failure. Here is what you will need:

• PVC or ABS Piping: Most modern US homes use PVC (white) or ABS (black). Check your existing system to match the material.
• Shower Drain Assembly: A two-piece or three-piece clamping drain is essential for traditional mortar beds.
• Primer and Cement: Specific to your pipe material (do not mix PVC cement with ABS pipes).
• Measuring Tape & Level: A 2-foot level is crucial for checking slopes.
• Hacksaw or PVC Cutter: For clean cuts.
• Sandpaper: To deburr cut edges.

Step 2: Installing the Rough-In Drain

The “rough-in” phase happens before the shower pan is set. This is the most critical stage for how to run the plumbing for a shower pan because mistakes here are buried under concrete or mortar.

1. Locate the Center: Mark the exact center of your future shower stall on the subfloor. This is where your drain will sit.

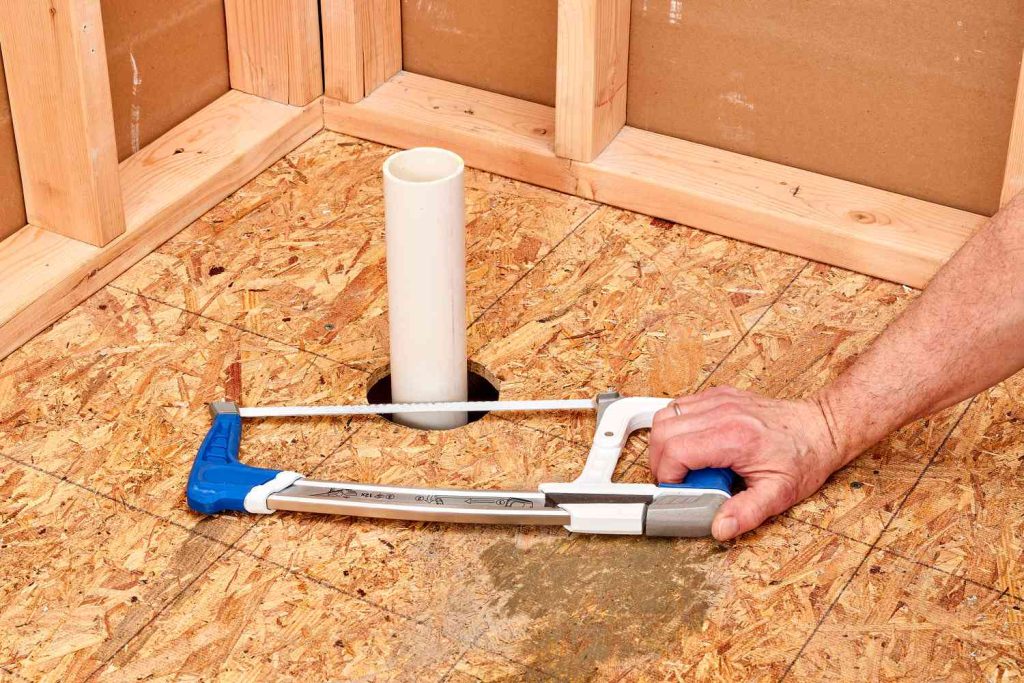

2. Cut the Waste Line: Cut your main waste line so that it extends vertically about 2–3 inches above the subfloor.
3. Attach the Drain Body: Insert the bottom half of the shower drain assembly into the vertical pipe. Ensure it fits snugly.
4. Secure the Height: The top of the drain body should be flush with the finished subfloor level. If you are using a mortar bed, account for the thickness of the mortar when setting the height.

Important: Do not glue the drain body permanently yet if you are unsure of the final floor height. You may need to adjust it slightly after dry-fitting the rest of the pan structure.

Step 3: Connecting the Vent Pipe

A common mistake DIYers make is ignoring the vent. Without proper venting, your shower will gurgle, drain slowly, or suck water out of the P-trap, allowing sewer gases into your home.

For a standard shower, you typically need a 2-inch diameter vent pipe. This pipe should connect to the drain line within a specific distance from the trap weir (usually within 5 feet for a 2-inch pipe, but check local codes).

• Sanitary Tee vs. Wye: Use a sanitary tee or a wye fitting to connect the vent to the horizontal drain line. Never use a sharp 90-degree elbow for horizontal-to-vertical transitions in drainage lines, as this restricts flow.
• Vent Height: The vent must rise vertically and connect to the main vent stack or exit through the roof.

For more detailed technical specifications on venting requirements, you can refer to the International Plumbing Code guidelines on Wikipedia to understand the regulatory framework governing these installations.

Step 4: Creating the Pre-Slope (The Mud Bed)

Many people think the plumbing ends at the pipe, but the “plumbing” of a shower pan includes the waterproofing layer. For a traditional tiled shower, you need a pre-slope.

1. Install the Liner: Place a PVC or CPE shower liner over the subfloor, tucking it into the clamping ring of the drain assembly.
2. Mix the Mortar: Use a deck mud mix (sand and Portland cement). It should be damp enough to hold its shape when squeezed but not wet.
3. Pack the Slope: Start packing the mortar around the drain, working outward to the walls. Maintain that 1/4 inch per foot slope.
4. Check Your Work: Use your level to verify the angle from all four corners to the drain.

This pre-slope ensures that any water that penetrates the tile grout will hit the liner and flow directly into the drain weep holes, rather than sitting stagnant under your tiles.

Common Mistakes to Avoid

Even experienced plumbers can make errors. Here are the top pitfalls to watch out for:

• Ignoring Weep Holes: The lower part of your shower drain has small holes called weep holes. These must remain clear. If mortar blocks them, water will rot your subfloor.
• Using Too Much Glue: Excess PVC cement can create internal ridges that catch hair and soap scum, leading to clogs. Apply a thin, even coat.
• Skipping the Leak Test: Before covering your plumbing with concrete or tile, plug the drain and fill the pan with water. Let it sit for 24 hours. If the water level drops, you have a leak. Fix it now, not after tiling.

FAQ Section

Q1: Can I run the plumbing for a shower pan on a second floor?

Yes, but you must ensure the floor joists are strong enough to support the weight of the mortar bed, tile, and water. Additionally, noise transmission is a concern; consider using cast iron pipes or sound-dampening insulation around PVC pipes.

Q2: What size pipe should I use for a shower drain?

The standard size for a shower drain in the US is 2 inches in diameter. This size provides adequate flow rate for most residential showerheads and meets most building codes. Older homes may have 1.5-inch drains, but upgrading to 2 inches is recommended during renovations.

Q3: Do I need a permit to run shower plumbing?

In most US jurisdictions, yes. Any alteration to the plumbing system, including moving or installing a new shower drain, typically requires a building permit and subsequent inspection. Always check with your local building department before starting work.

Q4: How long does it take to run the plumbing for a shower pan?

For a professional plumber, the rough-in plumbing usually takes 2–4 hours. For a DIYer with moderate experience, expect to spend a full day (6–8 hours) to ensure accuracy, especially when calculating slopes and cutting pipes.

Q5: Can I use a flexible shower drain kit instead of rigid PVC?

Flexible drain kits are available and can be easier for tight spaces or retrofits. However, rigid PVC or ABS is generally preferred for new construction because it is more durable, less prone to sagging over time, and provides a smoother interior surface for better water flow.

Q6: What if my existing drain is not in the center of the shower?

If the existing drain is off-center, you have two options: move the drain (which involves breaking concrete or reframing floors) or use a linear drain. Linear drains can be placed along the wall, allowing you to slope the floor in one direction only, which simplifies the plumbing layout significantly.

Conclusion

Learning how to run the plumbing for a shower pan is a challenging but rewarding skill that forms the backbone of a functional bathroom. By focusing on the correct slope, proper venting, and meticulous sealing, you prevent costly water damage and ensure a luxurious shower experience for years to come. Remember, patience during the rough-in phase saves headaches during the finishing phase.
