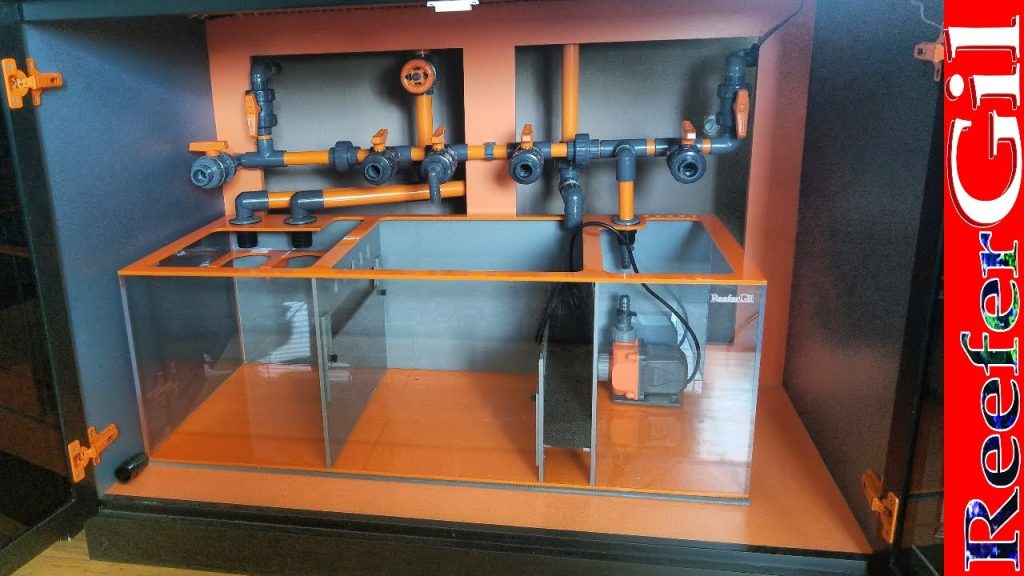

How To Set Up Plumbing For A Saltwater Tank

Setting up a saltwater aquarium is an exciting journey, but the technical side of connecting pipes, pumps, and drains can feel overwhelming for many hobbyists. One wrong measurement or loose fitting can lead to catastrophic leaks, turning your dream reef into a household disaster. If you are wondering how to set up plumbing for a saltwater tank correctly the first time, you are in the right place. This guide will walk you through the process with clarity, ensuring your system is both efficient and leak-proof.

Why Proper Plumbing Matters for Your Reef

Before we pick up a saw, it is crucial to understand why plumbing is the backbone of your aquarium. Unlike freshwater setups, saltwater systems—especially reef tanks—rely heavily on consistent water movement, stable temperature, and efficient filtration. These factors are managed through your sump and return lines.

Poorly planned plumbing leads to:

• Inconsistent Flow: Dead spots where detritus accumulates.
• Noise Issues: Gurgling drains that disrupt the peace of your home.
• Equipment Failure: Pumps working harder than necessary, leading to premature burnout.
• Leaks: The most feared outcome for any aquarist.

According to industry standards, a well-plumbed system should operate silently and efficiently, allowing your biological filtration to thrive without mechanical interference.

Essential Tools and Materials Checklist

To successfully execute this project, you need the right gear. Using subpar materials is a false economy that often results in costly repairs later.

Must-Have Tools

1. PVC Pipe Cutter: Provides cleaner cuts than a hacksaw, reducing the need for extensive deburring.
2. Deburring Tool: Essential for smoothing rough edges inside and outside the pipe.
3. Measuring Tape & Marker: Precision is key; measure twice, cut once.
4. Sandpaper (120-220 grit): For scuffing pipe ends before gluing.
5. Level: To ensure your drain lines have the correct slope.

Materials List

• Schedule 40 PVC Pipes: The standard for aquarium plumbing. Note: Do not use Schedule 80 unless specified by your overflow manufacturer, as the inner diameter differs.
• PVC Primer (Purple) & Cement: Specifically formulated for pressure applications.
• Union Fittings: Critical for future maintenance. They allow you to disconnect sections without cutting pipes.
• Ball Valves: For controlling flow rate on return lines.
• Flexible Vinyl Tubing: For connecting pumps to rigid PVC.
• Teflon Tape: For threaded connections only.

Step-by-Step Guide: How To Set Up Plumbing For A Saltwater Tank

Follow these steps meticulously to ensure a professional-grade installation.

Step 1: Plan Your Layout and Dry Fit

Never glue anything on the first try. Start by laying out all your components on the floor or next to your stand. This “dry fit” phase allows you to visualize the entire system.

• Map the Return Line: Trace the path from your return pump in the sump, up to the display tank.
• Map the Drain Lines: Identify the path from the overflow box down to the sump.
• Check Clearances: Ensure your pipes do not interfere with cabinet doors, electrical outlets, or other equipment.

Pro Tip: Use a dry-erase marker to mark exactly where pipes enter fittings. This helps you maintain orientation when you take them apart for gluing.

Step 2: Cutting and Preparing the PVC

Clean cuts are vital for a watertight seal. Use your PVC cutter to slice the pipes at your marked locations.

1. Cut Straight: Rotate the cutter evenly around the pipe to avoid angled cuts.
2. Deburr Thoroughly: Use your deburring tool to remove all plastic shavings from the inside and outside of the cut. Rough edges can create turbulence, increasing noise and restricting flow.
3. Scuff the Ends: Lightly sand the outer surface of the pipe end and the inner surface of the fitting. This creates a better bond for the cement.

Step 3: Understanding the Gluing Process

Many beginners rush this step, leading to weak joints. PVC cement works by chemically melting the plastic surfaces together, not just sticking them like glue.

1. Apply Primer: Apply purple primer to both the pipe end and the inside of the fitting. Let it dry for a few seconds until it looks tacky.
2. Apply Cement: Apply a thin, even layer of PVC cement to the primed areas. Work quickly, as the cement sets fast.
3. Insert and Twist: Push the pipe into the fitting with a firm push while giving it a quarter-turn twist. This distributes the cement evenly.
4. Hold Firm: Hold the joint together for 15–30 seconds to prevent it from pushing back out due to hydraulic pressure.

For more detailed chemical safety information regarding PVC solvents, you can refer to general industrial safety guidelines on Wikipedia.

Step 4: Installing Unions and Valves

Unions are your best friend for maintenance. Always install unions before and after your ball valves and pump.

• Return Line: Install a union immediately after the pump outlet. This allows you to remove the pump for cleaning without draining the entire system.
• Drain Lines: If your overflow uses bulkheads, ensure the gaskets are properly seated. Use a lubricant like silicone grease (aquarium safe) on O-rings to prevent tearing during tightening.

Step 5: Addressing Noise in Drain Lines

A silent tank is a happy tank. Noise usually comes from air being pulled down the drain line.

• Use a Durso Standpipe: This simple DIY device balances air and water intake, significantly reducing gurgling.
• Gate Valves vs. Ball Valves: Use gate valves on drain lines if you need fine-tuning, but ball valves are generally more reliable for long-term shut-off capabilities on return lines.
• Insulation: Wrap exposed PVC pipes with foam insulation to dampen vibration sounds.

Common Plumbing Configurations Compared

Choosing the right setup depends on your tank size and budget. Here is a quick comparison:

The BeanAnimal setup is widely considered the gold standard for large reefs because it offers full redundancy. If one line clogs, the others take over, preventing floods.

Troubleshooting Common Issues

Even with careful planning, issues can arise. Here is how to handle them:

• Leaking Joints: If a joint leaks after curing, you cannot simply add more glue. You must cut out the section and replace it with a new coupling and pipe segment.
• Low Flow Rate: Check for debris in the pump intake or kinks in flexible tubing. Ensure your ball valves are fully open.
• Vibration Noise: Ensure your pump is sitting on a foam pad and that pipes are not touching the cabinet walls directly. Use pipe clamps with rubber liners.

FAQ Section

1. Can I use ABS pipe instead of PVC for my saltwater tank?

While ABS is strong, it is generally not recommended for aquarium plumbing unless specifically rated for pressure and compatible with your fittings. PVC Schedule 40 is the industry standard due to its availability, ease of use, and chemical resistance. Mixing ABS and PVC requires special transition cement, which adds unnecessary complexity and risk.

2. How long should I wait before turning on the water after gluing?

PVC cement cures relatively quickly, but for full strength, it is best to wait at least 24 hours before pressurizing the system. While it may feel dry to the touch in 15 minutes, the chemical weld continues to strengthen over time. Rushing this step is a common cause of early failures.

3. Do I need a check valve on my return line?

A check valve prevents water from siphoning back into the sump if the power goes out. However, they can fail or get stuck with debris. A better approach is to drill a small siphon break hole (1/8 inch) in your return pipe just below the water line of the display tank. This breaks the siphon safely without relying on a mechanical part.

4. What size PVC pipe should I use for a 100-gallon tank?

For a 100-gallon tank, 1-inch PVC is typically sufficient for both return and drain lines, assuming a standard flow rate of 10-15 times the tank volume per hour. If you are running a high-flow system or a large skimmer, consider upgrading to 1.5-inch pipes for the main drain lines to reduce noise and increase capacity.

5. How do I prevent algae growth inside clear PVC pipes?

Clear PVC allows light to penetrate, promoting algae growth inside the pipes, which can restrict flow over time. To prevent this, wrap your clear pipes with black electrical tape, use opaque white PVC, or cover the pipes with foam insulation. Blocking light is the most effective method.

Conclusion

Learning how to set up plumbing for a saltwater tank is a skill that pays dividends in the longevity and stability of your aquarium. By taking the time to plan, using high-quality materials, and following precise gluing techniques, you create a system that is not only functional but also reliable. Remember, patience during the dry-fit and curing stages is your best defense against leaks.

Now that you have the knowledge, it’s time to get building! If you found this guide helpful, please share it with your fellow reef-keeping friends on social media. A well-plumbed tank is a happy tank, and your corals will thank you for it.
