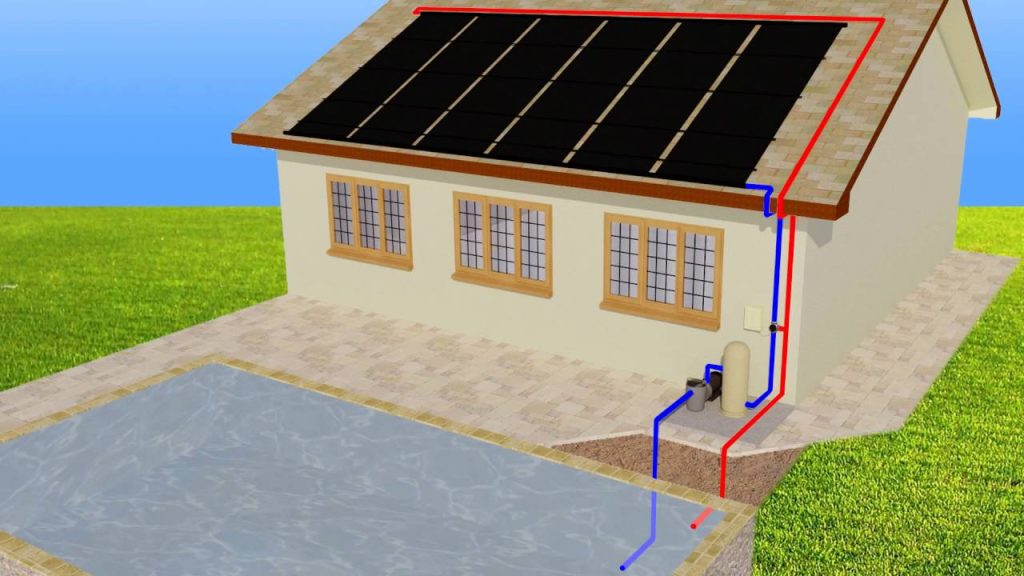

How To Set Up Plumbing For Pool Solar Heater

Are you tired of watching your heating bills skyrocket every time you want to extend your swimming season? You are not alone. Many pool owners in the US are turning to renewable energy solutions to keep their water warm without breaking the bank. If you are ready to take control of your pool’s temperature, learning how to set up plumbing for pool solar heater systems is the most critical step in the process.

This guide will walk you through the essentials of connecting your solar panels to your existing filtration system. We will break down complex plumbing concepts into simple, actionable steps. By the end of this article, you will have the confidence to plan or execute a professional-grade installation that maximizes heat retention and efficiency.

Why Choose Solar Pool Heating?

Before we dive into the pipes and fittings, it is important to understand why this investment pays off. Solar pool heaters use the sun’s free energy to warm your water. According to the U.S. Department of Energy, solar heating is often the most cost-effective way to heat a pool in sunny climates.

Unlike gas heaters that burn fuel, solar systems have low operating costs. Once installed, the only cost is the electricity to run your pool pump. This makes them an eco-friendly choice that significantly reduces your carbon footprint.

Essential Components for Your Solar Plumbing System

To successfully set up your system, you need to understand the key players in your plumbing loop. Missing one component can lead to inefficiency or system damage.

• Solar Collector Panels: These are mounted on your roof or a rack. They absorb sunlight and transfer heat to the water flowing through them.
• Filter Pump: Your existing pool pump pushes water through the solar collectors. It must be powerful enough to handle the added resistance (head pressure) of the solar loop.
• Flow Control Valve: This is the brain of the operation. It directs water either to the solar panels or bypasses them, depending on the temperature.
• Check Valve: Prevents water from flowing backward into the panels when the pump is off, which can cause drainage issues or siphoning.
• Pressure Relief Valve: Protects the system from excessive pressure buildup, especially on hot days when water expands.
• PVC Piping and Fittings: Standard Schedule 40 PVC is typically used for its durability and resistance to UV rays and chemicals.

Step-by-Step: How To Set Up Plumbing For Pool Solar Heater

Setting up the plumbing requires precision. A leak-free, efficient system depends on correct pipe sizing and valve placement. Follow these steps carefully.

1. Plan Your Layout and Measure Distances

Before cutting any pipe, map out the route from your pool equipment pad to the solar collectors. The goal is to keep the distance as short as possible to minimize heat loss in the pipes.

• Measure the vertical rise from the pump to the roof.
• Measure the horizontal distance across the roof.
• Add 10% extra length for fittings and errors.

Pro Tip: Use insulated PVC pipes for the return line if the distance exceeds 50 feet. This prevents heat loss before the water returns to the pool.

2. Install the Bypass Valve Assembly

The bypass valve is crucial for regulating flow. It allows you to control how much water goes through the solar panels versus returning directly to the pool.

• Tee Off the Return Line: Cut into the return line after the filter but before the water goes back to the pool.
• Install Three Valves: You need two shut-off valves and one diverter valve.
  • Valve A: Controls flow into the solar panel.
  • Valve B: Controls the bypass (direct return to pool).
  • Valve C: Controls flow out of the solar panel.
• Balance the Flow: Adjust the valves so that approximately 80–90% of the water flows through the solar panels, while 10–20% bypasses them. This ensures optimal heat transfer without starving the panels of flow.

3. Connect the Supply and Return Lines

Now, connect the main plumbing to the solar collectors.

• Supply Line: Connect the outlet of your bypass assembly to the bottom inlet of the solar collector array. Water should always enter from the bottom to ensure the panels fill completely and air is pushed out.
• Return Line: Connect the top outlet of the solar collector array back to the pool return line, downstream of the bypass assembly.
• Use Union Fittings: Install union fittings near the collectors. This allows you to disconnect the panels easily for maintenance or winterization without cutting pipes.

4. Install Air Relief and Check Valves

Air locks can reduce efficiency and damage pumps. Proper venting is non-negotiable.

• Automatic Air Vent: Install an automatic air relief valve at the highest point of the solar loop. This releases trapped air automatically.
• Manual Air Vent: Include a manual valve as a backup for initial startup.
• Check Valve: Place a check valve on the return line after the solar panels. This prevents cold water from siphoning back into the panels at night, which can cool down your heated water.

For more detailed technical specifications on fluid dynamics in heating systems, you can refer to general engineering principles on Wikipedia’s Heat Exchanger page.

5. Pressure Test the System

Never skip this step. Before covering trenches or finalizing roof mounts, test for leaks.

1. Close all valves.
2. Turn on the pool pump.
3. Slowly open the supply valve to the solar panels.
4. Inspect every joint, fitting, and valve for drips.
5. Run the system for 30 minutes to ensure stability under pressure.

Common Mistakes to Avoid

Even experienced DIYers can make errors. Here are the most frequent pitfalls:

Maintenance Tips for Longevity

Once you know how to set up plumbing for pool solar heater systems, maintaining them is straightforward.

• Clean the Panels: Dust and debris reduce efficiency. Rinse panels with a garden hose twice a year.
• Check Valves Annually: Ensure diverter valves move freely and seals are tight.
• Winterize Properly: If you live in a freezing climate, drain the solar loops completely or use compressed air to blow out remaining water. Frozen water can crack PVC and collector tubes.

FAQ Section

1. Can I install a solar pool heater myself?

Yes, if you have basic plumbing skills and comfort working on roofs. However, electrical connections for the controller and pump should be handled by a licensed electrician. Always check local building codes before starting.

2. What size pump do I need for a solar pool heater?

Your existing pump may work, but solar panels add resistance. Generally, you need a pump that can maintain a flow rate of 10–15 gallons per minute (GPM) per 100 square feet of collector area. Consult your panel manufacturer’s specifications.

3. Do I need a separate pump for the solar system?

In most residential setups, no. The existing filtration pump is sufficient. However, if your pump is old or undersized, upgrading to a variable-speed pump can improve efficiency and allow better flow control for the solar loop.

4. How long does it take to heat the pool with solar?

Solar heating is gradual. It typically raises the pool temperature by 5–10 degrees Fahrenheit over several days of consistent sun. It is best used for maintaining temperature rather than rapid heating.

5. What happens if it clouds over?

The system will continue to circulate water, but heat gain will stop. A good solar controller will automatically divert water away from the panels if they are cooler than the pool water, preventing heat loss.

6. Is PVC pipe safe for hot water from solar panels?

Yes, standard Schedule 40 PVC is rated for temperatures up to 140°F (60°C), which is well above the typical operating temperature of pool solar heaters (usually 80–100°F). For extra safety, some installers use CPVC, but it is generally unnecessary for pool applications.

Conclusion

Learning how to set up plumbing for pool solar heater systems empowers you to create a sustainable, cost-effective swimming environment. By following the steps outlined above—planning your layout, installing proper valves, and ensuring air relief—you can enjoy warmer water for months longer each year.

Remember, the key to success is attention to detail. Proper flow balance and leak-free connections will ensure your system runs efficiently for decades.
