There is nothing quite as frustrating as the persistent drip-drip-drip of a leaky faucet keeping you awake at night. You’ve decided to fix it yourself, saved some money on a plumber, and removed the handle, only to stare at the exposed valve and wonder: Which replacement part do I actually need? The most critical measurement in this process is the stem length. If you get this wrong, the new washer won’t seat properly, or the handle won’t screw back on. Knowing how to tell the length of a plumbing stem is the single most important step to ensuring your repair lasts. Let’s walk through this together, so you can head to the hardware store with confidence.
Why Accurate Stem Measurement Matters
Before we grab the tape measure, it is vital to understand why precision is non-negotiable in plumbing repairs. A plumbing stem (also known as a valve stem) acts as the bridge between your faucet handle and the water supply. When you turn the handle, the stem rotates or lifts to allow water flow.
If the replacement stem is too short, the handle will feel loose, and the internal washer may not create a tight seal against the valve seat, leading to continued leaks. Conversely, if the stem is too long, the handle may not fit back onto the spline, or you might damage the internal threads when forcing it. According to industry standards, even a discrepancy of 1/8th of an inch can cause a repair to fail. Getting this measurement right saves you time, money, and multiple trips to the home improvement store.
Tools You Will Need
You don’t need an expensive toolkit to measure a plumbing stem. Most of these items are likely already in your junk drawer.
- Digital Calipers: This is the gold standard for accuracy. They can measure to the nearest 0.01 inches.
- Standard Ruler or Tape Measure: Acceptable for a quick estimate, but less precise than calipers.
- Clean Rag: To wipe off grease, mineral deposits, or old Teflon tape.
- Notebook and Pen: To record your measurements immediately.
Step-by-Step: How To Tell The Length Of A Plumbing Stem
Follow these steps carefully. We will break down the two most common types of measurements required: total length and thread length.
Step 1: Remove the Stem Completely
You cannot accurately measure the stem while it is still inside the faucet body. Ensure the water supply is turned off at the shut-off valves under the sink. Remove the handle (usually by popping off a decorative cap and unscrewing a hidden screw). Use an adjustable wrench to loosen the packing nut and carefully pull the entire stem assembly out.
Pro Tip: Lay the parts out on a towel in the order they came out. This helps if you need to reassemble the old unit temporarily.
Step 2: Clean the Stem
Old stems are often covered in calcium buildup, rust, or old plumber’s grease. These deposits can add false bulk to your measurement. Wipe the stem down thoroughly with your clean rag. Pay special attention to the threaded area and the bottom tip where the washer sits.

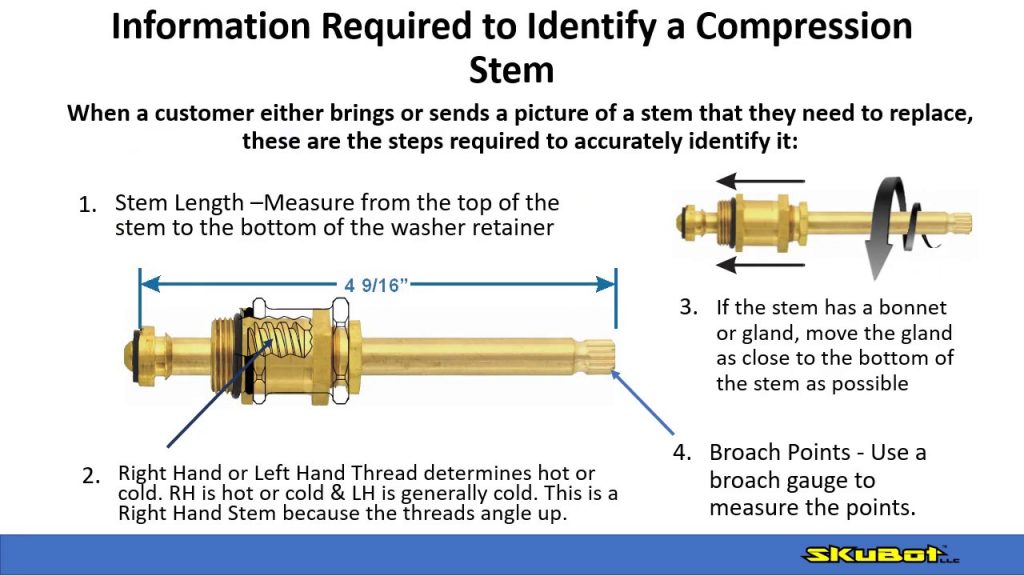

Step 3: Measure the Total Length
This is the most common metric hardware stores use to categorize stems.
- Place the end of your ruler or caliper at the very top of the stem (where the handle attaches).
- Extend the measurement tool to the very bottom of the stem (the tip where the rubber washer is attached).
- Record this number. Common lengths are usually in increments like 2-1/2 inches, 3 inches, or 3-1/2 inches.
Important: Do not include the handle adapter or any decorative caps in this measurement. Measure only the metal body of the stem.
Step 4: Measure the Threaded Section
Sometimes, two stems have the same total length but different thread patterns. To differentiate them:
- Measure from the top of the stem down to where the threads begin.
- Measure the length of the threaded portion itself.
- Count the threads per inch (TPI) if possible, though this is often standardized by brand.
Step 5: Identify the Brand and Type
Length is only half the battle. Plumbing stems are not universal. A 3-inch stem from a Delta faucet will not fit a Moen fixture. Look for branding stamps on the metal. If there are no visible marks, take photos of the splines (the grooves where the handle fits) and the bottom washer configuration.
For a deeper understanding of standard pipe threads and fittings, you can refer to general engineering standards on Wikipedia’s page on Pipe Threads. This resource provides excellent background on why certain thread standards exist, which helps explain why compatibility is so specific.
Common Mistakes to Avoid
Even experienced DIYers make these errors. Here is how to avoid them:
| Mistake | Consequence | Solution |
|---|---|---|
| Measuring with the washer attached | Adds 1/8″–1/4″ extra length | Remove the rubber washer and brass screw before measuring. |
| Using a flexible tape measure | Tape bends, causing inaccurate readings | Use rigid calipers or a stiff steel ruler. |
| Ignoring the spline count | Handle won’t fit the new stem | Count the number of grooves on the top of the stem (e.g., 12-point vs. 16-point). |
| Assuming “Universal” fits all | Leaks persist or parts don’t install | “Universal” kits often require trimming; always measure first. |
Understanding Stem Variations
Not all stems are created equal. When learning how to tell the length of a plumbing stem, you must also identify its type:
- Compression Stems: Used in older two-handle faucets. They rely on a rubber washer compressing against a seat to stop water. These are the most common type requiring length measurement.
- Cartridge Stems: Found in modern single-handle or ceramic disk faucets. These are usually proprietary and replaced as a whole unit rather than just the stem.
- Ball Valve Stems: Used in ball-type faucets. These have a distinct shape with a cam and slot mechanism.
If you have a cartridge or ball system, measuring the “stem length” may not be the correct approach. Instead, you should look for the model number of the entire faucet, usually found on a tag under the sink or on the base of the spout.
What If You Can’t Find an Exact Match?
It is surprisingly common to find that your specific stem is discontinued. Here are your options:
- Bring the Old Stem to the Store: This is the best strategy. Most hardware stores have comparison boards where you can match your stem against hundreds of samples.
- Use a Universal Repair Kit: These kits come with multiple stems and washers. However, you may need to cut the stem to the correct length using a hacksaw. Only do this if you are comfortable with minor modifications.
- Contact the Manufacturer: If you know the brand, their customer service can often identify the part based on photos and measurements.
FAQ Section
Q: Can I measure the stem without removing it from the faucet?
A: No. You cannot get an accurate measurement of the total length or the thread configuration while the stem is installed. You must remove it to ensure the replacement part will fit correctly.
Q: Does the color of the stem matter?
A: Generally, no. The color (brass, chrome, or white plastic) is usually cosmetic or indicative of the material. Focus on the dimensions, thread type, and spline count. However, matching the material can help prevent corrosion if dissimilar metals are in contact.
Q: My stem measures 2.75 inches, but stores only sell 2.5 or 3.0 inches. What do I do?
A: It is safer to buy the longer stem (3.0 inches) if it is a universal type that can be trimmed. Never try to stretch a short stem. If it is a proprietary brand stem, you must find the exact size, as trimming may ruin the threading.
Q: How often should I replace plumbing stems?
A: There is no set timeline. Replace them when they leak, become difficult to turn, or show signs of significant corrosion. Regular maintenance, such as replacing the rubber washer every few years, can extend the life of the stem.
Q: Is there a difference between hot and cold water stems?
A: Yes, in many older two-handle faucets. The hot water stem often has reverse threads (left-hand tight) to prevent it from loosening during normal use. Always check the threading direction before installing the new stem.
Conclusion
Fixing a leaky faucet is one of the most rewarding DIY projects you can tackle, but it hinges on precision. By following this guide on how to tell the length of a plumbing stem, you eliminate the guesswork and ensure a watertight seal. Remember to clean the part, use precise tools like calipers, and never ignore the brand-specific details like spline count.
Don’t let a small drip turn into a big headache. Take your measurements, head to the store with confidence, and enjoy the silence of a fixed faucet!
