Standing in front of an exposed wall of pipes can feel intimidating, especially when you know a city inspector is coming soon. One small leak or missed cap can delay your project by weeks and cost you hundreds in re-inspection fees. That’s why knowing how to test indoor plumbing for rough in inspection is crucial for any homeowner or DIY enthusiast wanting to keep their renovation on track.
In this guide, we will walk you through the exact steps professionals use to ensure your DWV (Drain, Waste, and Vent) system is watertight and code-compliant. We’ll break down the complex jargon into simple, actionable advice so you can face that inspection with total confidence.
Why Is the Rough-In Inspection Critical?

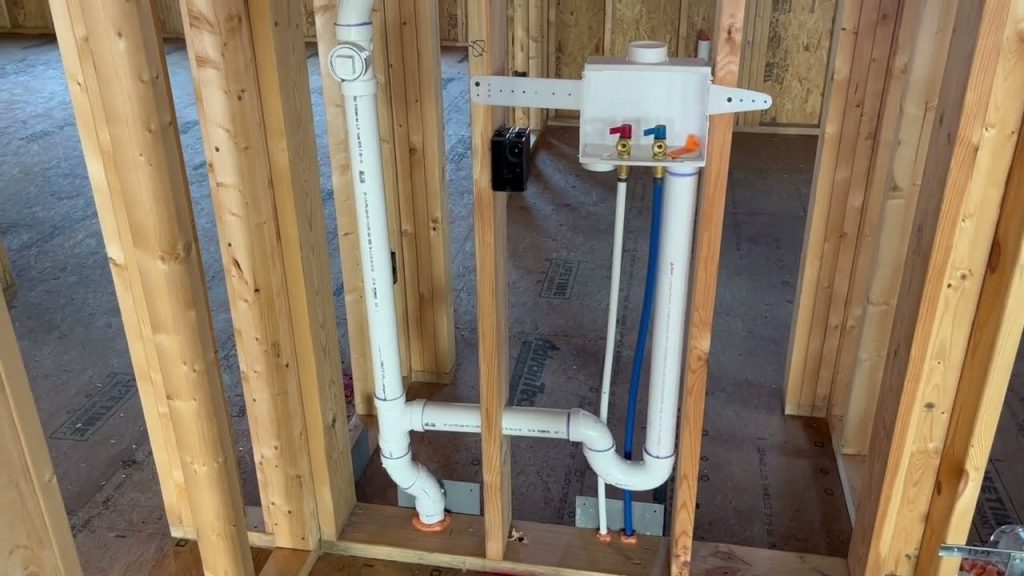

Before we dive into the testing methods, it is essential to understand why this stage matters. The rough-in phase happens after all the pipes are installed but before the walls are closed up with drywall. Once those walls are sealed, finding a leak becomes a nightmare involving demolition.
According to the International Plumbing Code (IPC), which is adopted by most US jurisdictions, the plumbing system must be tested to prove it is free of leaks and obstructions. This isn’t just bureaucratic red tape; it’s about protecting your home’s structural integrity and your family’s health from sewage gases and water damage.
Air Test vs. Water Test: Which Should You Use?
One of the first questions homeowners ask is whether to use air or water. Both methods are generally accepted by building codes, but they have distinct advantages and disadvantages.
The Air Test
This method involves pressurizing the system with air and monitoring the gauge for drops in pressure.
- Pros: Cleaner (no water mess), faster to set up, easier to detect tiny leaks via sound or soap bubbles.
- Cons: Requires specific equipment (air pump and gauge), dangerous if over-pressurized (never exceed 5 PSI).
The Water Test
This method involves filling the entire system with water until it flows out of the vent stack on the roof.
- Pros: No special equipment needed, simulates actual usage conditions.
- Cons: Heavy (water weighs 8.34 lbs per gallon), messy if a leak occurs, requires significant water volume.
| Feature | Air Test | Water Test |
|---|---|---|
| Equipment Needed | Air pump, gauge, test ball | Garden hose, caps/plugs |
| Mess Factor | Low | High |
| Detection Method | Pressure drop / Soap bubbles | Visual water loss |
| Safety Risk | Moderate (if over-pressurized) | Low |
Most professional plumbers prefer the air test for efficiency, but many DIYers find the water test more straightforward because it requires less specialized gear. Check with your local building department to see which method they prefer or mandate.
Step-by-Step: How to Perform an Air Test
If you choose the air test method, precision is key. Here is how to do it correctly.
Step 1: Cap All Openings
Ensure every drain opening is sealed. This includes sinks, toilets, showers, and floor drains. Use rubber test balls or mechanical caps. Make sure they are inflated or tightened securely.
Step 2: Install the Test Gauge
Locate the main cleanout or the lowest point in your system. Attach your air pump and pressure gauge here. Ensure the connection is airtight using Teflon tape or pipe dope.
Step 3: Pressurize the System
Slowly pump air into the system. Crucial Warning: Do not exceed 5 PSI (pounds per square inch). Most residential codes require a test pressure between 3 to 5 PSI. Over-pressurizing can blow out joints or damage traps.
Step 4: The Soap Bubble Check
Once the system reaches 5 PSI, close the valve on the pump. Mix dish soap with water in a spray bottle. Spray every joint, fitting, and connection. If you see bubbles forming, you have a leak. Mark it immediately.
Step 5: Monitor the Gauge
Let the system sit for at least 15 minutes. If the needle on the gauge drops, you have a leak somewhere. If it holds steady, your system is airtight.
Step-by-Step: How to Perform a Water Test
If you opt for the water test, prepare for some heavy lifting and potential messes.
Step 1: Seal the System
Just like the air test, cap all fixtures. However, for a water test, you often need to plug the main sewer line exit where it leaves the house. This forces the water to fill up the entire interior system.
Step 2: Fill from the Top
Go to the highest vent stack on your roof. Insert a garden hose into the vent pipe. Turn on the water slowly.
Step 3: Watch for Overflow
Continue filling until water begins to overflow from the top of the vent stack. This ensures every trap and pipe section is completely full. This creates a “head of water” that puts pressure on the joints.
Step 4: Wait and Observe
Leave the water running at a trickle to maintain the level, or cap the vent once full (if local code allows). Inspect all visible joints underneath the house or in the basement. Look for any dripping or dampness.
Step 5: Check for Leaks
If the water level in the vent stack drops significantly without evaporation, you likely have a leak. Since you can’t easily see underground pipes, a dropping water level usually indicates a breach in the buried lines or under-slab piping.
Common Reasons for Failing Inspection
Even with careful testing, inspections can fail. Here are the most common pitfalls:
- Missing Cleanouts: Every change of direction greater than 45 degrees usually requires a cleanout access point.
- Improper Slope: Drain pipes must slope downward at 1/4 inch per foot. Too flat, and waste won’t move; too steep, and water outruns the solids.
- Venting Issues: Every fixture needs a vent to prevent siphoning. If a toilet gurgles when the sink drains, your venting is wrong.
- Unsupported Pipes: Pipes must be hanger-supported every 4 feet for horizontal runs. Sagging pipes create low spots where debris collects.
Expert Tips for a Smooth Inspection
- Take Photos: Before the inspector arrives, take clear photos of your work. If something is questionable, having visual proof of your installation can help.
- Be Present: Stay on-site during the inspection. If the inspector has a question, you can answer it immediately rather than waiting for a call-back.
- Know Your Local Codes: While the IPC is standard, cities like New York, Chicago, or Los Angeles may have amendments. Always check with your local building department website.
FAQ Section
Q: Can I perform the plumbing test myself?
A: Yes, in most jurisdictions, homeowners can perform their own rough-in inspections if they pulled the permit. However, the final sign-off must come from the certified city or county inspector.
Q: What happens if I fail the rough-in inspection?
A: The inspector will issue a “correction notice” listing the violations. You must fix these issues and schedule a re-inspection. Note that re-inspections often carry an additional fee.
Q: Do I need to test supply lines during rough-in?
A: Typically, no. Supply lines (water coming in) are usually tested later during the “final inspection” when fixtures are installed. The rough-in focuses on DWV (Drain, Waste, Vent) systems.
Q: How long does a plumbing rough-in inspection take?
A: The actual inspection usually takes 15–30 minutes, depending on the size of the home. However, scheduling the appointment can take several days or weeks depending on your local department’s workload.
Q: Is it okay to use glue on PVC pipes for the test?
A: Yes, all joints should be fully primed and glued before testing. The test is meant to verify the integrity of the permanent installation, not a temporary setup.
Conclusion
Learning how to test indoor plumbing for rough in inspection is one of the most valuable skills you can acquire during a home renovation. By choosing the right testing method—whether air or water—and meticulously checking every joint, you save yourself from future headaches and expensive repairs.
Remember, the goal isn’t just to pass the inspection; it’s to ensure your home’s plumbing system is safe, efficient, and durable for decades to come. Take your time, double-check your slopes and vents, and don’t hesitate to consult a professional if you’re unsure.
