Discovering a water stain on your ceiling or hearing the mysterious sound of running water when all taps are off can be stressful. These are often signs of a slab leak, a serious issue that requires locating pipes buried deep within or beneath your concrete foundation. Knowing how to trace plumbing lines in or below slab is essential for preventing structural damage, reducing water bills, and avoiding costly emergency repairs. Whether you are a curious homeowner or preparing for a renovation, understanding this process empowers you to make informed decisions before calling in the professionals.

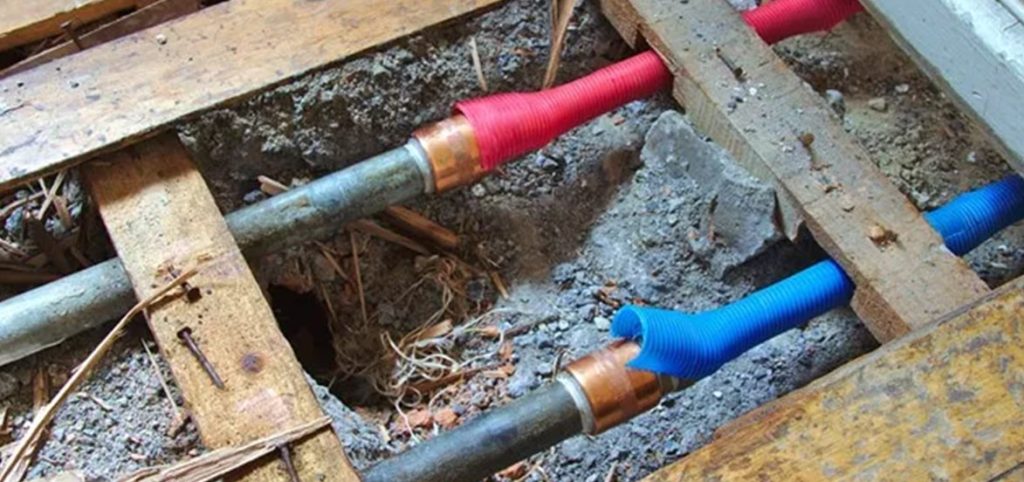

Understanding the Challenge: Plumbing Beneath the Concrete
In many homes built after the 1950s, especially in warmer climates like Texas, California, and Florida, plumbing lines are embedded directly into the concrete slab foundation. This construction method saves space but creates a significant challenge when leaks occur. Unlike raised foundations where pipes are accessible via crawl spaces, slab-embedded pipes are invisible and inaccessible without specialized technology.
According to industry estimates, slab leaks account for nearly 10% of all residential plumbing issues in the United States. Ignoring them can lead to mold growth, foundation cracking, and skyrocketing water bills. Therefore, accurate detection is not just a convenience—it is a necessity for home maintenance.
Method 1: Electronic Pipe Locators (The Most Common Approach)
For most homeowners and professionals, electronic pipe locators are the go-to solution for how to trace plumbing lines in or below slab. These devices use electromagnetic signals to detect metal pipes or tracer wires attached to non-metallic pipes.
How It Works
- Signal Transmission: A transmitter sends a specific frequency signal into the pipe. If the pipe is metal (like copper), it conducts the signal directly. If it is PVC or PEX, a flexible tracer wire must have been installed alongside it during construction.
- Signal Reception: A handheld receiver detects the electromagnetic field above ground. As you move the receiver over the slab, the signal strength increases when you are directly above the pipe.
- Mapping: By marking the points of highest signal intensity, you can create a map of the pipe’s path.
Pros and Cons of Electronic Locating
| Feature | Advantages | Disadvantages |
|---|---|---|
| Accuracy | High precision for metal pipes | Less effective for deep or non-metallic pipes without tracer wires |
| Cost | Moderate equipment cost | Requires some technical skill to interpret signals |
| Speed | Fast scanning of large areas | Can be interfered with by rebar in concrete |
Pro Tip: If your home has PVC pipes without tracer wires, electronic locators alone will not work. You may need to combine this method with acoustic listening devices.
Method 2: Acoustic Listening Devices (For Leak Detection)
While electronic locators find the path of the pipe, acoustic listening devices help pinpoint the exact location of a leak. This method is crucial when you know there is a problem but don’t know where.
Step-by-Step Process
- Pressurize the System: Ensure the water system is under normal pressure.
- Use Ground Microphones: Place sensitive microphones on the slab surface. These devices amplify the sound of water escaping from a pipe.
- Listen for Hissing: A leaking pipe creates a distinct hissing or rushing sound. The loudest point usually indicates the leak’s location.
- Cross-Reference: Move the microphone in a grid pattern to triangulate the source.
This method requires a quiet environment. Background noise from HVAC systems or traffic can interfere with accuracy. Professional plumbers often use correlated leak detectors, which use two sensors to calculate the exact distance to the leak based on sound travel time.
Method 3: Thermal Imaging Cameras (Non-Invasive Visualization)
Thermal imaging is a cutting-edge, non-invasive method that detects temperature differences in the slab. It is particularly effective for hot water line leaks.
Why Temperature Matters
When hot water escapes from a pipe, it heats the surrounding concrete. A thermal camera can visualize this heat signature as a bright spot on an otherwise cool floor. Conversely, cold water leaks may appear as darker, cooler areas if the ambient temperature is warm.
Limitations
- Depth Sensitivity: Thermal cameras can only detect temperature changes near the surface. Deeply buried pipes may not show a clear signature.
- Environmental Factors: Sunlight heating one side of the house can create false positives. Best results are achieved early in the morning or late at night when the slab temperature is stable.
For more information on the physics of thermal energy transfer, you can refer to Wikipedia’s article on Thermography.
Method 4: Tracer Gas Detection (For Small or Intermittent Leaks)
When other methods fail, tracer gas detection offers a highly sensitive alternative. This technique involves draining the water from the pipes and filling them with a harmless gas mixture, typically nitrogen and hydrogen.
The Process
- Isolate the Line: Shut off water and drain the suspected pipe section.
- Inject Gas: Pump the tracer gas into the pipe under low pressure.
- Detect Escape: Use a sensitive gas sniffer device above the slab. Hydrogen molecules are small enough to escape through tiny cracks and rise through the concrete.
- Pinpoint Location: The detector alerts you when it senses the gas, marking the exact leak spot.
This method is extremely accurate and works regardless of pipe material or depth. However, it requires specialized equipment and training, making it a job best left to certified professionals.
DIY vs. Professional Help: When to Call an Expert
While understanding how to trace plumbing lines in or below slab is valuable, executing it correctly is another matter. Here is a quick comparison to help you decide:
- DIY Approach: Suitable for minor investigations using rental equipment. Best if you suspect a simple blockage or want to verify pipe locations before drilling. Risk: Misinterpretation of data can lead to unnecessary concrete breaking.
- Professional Service: Recommended for confirmed leaks, complex layouts, or when insurance claims are involved. Professionals use multi-method approaches (e.g., combining acoustic and thermal) for 95%+ accuracy. Benefit: Many offer “no leak, no fee” guarantees.
Frequently Asked Questions (FAQ)
1. Can I trace PVC pipes under a slab without tracer wires?
Tracing PVC pipes without pre-installed tracer wires is challenging. Electronic locators will not work. Your best options are acoustic listening devices (if there is a leak) or thermal imaging (for hot water lines). In some cases, professionals may insert a sonde (a small radio transmitter) into the pipe using a drain snake to trace its path.
2. How much does it cost to trace plumbing lines under a slab?
Costs vary by region and method. Basic electronic locating may cost between $100–$300. Comprehensive leak detection using multiple technologies typically ranges from $300 to $1,000. While this seems expensive, it is far cheaper than randomly breaking concrete, which can cost thousands in repairs.
3. Will tracing the pipes damage my foundation?
No. Non-invasive methods like electronic locating, acoustic listening, thermal imaging, and tracer gas do not require drilling or breaking the slab. They are entirely safe for your foundation. Damage only occurs during the repair phase, not the detection phase.
4. How long does it take to locate a slab leak?
A professional plumber can typically locate a slab leak within 1–3 hours, depending on the size of the home and the complexity of the plumbing layout. DIY attempts may take longer due to the learning curve associated with the equipment.
5. What signs indicate I have a slab leak?
Common signs include unexplained increases in water bills, warm spots on the floor, the sound of running water when fixtures are off, cracks in walls or flooring, and mold or mildew odors. If you notice any of these, immediate investigation is recommended.
Conclusion
Learning how to trace plumbing lines in or below slab is a critical skill for protecting your home’s integrity and financial health. While DIY methods like rental electronic locators can provide initial insights, the complexity of underground plumbing often demands professional expertise. By using advanced tools such as acoustic listeners, thermal cameras, and tracer gases, experts can pinpoint leaks with minimal disruption to your home.
Don’t wait for a small drip to become a major flood. If you suspect a slab leak, act quickly. Share this guide with friends and family who own slab-foundation homes—knowledge is the first step toward prevention!
