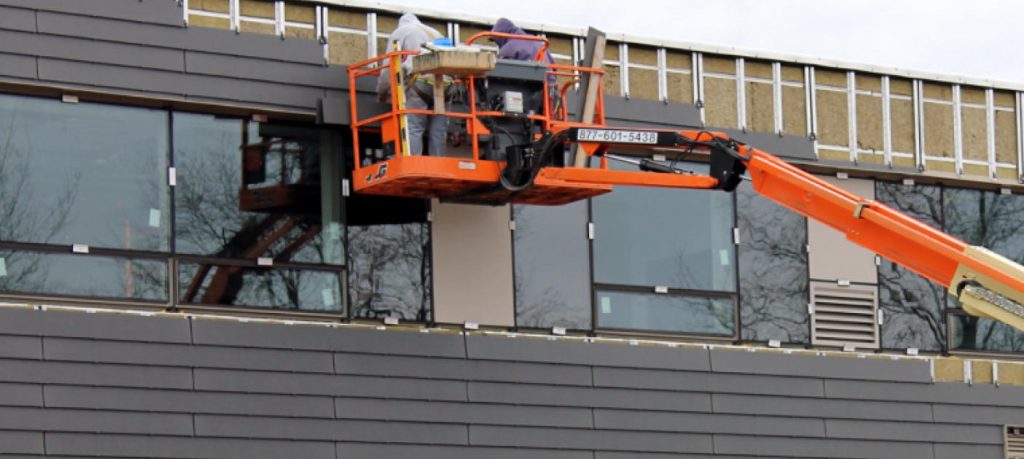

Have you ever stood back to admire your renovation progress, only to realize your new metal panels are following the crooked lines of an old foundation? It is a frustrating reality for many homeowners and contractors alike. Dealing with structural imperfections is not just about aesthetics; it is critical for weatherproofing and longevity. This guide will walk you through the precise methods for installing metal panel siding on walls out of plumb, ensuring your exterior looks sharp and performs perfectly for decades.
Why Plumb Matters More Than You Think
Before we dive into the tools and techniques, it is essential to understand why “plumb” (perfectly vertical) is non-negotiable for metal siding. Unlike vinyl or wood, which have some flexibility, metal panels are rigid. If your wall leans even half an inch over eight feet, that error compounds as you move up the wall.
The Ripple Effect of Uneven Walls
When you install rigid panels on a surface that is not plumb, several issues arise:
- Visible Gaps: Panels may not overlap correctly, creating entry points for water and pests.
- Wavy Appearance: Light reflects off metal differently than other materials. Any deviation in the substrate becomes highly visible under sunlight.
- Structural Stress: Forced installation can warp the panels or pull fasteners loose over time due to wind load and thermal expansion.
According to industry standards, a wall should generally be within 1/4 inch of plumb per 10 feet of height. Anything beyond this requires corrective action before siding installation begins.
Step 1: Assessing the Degree of Imperfection
You cannot fix what you do not measure. Before buying materials, you must determine how far out of plumb your walls actually are.
Tools You Will Need
- A high-quality 4-foot level (or a laser level for larger surfaces).
- A chalk line.
- A tape measure.
- Shims (composite or treated wood).
How to Measure
- Place your level vertically against the wall at various points: corners, mid-sections, and near openings like windows.
- Note the gap between the level and the wall at the top and bottom.
- Calculate the variance: If the gap changes significantly from top to bottom, your wall is out of plumb.
Pro Tip: Use a laser level to project a perfect vertical line across the entire wall. This gives you a visual reference for the entire surface area, making it easier to spot bows or leans.
Step 2: Choosing Your Correction Method
There are two primary strategies for installing metal panel siding on walls out of plumb: correcting the structure or faking it with furring strips. The method you choose depends on the severity of the lean and your budget.
Method A: Structural Correction (For Severe Leans)
If the wall is more than 1 inch out of plumb over 8 feet, cosmetic fixes may not be enough. You may need to:
- Sister new studs to existing ones to straighten the frame.
- Re-sheath the wall with new plywood or OSB.
This is labor-intensive but provides the best long-term result. For historical context on building standards, you can refer to general construction principles outlined on Wikipedia’s Framing (construction) page.
Method B: Furring Strips (For Moderate Imperfections)
For most DIYers and remodels, using furring strips is the most practical solution. This involves creating a new, perfectly plumb surface over the old, uneven one.
Comparison: Structural Fix vs. Furring Strips
| Feature | Structural Correction | Furring Strips |
|---|---|---|
| Cost | High (materials + labor) | Low to Moderate |
| Time | Weeks | Days |
| Difficulty | Advanced | Intermediate |
| Best For | New builds or major renovations | Retrofits and minor leans |
| Insulation | Can add cavity insulation | Allows for continuous exterior insulation |
Step 3: Installing Furring Strips for a Plumb Surface
Furring strips are thin pieces of wood or metal attached to the wall to create a flat, plumb plane. Here is how to do it correctly.
Materials Required
- 1×3 or 1×4 pressure-treated lumber or composite strapping.
- Corrosion-resistant screws (long enough to penetrate the studs).
- Shims (plastic or cedar).
Step-by-Step Process
- Establish Reference Lines: Using your laser level, mark a perfectly plumb line at each end of the wall. These are your “guide rails.”
- Install Top and Bottom Plates: Attach a horizontal furring strip at the very top and very bottom of the wall, ensuring they are level. These will anchor your vertical strips.
- Attach Vertical Strips:
- Start at one corner. Place your first vertical furring strip along your plumb reference line.
- Shim as needed: If the wall bows out, place shims behind the strip to push it out. If the wall leans in, you may need to build out the entire wall thickness uniformly.
- Secure the strip with screws every 16 inches on center. Ensure the screw goes through the shim and into the structural stud behind the sheathing.
- Check Continuously: Do not assume the wall is straight. Check every third strip with your level. The goal is to create a grid that is perfectly square and plumb, regardless of what lies beneath it.
- Spacing Considerations: Space your vertical furring strips 16 inches on center (or 24 inches, depending on your metal panel specifications). This ensures the siding has adequate support and does not oil-can (pop in and out) due to wind or temperature changes.
Step 4: Installing the Metal Panels
Now that you have a plumb surface, the actual siding installation becomes straightforward. However, keep these tips in mind for installing metal panel siding on walls out of plumb scenarios where you’ve used furring strips.
Key Installation Tips
- Start Square: Begin at the bottom corner. Use a square to ensure your first panel is perfectly perpendicular to the ground. If the first panel is off, every subsequent panel will be off.
- Use Proper Fasteners: Use screws with neoprene washers designed for metal roofing/siding. Drive them straight—not at an angle—to ensure a watertight seal.
- Allow for Expansion: Metal expands and contracts with temperature changes. Do not overtighten screws. Leave a slight gap (about 1/16 inch) between the screw head and the panel to allow for movement.
- Overlap Correctly: Follow the manufacturer’s instructions for side laps and end laps. Typically, a 1-inch side lap is standard, but check your specific product data sheet.
Common Mistakes to Avoid
Even with a plumb surface, errors can occur. Watch out for these pitfalls:
- Ignoring Thermal Bridging: Wood furring strips can conduct heat/cold. Consider using thermal break pads or rigid foam insulation between the strip and the wall if energy efficiency is a priority.
- Using Wet Lumber: If using wood furring strips, ensure they are dry. Wet wood will shrink as it dries, causing your perfectly plumb surface to become uneven again.
- Skipping the Weather Barrier: Always install a house wrap or weather-resistive barrier (WRB) behind the furring strips. This protects the sheathing from any moisture that might get behind the metal.
FAQ Section
Q1: Can I install metal siding directly on an out-of-plumb wall without furring strips?
A: Technically, you can, but it is highly discouraged. The panels will likely look wavy, gaps may form, and the warranty on the siding may be voided. Furring strips are the industry-standard solution for this problem.
Q2: What is the maximum amount a wall can be out of plumb before it needs structural repair?
A: Generally, if a wall is more than 1 inch out of plumb over 8 feet, it suggests a significant structural issue. While furring strips can hide cosmetic imperfections, severe leans should be evaluated by a structural engineer to rule out foundation failure.
Q3: Should I use wood or metal furring strips?
A: Wood is more common and easier to work with for DIYers. However, metal furring strips (hat channels) are rot-proof and provide a more consistent thickness. If you live in a humid climate, metal or composite strips may be a better long-term investment.
Q4: How do I handle windows and doors when the wall is out of plumb?
A: Window and door frames must remain square. When installing furring strips around openings, build out the jambs to match the new plane of the wall. You may need to extend the window trim or use wider casing to cover the increased depth.
Q5: Will adding furring strips affect my home’s energy efficiency?
A: It can actually improve it. The air gap created by furring strips allows for ventilation behind the siding, reducing moisture buildup. Additionally, you can insert rigid foam insulation between the strips to increase the R-value of your exterior walls.
Q6: How often should I check for plumb during installation?
A: Check every single vertical furring strip. Once the grid is established, check every third metal panel during installation to ensure you haven’t drifted off course.
Conclusion
Installing metal panel siding on walls out of plumb is a challenge, but it is entirely manageable with the right approach. By taking the time to assess your walls and installing a system of furring strips, you create a perfect canvas for your new exterior. This extra step not only ensures a sleek, professional appearance but also protects your home from water intrusion and structural stress.
Remember, the key to success is patience and precision. Measure twice, shim once, and enjoy the durable, low-maintenance beauty of metal siding.
