Is An Expansion Tank Needed On Pex Plumbing?

Have you ever heard strange banging noises from your pipes or noticed your water heater’s pressure relief valve dripping occasionally? These are common signs of thermal expansion, a phenomenon that affects every closed-loop plumbing system. If you have recently upgraded to modern piping, you might be asking: is an expansion tank needed on PEX plumbing system installations? The short answer is yes, in most modern homes, it is not just recommended—it is often required by code to protect your investment and ensure safety.

Many homeowners assume that because PEX (cross-linked polyethylene) is flexible, it can handle pressure changes better than rigid copper or CPVC. While PEX does have some give, it is not designed to absorb the significant pressure spikes caused by heating water. In this guide, we will break down exactly why expansion tanks are critical, how they work with PEX, and what you need to know to keep your plumbing system safe and compliant.

Why Thermal Expansion Happens in Closed Systems

To understand why you need an expansion tank, you first need to understand the physics of water. Water expands when it is heated. In an “open” system, this expanded water could simply flow back into the municipal water main. However, most modern homes operate as “closed” systems.

The Role of Check Valves and Pressure Reducers

Modern plumbing codes require the installation of check valves or pressure-reducing valves (PRVs) at the point where water enters your home. These devices prevent backflow, ensuring that contaminated water from your home doesn’t flow back into the public supply. While this is great for public health, it creates a problem for your internal plumbing.

When your water heater heats up 50 gallons of water, that water expands by approximately 2-3%. In a closed system, this extra volume has nowhere to go. This causes a rapid increase in pressure inside your pipes and water heater. Without a place to absorb this excess volume, the pressure can spike dangerously high, potentially exceeding 100 PSI (pounds per square inch).

Key Insight: According to the U.S. Environmental Protection Agency (EPA), backflow prevention devices are essential for public health, but they necessitate the use of thermal expansion control devices in residential settings.

Is PEX Flexible Enough to Handle Expansion?

A common myth among DIY enthusiasts is that PEX tubing’s flexibility eliminates the need for an expansion tank. Let’s debunk this.

The Limits of PEX Flexibility

PEX is indeed more flexible than copper or PVC. It can expand slightly under pressure, which might delay the onset of high-pressure issues. However, this flexibility is not a substitute for an expansion tank. Here is why:

1. Material Stress: Constantly forcing PEX to expand and contract with every heating cycle causes material fatigue. Over time, this can lead to micro-fractures or failure at the connection points (fittings), which are the weakest part of any PEX system.
2. Fitting Failure: PEX uses brass or plastic fittings. These fittings are rigid. While the tube might stretch, the fittings will not. This mismatch creates stress concentrations that can lead to leaks.
3. Water Heater Strain: The biggest risk isn’t just to the PEX pipes; it’s to your water heater. The tank itself is subjected to extreme pressure cycles, which can shorten its lifespan significantly or cause the temperature and pressure (T&P) relief valve to fail.

Code Requirements: What Do the Rules Say?

If you are wondering if an expansion tank is legally required, the answer depends on your local jurisdiction, but the trend is clear.

International Plumbing Code (IPC) and Uniform Plumbing Code (UPC)

Both major model codes in the United States—the IPC and the UPC—mandate thermal expansion control in closed water supply systems. Since most new constructions and renovations involve installing check valves or PRVs, these systems are classified as closed.

• IPC Section 607.3: Requires a listed thermal expansion control device for each closed water heating system.
• UPC Section 608.3: Similarly mandates devices to control thermal expansion.

Even if your local inspector does not explicitly check for an expansion tank during a minor repair, installing one ensures you are compliant with national standards. More importantly, many water heater manufacturers void their warranty if an expansion tank is not installed in a closed system. Always check your water heater’s manual before skipping this component.

Signs You Need an Expansion Tank Immediately

If you are unsure whether your current PEX system has adequate protection, look for these warning signs:

• Dripping T&P Valve: The temperature and pressure relief valve on your water heater drips periodically, especially after hot water usage.
• Banging Pipes: You hear loud “water hammer” noises when faucets are turned off or when the water heater kicks on.
• Leaking Fixtures: Toilets run randomly, or faucet seals fail prematurely due to high static pressure.
• High Pressure Gauge Readings: If you attach a pressure gauge to an outdoor spigot and see readings consistently above 80 PSI, especially after the heater runs, you have a thermal expansion issue.

How to Choose and Install the Right Expansion Tank

Selecting the correct expansion tank is crucial. An undersized tank won’t handle the volume, while an oversized one is a waste of money and space.

Step-by-Step Selection Guide

1. Determine Your Water Heater Size: Check the gallon capacity of your water heater (e.g., 40, 50, or 80 gallons).
2. Check Incoming Water Pressure: Use a simple pressure gauge on an outdoor faucet to measure your static water pressure. Common residential pressures range from 40 to 80 PSI.
3. Consult a Sizing Chart: Most manufacturers provide charts. For example, a standard 2-gallon expansion tank is typically sufficient for a 40-50 gallon water heater with incoming pressure between 40-60 PSI.

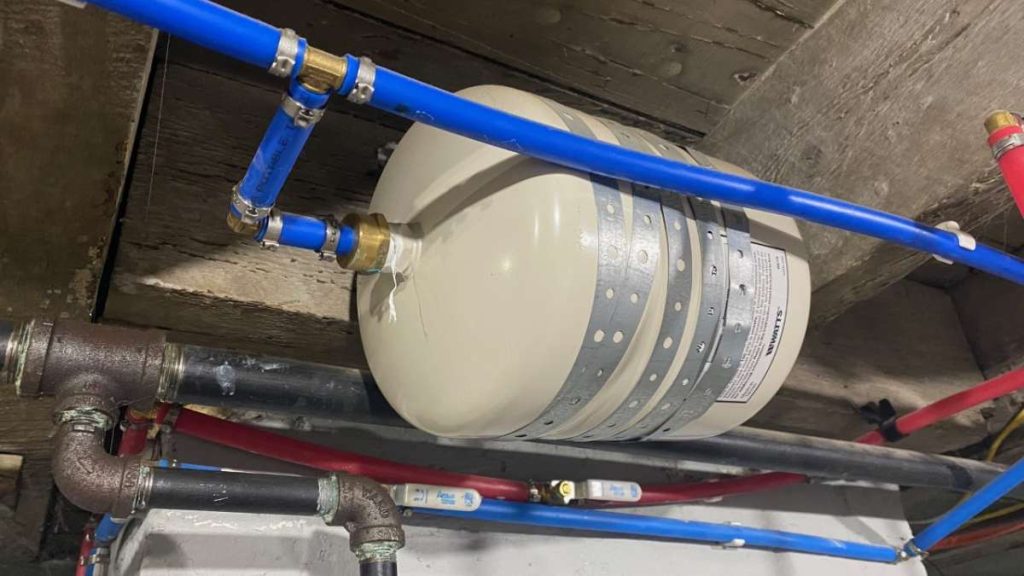

Installation Basics for PEX Systems

Installing an expansion tank on a PEX system is straightforward but requires precision.

• Location: The tank should be installed on the cold water inlet line, before the water heater. It can be installed vertically or horizontally, depending on the model.
• Connection: Use a dielectric union or a brass fitting to connect the tank to the PEX line. Ensure you use the correct PEX crimp or clamp tool for your specific tubing type (PEX-A, PEX-B, or PEX-C).
• Pre-Charge Pressure: This is the most critical step. The air pressure in the expansion tank’s bladder must match your home’s static water pressure. If your water pressure is 50 PSI, pre-charge the tank to 50 PSI using a bicycle pump or air compressor before connecting it to the water line.
• Support: Ensure the tank is properly supported. Water-filled tanks are heavy, and PEX lines should not bear the weight of the tank.

Frequently Asked Questions (FAQ)

1. Can I install an expansion tank myself on a PEX system?

Yes, if you are comfortable with basic plumbing tasks. It involves cutting the cold water line, installing a tee fitting, and connecting the tank. However, if you are unsure about soldering, crimping PEX, or checking pressure ratings, it is best to hire a licensed plumber to ensure the system remains leak-free and code-compliant.

2. How long do expansion tanks last?

Typically, an expansion tank lasts between 5 to 10 years. The internal rubber bladder can degrade over time, or the air charge can leak out. It is good practice to check the tank’s air pressure annually. If water comes out when you press the Schrader valve (like a tire valve), the bladder has ruptured, and the tank needs replacement.

3. Does a tankless water heater need an expansion tank with PEX?

Generally, no. Tankless water heaters heat water on demand and do not store large volumes of hot water, so thermal expansion is minimal. However, if your system has a recirculation loop or if local codes specifically mandate it for all closed systems, you may still need one. Always check your local code.

4. What happens if I don’t install an expansion tank?

Without an expansion tank, the pressure in your plumbing system will rise every time the water heater operates. This can lead to premature failure of your water heater, burst pipes, leaking toilets, and damaged appliance seals. In extreme cases, it can cause the T&P valve to fail, which is a significant safety hazard.

5. Can I use an old expansion tank from a copper system on my new PEX system?

You can reuse the tank if it is still in good condition and properly sized. However, you must ensure the connections are compatible with PEX. You will likely need a transition fitting. Also, test the air charge and inspect the tank for corrosion before reinstalling it.

Conclusion

So, is an expansion tank needed on PEX plumbing system setups? Absolutely. While PEX is a durable and flexible material, it cannot safely manage the pressure spikes caused by thermal expansion in a closed plumbing system. Installing an expansion tank is a small investment that protects your water heater, prevents costly leaks, and ensures your home meets modern plumbing codes.

Don’t wait for a leak or a burst pipe to take action. Check your water pressure, size your tank correctly, and enjoy peace of mind knowing your plumbing system is protected.
