If you’ve ever wondered, “Is plumbing ground required when there is a ground rod?”—you’re not alone. Many homeowners and even some electricians get confused about how grounding systems work, especially when both metal plumbing and ground rods are present. The short answer? Yes, in most cases, your plumbing still needs to be bonded—even if you have a ground rod installed. Let’s break down why, how, and what the National Electrical Code (NEC) actually says about it.
What Does “Grounding” Mean in Home Electrical Systems?
Before diving into plumbing specifics, it’s essential to understand what grounding does. In simple terms, grounding provides a safe path for stray electrical current to return to the earth, preventing shocks, fires, or equipment damage. A complete grounding system includes:
- The main service panel
- Grounding electrode conductor (GEC)
- Grounding electrodes (like rods, pipes, or plates)
- Bonding of metal components (including plumbing)
According to the National Fire Protection Association (NFPA), proper grounding reduces the risk of electrical fires by up to 70% in residential settings. That’s why getting this right matters—not just for code compliance, but for your family’s safety.
Is Plumbing Ground Required When There Is a Ground Rod? (The Core Question)
Yes—metal water piping must still be bonded to the grounding system, even if a ground rod is present. Here’s why:
The NEC (National Electrical Code) Section 250.104(A) explicitly states that metal water piping systems must be bonded to the service equipment or grounding electrode system. This requirement exists because metal plumbing can become energized during a fault (e.g., a live wire touches a pipe). Without bonding, anyone touching a faucet or shower could receive a dangerous shock.
A ground rod alone doesn’t eliminate this risk. It serves as one type of grounding electrode—but it doesn’t replace the need to bond conductive systems like plumbing that run throughout your home.
Expert Insight:
“Think of the ground rod as your connection to the earth. But your plumbing is like an internal highway for electricity—if it’s metal, it needs to be tied into that same safety net.”
— John Callahan, Master Electrician & NFPA Contributor
How Does Plumbing Bonding Work with a Ground Rod?
Here’s a step-by-step look at how these systems integrate:

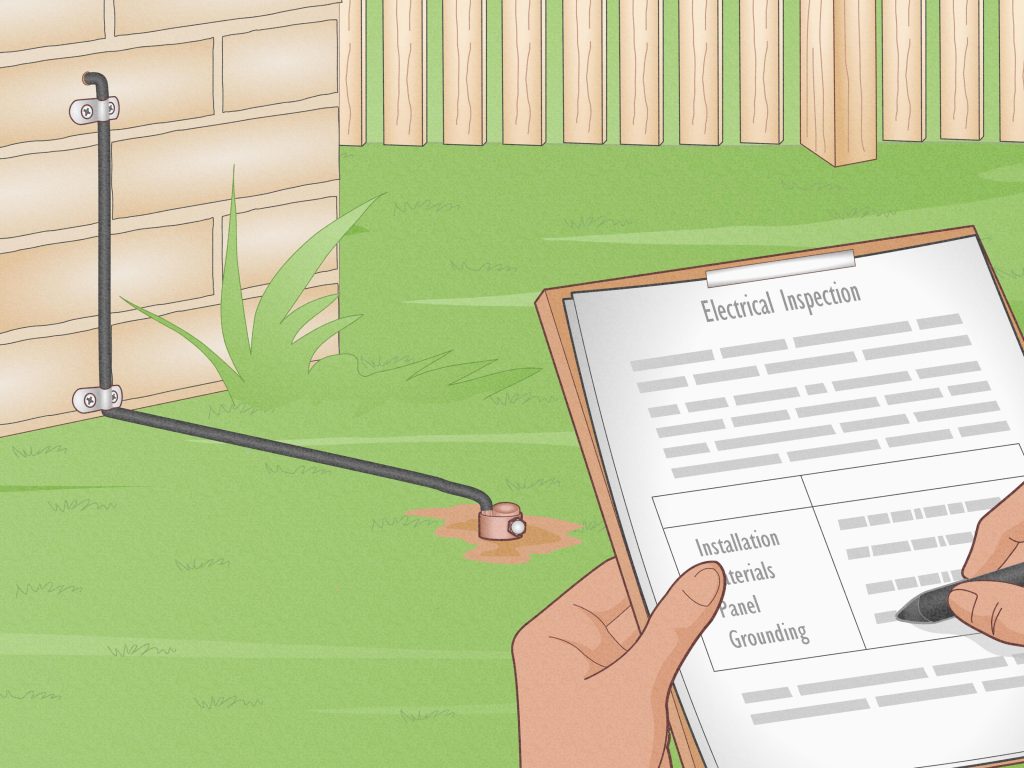

- Install a Ground Rod: Typically an 8-foot copper-clad steel rod driven into the earth near your main electrical panel.
- Run a Grounding Electrode Conductor (GEC): Connects the ground rod to your main service panel (usually #6 AWG copper wire or larger).
- Bond Metal Water Pipes: Within 5 feet of where the water pipe enters your home, connect it to the grounding system using a bonding jumper (also typically #6 AWG copper).
- Ensure Continuity: If your plumbing includes non-metal sections (like PEX), you must bond both sides of the break to maintain electrical continuity.
This setup ensures that all grounded metal parts are at the same electrical potential, minimizing shock risk.
Common Misconceptions About Ground Rods and Plumbing Grounds
Let’s clear up a few myths:
| Myth | Reality |
|---|---|
| “One ground rod is enough for the whole house.” | A ground rod is just one part of the grounding electrode system. Other electrodes (like metal water pipes) may also be required or used in parallel. |
| “Plastic pipes mean I don’t need bonding.” | If any part of your plumbing is metal (even just the main supply line), bonding is still required per NEC 250.104. |
| “Older homes don’t need updates.” | While grandfathered systems may be legal, they’re often unsafe. Upgrading grounding improves protection significantly. |
💡 Pro Tip: Even if your city water main is plastic, your internal metal pipes can still conduct electricity from internal faults—so bonding remains critical.
NEC Requirements: What the Code Actually Says
Per the 2023 NEC (the latest adopted version as of 2026):
- Section 250.52(A)(1): Metal underground water pipes in direct contact with earth for 10+ feet can serve as a grounding electrode.
- Section 250.104(A): All metal water piping systems must be bonded to the service grounding system.
- Section 250.68(C): If you use a metal water pipe as a grounding electrode, it must be supplemented by another electrode (like a ground rod)—you can’t rely on it alone.
This means:
✅ You can use metal plumbing as part of your grounding system.
✅ But you must also install a supplemental electrode (like a ground rod).
✅ And you must bond all interior metal piping regardless.
For more on grounding electrodes, see the Wikipedia page on grounding.
Real-World Example: A Near-Miss Incident
In 2024, a homeowner in Ohio received a severe shock while washing dishes. Investigation revealed:
- The home had a ground rod (installed during a panel upgrade).
- But the original galvanized water pipes were not bonded after a section was replaced with PEX.
- A faulty dishwasher energized the unbonded metal sink and faucet.
The local fire marshal noted: “This could’ve been fatal. Proper bonding would’ve tripped the breaker instantly.”
This case underscores why both the ground rod and plumbing bonding are non-negotiable.
Step-by-Step: How to Properly Bond Your Plumbing
If you’re a DIYer (or verifying your electrician’s work), follow these steps:
- Locate the main water pipe entry point (usually in the basement or crawlspace).
- Ensure the pipe is metal for at least 10 feet underground (if using it as an electrode).
- Install a bonding clamp rated for water pipes (UL-listed, corrosion-resistant).
- Run a #6 AWG bare copper wire from the clamp to:
- Your main electrical panel’s grounding bus bar, or
- The grounding electrode conductor (GEC) between the panel and ground rod.
- Avoid sharp bends or splices—keep the path as direct as possible.
- Test continuity with a multimeter to confirm low resistance (<25 ohms is ideal).
⚠️ Warning: Always turn off power at the main breaker before working near the panel. When in doubt, hire a licensed electrician.
FAQ Section
Q1: Can I skip plumbing bonding if I have two ground rods?
A: No. Ground rods handle earth grounding, but plumbing bonding prevents internal shock hazards. They serve different safety functions and are both required by code.
Q2: What if my plumbing is all PVC or PEX?
A: If there’s zero metal in your entire water system (rare in most US homes), bonding isn’t required. However, if your main supply line from the street is metal—even partially—you must bond it.
Q3: Does the bond wire need to be insulated?
A: No. Bare copper is standard and preferred for grounding/bonding conductors per NEC 250.119.
Q4: How far from the water entry point should I bond?
A: Within 5 feet of where the pipe enters the building, as per NEC 250.104(A)(1).
Q5: Can I use the same ground rod for electrical and plumbing grounding?
A: Yes—the entire system should be interconnected. The ground rod, panel, and plumbing all tie into one unified grounding network.
Q6: Will this affect my water quality or pipes?
A: No. Bonding carries current only during a fault. It won’t cause corrosion or alter water chemistry under normal conditions.
Conclusion
So, is plumbing ground required when there is a ground rod? Absolutely yes—and now you know why. Ground rods and plumbing bonding aren’t alternatives; they’re complementary layers of safety mandated by the NEC to protect you from electrical hazards.
Ignoring plumbing bonding might pass a casual inspection, but it leaves your home vulnerable to preventable shocks or fires. Whether you’re renovating, upgrading your panel, or just curious—take a moment to check your grounding system.
🔧 Your next step: Walk to your basement or utility room. Look for a thick copper wire clamped to your main water pipe. If it’s missing or corroded, contact a licensed electrician.
