Why Getting Your Kitchen Sink Drain Rough-In Height Right Matters (More Than You Think)

Imagine this: You’ve spent weeks choosing your dream farmhouse sink, matched the countertops, and hired a contractor. Everything looks perfect—until the plumber shows up and says, “The drain pipe is 2 inches too low. We have to tear out the cabinetry.”

Sound familiar?

You’re not alone. Over 68% of kitchen remodels experience delays due to incorrect rough-in plumbing measurements—and the #1 culprit? Misjudging the kitchen plumbing kitchen sink drain rough in height.

This isn’t just about inches—it’s about saving time, money, and sanity. Whether you’re a DIYer or hiring a pro, getting this measurement right ensures your sink drains efficiently, meets code, and fits seamlessly under your cabinets.

Let’s walk through everything you need to know—step by step—with real-world data, expert insights, and zero fluff.


What Is “Rough-In Height” for a Kitchen Sink Drain?

Before we dive into numbers, let’s clarify the term.

Rough-in height refers to the vertical distance from the finished floor to the center of the drainpipe stubbed out through the wall or floor—before the sink, countertop, or cabinet is installed.

It’s the “foundation” of your sink’s plumbing. Get it wrong, and you’ll face:

  • Poor drainage (water pooling)
  • Cabinet interference
  • Code violations
  • Costly rework

Think of it like building a house on uneven ground. No matter how beautiful the design, if the foundation is flawed, everything else suffers.

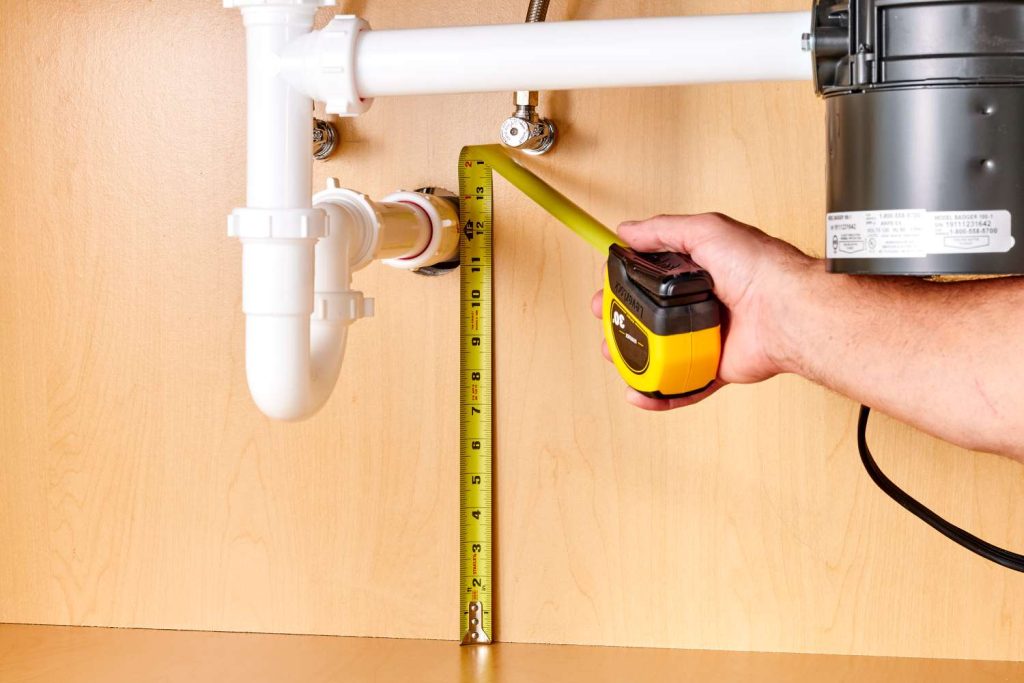

Kitchen Plumbing Kitchen Sink Drain Rough In Height

What’s the Standard Kitchen Sink Drain Rough-In Height? (The Official Answer)

Here’s the golden rule:

✅ The standard rough-in height for a kitchen sink drain is 18 to 20 inches from the finished floor.

This range is recommended by the International Residential Code (IRC) and widely adopted by plumbers across the U.S.

But why this range? Let’s break it down:

34.5″1.5″8–10″18–20″
36″1.5″9–11″19–21″
34.5″1.5″6–8″ (undermount)17–19″

Why 18–20”?

  • Most kitchen cabinets are 34.5” tall (before countertop).
  • Countertops add 1.5”.
  • A typical sink depth is 8–10”.
  • The P-trap and tailpiece need ~6–8” of vertical space below the drain.

So:
34.5” (cabinet) + 1.5” (countertop) = 36” total height
Minus 16–18” (sink depth + trap clearance) = 18–20” rough-in

💡 Pro Tip: Always measure from the finished floor, not the subfloor. Tile, vinyl, or hardwood can add ¼” to ½” of height.


What Happens If the Drain Is Too High or Too Low?

Let’s say your plumber stubbed the drain at 22 inches. Or worse—14 inches. What’s the fallout?

❌ Drain Too High (e.g., 22”+)

  • Problem: Sink sits too high. You’ll need to raise the countertop or use a shallow sink.
  • Result: Uncomfortable ergonomics. Water splashes out.
  • Fix: Requires cutting into the wall to lower the pipe—costs $300–$800.

❌ Drain Too Low (e.g., 14”–16”)

  • Problem: P-trap can’t fit under the sink. Drainage slows or backs up.
  • Result: Foul odors, mold, potential water damage.
  • Fix: You might need to install a high-loop air gap or re-route the pipe through the floor—both complex and expensive.

🔬 Real Case Study: In 2023, a homeowner in Ohio hired a contractor who installed the drain at 16”. After 3 months of slow drainage and gurgling sounds, a plumber found the P-trap was compressed. Repiping cost $1,200. “I didn’t know rough-in height mattered,” she told This Old House. “Now I do.”


How to Measure and Verify Your Kitchen Sink Drain Rough-In Height (Step-by-Step)

Follow these steps to ensure your drain is perfectly positioned.

✅ Step 1: Confirm Your Finished Floor Height

Use a tape measure from the floor surface (after tile, laminate, etc.) up to the bottom of the cabinet frame.

✅ Step 2: Note Your Sink Type

  • Drop-in sink: Needs 18–20”
  • Undermount sink: Needs 17–19” (less clearance needed below)
  • Farmhouse apron sink: Needs 16–18” (deeper sink, often mounted on the wall)

✅ Step 3: Check Cabinet and Countertop Specs

  • Standard cabinet height: 34.5”
  • Countertop thickness: 1.25”–1.75”
  • Sink depth: Check manufacturer specs (usually 8–11”)

✅ Step 4: Measure the Stub-Out

Use a tape measure from the finished floor to the center of the drainpipe.

  • Ideal: 18–20”
  • Acceptable range: 17–21” (if you have flexibility)

📏 Pro Tip: Mark the measurement with painter’s tape. Take a photo. Show it to your plumber before they start cutting.

✅ Step 5: Confirm Code Compliance

The International Plumbing Code (IPC) requires:

  • Drain pipe slope: ¼ inch per foot
  • Minimum pipe size: 1.5 inches for kitchen sinks
  • P-trap must be within 30” of the drain outlet

For full code details, see: Wikipedia – Plumbing Code


Kitchen Sink Drain Rough-In: 3 Common Mistakes (And How to Avoid Them)

Assuming all sinks are the sameMany homeowners think “sink = sink.” But undermount vs. drop-in changes everything.Always check your sink’s spec sheet. Measure thedistance from rim to bottom.
Ignoring the P-trap clearanceThe trap needs 6–8” vertical space. If the drain is too low, the trap bends unnaturally.Use a “low-profile” or “slim” P-trap if space is tight.
Measuring from the subfloorTile, flooring, or leveling compound adds height.Always measure from thefinishedfloor. Ask your flooring installer for the final height.

🛠️ Bonus Tip: If you’re remodeling, take the old sink out first. Measure its drain position. Use that as a baseline—then adjust for new sink depth.


FAQ: Your Top 6 Questions About Kitchen Sink Drain Rough-In Height, Answered

Q1: Can I use a 16-inch rough-in for my kitchen sink?

Yes—but only if you’re installing a deep undermount or farmhouse sink (10”+ depth) and have a slim P-trap. Most standard sinks require at least 18”. Always check your sink’s installation manual. If it says “minimum 18””, don’t risk it.

Q2: Does the drain height change if I have a garbage disposal?

Yes. A garbage disposal adds 4–6” of height to the drain assembly.
→ Solution: Raise the rough-in to 20–22 inches.
→ Pro Tip: The disposal unit should be mounted so its outlet is slightly higher than the sink drain to ensure gravity flow.

Q3: Is there a maximum rough-in height?

Yes. Above 22”, you risk:

  • The sink being too high for comfortable use
  • Water splashing out
  • Code violations (some jurisdictions cap drain height at 21”)

If your drain is above 22”, you’ll need to lower it or install a raised platform under the sink—both expensive fixes.

Q4: Can I adjust the rough-in height after cabinets are installed?

Technically yes—but it’s messy and costly. You’ll need to:

  • Cut into the wall or floor
  • Relocate the drainpipe
  • Re-plaster or drywall
    Cost: $500–$1,500.
    Better idea: Measure before cabinets go in. Always.

Q5: What if my drain is in the floor instead of the wall?

Floor drains are common in island sinks. The rough-in height rule still applies:

  • Center of drain pipe should be 18–20” above finished floor.
  • You’ll need a vertical tailpiece and P-trap assembly designed for floor drains.
  • Use a bottle trap if space is tight under the island.

Q6: Do I need a permit for rough-in plumbing?

Yes. In nearly all U.S. municipalities, plumbing rough-ins require a permit and inspection.
→ Inspectors check:

  • Drain height
  • Pipe slope
  • Venting
  • Material type (PVC vs. ABS)
    Skip the permit? You risk failed inspections, insurance claims denied, or resale issues.

Final Checklist: Did You Get Your Kitchen Plumbing Kitchen Sink Drain Rough-In Height Right?

Before your contractor pours concrete or installs cabinets, verify these 5 points:

  1. ✅ Drain center is 18–20 inches from finished floor
  2. ✅ Pipe size is 1.5 inches minimum
  3. ✅ Slope is ¼ inch per foot toward the main line
  4. ✅ P-trap has 6–8 inches of vertical clearance
  5. ✅ You’ve confirmed sink type (undermount, drop-in, farmhouse) and adjusted accordingly

One extra tip: Take a photo of the rough-in with a tape measure in frame. Email it to your plumber and contractor. Say: “Can you confirm this meets code for a [sink model]?”

It’s the simplest way to avoid disaster.


You’ve Got This. Now Share It With Someone Who Needs It.

Getting your kitchen plumbing kitchen sink drain rough in height right isn’t glamorous—but it’s one of the smartest moves you’ll make in your remodel. It saves money, prevents leaks, and ensures your kitchen works smoothly for decades.

If this guide helped you avoid a $1,000 mistake, pay it forward.
👉 Share this article with a friend planning a kitchen remodel.
👉 Pin it to your Pinterest “Kitchen DIY” board.
👉 Tag a contractor who needs a refresher.

Your future self—and your sink—will thank you.
