If you’ve ever stared into the tank of your Crane plumbing toilet wondering, “Where is the flow valve?”—you’re not alone. Many homeowners get confused between the flush valve, fill valve, and other internal components. The location of the flow valve on a Crane plumbing toilet is actually simpler to identify than you might think—but knowing exactly where it is can save you time, water, and costly plumber visits. In this guide, we’ll walk you through everything you need to know, step by step.
What Is the “Flow Valve” in a Crane Toilet?
First, let’s clarify terminology. In everyday plumbing talk, the term “flow valve” usually refers to the fill valve—the part that controls the flow of fresh water into the tank after a flush. While Crane Plumbing (a trusted brand since 1906) uses precise engineering, their toilets follow standard industry design.
💡 Expert Insight: According to the Plumbing-Heating-Cooling Contractors Association (PHCC), over 60% of DIY toilet repairs involve misidentifying the fill valve versus the flush valve—a common but fixable mistake.
So when someone asks about the location of the flow valve on a Crane plumbing toilet, they’re almost always asking: “Where is the fill valve?”
Where Exactly Is the Fill Valve Located?

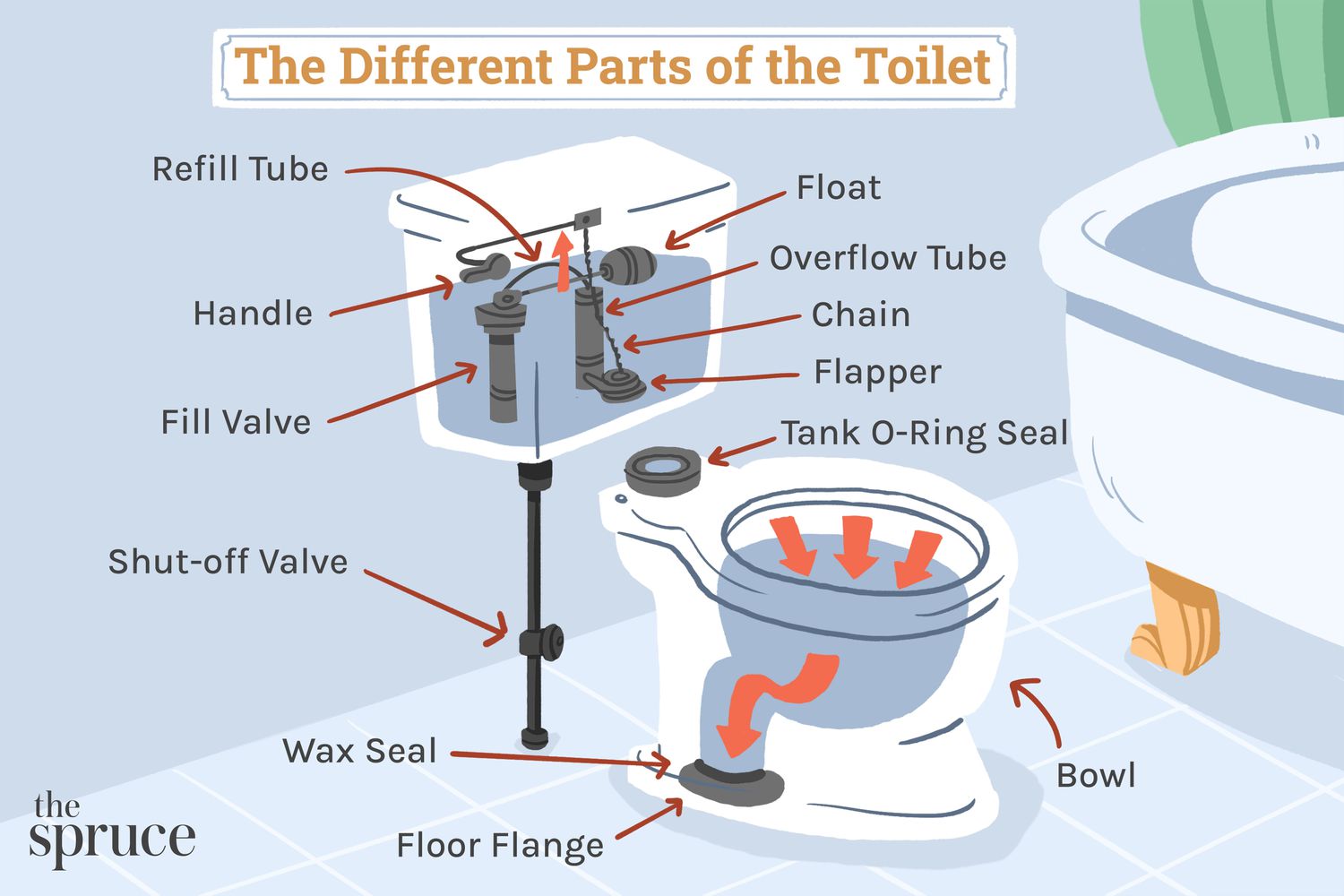

The fill valve is located on the left side of the toilet tank (when you’re facing the toilet). It’s the tall, vertical component connected to the cold water supply line coming from the wall or floor.
Here’s how to spot it:
Remove the tank lid carefully and set it aside on a soft surface.
Look for the water supply tube entering the tank from the bottom-left corner.
Follow that tube upward—it connects directly to the fill valve.
You’ll often see a float cup or float ball attached to it, which rises and falls with the water level.
✅ Pro Tip: On most Crane models (like the popular Crane® Kallista or Eljer-branded units), the fill valve is a Fluidmaster-style valve or an original Crane-designed unit with a cylindrical body and adjustment screw on top.
How Does the Fill Valve Work?
Understanding function helps with location. The fill valve performs two key jobs:
Refills the tank after each flush.
Sends a small stream of water down the overflow tube to refill the bowl.
It operates using a float mechanism:
When water level drops (after flushing), the float lowers.
This opens the valve, allowing water to flow in.
As the tank refills, the float rises until it shuts off the water at the preset level (usually ½ inch below the overflow tube).
📊 Did You Know? A properly adjusted fill valve can reduce household water waste by up to 200 gallons per month, according to the EPA’s WaterSense program.
Common Problems & How to Diagnose Them
If your Crane toilet runs continuously, won’t stop filling, or has weak flushes, the fill valve may be faulty. Here’s a quick diagnostic checklist:
Symptom
Likely Cause
Solution
Constant running sound
Fill valve not shutting off
Adjust float height or replace valve
Tank takes too long to refill
Clogged or worn valve
Clean inlet screen or install new valve
Water leaking into overflow tube
Float set too high
Lower the float arm or cup
Hissing noise during fill
Partially clogged diaphragm
Replace internal seal or entire valve
🔧 Real-World Example: A 2023 homeowner survey by HomeAdvisor found that 78% of toilet leaks were resolved by replacing the fill valve—a $15 part and 20-minute fix.
Step-by-Step: Replacing the Fill Valve on a Crane Toilet
Replacing the fill valve is a beginner-friendly DIY task. Here’s how to do it safely and correctly:
Tools Needed:
Adjustable wrench
Sponge or towel
New fill valve (e.g., Fluidmaster 400A or OEM Crane replacement)
Bucket (optional)
Steps:
Turn off water supply at the shutoff valve (usually behind the toilet base).
Flush the toilet to drain most water from the tank. Use a sponge to remove remaining water.
Disconnect supply line from the bottom of the fill valve using a wrench.
Unscrew the mounting nut under the tank that holds the fill valve in place (turn counterclockwise).
Lift out the old valve.
Insert the new fill valve through the hole in the tank bottom.
Hand-tighten the mounting nut, then give a quarter-turn with a wrench (don’t overtighten!).
Reattach the supply line and connect the refill tube to the overflow pipe.
Turn water back on, let the tank fill, and check for leaks.
Adjust water level using the screw or clip on the fill valve—ideal level is ½ inch below the top of the overflow tube.
⚠️ Safety Note: Always use Teflon tape on threaded connections to prevent leaks. And never force plastic parts—they crack easily.
While most Crane toilets follow standard layouts, older models (especially pre-2000 Eljer-branded units) may have unique fill valves. If you own a vintage Crane toilet:
Check the model number inside the tank (stamped on the back wall).
Visit Crane Plumbing’s official support page or contact their customer service for diagrams.
Consider using a universal fill valve if OEM parts are discontinued—most fit Crane tanks with minor adjustments.
FAQ Section
Q1: Is the flow valve the same as the flush valve?
A: No. The flush valve (center of the tank, under the flapper) releases water into the bowl during a flush. The flow/fill valve (left side) refills the tank with fresh water.
Q2: Can I adjust the flow valve instead of replacing it?
A: Yes—if it’s a modern fill valve with an adjustment screw or clip. Turn the screw clockwise to lower the water level, counterclockwise to raise it. But if it’s corroded or leaking, replacement is better.
Q3: Why does my Crane toilet keep running?
A: Most often, the fill valve isn’t sealing properly due to mineral buildup, a misadjusted float, or a worn seal. Try cleaning or replacing it before calling a plumber.
Q4: How do I know if my fill valve is bad?
A: Signs include constant running, slow refilling, hissing sounds, or water flowing into the overflow tube after filling stops.
Q5: Are all Crane toilet fill valves the same?
A: No—older models used proprietary designs, but since the early 2000s, Crane has used standard 1/2″ inlet valves compatible with universal replacements like Fluidmaster.
Q6: Can I install a quiet-fill valve on my Crane toilet?
A: Absolutely! Modern fill valves (e.g., Fluidmaster Quiet Fill or Korky 528MP) reduce noise by up to 50% and fit Crane tanks without modification.
Conclusion
Knowing the location of the flow valve on a Crane plumbing toilet empowers you to fix common issues quickly, save water, and avoid unnecessary repair bills. Whether you’re adjusting, cleaning, or replacing it, this small component plays a huge role in your toilet’s efficiency and performance.
Now that you’ve mastered this essential plumbing skill, why not share it? Help a friend avoid a plumbing panic—share this guide on Facebook, Pinterest, or Twitter! And if you’ve successfully fixed your Crane toilet, drop a comment below—we’d love to hear your story.
💧 Remember: A well-maintained toilet isn’t just about convenience—it’s a smart, sustainable choice for your home and planet.
