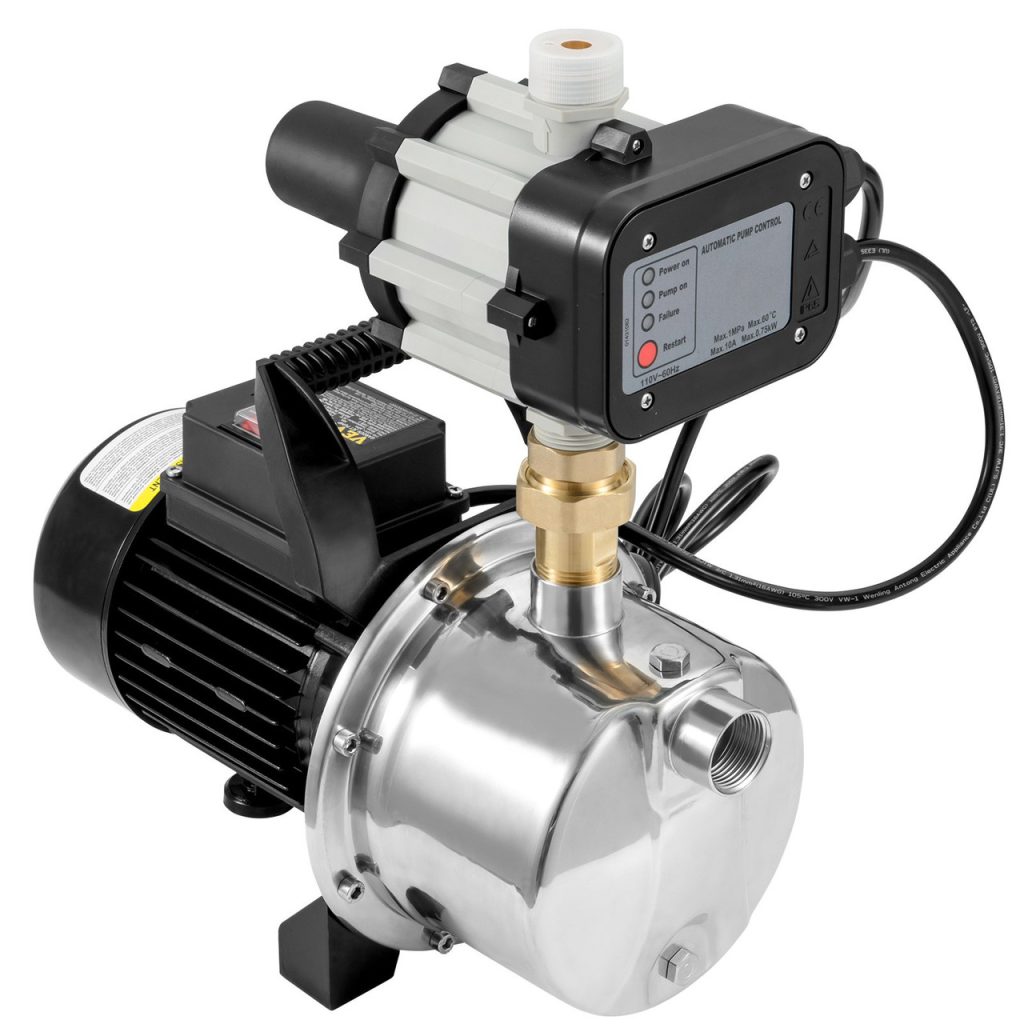

Master Plumber 5HP Shallow Jet Pump Specs Guide

Are you struggling with inconsistent water pressure or planning an upgrade for your home’s water system? Finding the right equipment can be overwhelming, especially when technical specifications seem like a foreign language. Understanding the Master Plumber Shallow Well Jet Pump 5-Hp Motor Specs is crucial to ensuring your household gets reliable, high-volume water flow without damaging your plumbing infrastructure. This guide breaks down everything you need to know in plain English.

What Are the Core Specifications of a 5-HP Master Plumber Pump?

When we talk about a 5-Horsepower (HP) motor, we are discussing a serious piece of machinery. Unlike standard residential pumps that typically range from 0.5 HP to 1.5 HP, a 5-HP unit is designed for heavy-duty applications. However, it is vital to clarify a common misconception in the industry regarding “Shallow Well” classifications.

Key Technical Data Points

For a genuine 5-HP jet pump configuration (often used in large residential estates, small farms, or commercial settings), here are the typical specifications you will encounter with brands like Master Plumber:

• Motor Power: 5 HP (3.7 kW)
• Voltage Requirement: 230V or 460V (Single-phase or Three-phase)
• Amperage: Approximately 15–20 Amps (at 230V)
• Maximum Flow Rate: 60–90 Gallons Per Minute (GPM), depending on head pressure.
• Maximum Suction Lift: 25 feet (standard for shallow well jet pumps).
• Impeller Type: Closed or Semi-open impeller designed for clean water.
• Housing Material: Cast Iron or Stainless Steel (corrosion-resistant).

Expert Note: A true 5-HP shallow well jet pump is rare for standard homes because the suction limit of 25 feet rarely requires that much power. Often, users confuse “high capacity” with “high horsepower.” If your well is deeper than 25 feet, a jet pump will not work regardless of the horsepower; you would need a submersible pump.

Why Choose a 5-HP Motor Over Smaller Models?

You might wonder if the extra cost and energy consumption of a 5-HP motor are worth it. The answer depends entirely on your water demand.

High-Volume Demand Scenarios

A 5-HP motor is not for the average suburban home with two bathrooms. It is ideal for:

1. Large Households: Homes with 4+ bathrooms, multiple laundry rooms, and high simultaneous usage.
2. Irrigation Systems: Running sprinklers while someone is showering inside.
3. Livestock and Agriculture: Filling large troughs quickly.
4. Commercial Use: Small bed-and-breakfasts or rural offices.

Performance Comparison Table

As shown above, the jump to 5 HP provides nearly triple the flow rate of a 1 HP unit. However, this comes with increased noise and electrical requirements.

Installation Requirements for High-Power Jet Pumps

Installing a 5-HP pump is not a DIY weekend project for beginners. It requires strict adherence to electrical codes and plumbing standards.

Step-by-Step Installation Overview

1. Electrical Preparation:
   • Ensure your breaker panel can handle the load. A 5-HP motor at 230V may require a dedicated 60-amp breaker.
   • Use the correct wire gauge. For distances over 50 feet, you may need 6 AWG or thicker wire to prevent voltage drop. Consult the National Electrical Code (NEC) for specific local regulations.
2. Priming the Pump:
   • Shallow well jet pumps rely on atmospheric pressure to push water up. They must be primed.
   • Fill the pump casing and suction line with clean water. Never run the pump dry, as this will destroy the seals and impeller within seconds.
3. Check Valve Installation:
   • Install a foot valve at the bottom of the suction pipe in the well. This prevents water from flowing back into the well when the pump turns off, maintaining the prime.
4. Pressure Tank Matching:
   • A 5-HP pump cycles water quickly. You need a large pressure tank (minimum 20–30 gallons drawdown capacity) to prevent “short cycling,” which burns out motors.

Common Troubleshooting Issues

Even the best-engineered Master Plumber pumps can face issues. Here is how to diagnose common problems based on motor specs.

Problem: Pump Runs But No Water Delivers

• Cause: Loss of prime.
• Solution: Check for air leaks in the suction line. Even a tiny pinhole can break the vacuum. Re-prime the pump with 2–3 liters of water.

Problem: Motor Overheats or Trips Breaker

• Cause: Voltage drop or mechanical binding.
• Solution: Measure voltage at the motor terminals while running. If it drops below 200V (on a 230V system), your wires are too thin or the distance is too great. Also, check if the impeller is clogged with debris.

Problem: Low Pressure Despite High HP

• Cause: Worn wear plate or nozzle.
• Solution: In jet pumps, the ejector (nozzle and venturi) creates the suction. If these are worn, efficiency drops drastically. Replace the ejector kit every 3–5 years for optimal performance.

Maintenance Tips to Extend Motor Life

A 5-HP motor is an investment. Protect it with regular maintenance.

• Annual Inspection: Check the pressure switch contacts for arcing. Clean them if necessary.
• Lubrication: Some older Master Plumber models have oil ports on the motor bearings. Use non-detergent motor oil if specified. Newer models are often sealed and require no lubrication.
• Winterization: If the pump is in an unheated space, drain it completely before freezing temperatures hit. Ice expansion will crack the cast iron housing.

FAQ Section

Q1: Can I use a 5-HP shallow well pump for a deep well?

A: No. Shallow well jet pumps are physically limited by atmospheric pressure to a maximum suction lift of about 25 feet. For wells deeper than 25 feet, you must use a deep well jet pump (with a two-pipe system) or a submersible pump. A 5-HP motor will not overcome physics.

Q2: How much electricity does a 5-HP pump consume?

A: A 5-HP motor consumes approximately 3.7 kilowatts (kW) per hour when running at full load. However, due to inefficiency and start-up surges, actual consumption may be higher. Expect a significant increase in your monthly electric bill if the pump runs frequently.

Q3: Is Master Plumber a reputable brand?

A: Yes, Master Plumber is a well-known brand in the North American market, particularly in Canada and the Northern US. They are known for producing durable, cost-effective pumps for residential and light commercial use. Their parts are widely available, which simplifies repairs.

Q4: Do I need a soft starter for a 5-HP pump?

A: It is highly recommended. A soft starter reduces the inrush current when the motor starts. This protects your home’s electrical grid, reduces stress on the motor windings, and extends the life of the pressure switch.

Q5: What size pressure tank do I need for a 5-HP pump?

A: For a 5-HP pump delivering high GPM, you should aim for a pressure tank with a large drawdown capacity. A standard 44-gallon bladder tank might be insufficient. Consider a 60-gallon or larger tank, or even a variable frequency drive (VFD) system to regulate speed instead of on/off cycling.

Q6: Why is my 5-HP pump so loud?

A: High-horsepower motors generate significant vibration and noise. Additionally, jet pumps are inherently noisy due to the high-velocity water passing through the ejector. Install the pump on a rubber vibration pad and consider building a sound-insulated enclosure around it, ensuring adequate ventilation for cooling.

Conclusion

Understanding the Master Plumber Shallow Well Jet Pump 5-Hp Motor Specs is the first step toward securing a robust water supply for your property. While a 5-HP motor offers incredible power and flow rates, it demands respect regarding installation, electrical capacity, and maintenance. It is not a plug-and-play appliance but a critical infrastructure component.

By ensuring proper priming, matching it with a sufficiently large pressure tank, and adhering to electrical safety standards, you can enjoy years of reliable service. Remember, if your well is deeper than 25 feet, look elsewhere—physics is non-negotiable.
