Have you ever drilled into a wall only to hit a pipe or sever an electrical wire? It is a homeowner’s nightmare that can lead to costly repairs, water damage, or even serious electrical hazards. Installing a metal plate over studs to protect plumbing and wires is the single most effective way to prevent these accidents during renovations or daily maintenance. This simple steel barrier acts as a shield, ensuring your drill bits bounce off rather than puncture vital utilities hidden behind your drywall.
Why Do You Need Steel Protection Plates?
Before we dive into the “how,” let’s understand the “why.” In modern construction, walls are not just empty cavities; they are highways for essential services. According to the National Fire Protection Association (NFPA), electrical failures or malfunctions are leading causes of home structure fires. While many of these start from faulty wiring, accidental damage during DIY projects is a significant, preventable risk.
When you hang a heavy mirror, install new shelving, or run cables for a home theater, you are essentially playing Russian roulette with what’s behind the drywall. A metal plate over studs to protect plumbing and wires eliminates this guesswork. It provides a physical barrier that standard drill bits cannot penetrate, giving you peace of mind and protecting your home’s infrastructure.
The Cost of Negligence
Ignoring protection plates can be expensive. Fixing a punctured copper water line often costs between $150 and $400, not including the cost of repairing water-damaged drywall and flooring. Electrical repairs can be even more complex and dangerous. Investing a few dollars in steel plates is a fraction of the cost of emergency repairs.
What Are Nail Plates and Where Do They Go?
Nail plates, also known as stud guards or protection plates, are thin sheets of galvanized steel designed to cover areas where pipes or wires run close to the edge of a wooden stud.
Standard Placement Rules
Generally, building codes require protection when utilities are within 1-1/4 inches of the face of the stud. If a hole is drilled closer than this distance to the edge, the structural integrity of the stud is compromised, and the utility is vulnerable to nail or screw penetration from the drywall side.
| Utility Type | Recommended Plate Size | Material |
|---|---|---|
| Electrical Wiring | 2″ x 6″ or larger | Galvanized Steel |
| Copper Plumbing | 3″ x 6″ or larger | Galvanized Steel |
| PEX Tubing | 2″ x 6″ or larger | Galvanized Steel |
| Low-Voltage Cables | 2″ x 4″ | Galvanized Steel |
Note: Always check local building codes as requirements may vary by state or municipality.
How to Install Metal Plates Correctly
Installing a metal plate over studs to protect plumbing and wires is a straightforward process, but precision is key. Follow these steps to ensure maximum protection.
Step 1: Locate the Utilities
Use a high-quality stud finder with AC detection capabilities to locate wires and pipes. For greater accuracy, especially with plastic PEX pipes, consider using an thermal imaging camera or consulting original blueprints if available. Mark the edges of the stud and the path of the utility with a pencil.
Step 2: Choose the Right Plate
Select a plate that is wide enough to cover the area where screws or nails might penetrate. Standard sizes are 2 inches by 6 inches, but for wider pipes or multiple wires, use larger plates. Ensure the steel is at least 0.020 inches thick for adequate durability.
Step 3: Position the Plate

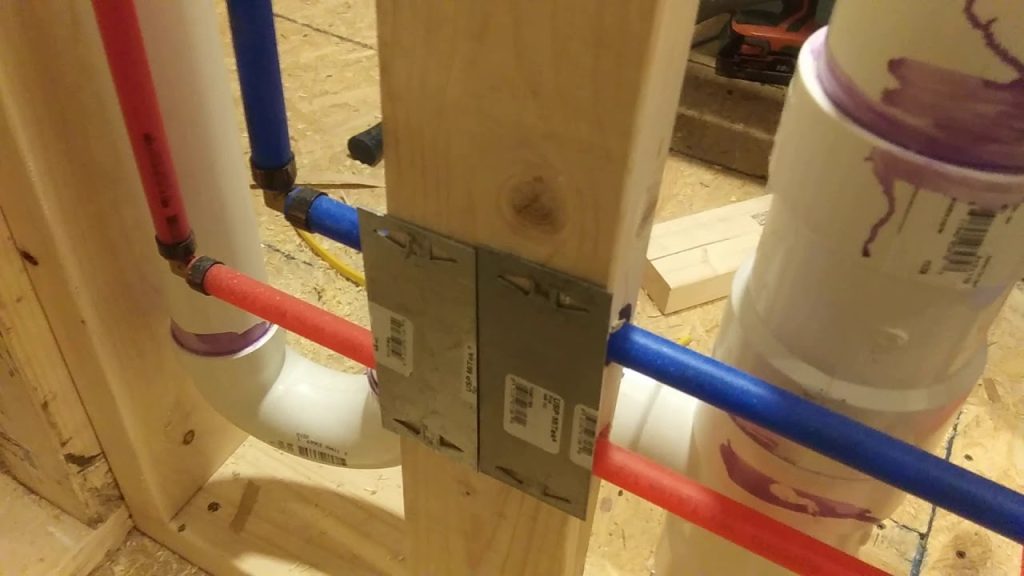

Place the metal plate over the stud, centering it directly over the pipe or wire bundle. The plate should cover the area from the edge of the stud inward to at least 1-1/4 inches. If the utility runs vertically, the plate should be oriented vertically.
Step 4: Secure the Plate
Use roofing nails or specialized plate nails to secure the steel to the wood stud. Drive the nails into the corners of the plate. Be careful not to bend the plate excessively, as this could reduce its protective surface area. Ensure the nails are flush with the plate so they do not interfere with drywall installation.
Step 5: Verify Coverage
Double-check that the plate covers all vulnerable areas. If you have multiple utilities running through the same stud cavity, you may need to overlap plates or use extra-wide custom-cut steel strips.
Common Mistakes to Avoid
Even experienced DIYers can make errors when installing protection plates. Here are the most common pitfalls:
- Using Thin Aluminum Foil: Some people mistakenly use aluminum flashing or foil. These materials are too soft and will not stop a drill bit. Always use galvanized steel.
- Incorrect Sizing: Using a plate that is too small leaves gaps where a screw can still hit the pipe. When in doubt, go bigger.
- Ignoring Code Requirements: Failing to install plates where required by code can fail home inspections and void insurance claims in case of damage.
- Damaging the Utility During Installation: Be gentle when nailing the plate. Hitting the pipe or wire while trying to secure the plate defeats the purpose.
Metal Plates vs. Other Protection Methods
Is a metal plate the only option? Let’s compare it with alternatives.
Plastic Guard Strips
Plastic strips are cheaper and easier to cut, but they offer significantly less protection. A sharp drill bit can easily pierce hard plastic. They are suitable for low-risk areas but not recommended for high-pressure plumbing or live electrical wires.
Running Utilities Through Center of Stud
The best protection is proper routing. Drilling holes in the center of the stud keeps utilities safe from drywall screws. However, this is not always possible in retrofits or complex layouts. This is where a metal plate over studs to protect plumbing and wires becomes essential.
Deep-Set Electrical Boxes
For electrical outlets, using deep-set boxes ensures that screws driven into the wall cavity do not reach the wires. This is a good complementary strategy but does not replace the need for plates on vertical runs.
Expert Insights and Building Codes
According to the International Residential Code (IRC), Section N1101.13, protection plates are mandatory when piping or tubing is installed through holes or notches in studs, joists, or rafters and is less than 1-1/4 inches from the nearest edge of the member.
“Steel plates shall be at least 1/16 inch thick, of appropriate width and height to cover the area of the piping or tubing.” – International Residential Code (IRC)
For more detailed information on residential building standards, you can refer to the International Code Council or general construction guidelines on Wikipedia.
Frequently Asked Questions (FAQ)
1. Can I use a metal plate on existing walls without removing drywall?
No. Protection plates must be installed before the drywall is hung. If your walls are already finished, you must rely on careful scanning with a stud finder and avoiding drilling in high-risk zones. If you suspect unprotected utilities, consult a professional before drilling.
2. What size nail should I use to attach the metal plate?
Use 1-inch roofing nails or specific nail plate nails. They have large heads that hold the steel securely against the wood without pulling through. Avoid using drywall screws, as they can strip out or protrude.
3. Do I need a permit to install protection plates?
Generally, no. Installing protection plates is considered part of standard rough-in work for plumbing and electrical systems. However, if you are moving pipes or wires to install the plates, you may need a permit for those modifications. Always check with your local building department.
4. Will the metal plate interfere with my stud finder?
Yes, most electronic stud finders will detect the metal plate. This is actually helpful! It confirms the location of the protected area. When scanning later for other items, be aware that the plate will register as a solid object.
5. Can I paint over the metal plate?
You do not need to paint the plate itself, as it will be covered by drywall. However, if the plate is exposed in a basement or unfinished area, painting it with rust-inhibitive paint can prevent corrosion over time.
6. What if I accidentally drill into a protected area?
If your drill bit hits the metal plate, stop immediately. Do not force it. The plate has done its job. Move your drilling location at least 2 inches away. If you suspect the plate was shifted or the utility was damaged despite the plate, inspect the area carefully before proceeding.
Conclusion
Protecting your home’s vital systems is not just about following rules; it’s about ensuring safety and longevity. Installing a metal plate over studs to protect plumbing and wires is a small effort that yields massive returns in peace of mind. By shielding your utilities from accidental punctures, you avoid costly repairs, potential water damage, and electrical hazards.
Remember, whether you are a seasoned contractor or a weekend DIY warrior, taking the time to properly install these steel guards is a mark of professional craftsmanship. Don’t leave your home’s safety to chance.
