Renovating a bathroom to meet accessibility standards can feel overwhelming, especially when structural changes are involved. Many homeowners and contractors face the challenge of moving toilet plumbing for the correct ADA clearance requirements without compromising the integrity of the existing floor plan. Whether you are updating a family home for aging parents or ensuring your business meets federal regulations, understanding the precise measurements and plumbing logistics is crucial for a safe, legal, and functional space.
Understanding ADA Standards: Why Precision Matters
The Americans with Disabilities Act (ADA) is not just a suggestion; it is a federal civil rights law that prohibits discrimination against individuals with disabilities. In the context of bathroom design, these standards ensure that facilities are accessible to everyone, including those who use wheelchairs or mobility aids.
When we talk about “clearance,” we aren’t just talking about elbow room. We are talking about specific, measurable zones that allow a wheelchair user to approach, use, and exit the toilet safely. Failing to meet these standards can result in failed inspections, costly rework, and potential legal liabilities for commercial properties.
The Core Measurement: 16 to 18 Inches
The most critical metric in ADA compliance is the distance from the centerline of the toilet to the nearest side wall or obstruction. According to the ADA Standards for Accessible Design, this distance must be between 16 inches and 18 inches.
- Less than 16 inches: The wheelchair cannot approach the toilet straight-on, making transfer dangerous or impossible.
- More than 18 inches: The user may not be able to reach grab bars or stabilize themselves during transfer.
This narrow 2-inch window is why moving toilet plumbing for the correct ADA clearance requirements requires surgical precision. You cannot simply “eyeball” this measurement.
Step-by-Step Guide to Relocating Toilet Plumbing
Moving a toilet is one of the more complex plumbing tasks because it involves both water supply lines and waste drainage. Here is a logical breakdown of how to approach this renovation while keeping ADA compliance in mind.
1. Assessing the Existing Layout
Before you pick up a wrench, you must map out your current space.
- Measure the current rough-in: This is the distance from the finished wall to the center of the drain pipe. Standard toilets usually have a 12-inch rough-in.
- Identify obstructions: Look for studs, joists, and existing water lines that might block your new path.
- Determine the new centerline: Mark exactly where the new toilet center needs to be to hit that 16–18 inch sweet spot from the side wall.
2. Choosing the Right Method for Moving Waste Lines
There are two primary ways to move the waste line, each with different implications for cost and complexity.
| Method | Description | Pros | Cons |
|---|---|---|---|
| Floor Modification | Cutting into the subfloor to relocate the drain pipe within the joist bays. | Maintains standard gravity flow; no pumps needed. | Requires significant carpentry; may weaken floor structure if not reinforced. |

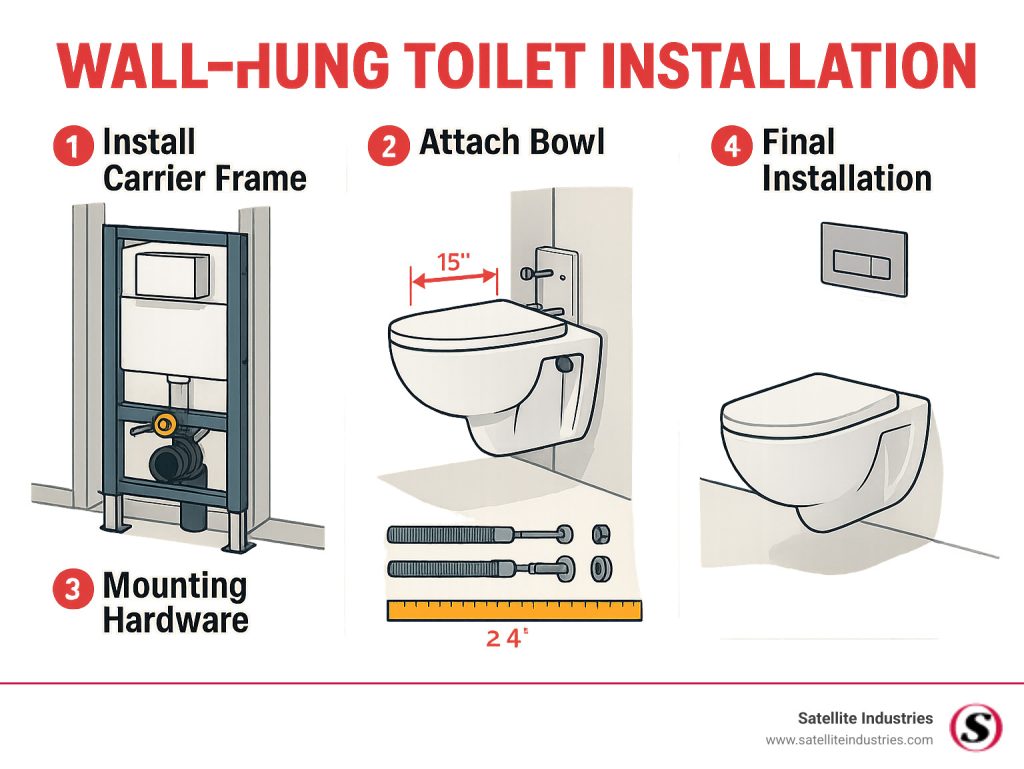

| Wall-Hung System | Installing a carrier frame inside the wall that holds the bowl and connects to waste lines above. | Allows for precise height and depth adjustment; easier cleaning. | Higher material cost; requires building a false wall. |
For most residential retrofits aiming for ADA compliance, modifying the floor structure is common, but it requires careful attention to the slope. Waste pipes must maintain a slope of 1/4 inch per foot to ensure proper drainage and prevent clogs.
3. Adjusting the Water Supply Line
While the waste line gets the most attention, the water supply line is equally important for ADA usability.
- Height: The supply valve should be easily accessible. While the ADA doesn’t specify an exact height for the valve itself, it must be within reach ranges (typically no higher than 48 inches from the floor).
- Type: Consider using a flexible braided stainless steel hose rather than rigid copper. This makes future maintenance easier and reduces the risk of leaks during minor shifts.
4. Structural Reinforcement
When you cut into floor joists to move pipes, you compromise the structural integrity of the floor.
- Never cut more than 1/3 of the joist depth.
- If you need to run a large diameter pipe (like a 3-inch or 4-inch waste line) through a joist, you may need to install sister joists or headers to redistribute the weight.
- Consult a structural engineer if you are unsure. A sagging floor is not only unsafe but can also break the wax seal on your toilet, leading to nasty leaks.
Critical Clearances Beyond the Side Wall
While the 16–18 inch side clearance is the headline requirement, moving toilet plumbing for the correct ADA clearance requirements involves other spatial considerations.
Front Clearance
There must be a clear space of at least 60 inches in front of the toilet. This allows a wheelchair to pull up alongside the toilet for a lateral transfer. If you have a vanity or a door swinging into this space, you will fail inspection.
Grab Bar Placement
Plumbing placement affects where you can install grab bars.
- Side Wall Bar: Must be mounted on the wall closest to the toilet, starting 12 inches max from the rear wall and extending at least 54 inches from the rear wall.
- Rear Wall Bar: Must be mounted 33–36 inches above the floor.
If your new plumbing location puts a pipe right where a grab bar anchor needs to go, you will need to install blocking (wooden supports) inside the wall during the framing stage. Do not skip this step. Trying to anchor grab bars into drywall alone is a severe safety hazard.
Common Mistakes to Avoid
Even experienced DIYers can stumble when tackling ADA renovations. Here are the most frequent errors:
- Ignoring the “Finished” Wall Measurement: Always measure from the finished surface (drywall + tile), not the studs. If you measure from the studs and then add 1/2 inch drywall and 3/8 inch tile, your toilet will be too far from the wall, pushing it out of the 16–18 inch range.
- Using the Wrong Flange Height: For ADA compliance, the top of the toilet seat should be between 17 and 19 inches from the floor. Standard toilets are often 15 inches high. You may need an “ADA-compliant” comfort-height toilet or a raised flange to achieve the correct seat height.
- Forgetting About Knee Clearance: If you are installing a wall-hung toilet, ensure there is adequate knee clearance underneath if the design permits, though this is more critical for sinks than toilets.
FAQ Section
Q1: Can I use an offset flange to move my toilet without cutting the floor?
A: Offset flanges can shift the toilet position by a few inches, but they are generally not recommended for significant moves required for ADA compliance. They can restrict waste flow and increase the risk of clogs. For a move of more than 2–3 inches, it is safer to relocate the drain pipe properly.
Q2: Do ADA rules apply to private homes?
A: Technically, the ADA applies to public accommodations and commercial facilities. However, many local building codes adopt ADA standards for residential construction, especially for multi-family units or homes receiving certain government grants. Even if not legally required, following ADA guidelines is best practice for aging-in-place renovations.
Q3: What is the minimum width for an ADA bathroom?
A: While there is no single mandated total room width, the layout must accommodate the 60-inch front clearance and the 16–18 inch side clearance. Typically, a bathroom needs to be at least 5 feet wide to comfortably fit an ADA-compliant toilet and allow for maneuvering space.
Q4: How much does it cost to move toilet plumbing for ADA compliance?
A: Costs vary widely based on location and complexity. A simple flange adjustment might cost $200–$400. However, moving the waste line through the floor and reinforcing joists can range from $1,000 to $3,000 or more, especially if tile work and drywall repair are included.
Q5: Can I install a bidet seat on an ADA-compliant toilet?
A: Yes, bidet seats are highly compatible with ADA toilets. In fact, they enhance accessibility by reducing the need for manual cleaning. Just ensure the water supply line is positioned so it doesn’t interfere with the side grab bar.
Q6: What type of toilet is best for ADA compliance?
A: Look for toilets labeled as “Comfort Height” or “ADA Compliant.” These models have a seat height of 17–19 inches. Elongated bowls are also preferred over round ones as they provide more surface area for support during transfers.
Conclusion
Successfully moving toilet plumbing for the correct ADA clearance requirements is a blend of technical plumbing skill and strict adherence to regulatory measurements. It is not just about moving a pipe; it is about creating a space that offers dignity, safety, and independence to users with mobility challenges. By focusing on the critical 16–18 inch side clearance, ensuring proper structural support, and planning for grab bar placement, you can create a bathroom that is both compliant and comfortable.
Remember, precision is key. Measure twice, cut once, and always prioritize the long-term usability of the space. If you found this guide helpful, please share it with your network on social media to help others navigate their accessibility renovations with confidence!
