Have you ever stared at your bathroom floor, realizing your new toilet won’t line up with the existing drain pipe? It is a frustrating scenario that halts renovation projects and causes unnecessary stress. You are not alone; many homeowners face this misalignment when updating older homes or installing new fixtures. The good news is that you do not need to jackhammer your concrete slab or tear up your subfloor. Using an offset toilet flange 2 inches closer to plumbing stack is a proven, cost-effective solution that saves time, money, and your sanity.
In this guide, we will walk you through exactly how this hardware works, why it is the preferred choice for minor adjustments, and how to install it correctly to prevent leaks. Whether you are a seasoned DIYer or a first-time homeowner, understanding this simple component can make the difference between a professional-grade installation and a leaking disaster.
Why Do You Need an Offset Flange?
Before diving into the installation, it is crucial to understand why this problem occurs. In modern construction, plumbing codes require precise measurements. However, in older homes built before the 1980s, standards were less rigid. Additionally, settling foundations can shift pipes over decades.
When you purchase a new toilet, the horn (the outlet at the bottom) must align perfectly with the flange on the floor. If the center of your drain pipe is even two inches off from where the toilet base expects it to be, you cannot create a watertight seal. This is where the offset flange becomes your best friend. It acts as an adapter, shifting the connection point horizontally while maintaining a vertical drop into the main stack.
Common Scenarios Requiring Adjustment
- Renovating Older Homes: Original cast iron pipes may not match modern toilet footprints.
- Tile Installation Errors: Sometimes, tilers cover the flange incorrectly, shifting its perceived position.
- Changing Toilet Models: Different brands have different rough-in dimensions (usually 10, 12, or 14 inches).
How an Offset Flange Works

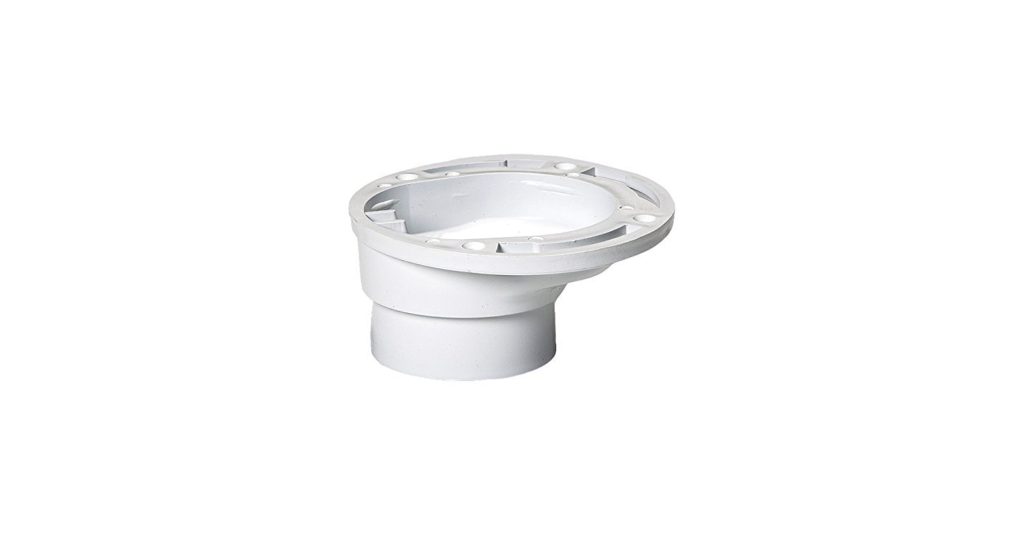

An offset flange is not just a standard ring; it is an engineered piece of PVC or ABS plastic designed with an eccentric opening. Unlike a standard flange where the hole is in the exact center, an offset flange has the hole shifted to one side.
For a 2-inch offset, the internal opening is moved two inches away from the mounting screws’ centerline. This allows you to bolt the flange securely to the subfloor in the correct position relative to the wall, while the internal pipe connects to the drain hole that is physically located two inches away.
Expert Insight: According to general plumbing principles documented on Wikipedia, proper sealing of the waste pipe is critical to prevent sewer gas escape and water damage. An offset flange maintains this integrity by using a specialized gasket system rather than forcing a straight pipe into a misaligned hole.
Step-by-Step Installation Guide
Installing an offset toilet flange requires precision. Follow these steps carefully to ensure a leak-free result.
Tools and Materials Needed
- Offset toilet flange (2-inch offset model)
- Wax ring or rubber gasket (extra-thick recommended)
- Screwdriver or drill
- Stainless steel screws (corrosion-resistant)
- Putty knife
- Silicone caulk
- Measuring tape
Step 1: Remove the Old Toilet
Turn off the water supply and flush the toilet to empty the tank and bowl. Disconnect the water line. Unbolt the toilet from the floor and lift it away. Place it on old newspapers or a drop cloth. Scrape away the old wax ring completely using a putty knife. Clean the area thoroughly.
Step 2: Assess the Current Flange
Inspect the existing flange. Is it broken? Is it glued to a PVC pipe or connected to cast iron? If the current flange is intact but simply in the wrong position, you may be able to install the offset flange over the existing one, provided there is enough height. If the old flange is damaged, remove it entirely.
Step 3: Measure the Offset
This is the most critical step. Measure the distance from the finished wall (not the baseboard) to the center of the drain pipe. Standard rough-ins are 12 inches. If your measurement is 10 inches, you need a 2-inch offset to bring the connection point back to the standard 12-inch mark. Confirm that your chosen offset toilet flange 2 inches closer to plumbing stack matches this requirement.
Step 4: Install the New Flange
Place the offset flange over the drain pipe. Ensure the “offset” direction points toward the wall if you are trying to move the connection point closer to the wall, or away if you are moving it out. Secure the flange to the subfloor using stainless steel screws. Do not overtighten, as this can crack the plastic. Ensure the flange sits on top of the finished floor level, not below it.
Step 5: Seal the Connection
Insert a new wax ring or rubber gasket onto the flange. For offset flanges, an extra-thick wax ring is often recommended to fill any gaps created by the angle. Some professionals prefer a rubber “funnel” gasket for better flexibility with offsets.
Step 6: Reset the Toilet
Carefully lower the toilet onto the flange, aligning the bolts with the slots in the toilet base. Press down firmly to compress the wax ring. Do not rock the toilet excessively, as this can displace the gasket. Tighten the nuts evenly, alternating sides. Reconnect the water supply and test for leaks.
Offset Flange vs. Moving the Pipe: A Comparison
Many homeowners wonder if they should just move the pipe instead of using an adapter. Here is a breakdown to help you decide.
| Feature | Offset Flange | Moving the Plumbing Stack |
|---|---|---|
| Cost | $15 – $40 | $500 – $2,000+ |
| Time Required | 1 – 2 Hours | 1 – 3 Days |
| Skill Level | Beginner/DIY | Professional Plumber |
| Floor Damage | None | Requires breaking concrete/subfloor |
| Risk of Leaks | Low (if installed correctly) | Moderate (depends on soldering/gluing) |
| Code Compliance | Generally Accepted | Always Compliant |
As shown above, unless you are doing a full bathroom gut renovation, the offset flange is the superior choice for minor adjustments.
Common Mistakes to Avoid
Even with the right tools, errors can happen. Avoid these pitfalls to ensure longevity.
- Ignoring Floor Height: If your new tile or vinyl flooring raises the floor level, a standard offset flange might sit too low. Use a flange extender kit if necessary.
- Wrong Direction: Ensure the offset is oriented correctly. If you need the hole 2 inches closer to the wall, the offset part of the flange must point toward the wall.
- Using Cheap Screws: Standard zinc screws rust quickly in bathroom environments. Always use stainless steel or brass screws to prevent snapping during future repairs.
- Over-Compressing the Wax Ring: While a tight seal is good, crushing the wax ring too much can cause it to squeeze out into the pipe, potentially causing clogs later.
FAQ Section
Q1: Can I use an offset flange for more than 2 inches?
Most standard offset flanges are designed for 1 to 2 inches of adjustment. For shifts greater than 2 inches, you may need a specialized eccentric flange or consider relocating the pipe. Using multiple stacked flanges is not recommended as it increases the risk of leaks.
Q2: Will an offset flange affect flushing performance?
No, not significantly. Modern offset flanges are designed with smooth internal contours to maintain water flow. As long as the pipe diameter remains consistent (usually 3 or 4 inches), gravity will do the work. However, avoid sharp angles if possible.
Q3: Is it code-compliant to use an offset flange?
In most US jurisdictions, offset flanges are accepted by plumbing codes for minor adjustments during renovations. However, always check with your local building department. They are generally viewed as a repair method rather than a new construction standard.
Q4: What if my drain pipe is cast iron?
If you have an old cast iron pipe, you can still use a PVC offset flange. You will need a specific adapter or a compression-style flange that clamps onto the cast iron hub. Do not try to glue PVC directly to cast iron without the proper mechanical connector.
Q5: How do I know if the leak is coming from the flange?
After installation, flush the toilet several times. Check the floor around the base for water. If you see water, the wax ring may not be seated correctly, or the flange may be loose. Also, smell for sewer gases; a bad odor indicates a broken seal at the flange level.
Conclusion
Dealing with a misaligned toilet drain does not have to be a nightmare. By utilizing an offset toilet flange 2 inches closer to plumbing stack, you can achieve a perfect fit without the expense and mess of major plumbing work. This simple device bridges the gap between old infrastructure and modern fixtures, ensuring a secure, leak-free installation.
Remember, precision in measurement and careful installation are key. Take your time, use high-quality materials, and double-check your alignment before setting the toilet. If you follow this guide, you will save money and gain the satisfaction of a job well done.
Did you find this guide helpful? Share it with your friends on social media who might be tackling their own bathroom renovations! Let’s help more homeowners solve plumbing puzzles with confidence.
