Have you ever looked under your kitchen sink and felt overwhelmed by the maze of pipes, wires, and connectors? You are not alone. Many homeowners struggle to identify which pipe goes where, especially when a picture of under the sink plumbing with garbage disposal is hard to find or unclear. Understanding this setup is crucial for fixing leaks, replacing units, or simply satisfying your curiosity about how your home works.
In this guide, we will break down the complex web of pipes into simple, easy-to-understand components. We will provide clear descriptions that act as a mental map, helping you visualize the system without needing a degree in plumbing. Whether you are dealing with a stubborn clog or planning a new installation, this article will give you the confidence to tackle the job.
What Does Standard Under-Sink Plumbing Look Like?
Before diving into the specifics of the garbage disposal, it is essential to understand the basic anatomy of under-sink plumbing. Most modern kitchen sinks in the United States follow a standard configuration designed for efficiency and code compliance.
The primary components you will see include:
- Tailpieces: These are the vertical pipes coming directly down from the sink strainer baskets.
- The P-Trap: This U-shaped pipe holds water to prevent sewer gases from entering your home. It is the most critical part of the drainage system.
- The Drain Arm: This horizontal pipe connects the P-trap to the wall drain line.
- Supply Lines: These are the flexible tubes (usually braided stainless steel) that bring hot and cold water to your faucet.
When a garbage disposal is added to this mix, the complexity increases slightly. The disposal unit replaces one of the tailpieces and introduces an electrical component and a dishwasher connection point. According to general plumbing standards, the disposal must be securely mounted to the sink flange to support its weight and vibration during operation.
Pro Tip: Always ensure your under-sink cabinet has adequate lighting before attempting any inspection. A simple battery-operated LED puck light can make a huge difference in visibility.
How Is a Garbage Disposal Connected to the Plumbing?

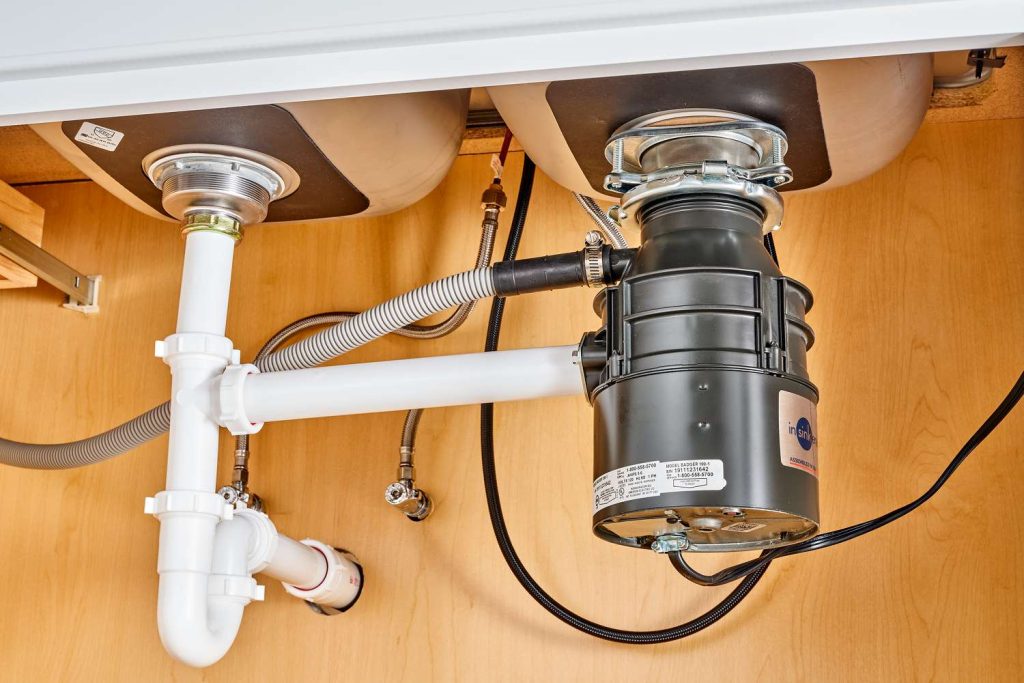

Understanding the connection points is vital for troubleshooting. If you are looking for a picture of under the sink plumbing with garbage disposal, imagine the following flow:
- Mounting Assembly: The disposal hangs from a metal mounting ring attached to the bottom of the sink.
- Dishwasher Inlet: On the side of the disposal unit, there is a small nipple where the dishwasher drain hose connects. Note: If you do not have a dishwasher, this inlet must remain plugged.
- Discharge Outlet: This is where the ground food waste exits the unit. It connects to a short pipe called a “discharge tube” or “elbow.”
- Connection to P-Trap: The discharge tube connects to the main drain line, usually merging with the pipe from the second sink basin (if you have a double bowl).
The Role of the Baffle
Inside the sink drain above the disposal, there is often a rubber baffle. This component helps reduce noise and prevents splashing. While not strictly “plumbing,” it is an integral part of the system’s functionality.
For more technical details on plumbing codes and safety standards, you can refer to Wikipedia’s article on Plumbing, which provides a broad overview of global systems and regulations.
Common Problems Visible in Under-Sink Plumbing
Even with a perfect installation, issues can arise. Here are the most common problems you might spot when looking at your picture of under the sink plumbing with garbage disposal:
| Problem | Visual Sign | Possible Cause |
|---|---|---|
| Leaking Flange | Water dripping from the top of the disposal where it meets the sink. | Loose mounting rings or degraded plumber’s putty. |
| P-Trap Leak | Water pooling at the bottom of the U-shaped pipe. | Loose slip nuts or cracked washers. |
| Dishwasher Backflow | Water leaking from the dishwasher inlet connection. | Improperly secured hose clamp or missing knockout plug. |
| Vibration Noise | Excessive shaking or rattling sounds. | Loose mounting assembly or unbalanced impellers. |
If you notice any of these signs, immediate action is required to prevent water damage to your cabinetry and flooring.
Step-by-Step: How to Identify Parts for Replacement
If you need to replace a part, identifying it correctly is half the battle. Follow these steps to map out your specific setup:
- Turn Off Power: Locate the circuit breaker or the switch under the sink and turn off the power to the disposal. Safety first!
- Clear the Cabinet: Remove cleaning supplies and other items to get a clear view.
- Trace the Flow: Start at the sink drain and follow the pipe down to the disposal. Note the diameter of the pipes (usually 1.5 inches for kitchen sinks).
- Check the Connections: Look at the slip nuts connecting the disposal to the P-trap. Are they plastic or metal? Plastic is more common in modern DIY kits.
- Inspect the Dishwasher Hose: Ensure the hose is looped up high (creating an “air gap”) before connecting to the disposal to prevent dirty water from siphoning back into the dishwasher.
Important: When buying replacement parts, take a photo of your current setup with your phone. This serves as your personal picture of under the sink plumbing with garbage disposal reference when you are at the hardware store.
Why Proper Ventilation Matters
While not always visible in a static picture, proper venting is crucial for your disposal to work efficiently. If your gurgles loudly when draining, it may indicate a venting issue. Air needs to enter the drain line to allow water to flow smoothly. Without proper venting, you may experience slow drains or unpleasant odors.
Most homes use a main vent stack that goes through the roof. However, some older homes or island sinks may use an Air Admittance Valve (AAV) under the sink. If you see a small device with a cap on your drain line, this is likely an AAV. Ensure it is not blocked by debris.
FAQ Section
1. Can I install a garbage disposal if I have a septic tank?
Yes, but with caution. Modern disposals are designed to grind waste into fine particles, but excessive use can overload a septic system. It is recommended to use a disposal sparingly and pump your septic tank more frequently. Check local regulations, as some areas restrict disposal use with septic systems.
2. Why is my garbage disposal leaking from the bottom?
If water is coming from the very bottom of the unit, the internal seals have likely failed. Unfortunately, this usually means the entire disposal unit needs to be replaced, as repairing internal seals is rarely cost-effective or practical for DIYers.
3. Do I need a plumber to install a garbage disposal?
Not necessarily. If you are comfortable with basic tools and following instructions, installing a garbage disposal is a manageable DIY project. However, if you are unsure about electrical connections or local plumbing codes, hiring a licensed plumber is the safest option.
4. What size garbage disposal should I choose?
For most households, a 1/2 HP or 3/4 HP model is sufficient. Larger families or those who cook frequently may benefit from a 1 HP model. Consider the volume of food waste you generate daily when making your choice.
5. How do I prevent clogs in my garbage disposal plumbing?
Avoid putting grease, oil, fibrous vegetables (like celery), and starchy foods (like potato peels) down the disposal. Run cold water while using the disposal and for 15–20 seconds after turning it off to flush particles through the P-trap.
6. Is it normal for the disposal to vibrate?
Some vibration is normal, especially during startup. However, excessive shaking or loud banging noises indicate a problem. Check if the mounting assembly is tight and ensure no foreign objects are stuck in the grinding chamber.
Conclusion
Understanding the picture of under the sink plumbing with garbage disposal is empowering for any homeowner. By familiarizing yourself with the components—from the P-trap to the dishwasher inlet—you can save money on minor repairs and avoid costly mistakes during installations. Remember, regular maintenance and proper usage are key to extending the life of your disposal and keeping your plumbing healthy.
