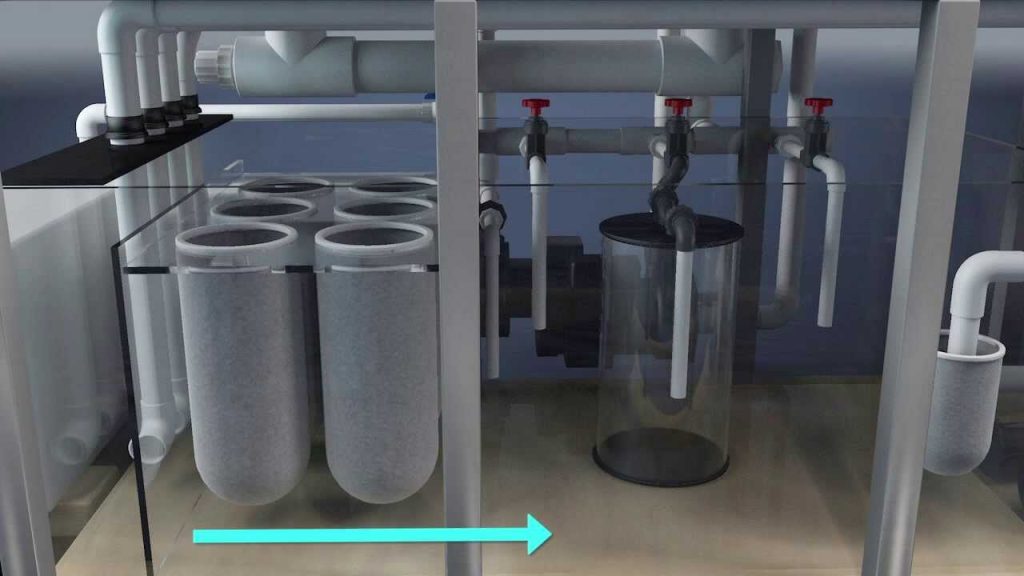

Plumb a Sump to the Bottom of a Tank: Complete Guide

Have you ever struggled with incomplete drainage from your storage tank? Whether you’re managing a residential water system or industrial fluid storage, knowing how to plumb a sump to the bottom of a tank can transform your efficiency and prevent costly maintenance issues. This comprehensive guide will walk you through everything you need to know.

Why Plumb a Sump to the Bottom of a Tank?

Before diving into the technical details, let’s understand why this plumbing configuration matters. Traditional top-mounted drains leave residual liquid at the tank’s base, creating several problems:

• Incomplete drainage wastes valuable resources
• Sediment accumulation leads to contamination
• Bacterial growth in stagnant water poses health risks
• Maintenance costs increase due to manual cleaning requirements

According to industry data, properly plumbed bottom sumps can improve drainage efficiency by up to 95%, significantly reducing operational costs and environmental impact.

Understanding Sump Tank Plumbing Basics

What Is a Sump in Tank Systems?

A sump is essentially a low point or collection area designed to gather liquids for easy removal. When you plumb a sump to the bottom of a tank, you create the most efficient drainage path possible, leveraging gravity to move fluids naturally.

The concept isn’t new—engineers have used similar principles for centuries. However, modern materials and techniques have made this approach more accessible and reliable than ever before.

Key Components You’ll Need

Before starting your project, gather these essential materials:

Step-by-Step Guide: How to Plumb a Sump to the Bottom of a Tank

Step 1: Assess Your Tank Configuration

Not all tanks are created equal. Before beginning, evaluate:

• Tank material (steel, plastic, fiberglass)
• Existing openings and their locations
• Fluid type being stored (water, chemicals, oil)
• Local building codes and regulations

Pro tip: If your tank doesn’t have a pre-installed bottom outlet, you may need professional assistance to create one safely.

Step 2: Choose the Right Location

The ideal sump location depends on several factors:

1. Lowest point of the tank interior
2. Accessibility for maintenance
3. Structural integrity of the tank wall
4. Clearance for external piping

Measure carefully and mark your drilling or connection point. Remember, precision here prevents headaches later.

Step 3: Install the Bottom Outlet

For tanks with existing bottom outlets:

• Clean the threaded connection thoroughly
• Apply appropriate sealant to prevent leaks
• Install a full-port valve for maximum flow

For tanks requiring new outlets:

• Consult manufacturer specifications
• Use proper hole-cutting tools
• Install a welded or bonded fitting as recommended
• Pressure test before proceeding

Step 4: Connect the Piping System

Now comes the critical plumbing work:

1. Measure and cut pipes to required lengths
2. Dry-fit all connections before final assembly
3. Apply sealant to threaded joints
4. Install the check valve within 6 inches of the tank outlet
5. Connect to the sump pump intake

Ensure all connections are tight but not over-tightened, which can damage threads or crack fittings.

Step 5: Install and Wire the Sump Pump

Choose a pump rated for your specific application:

• Water applications: Standard submersible pumps work well
• Chemical storage: Use chemically-resistant models
• High-volume needs: Consider larger horsepower ratings

Follow the manufacturer’s wiring instructions carefully. If you’re uncomfortable with electrical work, hire a licensed electrician. Safety should always come first.

Step 6: Test the System

Before considering the job complete:

• Fill the tank partially with water
• Open the outlet valve slowly
• Activate the sump pump
• Check all connections for leaks
• Verify complete drainage
• Test automatic controls if installed

Document any issues and address them immediately. A small leak now can become a major problem later.

Common Challenges and Solutions

Challenge 1: Sediment Clogging

Problem: Debris accumulates in the sump area, blocking flow.

Solution: Install a strainer or filter basket at the inlet. Clean regularly based on usage frequency.

Challenge 2: Freezing in Cold Climates

Problem: Pipes freeze during winter months.

Solution: Use insulated piping, heat tape, or install the system below the frost line. Consider antifreeze solutions for non-potable systems.

Challenge 3: Pump Failure

Problem: The sump pump stops working unexpectedly.

Solution: Install a backup pump or alarm system. Perform quarterly maintenance checks. Learn more about pump maintenance best practices.

Challenge 4: Corrosion Issues

Problem: Metal components deteriorate over time.

Solution: Use corrosion-resistant materials like stainless steel, PVC, or specialized coatings. Inspect annually for early signs of wear.

Cost Considerations

Understanding the financial investment helps with planning:

Note: Prices vary by region, tank size, and complexity. Always get multiple quotes for professional work.

Maintenance Best Practices

To ensure your system performs optimally for years:

• Monthly: Visual inspection for leaks or damage
• Quarterly: Test pump operation and clean strainers
• Annually: Professional inspection and pressure testing
• As needed: Replace worn components immediately

Keep a maintenance log to track service dates and identify patterns. This documentation proves valuable for warranty claims and troubleshooting.

Environmental and Safety Considerations

When you plumb a sump to the bottom of a tank, consider these important factors:

Environmental Protection

• Properly dispose of drained fluids according to local regulations
• Prevent spills during maintenance activities
• Consider secondary containment for hazardous materials

Safety Precautions

• Wear appropriate personal protective equipment (PPE)
• Ensure proper ventilation when working with chemicals
• Follow lockout/tagout procedures for electrical components
• Never work alone on confined space entries

Frequently Asked Questions

Q1: Can I plumb a sump to the bottom of any tank?

A: Most tanks can accommodate bottom sump plumbing, but modifications depend on the tank’s construction material and design. Plastic and fiberglass tanks often require special fittings, while steel tanks may need welding. Always consult the manufacturer’s guidelines before modifying your tank.

Q2: How deep should the sump be?

A: The sump depth typically ranges from 2 to 6 inches below the tank’s lowest point. This creates enough volume for effective collection without compromising structural integrity. The exact depth depends on tank size and expected sediment load.

Q3: Do I need a permit to install a bottom sump?

A: Permit requirements vary by location and application. Residential water tanks often don’t require permits, but commercial installations or systems handling hazardous materials typically do. Check with your local building department before starting work.

Q4: How often should I replace the sump pump?

A: Quality sump pumps last 7–10 years with proper maintenance. However, heavy-use applications may require replacement every 5 years. Watch for warning signs like unusual noises, reduced flow rate, or frequent cycling, which indicate impending failure.

Q5: What size pump do I need?

A: Pump size depends on tank volume, desired drainage time, and vertical lift distance. As a general rule, calculate your total dynamic head (TDH) and choose a pump rated for at least 20% more capacity than your maximum requirement. Consult pump curves for precise sizing.

Q6: Can I use this system for potable water?

A: Yes, but you must use NSF-certified components approved for drinking water applications. This includes food-grade piping, lead-free valves, and pumps with sanitary designs. Regular testing ensures water quality remains within safe parameters.

Conclusion

Learning how to plumb a sump to the bottom of a tank offers tremendous benefits for anyone managing liquid storage systems. From improved drainage efficiency to reduced maintenance costs, this upgrade pays for itself over time. By following the steps outlined in this guide, you can confidently tackle this project whether you’re a DIY enthusiast or preparing to hire professionals.

Remember, proper planning, quality materials, and regular maintenance are the keys to long-term success. Don’t cut corners on safety or skip essential testing phases. Your future self will thank you for doing it right the first time.
