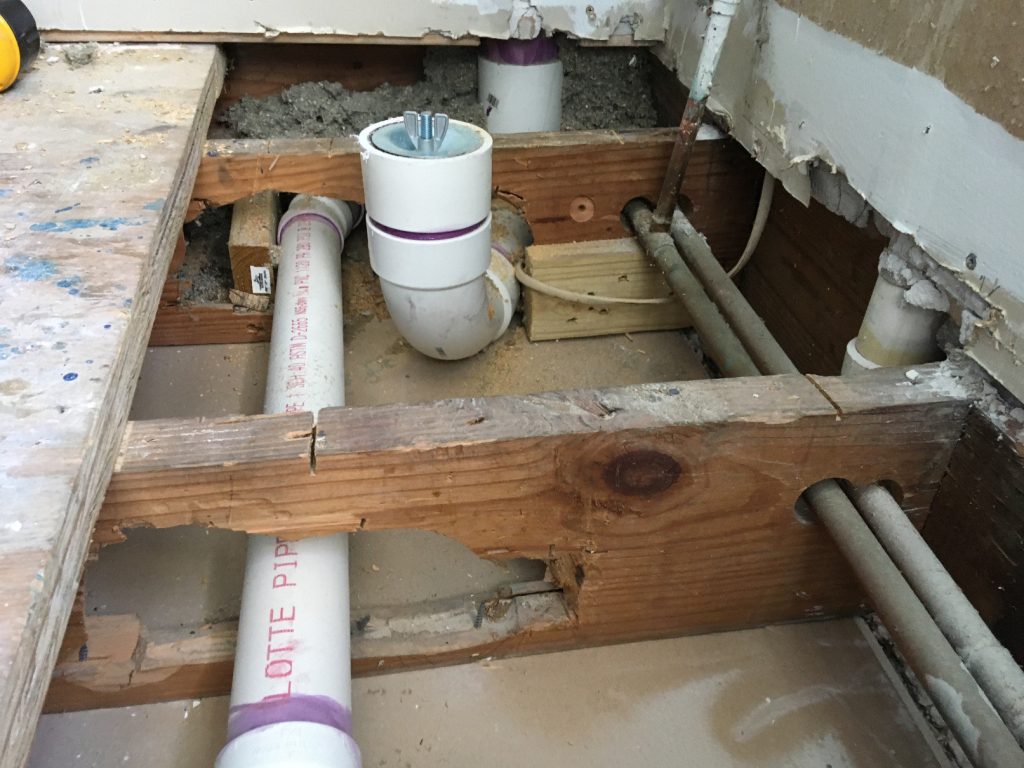

Discovering that a plumber ripped a 1 1/2 inch joist under shower during installation is every homeowner’s nightmare. This isn’t just a minor cosmetic issue; it’s a serious structural compromise that can lead to sagging floors, water damage, and even safety hazards if left unaddressed. If you’re currently staring at a notched or cut floor joist beneath your bathroom, don’t panic—but do act quickly. Understanding the severity of the damage and knowing the correct repair protocol is essential to restoring your home’s integrity and ensuring your shower remains safe for daily use.
Why Did the Plumber Cut the Joist?
Before diving into repairs, it’s helpful to understand why this happened. In many older homes or tight spaces, plumbers often encounter obstacles when running drain lines for showers. The standard drain pipe for a shower is 2 inches in diameter, but sometimes 1.5-inch pipes are used for specific configurations or older codes.
When a joist blocks the path of the necessary plumbing slope (which requires a downward gradient for proper drainage), a less experienced or careless plumber might choose the path of least resistance: cutting into the wood. While building codes do allow for some notching and drilling, there are strict limits. A 1 1/2 inch joist reference usually points to the depth of the cut or the size of the pipe involved, but more commonly, homeowners are concerned about cuts made into standard 2×8, 2×10, or 2×12 joists.
If your plumber cut through a significant portion of the joist’s depth—especially in the middle third of the span—they have violated basic structural engineering principles. The middle of the joist is where tension and compression forces are most critical. Cutting here weakens the beam’s ability to support weight, leading to potential failure over time.
Is It Safe? Assessing the Structural Damage
The short answer is: It depends on the extent of the cut. However, any unauthorized or excessive cutting is a red flag. According to the International Residential Code (IRC), notches in the top or bottom of a joist cannot exceed one-sixth of the joist’s depth, and they cannot be located in the middle third of the span. Holes drilled in the center of the joist cannot exceed one-third of the joist’s depth.
If your plumber “ripped” or notched more than this allowance, the structural integrity is compromised. Here’s what you need to look for:
- Depth of the Cut: Was more than 1/6th of the joist height removed?
- Location: Is the cut in the middle third of the joist’s length? This is the most dangerous zone.
- Span Length: Longer spans carry more load. A cut in a long-span joist is more critical than in a short one.
- Load Above: Is there a heavy bathtub, tile floor, or additional storage above this joist?
For a deeper understanding of structural loading and wood framing standards, you can refer to general engineering principles outlined by resources like Wikipedia’s entry on Joists.
Signs of Immediate Danger
Watch for these warning signs in the days following the installation:
- Sagging Ceiling: Check the room directly below the shower. Any dip or crack in the drywall indicates movement.
- Bouncy Floors: If the shower floor feels soft or bounces when you step on it, the joist is failing.
- Cracking Tiles: New cracks in your shower tile or grout can signal shifting foundations.
How to Fix a Cut Floor Joist Under a Shower
Fixing a damaged joist is not a DIY job for beginners. It requires precise carpentry and an understanding of load paths. Below are the standard professional repair methods.
Method 1: Sistering the Joist
This is the most common and effective repair for a notched or cut joist. “Sistering” involves attaching a new piece of lumber alongside the damaged joist to share the load.
Step-by-Step Process:
- Select the Right Lumber: Use a piece of lumber of the same dimensions as the original joist (e.g., if the original is a 2×10, use a 2×10). It should be straight and free of knots.
- Prepare the Surface: Apply construction adhesive to the side of the damaged joist where the new board will sit.
- Position the Sister Board: Slide the new board tightly against the damaged joist. It should extend at least 3 feet on either side of the damage, though longer is better (ideally spanning the full length).
- Secure with Bolts: Use 1/2-inch carriage bolts or structural screws. Place them in a staggered pattern every 12–16 inches along the length of the sister board. Do not rely solely on nails; bolts provide superior shear strength.
- Support During Installation: Use temporary jack posts to lift the damaged joist slightly back to its original position before bolting. This ensures the sister board takes the load immediately.
Method 2: Installing Steel Plates
For smaller notches that are close to code limits but still concerning, steel repair plates can be used. These are galvanized steel strips that bolt onto the sides of the joist over the damaged area.
- Pros: Easier to install in tight spaces.
- Cons: Not suitable for severe damage or large cuts. Always consult a structural engineer before using this method.
Method 3: Adding a Support Beam
If the joist is severely compromised or spans a large distance, you may need to install a new support beam underneath the floor system. This transfers the load directly to the foundation, bypassing the damaged joist entirely. This is a major renovation task and requires professional engineering approval.
Cost Breakdown: Repair vs. Replacement
Many homeowners worry about the cost of fixing this mistake. Here’s a realistic comparison:
| Repair Option | Estimated Cost | Complexity | Durability |
|---|---|---|---|
| Sistering Joist | $300 – $800 | Moderate | High (Permanent) |
| Steel Plate Repair | $150 – $400 | Low | Moderate |
| Full Joist Replacement | $1,000 – $2,500+ | High | High (Permanent) |
| Ignoring the Issue | 0now,$$ later | N/A | Risk of Failure |
Note: Costs vary by region and accessibility. If the shower is already tiled, you may incur additional costs for removing and replacing flooring.
Who Is Responsible? The Plumber or You?
This is a critical legal and financial question. In most cases, the plumber is liable for structural damage caused by their workmanship. Professional plumbers are expected to know building codes regarding notching and drilling. If they cut a joist beyond legal limits without reinforcing it, they breached their duty of care.
Steps to Take:
- Document Everything: Take clear photos of the cut joist, the surrounding area, and the plumbing layout.
- Review the Contract: Check if your contract includes a clause about structural repairs or compliance with local codes.
- Contact the Plumber: Inform them of the issue immediately. A reputable professional will offer to fix it at no cost.
- Get a Second Opinion: If the plumber denies responsibility, hire a licensed structural engineer or general contractor to assess the damage. Their report can be used for insurance claims or small claims court.
FAQ Section
1. Can I leave the cut joist as is if it doesn’t feel bouncy?
No. Even if it feels stable now, wood fatigue and continuous load from water and people can cause gradual failure. Additionally, vibrations from daily use can widen micro-cracks in the wood. Always reinforce a cut joist.
2. Does homeowner’s insurance cover this damage?
Typically, no. Homeowner’s insurance covers sudden and accidental events (like a burst pipe), not poor workmanship or code violations. You will likely need to seek compensation from the plumber’s liability insurance or pay out of pocket if they refuse to fix it.
3. Can I drill a hole instead of notching the joist?
Yes, drilling is generally preferred over notching because it preserves more of the joist’s structural strength. However, holes must still follow code: they must be in the center third of the joist’s height and cannot exceed one-third of the joist’s depth.
4. How long does it take to sister a joist?
A professional carpenter can typically sister a joist in 2–4 hours, depending on accessibility. If the shower floor needs to be removed to access the joist, add 1–2 days for demolition and reinstallation.
5. Will this affect my home resale value?
Unrepaired structural damage will definitely lower your home’s value and fail inspection. However, a properly documented and professionally repaired joist (with permits if required) should have no negative impact on resale value. Keep all receipts and engineering reports.
Conclusion
Finding out a plumber ripped a 1 1/2 inch joist under shower is stressful, but it’s a solvable problem. The key is to act quickly to prevent long-term structural damage. By understanding the severity of the cut and choosing the right repair method—such as sistering the joist—you can restore your home’s safety and integrity.
Don’t let a rushed plumbing job compromise your home’s foundation. Hold your contractor accountable, get the repair done correctly, and enjoy your shower with peace of mind. If you found this guide helpful, please share it on social media to help other homeowners avoid similar pitfalls!
