Connect 2-Inch PVC to Cast Iron: The Horizontal Union Guide

Are you staring at an old, rusted cast iron pipe in your basement or crawl space, wondering how to seamlessly connect it to modern PVC without causing a catastrophic leak? You are not alone; this is one of the most common yet intimidating challenges for homeowners and amateur plumbers alike. Mastering the Plumbing 2 Inch Pvc To Cast Iron Horizontal Union is essential for maintaining a reliable drainage system while adhering to strict building codes.

In this guide, we will break down exactly how to make this transition safely, legally, and effectively. Whether you are repairing a broken sewer line or upgrading an old bathroom drain, understanding the right materials and techniques will save you time, money, and significant stress.

Why Is Connecting PVC to Cast Iron Tricky?

Before diving into the tools, it is crucial to understand why this connection requires special attention. Cast iron and PVC are fundamentally different materials with different expansion rates, surface textures, and durability profiles.

The Material Mismatch

Cast iron is rigid, heavy, and prone to corrosion over decades. PVC (Polyvinyl Chloride) is lightweight, flexible, and resistant to chemical decay. When you join them, especially in a horizontal orientation, gravity and water weight put unique stress on the joint. A standard glue job will not work because PVC cement does not bond to metal or rusted iron.

The Code Compliance Factor

In the United States, plumbing codes (such as the IPC – International Plumbing Code) are strict about transitions between dissimilar metals and plastics. Using the wrong fitting can lead to:

• Immediate leaks.
• Sewer gas infiltration.
• Failed home inspections.
• Voided insurance claims in case of water damage.

According to industry standards, mechanical connections are preferred over chemical ones for this specific transition. This ensures that the joint can handle slight movements without breaking the seal.

Best Fittings for a 2-Inch Horizontal Transition

When searching for a Plumbing 2 Inch Pvc To Cast Iron Horizontal Union, you will encounter several types of fittings. Not all are created equal. Here is a breakdown of the most reliable options.

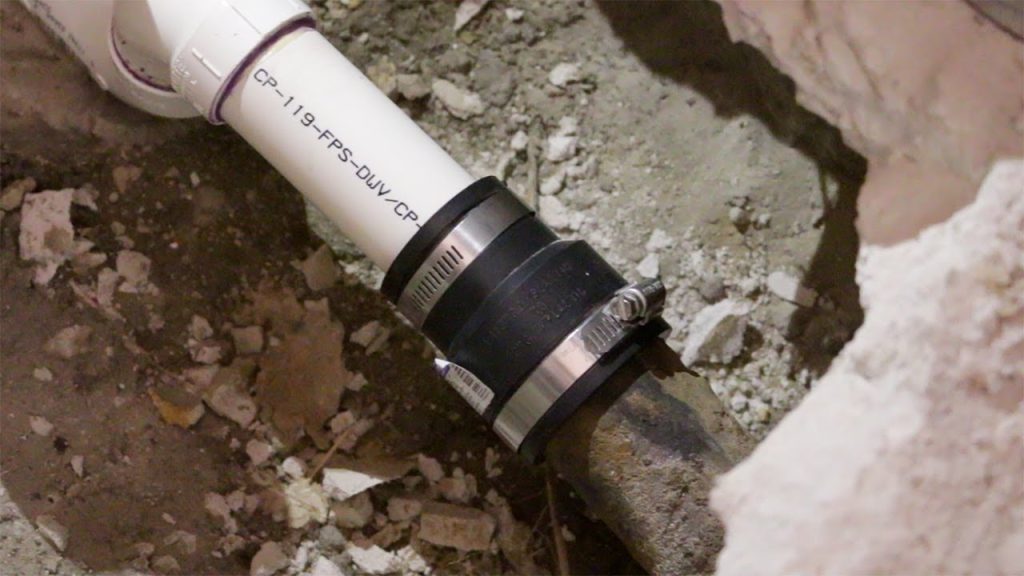

1. Fernco Flexible Couplings (The Gold Standard)

Fernco couplings are arguably the most popular choice for DIYers and professionals. They are made of durable rubber with stainless steel clamps.

• Pros: Easy to install, accommodates slight misalignments, vibration dampening.
• Cons: Must be used in accessible areas (not buried underground unless specifically rated).

2. Mission Band Couplings

Similar to Fernco but often considered more heavy-duty. Mission bands use a thicker rubber gasket and robust stainless steel shields.

• Pros: Extremely durable, excellent for older, uneven cast iron surfaces.
• Cons: Slightly more expensive than standard rubber couplers.

3. Push-Fit Transition Fittings

These are newer innovations that allow you to push the PVC pipe into a rubber-sealed hub that fits over the cast iron.

• Pros: No tools required for tightening, very fast installation.
• Cons: Requires the cast iron end to be cut perfectly square and clean.

Comparison Table: Choosing the Right Fitting

Expert Tip: Always check your local municipal code before purchasing. While most national codes approve Fernco and Mission bands, some strict jurisdictions may require specific shielded couplings for horizontal drains.

Step-by-Step Installation Guide

Connecting a Plumbing 2 Inch Pvc To Cast Iron Horizontal Union requires precision. Follow these steps to ensure a watertight seal.

Tools and Materials Needed

• Reciprocating saw (Sawzall) or hacksaw
• Wire brush or sandpaper
• Tape measure
• Marker
• Fernco or Mission coupling (Size: 2-inch to 2-inch)
• Screwdriver or nut driver (depending on clamp type)
• Safety glasses and gloves

Step 1: Prepare the Cast Iron Pipe

The most critical step is preparing the old pipe. Cast iron often has rust, debris, or uneven edges.

1. Cut the cast iron pipe cleanly using your reciprocating saw. Ensure the cut is as square (90 degrees) as possible.
2. Use a wire brush to remove all rust, dirt, and burrs from the outside of the cast iron end. You need a smooth surface for the rubber gasket to seal against.
3. Wipe the area clean with a rag.

Step 2: Measure and Mark

1. Slide the coupling onto the cast iron pipe temporarily to see how far it goes.
2. Measure the depth of the coupling’s socket.
3. Mark your PVC pipe so that it will insert fully into the other side of the coupling without bottoming out too early or leaving a gap.

Step 3: Install the Coupling on Cast Iron

1. Loosen the stainless steel clamps on the coupling slightly so it slides easily.
2. Slide the coupling onto the prepared cast iron pipe.
3. Position it so that half of the coupling is on the cast iron, leaving room for the PVC on the other side.
4. Tighten the clamps on the cast iron side firmly. Do not overtighten to the point of crushing the rubber, but ensure it is snug.

Step 4: Connect the PVC Pipe

1. Insert the 2-inch PVC pipe into the open end of the coupling.
2. Ensure it is pushed in all the way until it hits the internal stop or meets the center divider.
3. Tighten the clamps on the PVC side.

Step 5: Test for Leaks

1. Turn the water back on slowly.
2. Run water through the line for at least 5 minutes.
3. Inspect the coupling for any signs of dripping or moisture. If you see a leak, tighten the clamps slightly more.

For more detailed information on plumbing materials and their historical context, you can refer to Wikipedia’s page on Plumbing.

Common Mistakes to Avoid

Even experienced DIYers can stumble when working with a Plumbing 2 Inch Pvc To Cast Iron Horizontal Union. Here are the top errors to avoid:

• Ignoring the Slope: Horizontal drains must have a proper slope (typically 1/4 inch per foot for 2-inch pipes). If your new PVC section is level or slopes backward, water will pool, leading to clogs.
• Using the Wrong Size: “2-inch” can vary slightly between manufacturers. Always dry-fit before final tightening. A 2-inch PVC pipe might fit loosely in a generic 2-inch coupling if the cast iron is worn down.
• Skipping the Cleaning Step: Leaving rust on the cast iron will create gaps in the rubber seal. This is the number one cause of leaks in these transitions.
• Burying Non-Rated Couplings: Never bury a standard Fernco coupling underground. If the connection is below grade, you must use a specifically rated underground coupling or a no-hub fitting designed for direct burial.

FAQ Section

Q1: Can I use glue to connect PVC to cast iron?

A: No. PVC cement only bonds PVC to PVC. It will not adhere to cast iron, rust, or metal. You must use a mechanical coupling like a Fernco or Mission band.

Q2: Is a horizontal union different from a vertical one?

A: The fittings are often the same, but the installation technique differs. In horizontal lines, gravity pulls down on the joint. Ensure your supports (hangers) are close to the connection to prevent sagging, which can break the seal over time.

Q3: What if my cast iron pipe is cracked further back?

A: If the cast iron is brittle or cracked beyond the cut line, you may need to cut further back until you reach solid pipe. If the pipe is too short, consider using a longer coupling or extending with a short piece of new cast iron (if available) before transitioning to PVC.

Q4: Do I need a permit for this repair?

A: It depends on your local jurisdiction. Minor repairs like replacing a section of pipe often do not require a permit, but major sewer line work might. Always check with your local building department.

Q5: How long does a Fernco coupling last?

A: When installed correctly and protected from UV light and extreme temperatures, a high-quality stainless steel shielded coupling can last 20–30 years or more. However, it should be inspected annually if accessible.

Q6: Can I use this method for pressure lines?

A: No. These couplings are designed for DWV (Drain, Waste, and Vent) systems, which are non-pressure. Do not use them for water supply lines under pressure.

Conclusion

Mastering the Plumbing 2 Inch Pvc To Cast Iron Horizontal Union is a valuable skill that empowers you to handle common household repairs with confidence. By choosing the right mechanical coupling, preparing your surfaces meticulously, and adhering to local codes, you can create a durable, leak-free connection that stands the test of time.

Remember, the key to success lies in preparation: clean your cast iron, measure twice, and ensure proper slope. Don’t let the fear of old plumbing hold you back. With the right tools and this guide, you can tackle this project like a pro.
