Upgrading your kitchen with a double sink, garbage disposal, and dishwasher sounds like a dream—until you realize the plumbing gets tricky fast. Many homeowners struggle with leaks, slow drains, or even sewer smells because the three components weren’t connected properly. If you’re planning to plumb a double sink with disposal and dishwasher, this guide gives you a clear, code-compliant, and beginner-friendly roadmap backed by decades of professional plumbing insight. Let’s get your kitchen flowing smoothly—without the headache.
Why Is Plumbing a Double Sink with Disposal and Dishwasher So Tricky?
The challenge lies in balancing three water outlets (two sinks + dishwasher) into one drain line without violating plumbing codes or causing drainage issues. The garbage disposal adds another layer: it must serve as the dishwasher’s drain point in most setups, per the Uniform Plumbing Code (UPC) and International Plumbing Code (IPC). Missteps can lead to:
- Backflow from the dishwasher into the sink
- Gurgling sounds or slow drainage
- Sewer gas infiltration due to improper P-trap configuration
According to the National Kitchen & Bath Association (NKBA), over 38% of kitchen remodels encounter plumbing complications during sink/dishwasher integration—often because DIYers overlook venting or trap arm slope requirements.
What Plumbing Codes Apply to This Setup?
Before turning a wrench, know the rules. In the U.S., two main codes govern your project:
- IPC (International Plumbing Code) – Used in most states
- UPC (Uniform Plumbing Code) – Common on the West Coast
Both require:
- A single P-trap for a double-bowl sink (unless bowls are >30″ apart)
- Dishwasher must drain through the garbage disposal (or an air gap)
- Trap arm slope of ¼ inch per foot toward the main drain
- Proper venting within 5 feet of the P-trap (to prevent siphoning)
💡 Expert Insight: “Trying to add a second P-trap under a double sink is a common DIY error. It creates an ‘S-trap,’ which is illegal and causes dry traps and sewer odors.” — Mike Johnson, Master Plumber & NKBA Consultant
For deeper background on drain-waste-vent (DWV) systems, see Wikipedia’s overview of plumbing traps.
Tools & Materials You’ll Need
Tools:
- Adjustable wrench
- Pipe cutter or hacksaw
- Teflon tape
- Plumber’s putty
- Bucket & towels (for spills)
- Level
Materials:
- Garbage disposal (1/2 HP minimum recommended)
- Dishwasher drain hose (usually included)
- Double sink drain kit (with tailpieces, strainers, and basket)
- Continuous waste kit (Y-branch or T-branch with baffle tee)
- 1½” PVC or ABS pipes and fittings
- Air gap (if required by local code)
⚠️ Note: Always check local building codes. Some cities (e.g., Los Angeles, Chicago) mandate an air gap for dishwasher drainage—no exceptions.

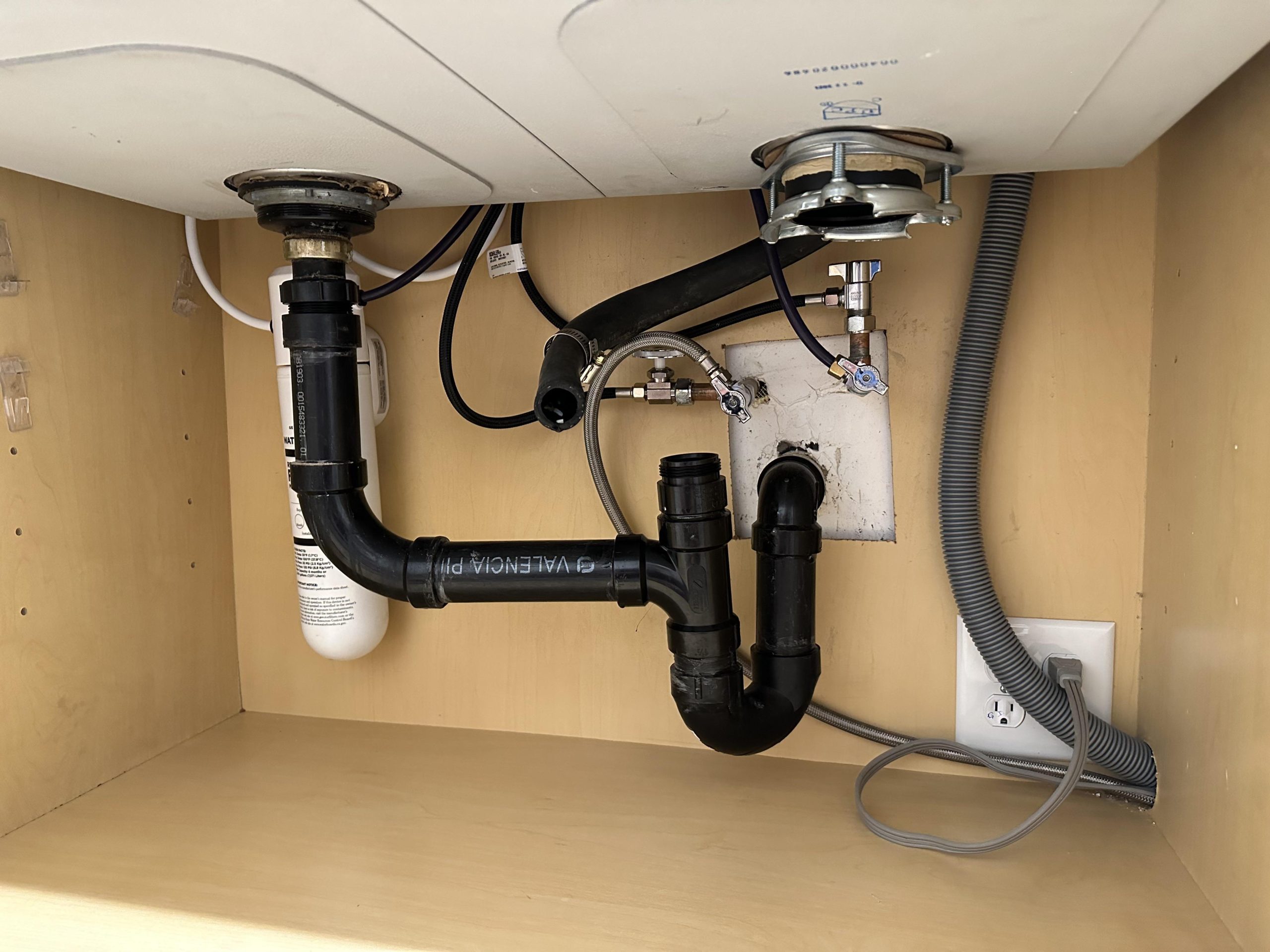

Step-by-Step: How to Plumb a Double Sink with Disposal and Dishwasher
Follow these 7 precise steps to ensure a leak-free, code-compliant install:
Step 1: Install Sink Drains & Mount Disposal
- Apply plumber’s putty under sink strainers.
- Install drain assemblies on both bowls.
- Mount the garbage disposal under the sink with the disposal (almost always the left bowl in U.S. kitchens).
- Connect the disposal’s discharge tube to its outlet using the included snap ring.
Step 2: Connect the Non-Disposal Bowl Drain
- Use a continuous waste kit with a baffle tee.
- Attach the tailpiece from the non-disposal bowl to the side inlet of the baffle tee.
- Connect the baffle tee’s bottom outlet to the P-trap.
Step 3: Link Disposal to the Drain System
- Attach the disposal’s discharge tube to the end inlet of the same baffle tee.
- The baffle inside prevents water from one bowl flooding the other.
Step 4: Connect the P-Trap to Drain Stack
- Use a 1½” P-trap. Ensure the trap arm slopes downward at ¼” per foot toward the wall drain.
- Maximum trap arm length: 24 inches (per IPC).
Step 5: Hook Up the Dishwasher Drain Hose
- Route the dishwasher drain hose up to a high loop (minimum 18″ above floor) or connect it to an air gap on the countertop.
- Insert the hose into the disposal’s dishwasher inlet port (usually covered by a knockout plug—remove it with a screwdriver and hammer).
- Secure with a hose clamp.
✅ Pro Tip: Run hot water and a bit of dish soap through the disposal for 30 seconds after first use to clear manufacturing residue.
Step 6: Test for Leaks & Drain Speed
- Fill both sinks halfway.
- Open both drains simultaneously—water should empty in <15 seconds with no gurgling.
- Check all joints with a dry paper towel for moisture.
Step 7: Ensure Proper Venting
- If your under-sink vent is missing or too far, install an Air Admittance Valve (AAV) like the Studor Mini-Vent (approved in most IPC areas).
- AAV must be installed vertically and ≥4″ above the P-trap weir.
Double Sink Plumbing: Common Mistakes to Avoid
| Mistake | Consequence | Fix |
|---|---|---|
| Two P-traps | Creates S-trap → sewer gas entry | Use one P-trap with baffle tee |
| No high loop or air gap | Dishwasher backflow into sink | Install high loop ≥18″ or code-compliant air gap |
| Improper slope | Slow drainage, clogs | Maintain ¼” per foot downward slope |
| Forgetting knockout plug | Dishwasher won’t drain | Remove plug from disposal inlet |
FAQ: Plumbing a Double Sink with Disposal and Dishwasher
Q1: Can I connect the dishwasher directly to the drain pipe instead of the disposal?
A: Only if your local code allows it—and even then, you must use an air gap. Most codes require dishwasher drainage through the disposal to prevent backflow, as the disposal acts as a physical barrier.
Q2: Why does my sink gurgle when the dishwasher drains?
A: This usually means inadequate venting. The dishwasher’s rapid water discharge creates negative pressure, siphoning water from the P-trap. Install an AAV or extend your vent stack.
Q3: Do I need an air gap if I have a high loop?
A: It depends on your location. California, Texas, and Washington require an air gap by law. Elsewhere, a high loop may suffice—but an air gap is always safer against contamination.
Q4: How far apart can double sink bowls be before needing two traps?
A: Under IPC/UPC, bowls more than 30 inches apart can have separate P-traps. But for standard 33″–36″ kitchen sinks, one trap is required.
Q5: What size pipe should I use for the drain?
A: Use 1½-inch pipes for sink and dishwasher drains. Larger pipes (2″) are for main stacks—not fixture branches.
Q6: Can I install this myself, or should I hire a plumber?
A: If you’re comfortable with basic tools and understand local codes, DIY is doable. But if venting is complex or you’re unsure about the knockout plug, hire a licensed plumber—mistakes can lead to mold, flooding, or failed inspections.
Conclusion: A Smooth-Flowing Kitchen Starts Under the Sink
Plumbing a double sink with disposal and dishwasher isn’t just about connecting pipes—it’s about creating a balanced, vented, and code-compliant system that protects your home and health. When done right, you’ll enjoy faster drainage, no odors, and peace of mind during every dishwashing cycle.
If this guide saved you time (or a plumbing bill!), share it on Pinterest, Facebook, or your DIY group—someone else is probably Googling this exact problem right now!
Got questions? Drop them in the comments below—we’re here to help you build a better kitchen, one pipe at a time. 🛠️🚿
