Are you staring at an open cabinet space, holding a new faucet kit, and wondering, “When plumbing a sink do valves go inside sink body?” You are not alone; this is one of the most common points of confusion for DIYers who want to avoid catastrophic leaks or code violations. Understanding the correct placement of shut-off valves versus the faucet assembly is critical for both functionality and long-term maintenance. This guide will clarify exactly where your valves belong and how to install them safely.
Plumbing A Sink: Do Valves Go Inside Sink Body Explained
The short answer to the question “plumbing a sink do valves go inside sink body” is generally no. In standard residential plumbing, the shut-off valves (also known as angle stops) do not go inside the physical basin or the cast iron/stainless steel body of the sink itself.

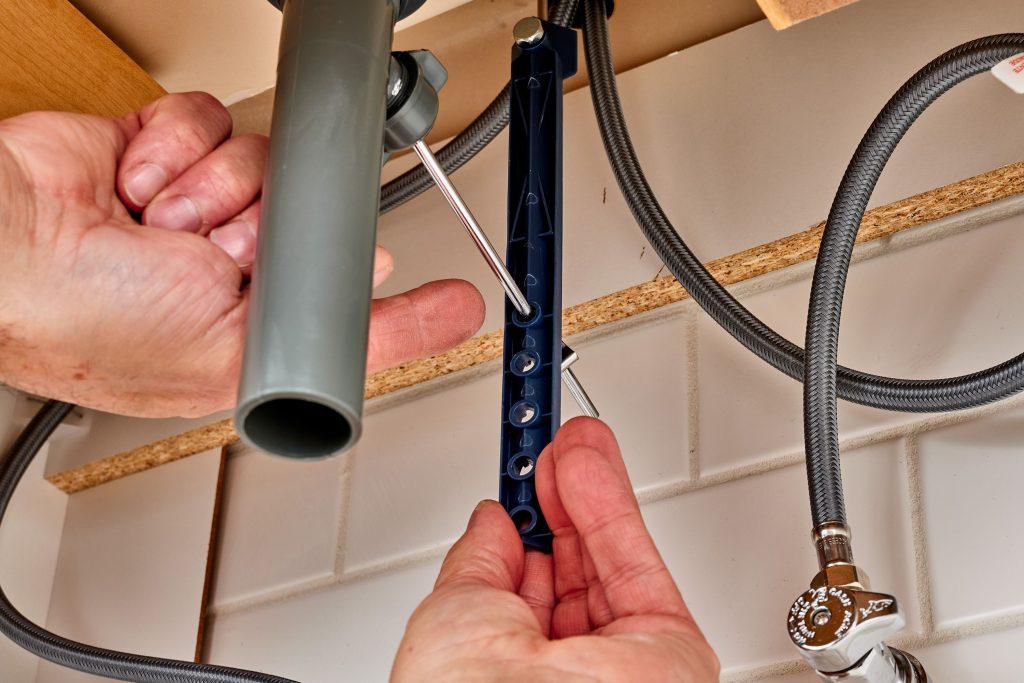

Instead, shut-off valves are installed on the water supply lines beneath the sink, typically mounted to the wall or the back panel of the vanity cabinet. The components that do go inside or through the sink body are the faucet shank, the tailpiece, and potentially a pop-up drain assembly. Confusing these two distinct systems can lead to improper sealing, inaccessible repairs, and water damage.
According to the Uniform Plumbing Code, accessible shut-off valves must be provided for all fixtures to allow for emergency isolation without turning off the main house water. Placing a valve inside the sink body would violate accessibility standards and make routine maintenance nearly impossible.
Where Should Shut-Off Valves Be Installed?
To ensure compliance and ease of use, follow these industry-standard placement guidelines:
1. Height Above Floor
Valves should typically be installed 18 to 24 inches above the finished floor. This height ensures they are easily reachable when kneeling in front of the vanity but high enough to avoid moisture accumulation from floor cleaning.
2. Distance From Centerline
For a standard single-basin sink, hot and cold valves are usually spaced 6 to 8 inches apart, centered relative to the faucet location. For double-basin sinks, verify the faucet spread (e.g., 4-inch centerset vs. 8-inch widespread) before roughing in supply lines.
3. Accessibility Requirement
Valves must remain unobstructed. Never seal valves behind drywall, tile, or permanent cabinetry. If your vanity has a solid back panel, install an access panel or cutout so valves can be reached without dismantling furniture.
Faucet Components That DO Go Inside the Sink Body
While shut-off valves stay outside, several critical components integrate directly with the sink body:
| Component | Location Relative to Sink Body | Function |
|---|---|---|
| Faucet Shank | Passes through mounting hole(s) | Connects spout/handles to supply lines below |
| Mounting Nut | Underside of sink deck | Secures faucet firmly to sink surface |
| Tailpiece | Extends below drain opening | Transitions wastewater from sink to P-trap |
| Pop-Up Assembly | Inside drain body | Controls water retention/release in basin |
| Overflow Tube | Integrated into sink casting | Prevents flooding if drain is blocked |
Understanding this distinction prevents costly rework during plumbing a sink do valves go inside sink body projects.
Step-by-Step: Installing Supply Valves Correctly
Follow this precise tutorial to install shut-off valves properly. Always turn off the main water supply before beginning.
Step 1: Measure and Mark Supply Line Positions
Use a tape measure to mark valve locations on the wall or cabinet back. Standard rough-in dimensions are 22 inches above floor for the valve centerline. Verify against your specific faucet manufacturer’s spec sheet, as some European or commercial fixtures require non-standard spacing.
Step 2: Install Compression or Sweat Valves
- For copper lines: Clean pipe ends with emery cloth, apply flux, and sweat-fit ½” x ⅜” compression angle stops. Heat evenly until solder flows into the joint. Allow to cool completely before pressurizing.
- For PEX/copper stub-outs: Slide compression nut and ferrule onto the ⅜” OD supply tube. Insert tube fully into valve port. Hand-tighten nut, then use two wrenches to tighten an additional ¼ to ½ turn. Do not overtighten, as this crushes the ferrule and causes leaks.
Step 3: Connect Flexible Supply Lines
Attach braided stainless steel supply lines (recommended over plastic) from valve outlets to faucet shanks. Use lines rated for 150 PSI and 180°F. Tighten connections to hand-tight plus ¼ turn using a basin wrench. Avoid cross-threading by starting threads manually.
Step 4: Pressure Test Before Closing Up
Turn on the main water slowly. Open each new valve gradually. Inspect every connection for drips for a minimum of 5 minutes. Place a dry paper towel under each joint; even micro-leaks will show as damp spots. Only proceed to close cabinetry after confirming zero leakage.
Step 5: Label Hot and Cold Lines
Use waterproof labels or colored tape (red = hot, blue = cold) on supply lines immediately above valves. This simple step saves future plumbers (or you) significant troubleshooting time during emergencies.
Pros and Cons of Valve Placement Options
When considering plumbing a sink do valves go inside sink body alternatives, weigh these factors:
✅ Correct Placement (Below Sink, Accessible)
- Pros: Code-compliant, easy emergency shutoff, simple replacement, no sink body modification needed
- Cons: Visible in open vanities, requires cabinet access panel
❌ Incorrect Placement (Inside Sink Body or Sealed)
- Pros: None recognized by plumbing codes
- Cons: Violates UPC/IPC, inaccessible during leaks, requires sink removal for repair, voids fixture warranties, creates mold risk from hidden moisture
Expert Insight: Master plumber Mike O’Malley (25+ years experience) states, “I’ve repaired hundreds of sink leaks caused by valves buried in walls or sink cavities. The extra $15 for an access panel saves homeowners $800+ in demolition and restoration costs.”
Frequently Asked Questions (FAQ)
Q1: Can I install shut-off valves inside a pedestal sink?
No. Pedestal sinks have extremely limited internal space, and valves placed inside would be inaccessible. Install valves on the supply lines before they enter the pedestal base, ideally behind an adjacent access panel or within the wall cavity with a removable cover plate.
Q2: What size valves do I need for a bathroom sink?
Standard bathroom sinks require ⅜” OD compression angle stops connected to ½” nominal supply pipes. Kitchen sinks may use ⅜” or ½” outlets depending on flow requirements. Always match valve outlet size to your flexible supply line fitting.
Q3: Do I need separate valves for hot and cold lines?
Yes. Each supply line must have its own dedicated shut-off valve. This allows you to isolate one side for repairs while maintaining partial water service, and it meets all major plumbing code requirements for fixture isolation.
Q4: How often should I replace sink shut-off valves?
Replace valves every 10–15 years, or immediately if you notice corrosion, stiffness when turning, or mineral buildup. Multi-turn compression valves last longer than quarter-ball valves in hard-water areas. Test operation annually during routine home maintenance.
Q5: Can I use push-fit valves instead of compression fittings?
Push-fit (e.g., SharkBite) valves are code-approved for many applications and offer easier installation. However, they require perfectly deburred, round tubing and full insertion depth verification. They are ideal for retrofits but may not fit in tight spaces where traditional angle stops excel.
Q6: What happens if my valve is already inside the sink body?
This indicates a non-standard or improper previous installation. Plan to relocate valves to an accessible position below the sink during your next renovation. In the interim, know the location of your nearest upstream shutoff (often at the manifold or main) for emergencies. Document the issue for future buyers if selling the home.
Conclusion
When plumbing a sink do valves go inside sink body, remember the golden rule: valves belong on accessible supply lines below the sink, never within the sink structure itself. Proper placement ensures code compliance, simplifies future repairs, and protects your home from water damage. By following the step-by-step installation guide and understanding component distinctions, you can complete your sink project with professional-grade confidence.
