Washer & Sink Valve Setup: The Ultimate Guide

There is nothing quite as stressful as hearing the drip of a leaking pipe or facing a flooded laundry room because of a faulty connection. Whether you are renovating an old basement or installing a new laundry station in your garage, getting the water supply right is critical for peace of mind and home safety. This comprehensive guide will walk you through the precise plumbing and valve set up for washer and utility sink, ensuring your system is efficient, code-compliant, and ready for years of heavy use.

Why Proper Valve Configuration Matters for Your Laundry Room

Before diving into the tools and pipes, it is essential to understand why the configuration of your valves dictates the longevity of your appliances. A poorly installed valve setup can lead to water hammer (a loud banging noise), inconsistent water pressure, or catastrophic leaks that cause thousands of dollars in damage.

According to the Insurance Information Institute, water damage claims are among the most frequent and costly homeowner insurance issues. By adhering to strict installation standards, you mitigate these risks significantly. The goal is not just to connect hoses but to create a system where water flow is controlled, isolated, and protected against backflow.

For a deeper understanding of residential water supply systems and historical context on plumbing standards, you can refer to this resource on Plumbing – Wikipedia.

Essential Tools and Materials Checklist

Success in any DIY plumbing project begins with preparation. You cannot achieve a professional-grade plumbing and valve set up for washer and utility sink without the right components. Below is a checklist of what you will need before making your first cut.

Required Materials

• Shut-off Valves: Two quarter-turn ball valves for the washing machine (hot and cold) and two for the utility sink. Recommendation: Use brass ball valves over gate valves for durability.
• Piping: ½-inch PEX-A or Copper tubing (depending on your existing home infrastructure).
• Fittings: Elbows, tees, and couplings compatible with your pipe type.
• Hose Bibb: A threaded faucet outlet for the utility sink.
• Washing Machine Hoses: Braided stainless steel hoses (avoid rubber ones as they degrade faster).
• Drain Components: 2-inch PVC drain pipe, P-trap, and a standpipe (minimum 18 inches high for washers).
• Sealants: Teflon tape (PTFE) and pipe dope approved for potable water.

Necessary Tools

• Pipe cutter (for PEX or Copper)
• Crimping tool or expansion tool (if using PEX)
• Propane torch (if soldering copper)
• Adjustable wrenches (two are better for holding nuts steady)
• Deburring tool
• Level
• Tape measure

Step-by-Step: Installing the Supply Lines and Valves

This section details the exact process for setting up the water supply. Precision here prevents future headaches. We will assume a standard setup where both the washer and sink share a common water source branch.

Step 1: Shut Off Main Water and Drain Lines

Safety is paramount. Locate your home’s main water shut-off valve and turn it clockwise until tight. Open the lowest faucet in your house to drain residual water from the lines. Verify no water is flowing before cutting into any pipes.

Step 2: Plan the Layout and Measure

Measure the distance from your main supply line to the location of your new fixtures.

• Washer Height: The valve boxes should be installed approximately 42 to 48 inches above the finished floor. This height allows easy access behind the machine without moving it constantly.
• Sink Height: The faucet supply lines for the utility sink typically sit 20 to 24 inches above the rim of the sink basin.
• Spacing: Maintain a horizontal separation of at least 6 inches between the hot and cold lines to prevent thermal transfer.

Step 3: Cut and Prepare the Pipes

Using your pipe cutter, make clean, square cuts on the supply lines. If using copper, clean the ends with emery cloth until shiny. If using PEX, ensure there are no scratches or gouges on the tube surface.

• Pro Tip: Always deburr the inside edge of cut pipes to prevent turbulence and restriction in water flow.

Step 4: Install the Tee Fittings and Branch Lines

You will need to tee off from your existing supply line.

1. Install a ¾-inch to ½-inch reducing tee if branching from a larger main line.
2. Run separate ½-inch lines for the hot and cold supplies.
3. Do not daisy-chain the washer and sink on a single drop; instead, run parallel lines or use a manifold approach to ensure consistent pressure when both fixtures are used simultaneously.

Step 5: Mounting the Shut-Off Valves

This is the core of the plumbing and valve set up for washer and utility sink.

• For the Washer: Install two distinct quarter-turn ball valves. Label them clearly with “HOT” and “COLD” tags. These valves must be easily accessible.
  • Specification: Ensure the outlet thread is ¾-inch GH (Garden Hose) thread to match standard washing machine hoses.
• For the Utility Sink: Install two angle stop valves (one hot, one cold) that feed into the faucet tailpieces.
  • Torque Specification: When tightening fittings, hand-tighten first, then give an additional ¼ to ½ turn with a wrench. Over-tightening can crack brass fittings or strip threads.

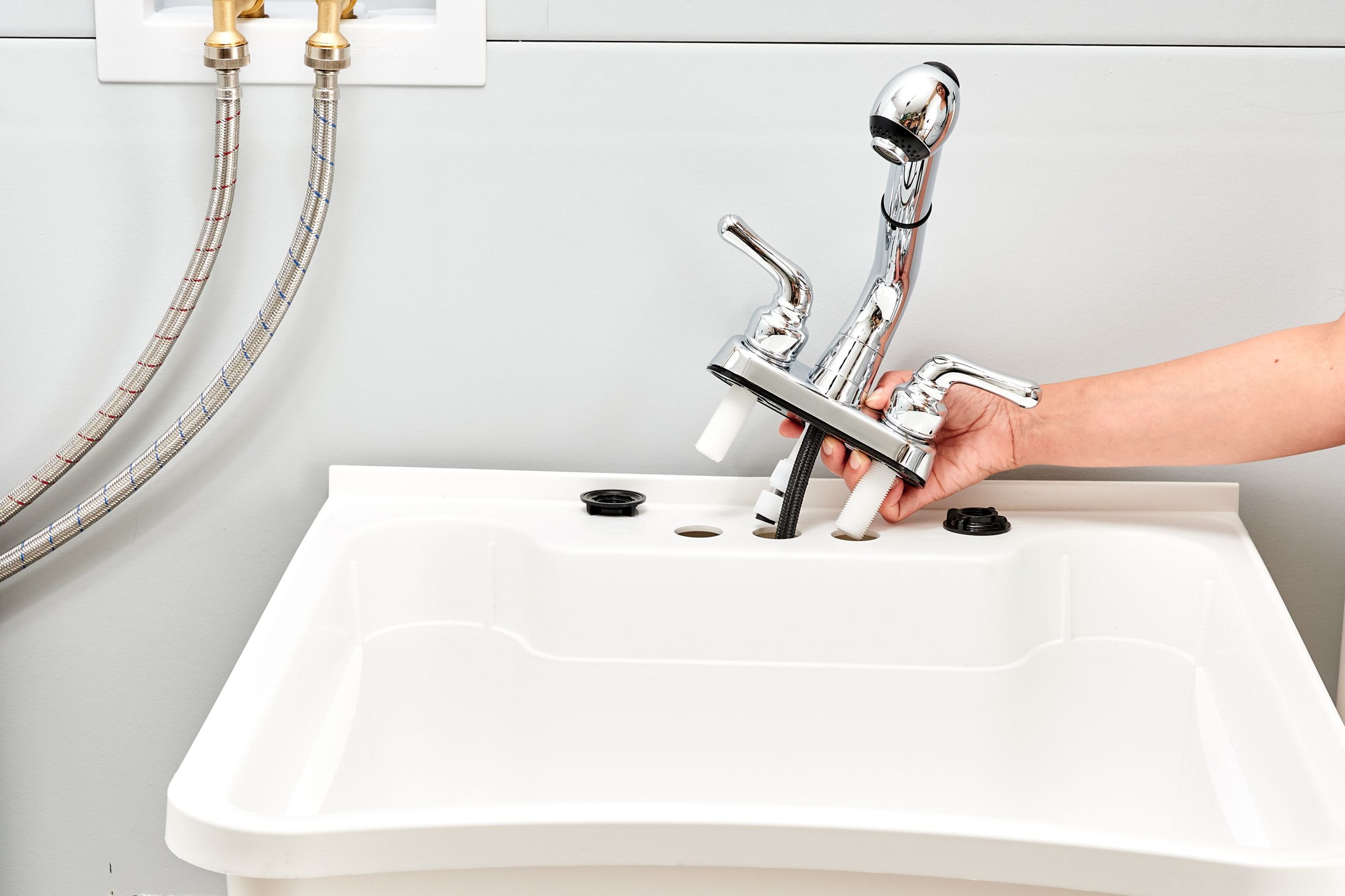

Step 6: Connect the Faucet and Hoses

1. Wrap Teflon tape clockwise around the male threads of the valve outlets (3–4 wraps).
2. Attach the braided stainless steel hoses to the washer valves. Hand-tighten, then snug with a wrench—do not overtighten.
3. Connect the utility sink faucet supply lines to their respective angle stops.
4. Turn the main water back on slowly. Check every joint for leaks immediately. If a drip appears, tighten slightly or re-apply sealant.

Drainage Requirements: Avoiding Siphoning and Backflow

While supply lines bring water in, the drainage system takes it out. Incorrect drainage is the leading cause of washing machine overflow.

The Standpipe Rule

The washing machine drain hose must insert into a standpipe. According to most US plumbing codes (IPC/UPC):

• Height: The top of the standpipe must be between 18 and 42 inches above the trap weir.
• Diameter: Minimum 2-inch diameter pipe is required to handle the rapid discharge volume of modern high-efficiency washers.
• Air Gap: The drain hose should only be inserted 6 to 8 inches into the standpipe. Inserting it too deep creates a siphon effect, pulling dirty water back into the machine or causing the washer to run continuously.

Utility Sink Trap Installation

The utility sink requires a standard P-trap to prevent sewer gases from entering your home.

• Ensure the trap arm slopes downward toward the main drain at a rate of ¼ inch per foot.
• Use slip-joint nuts with rubber gaskets; do not use glue on the removable trap portion so it can be cleaned later.

Common Mistakes to Avoid During Installation

Even experienced DIYers can stumble on specific details. Here are the most frequent errors observed in the field:

1. Using Gate Valves Instead of Ball Valves: Gate valves tend to corrode and seize over time. In an emergency leak, you need a valve that turns 90 degrees instantly. Always choose quarter-turn ball valves.
2. Ignoring Venting: Every drain needs a vent to allow air in, preventing water from being sucked out of the trap. An unvented washer drain will gurgle and potentially siphon the sink’s P-trap dry.
3. Mixing Metal Types Without Dielectric Unions: Connecting copper directly to galvanized steel causes galvanic corrosion. Always use a dielectric union when joining dissimilar metals.
4. Skipping the Hammer Arrestor: If you hear loud banging when the washer shuts off, you have “water hammer.” Installing a water hammer arrestor near the washer valves absorbs the shock wave, protecting your pipes.

FAQ: Frequently Asked Questions

1. Can I use the same shut-off valve for both the washer and the sink?

No, this is highly discouraged. Each fixture should have its own dedicated set of hot and cold shut-off valves. This isolation allows you to service or replace the washing machine without cutting off water to the utility sink, and vice versa. It is a fundamental principle of proper plumbing and valve set up for washer and utility sink.

2. What is the ideal water pressure for a washing machine?

Most manufacturers recommend water pressure between 20 and 115 PSI (pounds per square inch). Ideally, aim for 40–60 PSI. If your home pressure exceeds 80 PSI, you must install a Pressure Reducing Valve (PRV) to prevent damage to the washer’s internal solenoid valves and hoses.

3. How high should the washing machine drain hose be looped?

If your washer does not use a standpipe, the drain hose must be secured with a “high loop” or attached to an under-counter bracket. The peak of this loop should be at least 30 inches above the floor (or higher than the water level in the drum) to prevent wastewater from siphoning back into the clean clothes.

4. Do I need a special valve for a utility sink faucet?

You do not need a “special” valve, but you should use angle stop valves rather than straight stops. Angle stops direct the water supply outward toward the wall-mounted or deck-mounted faucet, making the connection cleaner and reducing stress on the supply lines.

5. Is PEX better than Copper for laundry room plumbing?

Both are code-approved, but PEX (Cross-linked Polyethylene) is often preferred for DIY projects and retrofits. It is flexible, resistant to freezing bursts, requires fewer fittings (reducing leak points), and is generally more cost-effective. However, copper remains the gold standard for longevity in exposed installations where UV light or physical abrasion is a concern.

6. What do I do if my washer drains slowly into the utility sink?

This usually indicates a clog in the shared drain line or an improperly sized pipe. Ensure you are using a minimum 2-inch drain line for the washer. If the sink and washer share a drain, the connection point must be downstream of the washer’s standpipe entry to prevent backup into the sink basin.

Conclusion

Mastering the plumbing and valve set up for washer and utility sink is a rewarding project that enhances the functionality and safety of your home. By following the step-by-step instructions outlined above—selecting the right ball valves, adhering to standpipe height requirements, and ensuring proper venting—you create a robust system capable of handling daily demands without failure. Remember, the key to long-term success lies in quality materials, precise measurements, and respecting local plumbing codes.
