Plumbing Code For Main Sewer Line Through Block Foundation

Dealing with sewage backups or foundation cracks is every homeowner’s nightmare. If you are planning a renovation or new construction, understanding the Plumbing Code For Main Sewer Line Through Block Foundation is critical to preventing structural damage and health hazards. This guide breaks down the complex regulations into simple, actionable steps so you can ensure your home remains safe, dry, and compliant with local building standards.

Why Proper Sewer Line Penetration Matters

Before diving into the specific codes, it is vital to understand why these rules exist. A block foundation (typically made of Concrete Masonry Units or CMUs) is strong but porous. When a pipe passes through it without proper protection, two major risks emerge:

1. Structural Compromise: Cutting into blocks weakens the wall’s load-bearing capacity if not reinforced correctly.
2. Water and Gas Infiltration: Gaps around the pipe allow groundwater to seep in and dangerous sewer gases to escape into your living space.

According to the International Plumbing Code (IPC), which is adopted by most US states, the integrity of the building envelope must be maintained. Ignoring these codes can lead to failed inspections, costly repairs, and even voided home insurance policies.

What Does the Code Say About Sleeve Sizes?

One of the most common questions homeowners ask is: “How big should the hole be?” You cannot simply drill a hole the exact size of the pipe. The code requires an annular space (a gap) between the pipe and the foundation wall.

The General Rule of Thumb

For a main sewer line, which is typically 4 inches in diameter for residential homes, you generally need a sleeve that is two sizes larger than the pipe.

Note: Always check your local municipal amendments, as some jurisdictions have stricter requirements.

Why Is the Gap Necessary?

The gap allows for:

• Thermal Expansion: Pipes expand and contract with temperature changes.
• Settlement: Houses settle over time; a rigid connection could crack the pipe or the block.
• Sealing Material: You need space to inject hydraulic cement or install mechanical seals.

How to Seal the Gap According to Code

Simply stuffing the gap with concrete is often insufficient and may violate modern plumbing codes. The Plumbing Code For Main Sewer Line Through Block Foundation mandates a watertight and gastight seal.

Approved Sealing Methods

1. Mechanical Compression Seals: These are rubber gaskets with stainless steel bands that tighten around the pipe and against the sleeve. They are highly effective and allow for slight movement.
2. Hydraulic Cement: Unlike standard concrete, hydraulic cement expands as it cures, creating a tight seal against water pressure. It is ideal for below-grade applications.
3. Polyurethane Foam Injectables: Professional plumbers often use expanding foam specifically designed for plumbing penetrations. It fills irregular voids in block walls effectively.

Expert Insight: “Never use standard mortar or spray foam insulation for sewer line penetrations. Standard mortar shrinks and cracks, while spray foam degrades over time when exposed to sewage gases. Always use materials rated for ‘wet’ and ‘gas-tight’ applications.” — John D., Master Plumber with 20 years of experience.

Step-by-Step Guide to Compliant Installation

If you are hiring a contractor, use this checklist to ensure they follow the Plumbing Code For Main Sewer Line Through Block Foundation. If you are a DIY enthusiast, proceed with caution and always pull a permit.

Step 1: Locate and Mark

Identify the exact exit point for the sewer line. Ensure it aligns with the trench outside. Mark the center point on the block wall.

Step 2: Core Drill the Hole

Use a diamond-tip core drill bit sized for your sleeve (e.g., 6 inches for a 4-inch pipe).

• Tip: Drill from the inside out to prevent blowouts on the exterior face.
• Safety: Wear a respirator. Block drilling creates silica dust, which is hazardous.

Step 3: Install the Sleeve

Insert a PVC or ABS sleeve into the hole. The sleeve should protrude slightly (about 1/2 inch) from both the interior and exterior walls. This ensures the sealant bonds to the sleeve, not just the rough block edges.

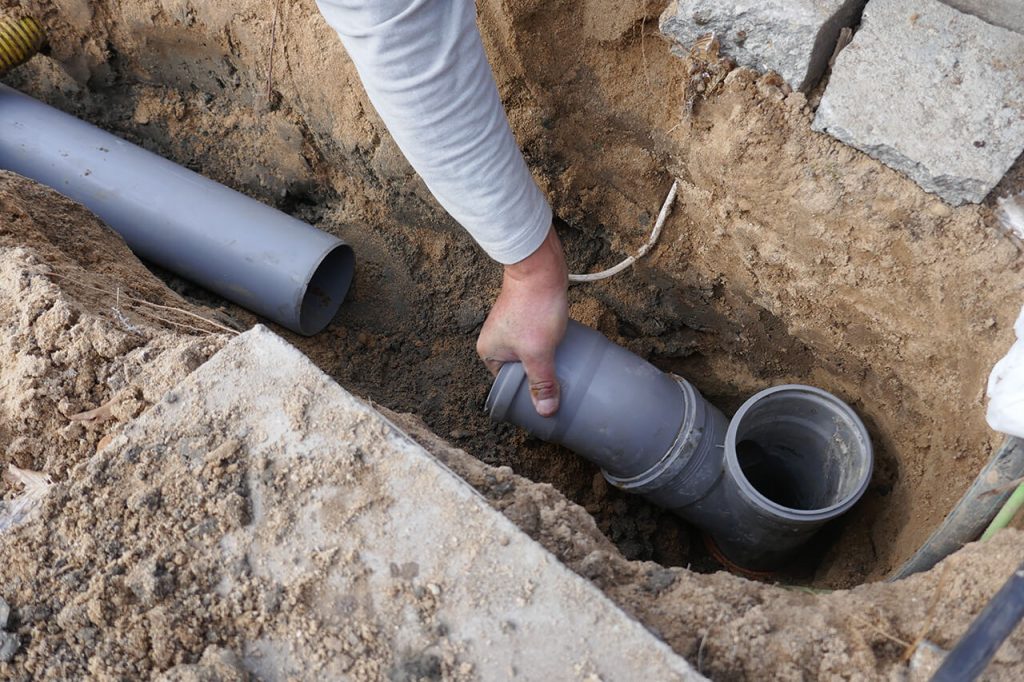

Step 4: Run the Sewer Pipe

Slide the main sewer line through the sleeve. Ensure there is a consistent downward slope (pitch) of 1/4 inch per foot toward the street or septic tank. This slope is mandated by the IPC to ensure gravity moves waste effectively.

Step 5: Seal the Annular Space

Apply your chosen sealing method.

• If using hydraulic cement, mix it to a putty consistency and pack it tightly into the gap. Smooth it flush with the wall.
• If using a mechanical seal, tighten the bolts evenly until the rubber compresses firmly.

Step 6: Test for Leaks

Before backfilling the trench outside, perform a water test. Plug the line downstream and fill it with water. Check the penetration area for any moisture.

Common Mistakes to Avoid

Even experienced builders sometimes cut corners. Here are the top violations related to the Plumbing Code For Main Sewer Line Through Block Foundation:

• No Slope: Installing the pipe level or with an upward slope causes immediate blockages.
• Direct Contact: Allowing the pipe to touch the block directly without a sleeve. This leads to abrasion and eventual leaks.
• Using Wood Sleeves: Wood rots. Always use PVC, ABS, or cast iron sleeves.
• Ignoring Cleanouts: The code usually requires a cleanout access point within a certain distance of the foundation exit. Failing to install one makes future clogs difficult to clear.

For more detailed information on international building standards, you can refer to the general guidelines on Wikipedia’s Building Code page, which provides a broad overview of how codes are structured globally, though local US codes (IPC/IRC) are the legal authority.

Frequently Asked Questions (FAQ)

Q1: Can I run the sewer line through the footer instead of the block wall?

A: Generally, no. Running a pipe through the footing (the concrete base under the wall) is heavily restricted. It requires special engineering approval because it compromises the structural support of the entire wall. Most codes prefer penetration through the block wall above the footer.

Q2: What is the minimum depth for the sewer line outside the foundation?

A: The pipe must be buried below the frost line to prevent freezing. In the US, this varies from 12 inches in southern states to 6+ feet in northern states like Minnesota. Check your local county building department for the specific frost depth requirement.

Q3: Do I need a permit to replace an existing sewer line through the foundation?

A: Yes. In almost all US jurisdictions, replacing a main sewer line requires a plumbing permit. This ensures the work is inspected and meets the current Plumbing Code For Main Sewer Line Through Block Foundation. Unpermitted work can cause issues when selling your home.

Q4: What happens if my sewer line breaks inside the block wall?

A: This is a severe issue. You will likely need to cut open the block wall to access the pipe. This is why using a sleeve is crucial—it allows for easier repair. Without a sleeve, you might have to rebuild a section of the foundation.

Q5: Is it better to go over the foundation or through it?

A: Going through the foundation is standard for basements. However, if you have a crawl space, the line may enter above the foundation wall. For slab-on-grade homes, the pipe is embedded in the concrete. Each method has specific code requirements, but penetrating a block wall is the most common scenario for basement retrofits.

Q6: Can I use flexible couplings at the foundation penetration?

A: Yes, and it is often recommended. A flexible coupling (such as a Fernco coupling) can absorb minor settlement shifts between the house and the external ground, reducing the risk of pipe fracture right at the wall exit.

Conclusion

Navigating the Plumbing Code For Main Sewer Line Through Block Foundation doesn’t have to be overwhelming. By focusing on three key elements—proper sleeve sizing, correct pitch, and watertight sealing—you can ensure a durable and compliant installation. Remember, the goal is not just to pass inspection, but to protect your home’s structural integrity and your family’s health for decades to come.
