Imagine waking up to a brown, patchy lawn despite your best efforts to water it, simply because your irrigation system lacks the necessary pressure to reach every corner. This frustrating scenario is all too common for homeowners relying on gravity-fed tanks without a properly engineered pump setup. To transform your outdoor space into a vibrant green oasis, you need a robust plumbing design for water tank supplied pumped lawn sprinkler system that balances flow rate, pressure, and efficiency. In this guide, we will walk you through the exact steps to design a system that works reliably, saving you money on water bills while keeping your grass healthy.
Why Your Lawn Needs a Dedicated Pump System
Many homeowners make the critical mistake of connecting their sprinklers directly to a storage tank, assuming gravity will provide enough force. However, standard residential sprinkler heads typically require between 30 to 50 PSI (pounds per square inch) to operate correctly. A typical water tank sitting on the ground provides less than 1 PSI for every 2.31 feet of height. Unless your tank is mounted on a tower over 100 feet high, gravity alone will result in weak, ineffective spraying.
A dedicated pump bridges this gap by drawing water from the tank and forcing it through the pipes at the required velocity. According to industry standards, an improperly sized pump can lead to cavitation, which damages the impeller and reduces the lifespan of your equipment by up to 40%. By implementing a precise plumbing design for water tank supplied pumped lawn sprinkler system, you ensure consistent coverage and prevent costly equipment failures.
Calculating Your Water Requirements: Flow and Pressure
Before buying a single pipe or fitting, you must understand the hydraulic demands of your specific lawn. This step is where most DIY projects fail. You cannot simply guess; you need data.
Determining Total Dynamic Head (TDH)
The pump you choose must overcome two main forces: the vertical lift (Static Head) and the friction caused by water moving through pipes (Friction Loss).
- Static Head: The vertical distance from the water level in the tank to the highest sprinkler head.
- Friction Loss: Resistance created by pipe length, elbows, valves, and filters.
For example, if your tank is 10 feet below your highest sprinkler and your pipe run is 200 feet of 1-inch PVC, your friction loss might add another 15 feet of head pressure. Your pump must handle at least 25 feet of total head just to move the water, plus extra pressure to spray it effectively.
Measuring Flow Rate (GPM)
Each sprinkler head has a specific Gallons Per Minute (GPM) requirement. If you have 10 heads needing 2 GPM each, your system requires a minimum of 20 GPM.
- Rule of Thumb: Never exceed 75% of your source’s maximum sustainable flow to prevent running the tank dry during cycles.
- Expert Insight: As noted in fluid dynamics resources like Wikipedia’s entry on Pumping, matching the pump curve to the system curve is vital for energy efficiency. A mismatched pump wastes electricity and wears out faster.

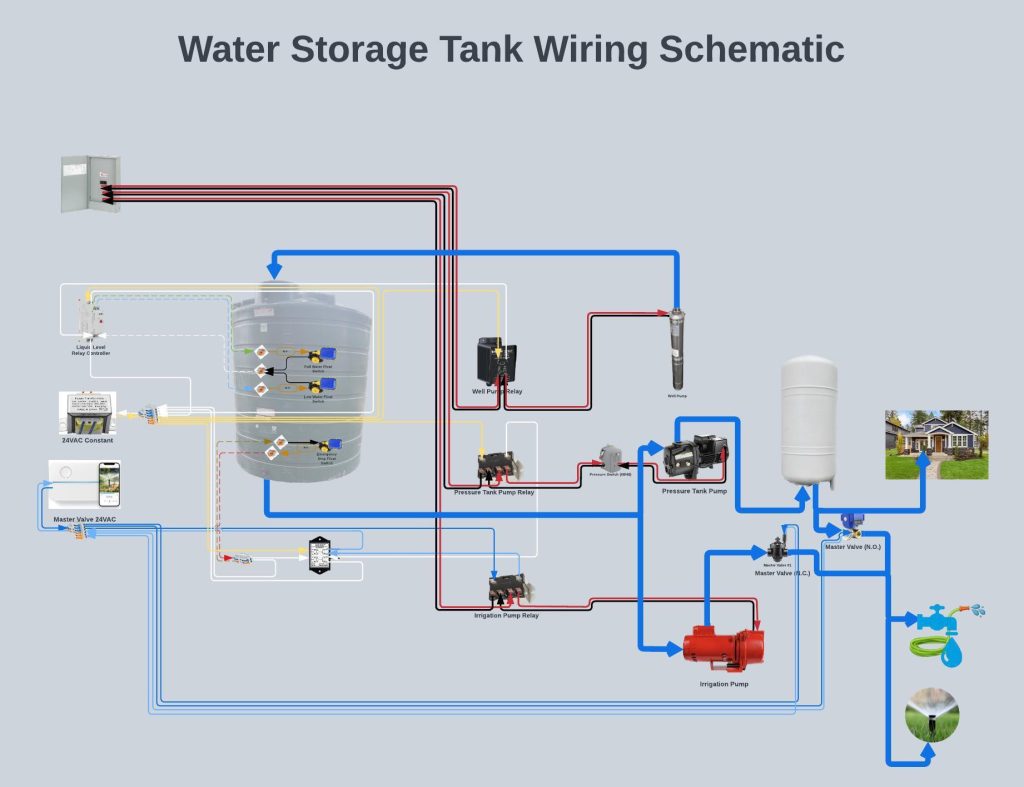

Essential Components of a Tank-Fed Irrigation System
A successful design relies on more than just a pump and pipes. Each component plays a specific role in maintaining system integrity.
| Component | Function | Critical Specification |
|---|---|---|
| Foot Valve with Strainer | Prevents backflow and keeps debris out of the pump. | Must be submerged at least 18 inches below the lowest water level. |
| Check Valve | Stops water from draining back into the tank when the pump stops. | Install immediately after the pump discharge. |
| Pressure Tank/Switch | Maintains steady pressure and prevents short-cycling of the pump. | Set cut-in/cut-out pressures based on sprinkler needs (e.g., 40/60 PSI). |
| Backflow Preventer | Protects the stored water from contamination by fertilizer or soil. | Required by code in most US states for potable or semi-potable sources. |
| Filter Assembly | Removes sediment to protect delicate sprinkler nozzles. | 120-mesh screen is standard for lawn systems. |
Step-by-Step Installation Guide
Follow these concrete steps to build a reliable system. Precision here ensures longevity.
Step 1: Site Preparation and Tank Positioning
Place your water tank on a stable, level concrete pad. Ensure the location allows easy access for maintenance trucks to refill the tank if necessary. The suction line should be as short and direct as possible to minimize friction loss on the intake side.
Step 2: Installing the Suction Line
Use rigid PVC or reinforced flexible hose rated for suction applications.
- Attach a foot valve with a strainer to the end of the pipe.
- Submerge the foot valve so it sits at least 24 inches (60 cm) above the tank bottom to avoid sucking up sediment.
- Ensure the pipe slopes slightly upward toward the pump to prevent air pockets.
- Crucial Detail: All suction-side connections must be perfectly airtight. Even a tiny leak can cause the pump to lose its prime. Use Teflon tape and pipe dope on all threaded joints.
Step 3: Pump Mounting and Priming
Mount the centrifugal pump on a vibration-isolating pad close to the tank.
- Fill the pump casing and suction line with water until it overflows. This process, called priming, removes air.
- Tighten the priming plug securely.
- Note: Self-priming pumps can handle some air, but initial manual priming extends their life significantly.
Step 4: Discharge Piping and Filtration
On the output side of the pump:
- Install a check valve immediately to hold pressure.
- Install a ball valve for isolation during repairs.
- Connect your filtration system. For lawn sprinklers, a 120-mesh disc filter is ideal.
- Run your mainline pipe (usually Class 200 PVC) to the valve manifold. Keep runs straight; use 45-degree elbows instead of 90-degree ones wherever possible to reduce turbulence.
Step 5: Zone Valve Manifold and Wiring
Divide your lawn into zones based on plant type and sun exposure.
- Group sprinklers so that the total GPM of one zone does not exceed your pump’s capacity.
- Install solenoid valves on a manifold.
- Connect the controller using direct-burial irrigation wire (typically 18-gauge).
- Safety Check: Ensure all electrical connections are housed in waterproof junction boxes and grounded according to the National Electrical Code (NEC).
Step 6: Testing and Adjustment
Turn on the system zone by zone.
- Check for leaks at every joint.
- Measure the pressure at the furthest sprinkler head using a gauge. It should read between 30 and 50 PSI.
- If pressure is too low, reduce the number of heads in that zone or increase the pump speed (if variable).
- If pressure is too high, install pressure-regulating modules to prevent misting, which leads to evaporation waste.
Common Mistakes to Avoid
Even experienced handymen can stumble when designing a plumbing design for water tank supplied pumped lawn sprinkler system. Here are the pitfalls to watch out for:
- Undersizing the Suction Pipe: Using a pipe diameter smaller than the pump inlet creates a vacuum that causes cavitation. Always match or exceed the pump inlet size.
- Ignoring Air Relief: Air trapped in high points of the pipeline can block water flow entirely. Install automatic air relief valves at peak elevations in your piping layout.
- Skipping the Filter: Tank water often contains algae or sediment. Without a filter, sprinkler nozzles will clog within weeks, creating dry spots.
- Overloading Zones: Trying to run too many sprinklers at once drops the pressure below the threshold needed for proper spray patterns, leading to uneven watering.
Frequently Asked Questions (FAQ)
Q1: What size pump do I need for a 1,000-square-foot lawn?
A: Size depends on your sprinkler heads, not just lawn area. Generally, a 1 HP pump delivering 20–25 GPM at 40 PSI is sufficient for a small residential lawn with rotary heads. However, you must calculate the total GPM of all heads in your largest zone to be sure.
Q2: Can I use rainwater from a barrel for my sprinkler system?
A: Yes, but you must install a high-quality filtration system to remove organic matter and prevent nozzle clogging. Additionally, ensure your tank is covered to prevent mosquito breeding and algae growth.
Q3: How do I prevent my pump from freezing in winter?
A: In climates with freezing temperatures, you must winterize the system. Drain the pump, suction line, and all pipes completely. Use compressed air to blow out residual water from the sprinkler heads. Insulate the pump house if the pump cannot be removed.
Q4: Why is my pump making a loud grinding noise?
A: This is likely cavitation, caused by restricted water flow on the suction side (clogged filter, kinked hose, or air leak). It can also indicate worn bearings. Shut the system down immediately to inspect the foot valve and suction line, as prolonged cavitation destroys the impeller.
Q5: Do I need a permit to install a tank-fed irrigation system?
A: Regulations vary by municipality. Many areas require a permit for electrical work and backflow prevention devices to protect public water supplies if there is any cross-connection. Always check with your local building department before digging or wiring.
Q6: How often should I clean the filters in a tank system?
A: Inspect filters monthly during peak irrigation season. If you notice a drop in pressure or uneven spray patterns, clean them immediately. Tanks with open tops or organic debris may require weekly cleaning.
Conclusion
Designing a plumbing design for water tank supplied pumped lawn sprinkler system is a rewarding project that combines engineering precision with practical gardening benefits. By carefully calculating your flow requirements, selecting the right pump, and adhering to strict installation protocols, you can create an irrigation system that delivers consistent pressure and keeps your lawn lush throughout the summer. Remember, the key to success lies in the details: airtight suction lines, proper filtration, and correctly sized zones.
Don’t let poor planning ruin your landscape investment. Take the time to map out your system, gather the right materials, and follow this guide step-by-step. Once your system is running, you’ll enjoy the satisfaction of a professional-grade setup that saves water and money.
