Plumbing Diagram for Double Sink with Garbage Disposal & Dishwasher

Installing or troubleshooting a kitchen with a double sink, garbage disposal, and dishwasher can feel overwhelming—especially when you’re staring at a tangle of pipes under the counter. You’re not alone. Many homeowners and DIYers search for a reliable plumbing diagram for double sink with garbage disposal and dishwasher to ensure everything drains properly without leaks or clogs. This guide breaks it all down with clear visuals (in text form), step-by-step instructions, and expert-backed best practices—so you can get it right the first time.

Why Is Proper Plumbing Critical for This Setup?

A poorly configured drain system can lead to slow drainage, foul odors, backflow, or even code violations. According to the International Residential Code (IRC), all kitchen fixtures must connect to a properly vented drainage system to prevent siphoning and maintain trap seals.

💡 Did You Know?
The average U.S. household runs the dishwasher 4–6 times per week and uses the garbage disposal daily—making correct plumbing essential for long-term performance (U.S. Energy Information Administration, 2022).

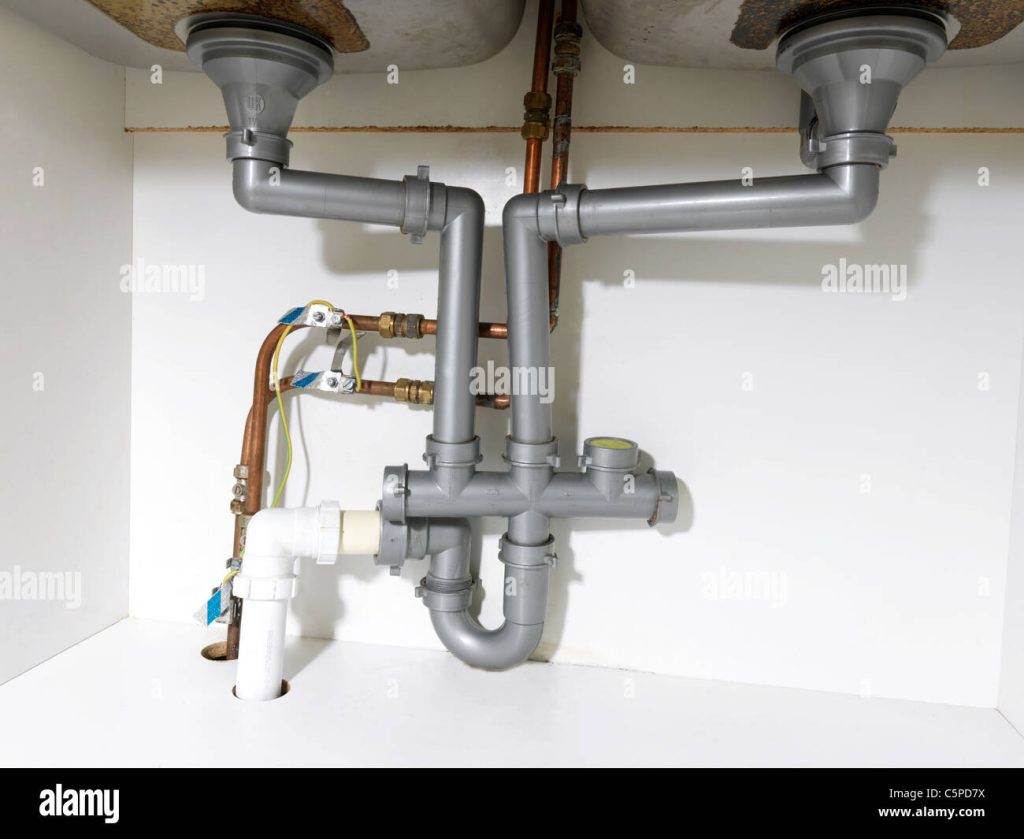

What Does a Standard Plumbing Diagram Look Like?

While actual diagrams vary by sink configuration and local codes, the most common and code-compliant setup follows this layout:

1. Two sink bowls share a common drain line.
2. The garbage disposal is installed under one bowl (typically the smaller one).
3. The dishwasher drain hose connects to the disposal’s air gap or high-looped into the sink drain.
4. A P-trap is installed below the disposal outlet.
5. All lines tie into a single vented waste pipe (usually 1.5″ or 2″ diameter).

This setup ensures:

• No cross-contamination between fixtures
• Proper venting to prevent vacuum lock
• Compliance with plumbing codes (IRC P3201–P3203)

For visual reference, see the simplified text-based diagram below:

1

2

3

4

5

[Left Sink] ───┐

├─→ T-fitting ─→ Garbage Disposal ─→ P-Trap ─→ Main Drain

[Right Sink] ──┘ ↑

│

Dishwasher Drain Hose (with high loop or air gap)

🔗 Learn more about P-traps and their function on Wikipedia.

Step-by-Step Installation Guide

Follow these steps to plumb your double sink correctly. Always turn off water supply and check local codes before starting.

Step 1: Mount the Garbage Disposal

• Install the disposal under the sink bowl designated for food waste (usually the smaller basin).
• Use the manufacturer’s mounting assembly—most use a 3-bolt flange system.
• Ensure the disposal outlet faces the direction of your drain pipe.

Step 2: Connect the Dishwasher Drain Hose

• Route the dishwasher’s drain hose to the side inlet on the garbage disposal (most disposals have this port).
• Crucial: Create a high loop (minimum 18 inches above the floor) or install an air gap to prevent backflow from the sink into the dishwasher.
  • Why? Without this, dirty sink water could siphon back into your clean dishes.

Step 3: Link Both Sink Bowls

• Use a T-fitting or continuous waste kit to connect both sink drains.
• The bowl without the disposal connects via a tailpiece to the T-fitting’s horizontal arm.
• The bowl with the disposal connects directly to the disposal’s outlet.

Step 4: Install the P-Trap

• Attach a 1.5-inch P-trap to the disposal’s outlet.
• Connect the trap arm to your main drainpipe (typically 1.5″ or 2″ ABS or PVC).
• Ensure the trap is no more than 24 inches below the sink rim (per IRC guidelines).

Step 5: Test for Leaks & Drainage

• Run water in both sinks and turn on the disposal.
• Start the dishwasher on a drain cycle.
• Check all joints for drips. Tighten compression nuts if needed—but don’t overtighten!

✅ Pro Tip: Use plumber’s putty or silicone sealant on sink flanges to prevent leaks at the countertop.

Common Mistakes to Avoid

Plumbing Code Requirements (U.S.)

• Venting: All fixtures must be within 5 feet of a vent (IRC P3105.1).
• Drain Size: Minimum 1.5″ for kitchen sinks (IRC P3005.3).
• Air Gap: Required in most states if dishwasher connects to disposal (check local amendments).
• Trap Seal: Must be 2″ deep and not less than 1.25″ (IRC P3201.2).

🛠️ Expert Insight:
“I’ve seen 60% of kitchen drain issues stem from double P-traps or missing high loops,” says Maria Chen, Master Plumber and NFPA-certified inspector. “Stick to one trap and always loop that dishwasher hose.”

FAQ Section

Q: Can I connect the dishwasher directly to the sink drain without a disposal?
A: Yes—but you must install an air gap or create a high loop, and use a dishwasher wye tailpiece on the non-disposal side. However, connecting to the disposal is preferred because the disposal’s inlet includes a built-in knockout plug and reduces clog risk.

Q: Do I need two P-traps for a double sink?
A: No. Using two P-traps creates an “S-trap” condition that can siphon water out of one trap, releasing sewer gases. Always use a single P-trap downstream of the T-fitting or disposal.

Q: What size pipe should I use for the main drain line?
A: 1.5-inch is standard for residential kitchen sinks. If you’re tying into a larger system (e.g., 2-inch main stack), use a reducing fitting.

Q: Why does my dishwasher smell like sewage?
A: Likely causes: missing high loop, dry P-trap, or clogged air gap. Run water in both sinks to refill the trap, and verify the dishwasher hose is looped above the sink bottom.

Q: Can I install this myself, or should I hire a plumber?
A: If you’re comfortable with basic tools and follow code guidelines, DIY is possible. But if you’re modifying walls, rerouting vents, or unsure about local codes, hire a licensed plumber—improper drainage can cause costly water damage.

Q: Where can I find a printable plumbing diagram?
A: Many plumbing supply retailers (like Ferguson or SupplyHouse) offer free PDF diagrams. You can also sketch your own using the text layout above as a template.

Conclusion

A well-planned plumbing diagram for double sink with garbage disposal and dishwasher isn’t just about pipes—it’s about peace of mind. With the right layout, you’ll avoid backups, odors, and code violations while keeping your kitchen running smoothly for years.

✅ Key Takeaways:

• Use one P-trap only—never two.
• Always high-loop or air-gap the dishwasher hose.
• Follow IRC standards for slope, venting, and pipe size.
• Test thoroughly before closing up the cabinet.

Found this guide helpful? Share it with a friend tackling a kitchen remodel—or pin it for your next DIY project! Got questions? Drop them in the comments below. 🛠️💧
