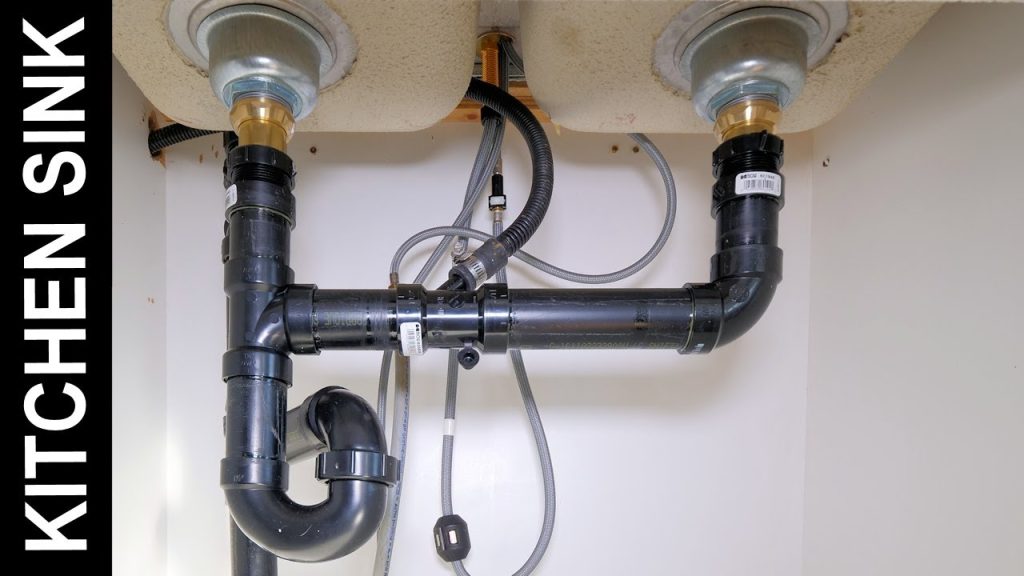

Plumbing Doesn’t Line Up? Fix Under Sink Alignment

There is nothing quite as frustrating as finishing a beautiful kitchen renovation, only to realize that the pipes refuse to connect. You have carefully mounted the basin, but now you are staring at a gap that seems impossible to bridge. If your plumbing doesn’t line up after installing under countertop sink, you are not alone; this is one of the most common post-installation headaches for DIYers and even some professionals.

The good news is that this is rarely a catastrophic error. In most cases, it is a matter of simple geometry and having the right flexible components on hand. This guide will walk you through why this happens, how to diagnose the specific type of misalignment, and the step-by-step solutions to get your water flowing smoothly again.

Why Does Misalignment Happen?

Before we grab the wrenches, it is crucial to understand why the pipes are not meeting. Understanding the root cause prevents you from forcing connections, which can lead to cracked porcelain or stripped threads.

The “Rigid Pipe” Trap

Many older homes or budget-friendly installations use rigid PVC or copper pipes for the final connection to the P-trap. While durable, rigid pipes offer zero flexibility. If your new sink’s drain outlet is even half an inch off from where the old one was, rigid pipes will not bend to accommodate it.

Countertop Thickness Variations

Undermount sinks are attached to the underside of the countertop. If your new countertop is thicker than the previous one (e.g., switching from laminate to granite), the sink sits higher. This vertical shift changes the angle and depth required for the drain assembly to meet the wall pipe.

Manufacturing Tolerances

Not all sinks are created equal. The distance from the center of the bowl to the drain hole can vary by brand. If you switched brands during your remodel, the drain location might have shifted laterally (left or right) by 1–2 inches, causing significant alignment issues.

Step-by-Step: How to Fix Misaligned Plumbing

If your plumbing doesn’t line up after installing under countertop sink, do not force the pipes. Instead, follow these diagnostic and repair steps.

Step 1: Assess the Direction of the Misalignment

Identify exactly how the pipes are off. Is it:

• Vertical: The sink drain is too high or too low compared to the wall pipe.
• Horizontal: The sink drain is too far left or right.
• Depth: The sink is too far forward or back.

Pro Tip: Use a tape measure to check the distance from the wall to the center of the sink drain. Compare this to your existing wall pipe location.

Step 2: Swap Rigid Pipes for Flexible Connectors

The single easiest fix for minor misalignments is replacing rigid tailpieces with flexible supply lines or flexible drain extensions.

• For Water Supply Lines: Replace rigid copper or PEX stubs with braided stainless steel flexible hoses. These can bend slightly to accommodate offsets of up to 2–3 inches.
• For Drain Pipes: Use a flexible P-trap kit. These accordion-style or smooth-bend plastic tubes can adjust to various angles and distances.

Note: While flexible drains are convenient, ensure they are rated for hot water if connecting to a dishwasher discharge. Always check local plumbing codes, as some jurisdictions restrict the use of certain flexible drain materials due to clogging risks. For more on standard plumbing practices, you can refer to general guidelines on Wikipedia’s Plumbing page.

Step 3: Adjust the P-Trap Position

If the horizontal alignment is off, you may need to reposition the P-trap itself.

1. Loosen the slip nuts on the wall flange.
2. Slide the trap arm left or right as needed.
3. If the wall pipe is threaded, you might need a different length of trap arm. Standard arms come in 6, 9, and 12-inch lengths.
4. Tighten the nuts hand-tight, then give a quarter turn with pliers. Do not overtighten, as this can crack the plastic nuts.

Step 4: Use Offset Drain Assemblies

For vertical misalignment (where the sink is too high or low), an offset drain assembly is your best friend. These kits allow the drain pipe to exit the sink at an angle rather than straight down, giving you extra room to maneuver before connecting to the P-trap.

Common Mistakes to Avoid

When trying to fix alignment issues, it is easy to make things worse. Here are three critical errors to avoid:

1. Forcing the Connection

If you have to twist the sink or pull the pipes aggressively to make them meet, stop. This creates tension that will eventually cause leaks. The connection should be snug but natural.

2. Ignoring the Slope

Drainage relies on gravity. Even if you manage to connect misaligned pipes, ensure there is a consistent downward slope from the sink to the P-trap. Any “uphill” sections will cause water to pool and lead to clogs and bad odors.

3. Using Too Much Plumber’s Putty or Tape

While thread seal tape (Teflon tape) is essential for threaded joints, do not use it on slip-nut connections (the white plastic nuts on P-traps). These rely on a rubber washer for the seal. Adding tape here can prevent the washer from seating correctly, leading to leaks.

When to Call a Professional

While many alignment issues are DIY-friendly, some scenarios require a licensed plumber. Consider calling a pro if:

• You need to move the wall pipe: If the misalignment is greater than 3 inches, you may need to cut into the drywall and extend the copper or PVC pipes inside the wall. This requires soldering or gluing and knowledge of local building codes.
• Structural interference: If cabinetry or framing is blocking the path of the new plumbing, a professional can safely modify the structure without compromising integrity.
• Persistent leaks: If you have tried multiple fixes and still experience leaks, there may be a crack in the sink basin or a defective component that needs expert diagnosis.

FAQ Section

Q1: Can I bend copper pipes to fix alignment?

A: It is not recommended for DIYers. Bending copper requires specialized tools to avoid kinking, which restricts water flow. It is safer and easier to use flexible braided supply lines for water connections.

Q2: My sink is level, but the drain is still off. What should I check?

A: Check the countertop cutout. If the hole was cut slightly off-center during fabrication, the sink will sit unevenly relative to the wall pipes. You may need to adjust the position of the sink within the cutout before fully tightening the mounting clips.

Q3: Are flexible drain pipes safe for long-term use?

A: Yes, modern flexible drain pipes made from high-density polyethylene are durable and safe. However, they should be installed without sharp bends to prevent debris accumulation. Ensure they are supported properly so they do not sag over time.

Q4: How much does it cost to fix misaligned plumbing?

A: If you use flexible connectors and adjust existing pipes, the cost is minimal ($20–$50 for parts). If a plumber needs to move wall pipes, expect to pay between $150 and $400 depending on labor rates and complexity.

Q5: Will misaligned plumbing void my sink warranty?

A: Potentially. If improper installation causes stress cracks in the sink material, the manufacturer may deny the warranty claim. Always follow the manufacturer’s installation instructions precisely and avoid forcing connections.

Q6: What is the maximum offset a flexible P-trap can handle?

A: Most standard flexible P-traps can handle a horizontal or vertical offset of up to 4–6 inches. For larger discrepancies, you will need to modify the hard plumbing in the wall.

Conclusion

Dealing with plumbing that doesn’t line up after installing under countertop sink is a stressful but solvable problem. By understanding the type of misalignment—whether vertical, horizontal, or depth-related—you can choose the right solution. In most cases, swapping rigid pipes for flexible connectors or using offset drain assemblies will resolve the issue without major construction.

Remember, patience is key. Take accurate measurements, avoid forcing connections, and ensure proper slope for drainage. With the right approach, your kitchen will be functional and leak-free in no time.
