Upgrading your kitchen? Installing a double sink with a garbage disposal and dishwasher sounds efficient—until you face the plumbing puzzle. Many homeowners struggle with drainage backups, code violations, or noisy setups simply because the plumbing wasn’t planned right. If you’re tackling plumbing for double sink with garbage disposal and dishwasher, you’re not alone—and you’re in the right place. This guide walks you through everything you need to know, from code-compliant layouts to pro-level installation tips, so your kitchen runs smoothly (and quietly!).
Why Is Plumbing for a Double Sink with Garbage Disposal and Dishwasher Tricky?
A double-basin sink adds convenience, but connecting a garbage disposal and dishwasher introduces complexity. Each appliance needs proper drainage, venting, and trap configuration to prevent clogs, odors, or even sewage backups.
According to the International Residential Code (IRC), all fixtures must connect to a properly vented P-trap system to maintain air pressure and block sewer gases. When you add a disposal and dishwasher, you’re essentially linking three drainage points into one system—requiring careful coordination.
💡 Pro Tip: Over 60% of kitchen plumbing callbacks stem from improper dishwasher-to-disposal connections or missing high-loop installations (source: National Association of Home Builders, 2022).
Can You Connect a Dishwasher and Garbage Disposal to the Same Drain?
Yes—but only if done correctly. Most modern garbage disposals include a dishwasher inlet port (usually capped). The dishwasher drains into the disposal, which then grinds any food particles before sending wastewater down the main drain.
However, skipping the high-loop or air gap can cause dirty water to siphon back into your dishwasher—yuck!
Required Safety Features:
High-loop: Dishwasher drain hose must loop up to the underside of the countertop (minimum 18 inches above the floor) before descending to the disposal.
Air gap (where required): Some local codes (like in California and Texas) mandate a physical air gap device on the countertop to prevent backflow.
Step-by-Step: Plumbing a Double Sink with Disposal & Dishwasher
Follow this professional sequence to ensure a leak-free, code-compliant setup:
1. Plan Your Layout
Left basin: Garbage disposal (most common)
Right basin: Standard strainer
Dishwasher: Adjacent to disposal side
✅ Best Practice: Install the disposal on the side closest to the dishwasher to minimize hose length and reduce kinking risk.

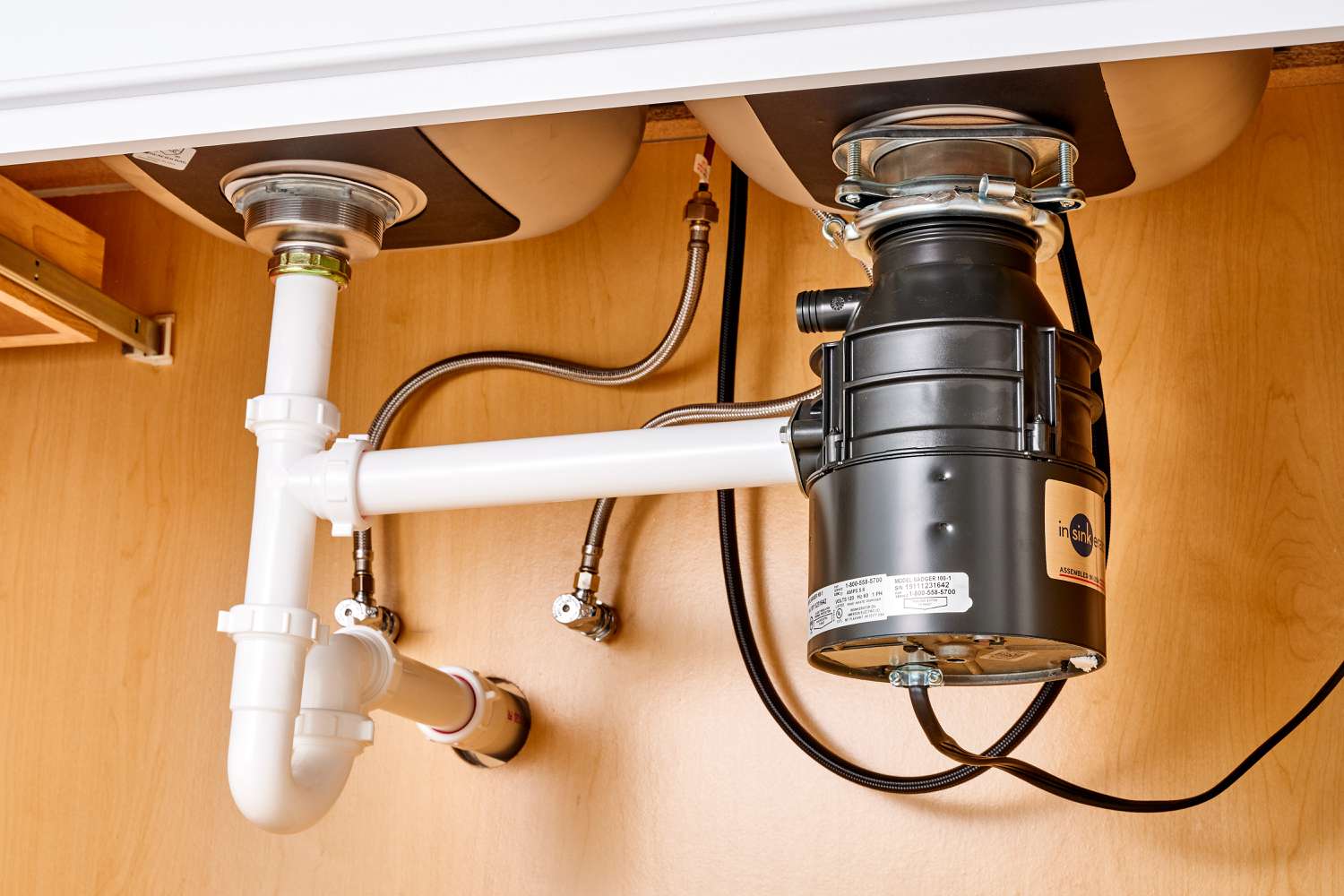

2. Install the P-Trap Assembly
Use a dual-outlet P-trap kit (also called a “disposal tee” or “Y-branch trap”). This allows both sink basins and the disposal to share one trap without violating code.
Connect the disposal outlet to the trap’s side inlet.
Connect the second sink’s tailpiece to the opposite inlet.
Ensure all connections are hand-tightened, then give a quarter-turn with pliers—over-tightening cracks PVC!
3. Connect the Dishwasher Drain Hose
Remove the knockout plug from the disposal’s dishwasher inlet.
Attach the dishwasher hose using a hose clamp.
Create a high-loop: Secure the hose to the underside of the countertop with a bracket or zip tie, 18–24 inches above the floor.
⚠️ Never skip the high-loop—even if your dishwasher has a built-in check valve. It’s your last line of defense against backflow.
4. Vent the System
Every trap needs a vent within 5 feet (per IRC P3105.1). In kitchens, this is usually handled by the main stack vent. If your sink is far from the stack, consider an Air Admittance Valve (AAV)—a one-way mechanical vent approved in most U.S. jurisdictions.
5. Test for Leaks & Drainage
Run hot water in both basins.
Turn on the disposal with water flowing.
Start a dishwasher cycle.
Check all joints for drips. Wipe connections dry first—condensation can mimic leaks.
Common Mistakes to Avoid
Skipping the high-loop
Dirty water backs into dishwasher
Install high-loop or air gap
Using a single trap for both basins without a disposal tee
Code violation, slow drainage
Use dual-inlet P-trap
Over-tightening PVC fittings
Cracked pipes, leaks
Hand-tight + ¼ turn
Ignoring local codes
Failed inspection
Check with your city’s building department
Tools & Materials You’ll Need
Dual-outlet P-trap kit (1½” PVC)
Garbage disposal with dishwasher inlet
Dishwasher drain hose (usually included)
Hose clamps (2)
Plumber’s putty or silicone sealant
Adjustable wrench & basin wrench
Teflon tape (for threaded metal parts)
Zip ties or hose bracket (for high-loop)
💡 Cost Note: DIY plumbing for this setup averages $120–$200 in materials. Hiring a pro? Expect $300–$600, depending on location (HomeAdvisor, 2023).
Plumbing Code Essentials (U.S.)
Trap size: 1½-inch for kitchen sinks (IRC P3201.3)
Vent distance: Max 5 feet from trap weir to vent (IRC P3105.1)
Dishwasher connection: Must discharge through an air gap or high-loop (IRC P2902.1)
Disposal amperage: Typically requires a dedicated 15- or 20-amp circuit
Always verify with your local building authority—some states (e.g., Massachusetts) have stricter rules.
FAQ Section
Q1: Do I need an air gap if I have a high-loop?
A: Not always. The IRC allows either a high-loop or an air gap. However, California, Texas, Washington, and others require a physical air gap by law. Check your local code before deciding.
Q2: Can both sink basins have garbage disposals?
A: Technically yes, but it’s rare and expensive. You’d need two separate drain lines, two traps, and double the electrical circuits. Most homeowners install one disposal and use the second basin for rinsing or prep.
Q3: Why does my dishwasher smell after connecting to the disposal?
A: Food debris is likely trapped in the disposal or drain hose. Run the disposal with cold water and ½ cup of baking soda followed by vinegar. Also, clean the dishwasher filter monthly.
Q4: What if my sink doesn’t drain after installing the disposal?
A: First, check if the disposal’s knockout plug was fully removed. Then inspect the P-trap for clogs. If water backs up in both basins, the main drain line may be blocked.
Q5: Can I use flexible tubing for the dishwasher drain?
A: Yes—most dishwashers come with a corrugated flexible hose. Just ensure it’s rated for hot water (up to 170°F) and secured with a clamp.
Q6: How often should I maintain this plumbing setup?
A: Monthly: Run ice cubes + citrus peels through the disposal. Quarterly: Flush drains with hot water and baking soda. Annually: Inspect hose clamps and trap connections for wear.
Conclusion
Getting the plumbing for double sink with garbage disposal and dishwasher right isn’t just about avoiding leaks—it’s about creating a kitchen that’s efficient, hygienic, and code-compliant for years to come. With the right layout, proper venting, and attention to details like the high-loop, you’ll enjoy smooth drainage and peace of mind.
If this guide saved you a plumbing headache, share it with a friend renovating their kitchen! And don’t forget to pin it on Pinterest or tweet it—your DIY-savvy network will thank you. 🛠️💧
Got questions? Drop them in the comments—we’re here to help you build smarter, not harder.
