If you’re renovating your kitchen or troubleshooting a clog, you’ve likely asked: How do I plumb a single sink with both a garbage disposal and a dishwasher? It’s a common—but tricky—setup that demands precision to avoid backups, leaks, or code violations. Done right, plumbing for single sink with garbage disposal and dishwasher creates a seamless, efficient workflow in your kitchen. This guide walks you through every critical step, backed by plumbing best practices and real-world expertise.
Why Is This Setup So Common (and Challenging)?
Modern kitchens often feature a single-bowl sink paired with a garbage disposal and a dishwasher—all sharing one drain line. According to the National Kitchen & Bath Association (NKBA), over 68% of U.S. homes use this configuration to maximize counter space and simplify cleanup.
But here’s the catch: all three appliances must share a single P-trap without violating plumbing codes. If installed incorrectly, you risk:
Sewer gas leaks (due to missing or double P-traps)
Drain backups from the dishwasher into the sink
Code violations that fail home inspections
The key? Understanding how wastewater flows and where each connection belongs.
Can You Connect a Dishwasher to a Garbage Disposal?
Yes—and it’s actually recommended. Most U.S. plumbing codes (including the International Residential Code, IRC P2719.4) require the dishwasher drain hose to connect to the garbage disposal, not directly to the sink tailpiece.
Why? Because the disposal acts as a high-loop air gap that prevents dirty water from siphoning back into your dishwasher. Without this, you risk gray water contamination—a serious health hazard.
💡 Pro Tip: Always use the dishwasher inlet port on the side of the disposal (usually capped). Remove the knockout plug before connecting the hose—this is a frequent rookie mistake!

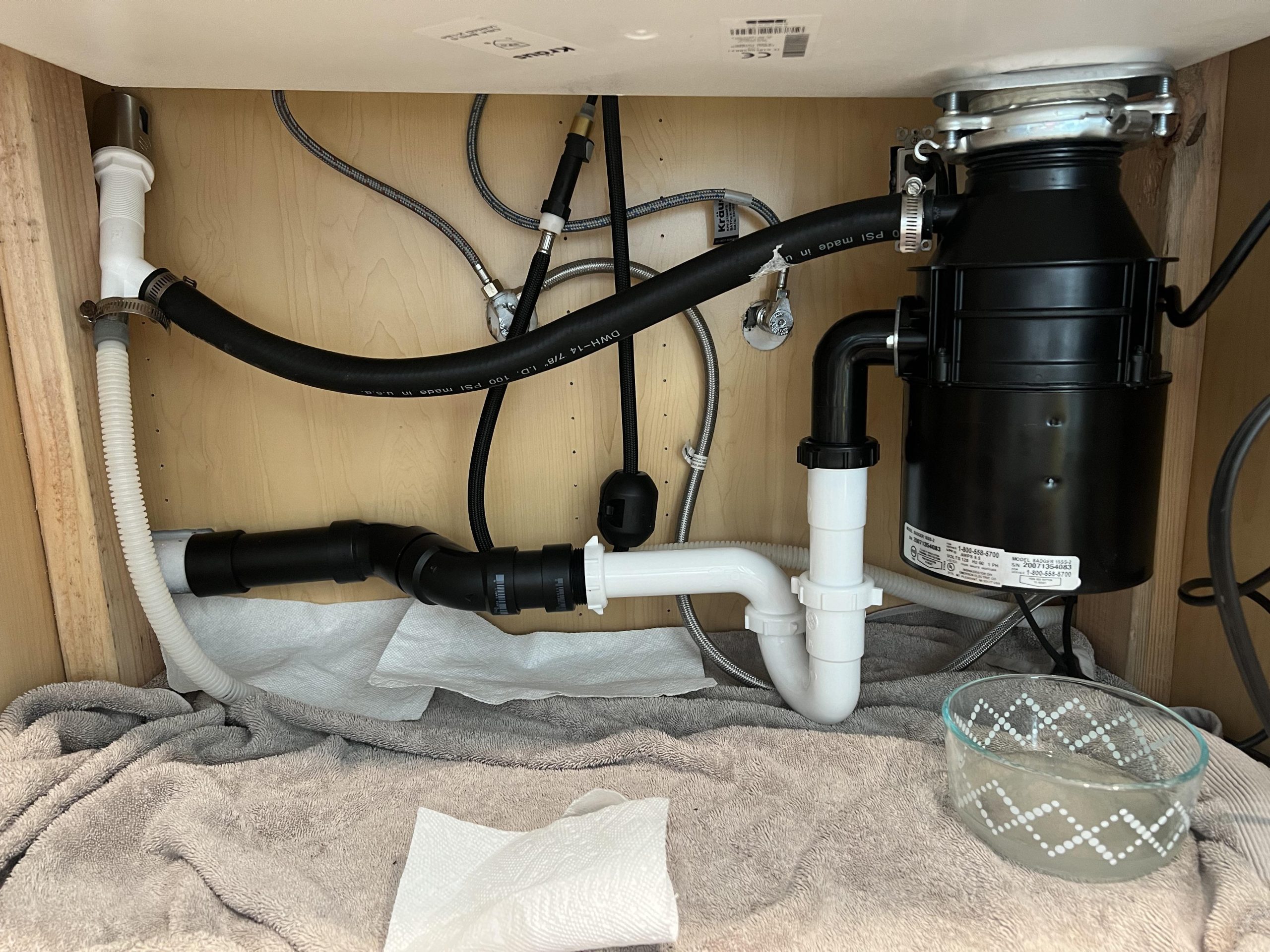

Step-by-Step: Plumbing a Single Sink with Disposal & Dishwasher
Follow these steps carefully. You’ll need basic tools: adjustable wrench, plumber’s putty, screwdriver, and a bucket.
1. Install the Garbage Disposal
Mount the disposal under the sink using the included mounting assembly.
Ensure it’s level and securely fastened to the sink flange.
Connect the power (hardwired or plug-in—check local codes).
2. Connect the Dishwasher Drain Hose
Locate the dishwasher inlet on the disposal (side port).
Remove the knockout plug inside the port using a screwdriver and hammer.
Attach the dishwasher drain hose to this port using a hose clamp.
Create a high loop: Secure the hose to the underside of the countertop (at least 18 inches above the floor) to prevent backflow.
3. Set Up the Drain Assembly
Use a single P-trap—never double-trap.
Connect the disposal outlet to a 90-degree discharge tube, then to a wye fitting or dishwasher branch tailpiece.
From there, run the pipe into the P-trap, then to the main drain line.
✅ Code Check: The Uniform Plumbing Code (UPC) §1003.3 prohibits double trapping. One fixture = one P-trap.
4. Test for Leaks & Flow
Run water in the sink.
Turn on the disposal.
Start the dishwasher (on a rinse cycle).
Check all joints for drips. Tighten if needed—but don’t overtighten plastic fittings!
📊 Stat Insight: A 2023 HomeAdvisor survey found that 42% of DIY plumbing fails in kitchens stem from improper disposal-dishwasher connections—most due to skipped knockout plug removal.
When to Call a Professional
While this setup is DIY-friendly, call a licensed plumber if:
Your home has older galvanized pipes (prone to corrosion)
You’re unsure about local plumbing codes (varies by city)
You smell sewer gas after installation (indicates trap seal failure)
Water backs up into the dishwasher repeatedly
Licensed plumbers carry liability insurance and guarantee code compliance—worth it for peace of mind.
FAQ Section
Q: Can I install a dishwasher without a garbage disposal?
A: Yes, but you’ll need an air gap or a high-looped drain hose connected directly to the sink tailpiece. However, many local codes now require an air gap device (a small chrome fixture on the countertop), which some homeowners find unsightly.
Q: Why does my sink gurgle when the dishwasher runs?
A: This usually means improper venting. The drain system needs a vent to equalize air pressure. Without it, the dishwasher’s pump creates suction that pulls air through the P-trap, causing gurgling. Install an Air Admittance Valve (AAV) under the sink if a roof vent isn’t accessible.
Q: How high should the dishwasher drain hose loop be?
A: At least 18 inches above the floor—or higher than the dishwasher’s flood level. This prevents siphoning. Secure it with a bracket or zip tie to the underside of the countertop.
Q: Do I need a separate P-trap for the dishwasher?
A: No. The dishwasher shares the sink’s P-trap via the disposal or branch tailpiece. Installing a second trap violates plumbing codes and causes drainage issues.
Q: What size pipe do I need for this setup?
A: Standard kitchen drains use 1-1/2 inch pipes for the P-trap and tailpieces. The dishwasher hose is typically 5/8” to 7/8” in inner diameter. Never reduce pipe size mid-run—it restricts flow.
Q: Can I use flexible tubing for the entire drain?
A: Avoid it. Flexible corrugated tubing traps food debris and clogs easily. Use rigid PVC or ABS for the main drain line, and only flexible hose for the short dishwasher connection.
Conclusion
Mastering plumbing for single sink with garbage disposal and dishwasherisn’t just about connecting pipes—it’s about creating a safe, efficient, and code-compliant system that lasts for years. With the right setup, you’ll avoid messy backups, foul odors, and costly repairs.
If this guide saved you a service call or gave you confidence to DIY, share it with a friend tackling their own kitchen project! 👷♀️💧 Tag them on Facebook, Pinterest, or Instagram—because good plumbing knowledge should never go down the drain.
