Have you ever noticed water stains on your ceiling or heard the unsettling sound of pipes rattling in your walls? Often, the culprit isn’t the pipe itself, but the lack of proper support where it meets the foundation. For professionals and DIY enthusiasts alike, securing pipes to concrete foundations is critical for long-term durability. This is where Plumbing Hangers Grade Slab Support With Washer And Nuts become essential. These components are not just hardware; they are the backbone of a leak-free, vibration-resistant plumbing system. In this guide, we will explore exactly how to choose, install, and maintain these supports to ensure your plumbing stands the test of time.
What Are Grade Slab Supports and Why Do They Matter?
Before diving into installation, it is crucial to understand what we are dealing with. A “grade slab” refers to the concrete foundation of a building that sits directly on the ground. Plumbing lines often run along or through these slabs before rising into the walls.

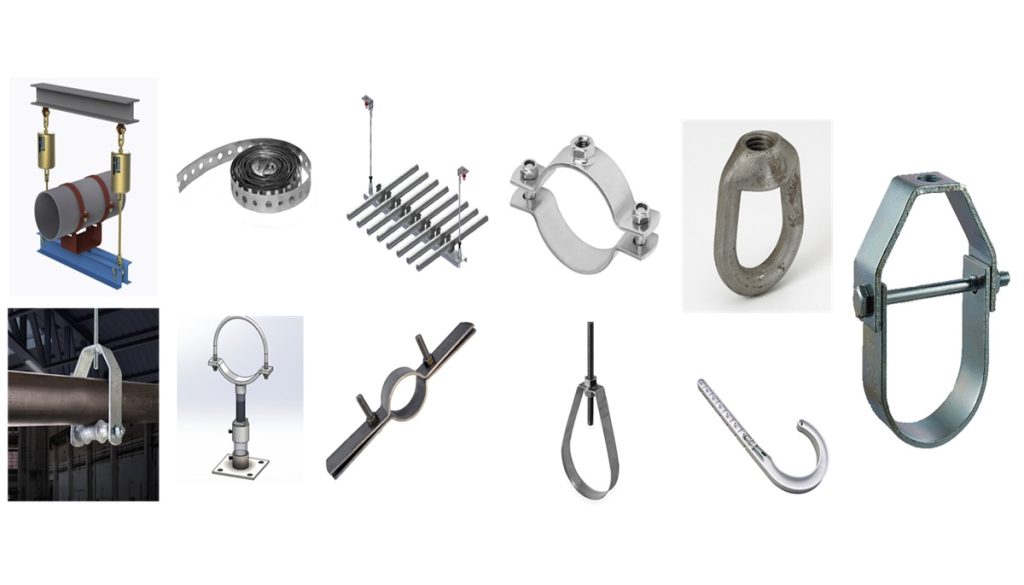

Plumbing Hangers Grade Slab Support With Washer And Nuts are specialized fastening systems designed to anchor pipes securely to this concrete base. Unlike standard wood-frame hangers, these must withstand the hardness of concrete and the potential for moisture wicking up from the ground.
The Critical Role of Washers and Nuts
You might wonder, why specify “with washer and nuts”? It’s not just extra hardware; it’s engineering precision.
- The Nut: Provides the clamping force necessary to hold the hanger firmly against the concrete anchor.
- The Washer: Distributes the load evenly. Without a washer, tightening the nut could crush the hanger material or damage the concrete surface, leading to instability.
According to industry standards, improper fastening is one of the leading causes of pipe stress fractures. By using a complete kit with washers and nuts, you ensure uniform pressure distribution, which is vital for maintaining the integrity of both the pipe and the support structure.
How to Choose the Right Materials for Longevity
Not all hangers are created equal. When selecting Plumbing Hangers Grade Slab Support With Washer And Nuts, material compatibility is key to preventing corrosion and failure.
Material Comparison Table
| Material | Best Use Case | Corrosion Resistance | Cost |
|---|---|---|---|
| Galvanized Steel | General indoor plumbing, non-corrosive environments | Moderate | Low |
| Stainless Steel (304/316) | Outdoor exposure, high humidity, coastal areas | High | Medium-High |
| Copper/Brass | Copper piping systems (prevents galvanic corrosion) | High | High |
| Plastic/PVC Coated | Chemical waste lines, acidic environments | Very High | Low-Medium |
Expert Tip: If you are installing copper pipes, avoid using plain steel hangers without a protective coating. The interaction between dissimilar metals can cause galvanic corrosion, eating away at your pipes over time. Always use insulated or compatible metal hangers.
For more detailed information on construction materials and standards, you can refer to general building guidelines on Wikipedia.
Step-by-Step Installation Guide
Installing Plumbing Hangers Grade Slab Support With Washer And Nuts requires precision. A loose hanger leads to noise; an overtightened one leads to cracks. Follow these steps for a professional-grade installation.
Tools You Will Need:
- Hammer drill with masonry bit
- Wrench set (adjustable or socket)
- Tape measure
- Chalk line or marker
- Safety glasses and dust mask
Step 1: Mark Your Locations
Measure the distance between supports. For horizontal copper tubing, the general rule is every 6 feet. For PVC, it may be every 4 feet depending on the diameter. Use a chalk line to ensure your hangers are perfectly aligned. Misaligned hangers put unnecessary stress on the pipe joints.
Step 2: Drill the Pilot Holes
Select a masonry bit that matches the diameter of your concrete anchor (usually included with the slab support kit). Drill straight down into the grade slab.
- Depth Check: Ensure the hole is slightly deeper than the length of the anchor to allow for dust clearance.
- Clean Up: Use a vacuum or compressed air to remove concrete dust from the hole. Dust prevents the anchor from seating properly.
Step 3: Insert the Anchor and Hanger
Place the Plumbing Hangers Grade Slab Support over the hole. Insert the concrete anchor (wedge anchor or sleeve anchor) through the hanger’s mounting hole and into the drilled slot.
Step 4: Add Washer and Tighten the Nut
This is the most critical step. Place the washer over the protruding threads of the anchor. Then, thread the nut onto the anchor.
- Tightening Technique: Use your wrench to tighten the nut. Stop when you feel significant resistance. Do not use an impact driver at full power, as this can strip the threads or crack the concrete.
- Check Stability: Give the hanger a firm tug. It should not move. If it spins, the anchor may not be seated correctly.
Step 5: Secure the Pipe
Once the hanger is fixed to the slab, place the pipe into the hanger. If using a two-piece clamp style, secure the top half. Ensure the pipe sits snugly but is not crushed. For thermal expansion, allow a tiny amount of movement if specified by the pipe manufacturer.
Common Mistakes to Avoid
Even experienced plumbers can make errors when working with grade slabs. Here are the top pitfalls to avoid when using Plumbing Hangers Grade Slab Support With Washer And Nuts.
- Skipping the Washer: As mentioned earlier, omitting the washer concentrates force on a small area. This can deform the hanger bracket and loosen the connection over time due to vibration.
- Using the Wrong Drill Bit: Using a wood bit on concrete will ruin the bit and create an oversized hole. Always use carbide-tipped masonry bits.
- Ignoring Pipe Insulation: If the pipe carries hot water or is in a cold climate, ensure the hanger does not compress the insulation. Look for hangers with extended shields or use insulated clips.
- Over-Tightening: Cracking the concrete slab around the anchor compromises the entire support. Tighten until snug, not until failure.
Troubleshooting: What If the Hanger Loosens?
Vibration from water flow or household activities can sometimes loosen nuts over years of service. If you notice a hanger becoming loose:
- Inspect the Threads: Check if the threads on the anchor or nut are stripped. If so, replace the entire anchor assembly.
- Check for Concrete Spalling: If the concrete around the hole is crumbling, the anchor has failed. You will need to drill a new hole nearby and install a fresh Plumbing Hangers Grade Slab Support With Washer And Nuts.
- Use Thread-Locking Compound: For areas with high vibration, applying a medium-strength thread locker to the nut before tightening can prevent it from backing out.
FAQ Section
1. How far apart should I install plumbing hangers on a grade slab?
The spacing depends on the pipe material and diameter. Generally, copper pipes require support every 6 feet, while PVC pipes need support every 4 feet for sizes up to 1 inch. Always check local building codes, as they may have stricter requirements.
2. Can I use regular screws instead of concrete anchors for slab supports?
No. Regular wood or drywall screws cannot grip concrete. You must use specific concrete anchors (such as wedge anchors, sleeve anchors, or tapcons) designed to expand within the masonry to create a secure hold.
3. Do I really need the washer with the nut?
Yes. The washer is essential for distributing the clamping force. Without it, the nut can dig into the metal hanger or the concrete, leading to premature failure, loosening, or damage to the support structure.
4. What size nut and washer should I use?
The size depends on the anchor bolt diameter provided in your Plumbing Hangers Grade Slab Support kit. Common sizes are 1/4-inch or 3/8-inch. Always use the hardware provided by the manufacturer or match the thread pitch and diameter exactly if replacing.
5. Are stainless steel hangers worth the extra cost?
If you are in a humid environment, near the coast, or installing outdoor plumbing, stainless steel is highly recommended. It resists rust and corrosion far better than galvanized steel, ensuring your supports last as long as the pipes themselves.
6. Can I install these hangers on an existing slab without breaking the concrete?
Yes. You simply need to drill holes into the existing cured concrete. Ensure you use a hammer drill for efficiency and accuracy. There is no need to break up the slab unless you are rerouting major lines.
Conclusion
Securing your plumbing system starts with the foundation. By choosing high-quality Plumbing Hangers Grade Slab Support With Washer And Nuts, you are investing in the stability and longevity of your home’s infrastructure. Remember, the washer and nut are not optional accessories—they are critical components that ensure even load distribution and prevent vibration-related failures.
Whether you are a professional plumber or a dedicated DIYer, following the correct installation steps and choosing the right materials will save you from costly repairs down the road. Don’t let loose pipes rattle your nerves or your walls.
Found this guide helpful? Share it with your fellow contractors or DIY friends on social media! Let’s build safer, more reliable plumbing systems together.
