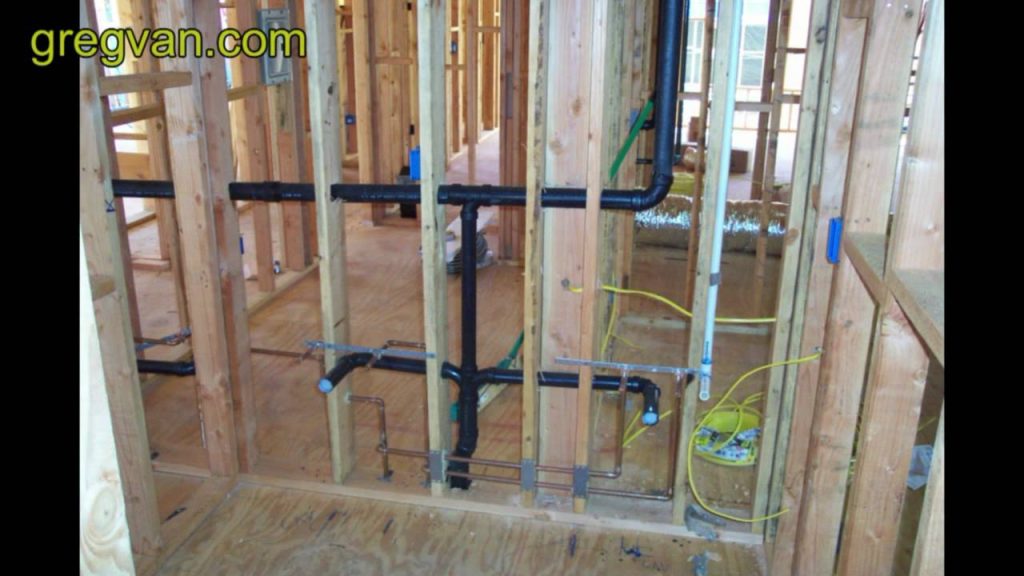

Plumbing Holes in Wood Studs: 4-Story Guide

Building a four-story residential or commercial structure presents unique engineering challenges, particularly when integrating complex utility systems into wooden frameworks. One of the most critical yet often misunderstood tasks is creating plumbing holes in wood studs for 4 story buildings without compromising the structural integrity of the load-bearing walls. If you are a contractor, architect, or DIY enthusiast tackling a mid-rise project, knowing exactly where and how large to drill these openings is not just about convenience—it is a matter of safety and code compliance.

In this guide, we will break down the International Residential Code (IRC) and International Building Code (IBC) requirements, offering you a clear, step-by-step approach to drilling safely. We will address common pitfalls, provide precise measurements, and ensure your vertical chases remain robust enough to support four stories of weight.

What Are the Code Requirements for Drilling Studs?

Before picking up a drill, you must understand the regulatory framework. In the United States, most jurisdictions follow the IRC for residential buildings up to three stories, but four-story buildings often fall under the IBC or require specific engineering approvals depending on local amendments. However, the fundamental principles of wood stud drilling remain consistent across most codes to prevent shear failure and buckling.

The General Rule of Thumb

According to standard building practices, holes in load-bearing studs should generally not exceed 40% of the stud’s width. For a standard 2×4 stud (which is actually 3.5 inches wide), this means the maximum hole diameter is roughly 1.4 inches. For a 2×6 stud (5.5 inches wide), the limit increases to approximately 2.2 inches.

However, for a four-story building, the loads are significantly higher than in a single-family home. Therefore, relying solely on generic rules can be risky. Always consult with a structural engineer if your design deviates from standard prescriptive codes.

Pro Tip: Never drill holes in the top or bottom 2 inches of any stud. This area is crucial for nail plates and structural connectivity.

How Large Can Plumbing Holes Be in Load-Bearing Walls?

The size of the hole depends entirely on the dimension of the lumber used. In four-story construction, it is common to use larger studs (such as 2×6 or even 2×8) on lower floors to handle increased vertical loads. Here is a breakdown of maximum allowable hole diameters based on standard lumber sizes:

Note: These figures assume the hole is centered horizontally. If the hole is off-center, the structural capacity decreases significantly.

For plumbing holes in wood studs for 4 story buildings, it is highly recommended to use 2×6 studs on all floors if possible. This provides ample room for 2-inch PVC drain lines or copper supply lines without weakening the wall excessively.

Where Should You Place Holes in Vertical Studs?

Placement is just as critical as size. The structural integrity of a stud relies on its ability to transfer load from the top plate to the bottom plate. Drilling in the wrong zone can create a weak point that leads to wall bowing or collapse under heavy snow or wind loads.

The “Middle Third” Rule

To maintain maximum strength, always drill holes in the middle third of the stud’s height.

• Avoid the Top 1/3: This area is subject to high compression forces from the floor above.
• Avoid the Bottom 1/3: This area handles tension and connection stresses.

Horizontal Spacing Between Holes

If you need to run multiple pipes through the same stud, you cannot simply drill them one after another. There must be adequate wood remaining between the holes to act as a web.

• Minimum Edge Distance: Keep at least 5/8 inch of wood between the edge of the hole and the edge of the stud.
• Spacing Between Multiple Holes: If drilling two holes in one stud, ensure there is at least 2 inches of solid wood between the edges of the two holes.

For more detailed technical specifications on wood construction, you can refer to the American Wood Council guidelines, which align with national standards for wood frame construction.

Step-by-Step Guide: Drilling Safe Plumbing Chases

Follow this precise workflow to ensure accuracy and safety when installing plumbing in a four-story wood-frame structure.

Step 1: Plan the Vertical Chase

Map out your plumbing route before framing begins. Identify which walls are load-bearing. In a 4-story building, exterior walls and central core walls are typically load-bearing. Non-load-bearing interior partitions offer more flexibility but still require adherence to fire-blocking codes.

Step 2: Mark the Studs

Use a pencil and a combination square to mark the center of each stud where the pipe will pass.

• Measurement: Measure exactly half the width of the stud from either edge.
• Height: Mark the center point vertically, ensuring it falls within the middle third of the stud length.

Step 3: Select the Right Drill Bit

Use a sharp auger bit or a hole saw designed for wood. For clean cuts that minimize splintering, an auger bit is preferred. Ensure the bit diameter matches your planned pipe size plus 1/8 inch for clearance.

Step 4: Drill Perpendicularly

Clamp a scrap piece of wood to the stud if necessary to guide the drill. Drill slowly and steadily, keeping the bit perfectly perpendicular (90 degrees) to the face of the stud. A tilted hole reduces the effective wood thickness on one side, creating a weak spot.

Step 5: Deburr and Inspect

After drilling, remove any wood splinters or burrs from the hole edges. Rough edges can damage PEX or copper pipes during installation. Inspect the hole to ensure no cracks have formed in the surrounding wood.

What Are the Risks of Improper Drilling?

Understanding the consequences of cutting corners is vital for professional accountability. Improperly drilled studs in a four-story building can lead to several severe issues:

1. Structural Failure: Over-drilling reduces the cross-sectional area of the stud, lowering its load-bearing capacity. In a 4-story building, the cumulative weight of roofs, floors, and occupants is significant.
2. Wall Bowing: Weakened studs may bow outward under lateral loads (wind or seismic activity), causing drywall cracks and finish damage.
3. Fire Safety Violations: Large, unblocked holes can act as chimneys, allowing fire and smoke to spread rapidly between floors. Fire blocking is mandatory every 10 feet vertically in concealed spaces.
4. Insurance and Liability Issues: If a structural failure occurs due to code violations, insurance companies may deny claims, and contractors could face legal action.

How to Handle Large Pipes (3-Inch or Larger)?

Standard 2×4 or 2×6 studs cannot accommodate large drain lines (such as 3-inch or 4-inch toilet drains) without violating code. So, how do you manage these in a four-story building?

Option 1: Use Double Studs

Frame the wall with double studs at the location of the large pipe. You can then drill half the hole in each stud, effectively creating a larger opening while maintaining structural redundancy. Alternatively, leave one stud intact and use the adjacent stud for the chase, securing the pipe with straps.

Option 2: Create a Dedicated Chase

Build a small boxed-in chase using 2x4s specifically for the main soil stack. This isolates the large pipe from the primary load-bearing studs, allowing the rest of the wall to maintain full structural integrity.

Option 3: Steel Studs for Lower Floors

In some four-story designs, the first and second floors may utilize light-gauge steel studs for interior partitions. Steel studs can be easily cut and reinforced with collars for large pipe penetrations, offering a flexible alternative to wood.

FAQ Section

Q1: Can I drill holes in top plates or bottom plates?

A: Generally, no. Top and bottom plates are critical for distributing loads and connecting walls. If you must penetrate a plate, it should be done only under the guidance of a structural engineer, and the hole should be kept to a minimum size, usually no more than 1/3 of the plate’s width.

Q2: Do I need fire blocking when drilling plumbing holes?

A: Yes. In multi-story buildings, fire blocking is required to prevent the vertical spread of fire. You must install fire-rated material (such as mineral wool or fire-rated foam) around pipes where they penetrate floor assemblies or every 10 feet in vertical chases.

Q3: Is it better to notch a stud or drill a hole?

A: Drilling a hole is almost always better. Notching removes material from the edge of the stud, which drastically reduces its bending strength. Holes remove material from the center, where stress is lowest. Never notch a load-bearing stud deeper than 1/4 of its width.

Q4: Can I use PEX tubing to reduce hole size?

A: Yes. PEX tubing is flexible and has a smaller outer diameter compared to rigid copper or PVC for the same flow rate. Using PEX can allow you to use smaller drill bits, preserving more of the stud’s structural integrity.

Q5: What if I accidentally drill a hole too large?

A: If a hole exceeds code limits, you must reinforce the stud. This can be done by sistering a new stud alongside the damaged one or installing steel plates over the hole. Consult a structural engineer to approve the repair method.

Q6: Are there different rules for exterior vs. interior walls?

A: Exterior walls are almost always load-bearing and may also serve as part of the building’s thermal and moisture barrier. Drilling in exterior walls requires extra care to avoid compromising insulation continuity and vapor barriers. Interior non-load-bearing walls have more lenient drilling rules but still require fire blocking.

Conclusion

Mastering the art of creating plumbing holes in wood studs for 4 story buildings is a blend of precision, code knowledge, and respect for structural physics. By adhering to the 40% width rule, keeping holes in the middle third of the stud, and planning your vertical chases carefully, you can ensure a safe, compliant, and durable building. Remember, when in doubt, upsizing your studs to 2x6s or consulting a structural engineer is always the safer path.
