There is nothing quite as panic-inducing as discovering a puddle of water spreading across your basement or utility closet floor. Whether it’s a minor leak from a connection or a catastrophic tank failure, knowing exactly where to cut the water supply can save you thousands of dollars in restoration costs. For many homeowners, the Plumbing Hot Water Heater Water Shut Off Valve Location remains a mystery until it is too late.
In this guide, we will walk you through exactly how to locate this critical component, identify the type of valve you have, and ensure it works when you need it most. We’ll keep things simple, practical, and free of unnecessary jargon so you can feel confident handling your home’s plumbing infrastructure.
Why Knowing the Shut-Off Valve Location Is Critical
Before we dive into the “where,” let’s briefly discuss the “why.” Water heaters are under constant pressure and thermal stress. According to insurance industry data, water damage is one of the most common home insurance claims in the United States. A burst water heater line can release hundreds of gallons of water per hour.
If you cannot stop the flow immediately, you risk:
- Structural damage to flooring and drywall.
- Mold growth within 24–48 hours.
- Damage to personal belongings stored nearby.
Locating your Plumbing Hot Water Heater Water Shut Off Valve Location is the first step in proactive home maintenance. It transforms a potential disaster into a manageable inconvenience.
Where Is the Cold Water Inlet Valve?
The most important valve to know is the cold water inlet shut-off. This valve controls the fresh water entering the tank. When you turn this off, no new water can enter the heater, effectively stopping the leak at its source.
Typical Locations by Heater Type
The location varies slightly depending on whether you have a traditional tank-style heater or a modern tankless unit.
1. Traditional Tank Water Heaters
For standard gas or electric tank heaters, the cold water inlet is almost always located on the top right side of the unit (when facing the front). Look for a pipe connected to the tank with a valve handle.
- Top-Mounted Valves: Most modern installations place the valve directly on the pipe above the tank.
- Side-Mounted Valves: In some older homes or tight spaces, the valve may be located on the wall a few feet away from the heater, along the cold water line.
2. Tankless Water Heaters

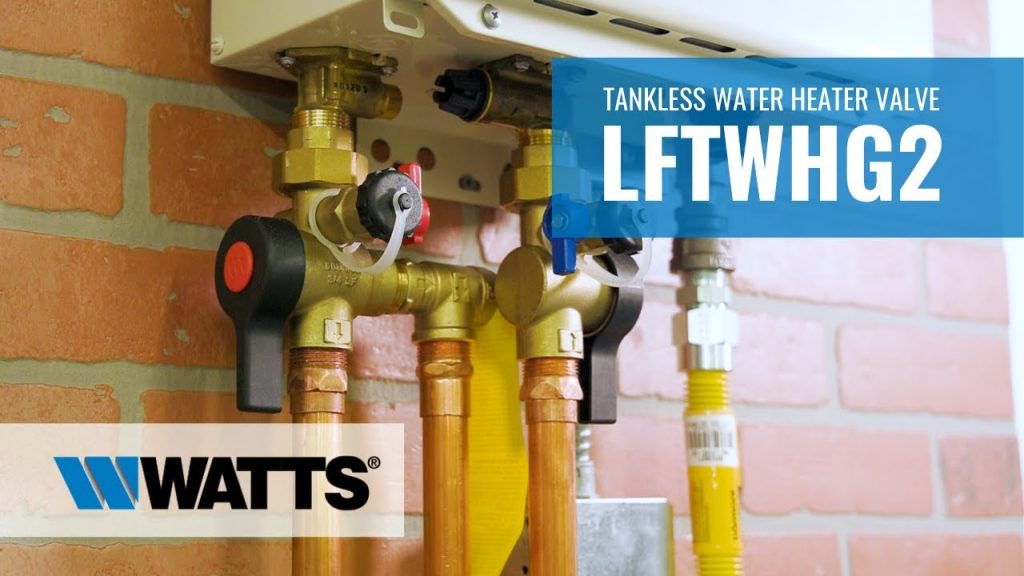

Tankless units are more compact. The shut-off valves are typically located on the bottom or side of the unit, clearly labeled “Cold Water Inlet.” They are often part of a service kit that includes isolation valves for easy maintenance.
Pro Tip: If you see two pipes coming out of the top of your tank, the one on the right (with the blue ring or label) is usually the cold water inlet. The left one is the hot water outlet.
How to Identify Your Valve Type
Not all shut-off valves look the same. Identifying your valve type is crucial because it determines how you operate it during an emergency. There are three common types you will encounter in US homes.
1. Ball Valve (Most Recommended)
This is the modern standard and the easiest to use. It features a lever handle.
- Open Position: The handle is parallel to the pipe.
- Closed Position: The handle is perpendicular (90 degrees) to the pipe.
- Action: You only need to turn it a quarter-turn (90 degrees) to shut off the water.
2. Gate Valve (Older Style)
These are becoming less common due to reliability issues but are still found in many older homes. They feature a round wheel handle.
- Operation: You must turn the wheel clockwise multiple times to close it completely.
- Warning: Gate valves are prone to corrosion and may break if forced. If you have a gate valve, consider replacing it with a ball valve during your next plumbing service.
3. Combo Valve (Temperature and Pressure Relief)
Do not confuse the shut-off valve with the T&P (Temperature and Pressure) relief valve. The T&P valve is a safety device located on the side or top of the tank, usually with a small lever and a discharge pipe running down the side. This is not your main shut-off.
| Valve Type | Handle Shape | Operation | Reliability |
|---|---|---|---|
| Ball Valve | Lever | Quarter-turn | High |
| Gate Valve | Round Wheel | Multiple turns | Low/Medium |
| T&P Valve | Small Lever | Safety Release | N/A (Safety Only) |
Step-by-Step: How to Locate and Test Your Valve
Now that you know what to look for, let’s find your specific Plumbing Hot Water Heater Water Shut Off Valve Location and ensure it works. Follow these steps carefully.
Step 1: Clear the Area
Remove any boxes, laundry baskets, or storage items blocking access to the water heater. You need clear visibility and easy access to the top connections.
Step 2: Trace the Cold Water Line
Look for the pipe labeled “Cold” or marked with a blue tag. If there are no labels, trace the pipe from the main water supply line into the house. It will connect to the top of the heater. Follow this pipe until you find a valve mechanism.
Step 3: Identify the Valve Mechanism
Check if it is a lever (ball valve) or a wheel (gate valve). Note its current position. If it’s a lever parallel to the pipe, it is currently open.
Step 4: Perform a Gentle Test
Do not force the valve. If it feels stuck, do not wrench it open or closed, as this could cause a leak.
- For Ball Valves: Gently turn the lever 90 degrees to the closed position. Check if water flow stops at a nearby faucet. Then, turn it back to the open position.
- For Gate Valves: Turn the wheel clockwise slowly. If it resists significantly, stop. You may need a plumber to replace it.
Step 5: Label the Valve
If the valve isn’t already labeled, use a permanent marker or a printed label to mark it “WATER HEATER SHUT OFF.” This saves precious seconds during an emergency.
What If There Is No Individual Shut-Off Valve?
In some older homes, there may be no dedicated shut-off valve for the water heater. In this case, you must rely on the main water shut-off valve for the entire house.
Locating the Main Shut-Off
- Basement/Crawlspace: Usually near the front foundation wall where the water line enters the house.
- Garage: Often near the water meter or where the line enters from the street.
- Outside: In warmer climates, the main valve may be in an underground box near the street curb.
Knowing the location of your main shut-off is just as important as knowing the heater-specific valve. For more detailed information on residential plumbing systems, you can refer to general standards outlined by Wikipedia.
Maintenance Tips to Ensure Valve Functionality
Finding the valve is only half the battle. Ensuring it works when you need it is the other half. Here are three expert tips to keep your system ready.
- Exercise the Valve Annually: Once a year, turn the valve off and on again. This prevents mineral buildup from seizing the mechanism. Note: Do this when you don’t need hot water, such as during a vacation prep.
- Check for Leaks: Inspect the area around the valve for signs of moisture, rust, or white mineral deposits. These are early warning signs of a failing seal.
- Replace Old Gate Valves: If you have a gate valve that is difficult to turn, schedule a plumber to replace it with a full-port ball valve. This is a relatively inexpensive upgrade that significantly improves safety.
FAQ Section
Q1: Can I shut off the water heater without turning off the power or gas?
A: Yes, you can and should shut off the water supply first in a leak scenario. However, if the tank is empty or leaking significantly, you should also turn off the power (for electric) or gas (for gas heaters) to prevent damage to the heating elements or burner. Never turn the power back on until the tank is full of water.
Q2: My shut-off valve is stuck. What should I do?
A: Do not force it. Apply a penetrating oil like WD-40 Specialist Penetrant to the valve stem and let it sit for 15 minutes. Try gently moving it again. If it remains stuck, call a licensed plumber. Forcing it can break the valve body, causing a major leak.
Q3: How often should I check my water heater shut-off valve?
A: We recommend checking it once a year. Incorporate this into your annual home maintenance routine, perhaps when you flush your water heater to remove sediment.
Q4: Is the valve on the hot water outlet pipe important?
A: While there is often a valve on the hot water outlet, it is less critical for stopping leaks. Leaks are usually caused by incoming pressure from the cold water supply. Shutting off the cold inlet is the primary action. However, having isolation valves on both sides is ideal for maintenance.
Q5: What size is the typical water heater shut-off valve?
A: Most residential water heaters use a 3/4-inch NPT (National Pipe Thread) connection. However, some older or smaller units may use 1/2-inch pipes. Always check the existing pipe size before buying a replacement valve.
Conclusion
Locating your Plumbing Hot Water Heater Water Shut Off Valve Location is a simple task that provides immense peace of mind. By taking just ten minutes today to identify, label, and test this valve, you protect your home from potentially devastating water damage. Remember, the best time to find your shut-off valve is before you need it.
Don’t wait for a drip to become a flood. Take action now, share this guide with your family members so they know what to do in an emergency, and consider scheduling a professional inspection if your valve shows signs of wear. Stay safe, and keep your home dry!
