Mastering the 4-Inch PVC 3-Way Splitter With Cleanout

Dealing with a clogged main sewer line is every homeowner’s nightmare. It often involves expensive emergency calls, messy excavations, and significant stress. However, proper planning during your plumbing installation can prevent these disasters before they start. By installing a Plumbing PVC 4 Inch 3 Way Splitter With Cleanout, you create a critical access point that simplifies maintenance and keeps your drainage system flowing smoothly. This guide will walk you through everything you need to know about this essential fitting, ensuring your project meets code and stands the test of time.

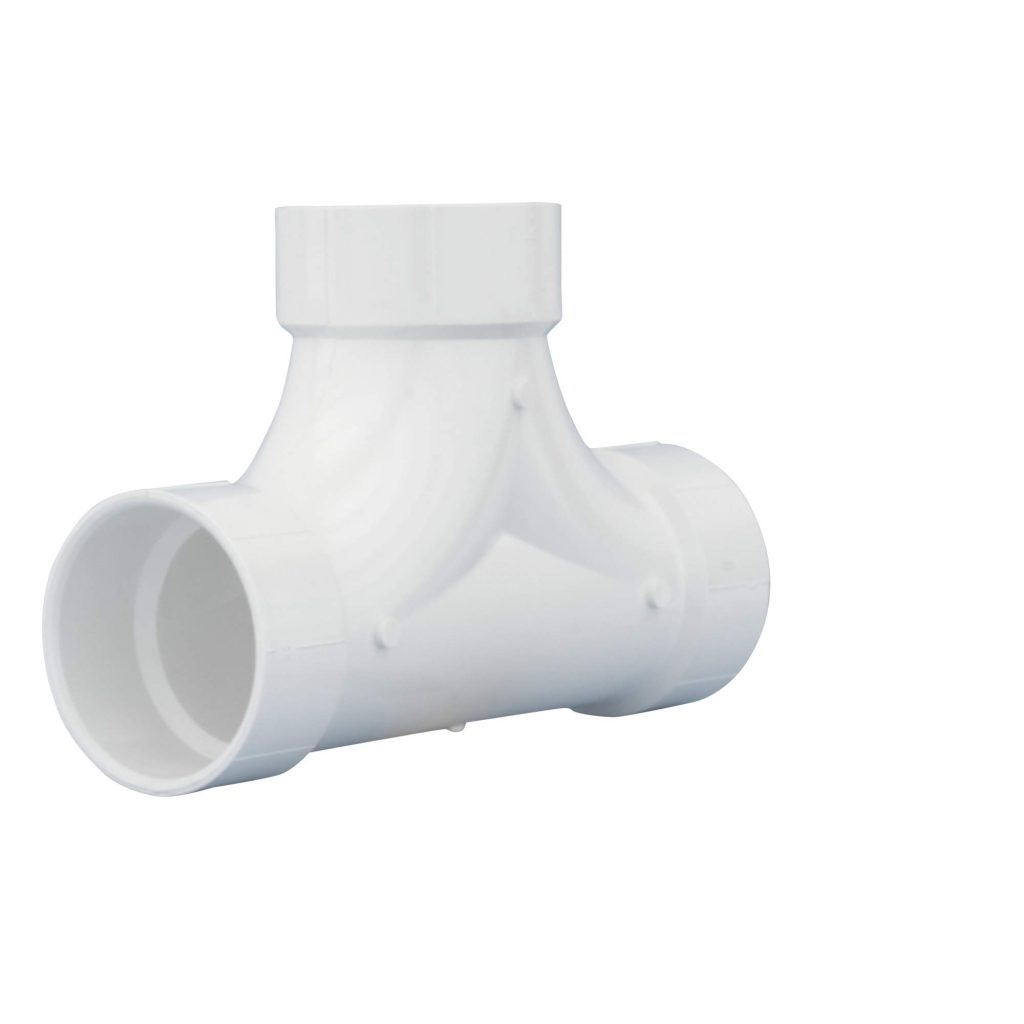

What Is a 4-Inch PVC 3-Way Splitter With Cleanout?

Before diving into installation, it is crucial to understand exactly what this fitting does. In residential plumbing, the 4-inch pipe is the standard size for main sewer lines and large branch drains. A “3-way splitter” typically refers to a Wye (Y) fitting or a Sanitary Tee that allows flow from two directions into one, or splits one line into two branches.

The “cleanout” component is the game-changer. It is a threaded opening capped with a plug that provides direct access to the interior of the pipe. Without it, clearing a blockage deep in your system might require cutting into walls or digging up your yard. With it, a plumber—or you—can insert a drain snake or hydro-jetting hose directly into the line.

Key Components Breakdown

• The Body: Usually made of Schedule 40 PVC, designed to handle high-volume wastewater.
• The Branch: The 45-degree or 90-degree entry point for connecting a secondary drain line.
• The Cleanout Port: A threaded hub, typically located at the top or side, allowing for easy removal of the cap.

Pro Tip: Always ensure the cleanout port faces upward or outward toward an accessible area. Never bury the cleanout cap underground without extending it above grade using a cleanout adapter.

Why Do You Need a Cleanout in Your Splitter?

Many DIY enthusiasts ask if they can skip the cleanout to save money or simplify the layout. The short answer is: Don’t do it. Here is why this specific fitting is non-negotiable for modern plumbing systems.

1. Code Compliance

Most local building codes in the United States, based on the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC), mandate cleanouts at specific intervals. For example, the IPC requires a cleanout at the base of each stack and at every change of direction greater than 45 degrees in the building drain. Using a splitter with an integrated cleanout often satisfies multiple requirements at once.

2. Cost-Effective Maintenance

According to industry data, the average cost to clear a main line sewer clog ranges from $100 to $800. If a cleanout is already installed, the job takes minutes. If not, technicians may charge extra for locating the blockage via camera inspection or for breaking through drywall.

3. Preventive Health for Your Pipes

Regular flushing of lines prevents grease buildup and root intrusion. A cleanout makes annual maintenance feasible for homeowners, extending the lifespan of your PVC infrastructure.

How to Install a PVC 4-Inch Splitter With Cleanout

Installing this fitting requires precision. PVC joints are permanent once glued, so there is no room for error. Follow these steps to ensure a leak-free, code-compliant installation.

Step 1: Preparation and Safety

Gather your tools: PVC primer, PVC cement (medium or heavy-duty), a tape measure, a marker, and a saw. Ensure the work area is well-ventilated. Wear safety glasses and gloves, as PVC cement is corrosive and emits strong fumes.

Step 2: Dry Fit the Assembly

Never glue immediately. Cut your pipes to length and assemble the splitter, downstream pipe, and upstream pipe without cement. Check the alignment.

• Critical Check: Ensure the cleanout port is oriented correctly. It should face up or toward an exterior wall for easy access.
• Slope Verification: Use a level to ensure your horizontal pipes have a slope of 1/4 inch per foot. This gravity-driven slope is vital for waste transport.

Step 3: Prime the Surfaces

Apply purple PVC primer to the outside of the pipe ends and the inside of the fitting sockets. This cleans and softens the plastic, preparing it for bonding. Let it dry for a few seconds until it looks tacky.

Step 4: Apply Cement and Assemble

Working quickly, apply a liberal layer of PVC cement to the primed areas. Insert the pipe into the fitting with a slight twisting motion to distribute the glue evenly. Hold it in place for 15–30 seconds to prevent push-out.

• Note: Use approximately 2 liters of water (metaphorically speaking regarding cleanup readiness) nearby to wash hands immediately if glue contacts skin. Keep workspace temperature between 22–28°C for optimal curing times.

Step 5: Install the Cleanout Plug

Wrap the threads of the cleanout plug with PTFE tape (Teflon tape) to ensure a watertight seal. Screw it into the cleanout port hand-tight, then use channel-lock pliers to give it a final quarter-turn. Do not overtighten, as this can crack the PVC hub.

For more detailed standards on plastic piping materials, you can refer to the general specifications on PVC Pipe.

Common Mistakes to Avoid

Even experienced plumbers can make errors. Here are the most frequent pitfalls when working with 4-inch splitters:

• Using the Wrong Glue: Do not use ABS cement on PVC. They are chemically incompatible. Always check the label.
• Ignoring Venting: A splitter changes the flow dynamics. Ensure your venting system is adequate to prevent siphoning traps elsewhere in the house.
• Burying the Cap: If this fitting is underground, you must extend the cleanout to the surface using a telescoping cleanout adapter. Burying the cap renders it useless.
• Poor Support: 4-inch pipes filled with water are heavy. Use hangers or straps every 4 feet for horizontal runs to prevent sagging, which causes standing water and future clogs.

FAQ Section

Q1: Can I use a 3-way splitter with a cleanout for a vent line?

A: Generally, no. Vent lines carry air, not waste. While you can physically connect it, cleanouts are designed for waste access. Using them on vents is unnecessary and may confuse future inspectors. Stick to standard wyes or tees for venting unless local code specifies otherwise for cleaning purposes.

Q2: What is the difference between a Sanitary Tee and a Wye for this application?

A: A Wye has a 45-degree branch, allowing smoother flow and less turbulence, making it ideal for horizontal-to-horizontal connections. A Sanitary Tee has a 90-degree branch and is typically used for vertical-to-horizontal transitions. For a main line splitter, a Wye with a cleanout is usually preferred to reduce the risk of clogs.

Q3: How often should I open the cleanout for maintenance?

A: For preventive maintenance, inspecting and flushing the line once a year is recommended. If you have older trees near your sewer line, consider doing it every six months to check for root intrusion.

Q4: Can I replace just the cleanout plug if it leaks?

A: Yes. If the leak is coming from the threads, simply unscrew the plug, clean the threads, apply fresh PTFE tape or pipe dope, and reinstall. If the leak is from the hub where the fitting meets the pipe, the entire fitting must be replaced.

Q5: Is Schedule 40 PVC suitable for outdoor burial?

A: Yes, Schedule 40 PVC is rated for underground use. However, ensure it is buried below the frost line to prevent freezing, and protect it from sharp rocks during backfilling. Some plumbers prefer Schedule 35 for underground drainage due to cost, but Schedule 40 is stronger and widely accepted.

Q6: What size snake fits into a 4-inch cleanout?

A: Most standard drum augers fit easily. For professional-grade hydro-jetting or large root cutters, ensure the equipment is rated for 4-inch lines. The standard cleanout opening is usually 2 inches or 3 inches, which accommodates most consumer and pro tools.

Conclusion

Installing a Plumbing PVC 4 Inch 3 Way Splitter With Cleanout is a small investment that yields massive returns in peace of mind. It transforms your drainage system from a passive network into a maintainable asset. By following proper installation techniques—priming, gluing, and orienting the cleanout correctly—you ensure compliance with US building codes and protect your home from costly sewer backups.

Remember, plumbing is about foresight. Taking the extra hour to install this fitting correctly today saves you days of hassle tomorrow. If you found this guide helpful, please share it with your fellow DIY enthusiasts on social media. Have questions or tips of your own? Leave a comment below!
