Have you ever stared at a bundle of flexible “roll” pipe, wondering how to safely isolate a section for repair without draining your entire house? You are not alone. Many homeowners struggle with the specifics of installing a reliable Plumbing Shut Off In 3/4 Roll Pipe Abc configuration, especially when dealing with modern flexible tubing like PEX.
This guide breaks down the process into simple, actionable steps. We will explore the best valves, tools, and techniques to ensure your plumbing system remains efficient, safe, and easy to maintain. Whether you are a seasoned DIYer or a curious beginner, this article provides the clarity you need to tackle the job with confidence.
What Is “Roll Pipe” and Why Does It Need a Specific Shut-Off?
Before diving into the installation, it is crucial to understand the material. In the US plumbing market, “roll pipe” typically refers to PEX (Cross-linked Polyethylene) tubing. Unlike rigid copper or PVC, PEX comes in long coils (rolls), allowing for fewer fittings and faster installation.
However, because PEX is flexible, it requires specific connection methods. A standard threaded valve cannot simply be screwed onto a soft plastic tube. You need a transition point that secures the pipe while providing a reliable shut-off mechanism.
The Importance of the 3/4-Inch Size
The 3/4-inch diameter is the standard for main supply lines feeding multiple fixtures or large appliances. Using the correct size ensures:
- Optimal Water Pressure: Prevents bottlenecks in flow.
- Compatibility: Matches standard household manifold systems.
- Code Compliance: Meets most US residential plumbing codes for branch lines.
Choosing the Right Shut-Off Valve for 3/4″ PEX
Not all valves are created equal. When selecting a valve for your Plumbing Shut Off In 3/4 Roll Pipe Abc project, consider these three primary types:
1. Quarter-Turn Ball Valves
These are the gold standard for modern plumbing.
- Pros: Durable, easy to identify open/closed status (handle parallel = open), and less prone to seizing.
- Cons: Slightly more expensive than gate valves.
2. Gate Valves
Older technology, still found in many homes.
- Pros: Cheap and widely available.
- Cons: Prone to corrosion and leaking over time; difficult to tell if fully closed. Not recommended for new PEX installations.

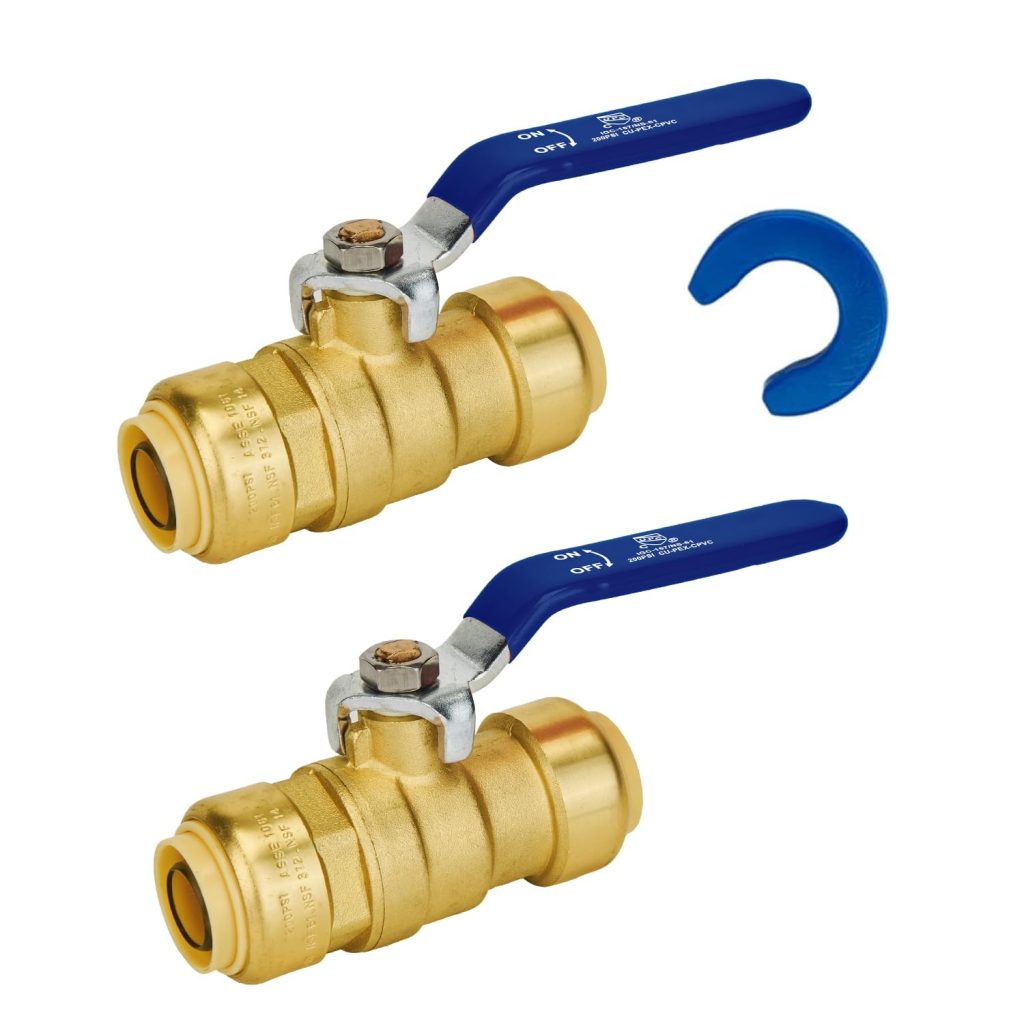

3. Push-to-Connect Valves
Ideal for beginners.
- Pros: No tools required for installation; instant connection.
- Cons: Higher cost per unit; some professionals debate long-term reliability compared to crimped fittings.
| Feature | Ball Valve | Gate Valve | Push-to-Connect |
|---|---|---|---|
| Durability | High | Low | Medium |
| Ease of Install | Moderate | Moderate | Very Easy |
| Cost | $$ | $ | $ |
| Best For | Long-term use | Temporary fixes | Quick DIY repairs |
Step-by-Step: Installing a Shut-Off on 3/4″ Roll Pipe
Follow this detailed tutorial to install a secure shut-off valve. This method assumes you are using a crimp-style PEX connection, which is the most common professional standard.
Tools and Materials Needed
- 3/4-inch PEX Tubing (from the roll)
- 3/4-inch Ball Valve with PEX ends (or adapter ends)
- PEX Crimp Rings (Stainless Steel or Copper)
- PEX Crimping Tool
- PEX Pipe Cutter
- Deburring Tool (optional but recommended)
Step 1: Measure and Cut the Pipe
Unroll the necessary length of your 3/4-inch PEX pipe. Ensure the cut is straight and square. A jagged cut can compromise the seal.
- Tip: Use a dedicated PEX cutter for the cleanest edge. Avoid using a hacksaw if possible, as it leaves burrs.
Step 2: Prepare the Pipe Ends
Slide a PEX crimp ring onto each end of the pipe where the valve will connect. Move the rings back about 2–3 inches so they don’t interfere with the insertion process.
Step 3: Insert the Valve
Push the PEX pipe firmly onto the valve’s barbed ends. Ensure the pipe goes all the way up to the shoulder of the fitting. You should feel it seat securely.
- Check: There should be no gap between the pipe end and the fitting shoulder.
Step 4: Position the Crimp Rings
Slide the crimp rings forward until they are positioned correctly over the barb. Typically, the ring should sit about 1/8 to 1/4 inch from the end of the pipe. Consult the manufacturer’s specifications for exact placement.
Step 5: Crimp the Connection
Place the jaws of your PEX crimping tool over the ring. Squeeze the handles firmly until the tool releases or clicks. This compresses the ring, creating a watertight mechanical bond.
- Note: Do not over-crimp, as this can damage the PEX tubing. Modern tools are designed to stop at the correct pressure.
Step 6: Test for Leaks
Turn the water supply back on slowly. Open the new valve and inspect the connections. Look for any signs of dripping or moisture. If dry, your Plumbing Shut Off In 3/4 Roll Pipe Abc installation is complete.
For more detailed technical standards on polyethylene piping, you can refer to the Wikipedia page on PEX to understand the material science behind its durability.
Common Mistakes to Avoid
Even experienced DIYers can make errors. Here are the top pitfalls to watch out for:
- Using the Wrong Ring Material: Ensure your crimp rings match your fitting type (e.g., copper rings for copper fittings, stainless steel for stainless). Mixing metals can cause galvanic corrosion.
- Ignoring Expansion Room: PEX expands and contracts with temperature changes. Leave slight slack in the line rather than pulling it taut.
- Skipping the Pressure Test: Never assume a connection is good without testing. A small leak inside a wall can cause massive damage over time.
FAQ Section
Q1: Can I use a compression fitting instead of crimping for 3/4″ roll pipe?
A: Yes, compression fittings are an option and do not require a special tool. However, they are bulkier and more prone to leaks if not tightened perfectly. Crimp or clamp systems are generally preferred for their reliability and smaller profile.
Q2: How do I know if my shut-off valve is fully closed?
A: For a quarter-turn ball valve, the handle should be perpendicular (90 degrees) to the pipe. If the handle is parallel to the pipe, it is open. For gate valves, turn the wheel clockwise until it stops, but be careful not to overtighten.
Q3: Is PEX pipe safe for drinking water?
A: Yes, PEX pipe approved for potable water meets strict NSF/ANSI standards. Ensure your specific roll pipe has the “NSF-pw” (potable water) certification mark printed on the side.
Q4: What is the “ABC” in Plumbing Shut Off In 3/4 Roll Pipe Abc?
A: In this context, “ABC” often refers to the basic fundamentals or “A-B-C’s” of the process. It can also refer to specific brand naming conventions or local code abbreviations, but generally, it implies mastering the Assembly, Bonding, and Control of the system.
Q5: Can I install this shut-off valve on a hot water line?
A: Absolutely. PEX and brass ball valves are rated for both hot and cold water. Just ensure the valve rating exceeds your water heater’s maximum temperature (usually 180°F/82°C).
Q6: Do I need a permit to install a shut-off valve?
A: Regulations vary by state and municipality. Minor repairs often do not require a permit, but adding new lines or moving main supplies might. Always check with your local building department before starting major work.
Conclusion
Installing a Plumbing Shut Off In 3/4 Roll Pipe Abc system is a manageable task that adds significant value and safety to your home. By choosing the right ball valve, using proper crimping techniques, and testing thoroughly, you can ensure a leak-free connection that lasts for decades.
Remember, the key to success lies in preparation and using the correct tools. Don’t rush the crimping process, and always double-check your work.
Did you find this guide helpful? Share this article with your fellow DIY enthusiasts on Facebook or Twitter to help them master their plumbing projects too! If you have any questions or tips of your own, leave a comment below—we’d love to hear from you.
