Plumbing Tankless Water Heater To A 40 Gallon Electric Guide

Are you tired of running out of hot water during peak morning hours, yet hesitant to replace your reliable 40-gallon electric tank entirely? You are not alone; many homeowners seek a balance between instant hot water availability and energy efficiency without the massive upfront cost of a full system overhaul. This guide explores the unique configuration of plumbing tankless water heater to a 40 gallon electric system, offering a smart hybrid solution that maximizes comfort and minimizes waste.

By integrating these two systems, you can enjoy the best of both worlds: the storage capacity of a traditional tank and the on-demand power of tankless technology. Let’s dive into how this setup works, why it might be right for your home, and exactly how to execute the installation safely and effectively.

Why Combine Tankless and Traditional Electric Systems?

Before picking up a wrench, it is crucial to understand the “why” behind this hybrid approach. Most homeowners consider this setup when their current 40-gallon electric heater struggles to keep up with demand, but upgrading to a whole-house tankless unit requires expensive electrical panel upgrades.

The Hybrid Advantage

Combining these systems creates a “boosted” hot water supply. The 40-gallon tank acts as a buffer, storing heated water, while the tankless unit provides instantaneous heating when the tank’s reserve is depleted or when high-flow fixtures are used simultaneously.

• Extended Capacity: You effectively double or triple your available hot water volume.
• Energy Efficiency: The tankless unit only runs when needed, reducing the “standby loss” associated with keeping 40 gallons of water hot 24/7.
• Cost-Effective Upgrade: You avoid the high cost of rewiring your home for a high-amperage whole-house tankless heater.

According to the U.S. Department of Energy, tankless water heaters can be 24%–34% more energy-efficient than conventional storage water heaters for homes that use 41 gallons or less of hot water daily. However, by combining them, you mitigate the flow rate limitations often seen in standalone electric tankless units.

Key Considerations Before Installation

Not every home is suited for this hybrid configuration. Proper planning prevents costly mistakes and ensures safety.

1. Electrical Capacity Check

Electric tankless heaters are power-hungry. Even a small point-of-use unit may require a dedicated 30-amp or 40-amp breaker.

• Action: Check your main electrical panel. Do you have space for a new double-pole breaker?
• Wire Gauge: Ensure you use the correct wire gauge (usually 8-gauge or 10-gauge copper) as specified by the manufacturer.

2. Space Availability

You need physical space near your existing 40-gallon tank.

• Clearance: Maintain at least 6 inches of clearance from combustible materials.
• Mounting: The tankless unit must be mounted securely on a stud wall, capable of supporting its weight plus the water inside.

3. Water Quality

Hard water is the enemy of tankless heaters.

• Requirement: If your water hardness exceeds 7 grains per gallon, you must install a water softener or a scale inhibition filter before the tankless unit. Failure to do so will void most warranties and reduce efficiency within months.

Step-by-Step: Plumbing Tankless Water Heater To A 40 Gallon Electric

This section outlines the general process for connecting a point-of-use or small whole-house electric tankless heater in series with your existing 40-gallon electric tank.

Disclaimer: Always consult local building codes. If you are uncomfortable working with high-voltage electricity or plumbing, hire a licensed professional.

Step 1: Shut Off Power and Water

Safety is paramount.

1. Turn off the circuit breaker for your 40-gallon electric water heater.
2. Shut off the cold water supply valve to the tank.
3. Open a hot water faucet elsewhere in the house to relieve pressure and drain a few gallons from the tank.

Step 2: Determine the Configuration

There are two common ways to plumb this setup:

• Series Connection (Recommended): Cold water enters the tankless unit first, then flows into the 40-gallon tank. This pre-heats the water, reducing the workload on the tank.
• Parallel Connection: Used for increasing flow rate rather than temperature boost. Less common for electric hybrids due to complexity.

We will focus on the Series Connection as it is most effective for boosting capacity.

Step 3: Install the Tankless Unit

1. Mount the tankless heater on the wall near the cold water inlet of your 40-gallon tank.
2. Connect the cold water supply line to the inlet of the tankless unit.
3. Connect the outlet of the tankless unit to the cold water inlet of the 40-gallon tank.
4. Use dielectric unions if connecting copper pipes to steel tanks to prevent corrosion.

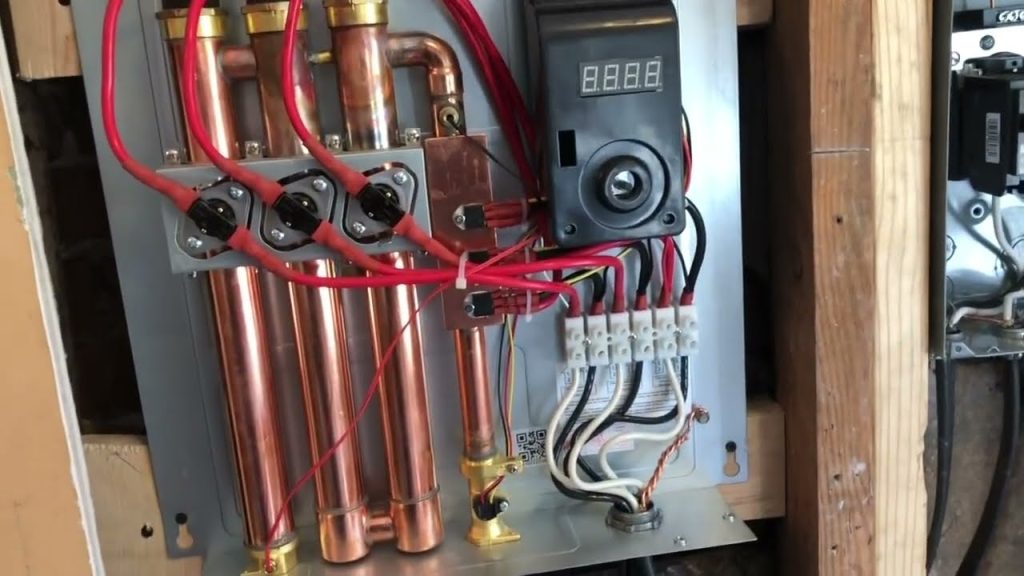

Step 4: Electrical Wiring

1. Run the appropriate gauge wire from your electrical panel to the tankless unit.
2. Install a dedicated double-pole breaker.
3. Connect the wires to the terminal block inside the tankless unit according to the manufacturer’s diagram.
4. Ensure all connections are tight and the ground wire is properly secured.

Step 5: Flush and Test

1. Turn the cold water supply back on slowly.
2. Open the hot water faucets in your house to purge air from the lines.
3. Check for leaks at all new connections.
4. Once no leaks are detected and water flows steadily, turn the power back on at the breaker.
5. Set the temperature on the tankless unit to 120°F (49°C) to match your tank settings.

Comparison: Standalone vs. Hybrid System

To help you decide if this setup is worth the effort, here is a quick comparison.

Common Mistakes to Avoid

Even experienced DIYers can stumble on these pitfalls when plumbing tankless water heater to a 40 gallon electric systems.

• Ignoring Flow Rate: Electric tankless heaters have lower flow rates than gas models. If you try to run a shower and a dishwasher simultaneously, the temperature may drop. Ensure the unit’s GPM (gallons per minute) rating matches your needs.
• Skipping the Filter: As mentioned earlier, skipping a scale inhibitor will lead to premature failure. Mineral buildup insulates the heating elements, causing them to overheat and burn out.
• Incorrect Wire Size: Using undersized wiring can cause voltage drops, tripping breakers, or even fire hazards. Always follow the National Electrical Code (NEC) guidelines.

FAQ Section

Q1: Can I connect a gas tankless heater to an electric 40-gallon tank?

A: Yes, this is actually a very common hybrid setup. You would plumb the gas tankless unit in series with the electric tank. However, this requires proper venting for the gas unit and may involve more complex plumbing than an all-electric hybrid.

Q2: Will this setup save me money on my electric bill?

A: Potentially. While the tankless unit uses significant power when active, it eliminates the standby heat loss of keeping 40 gallons hot constantly if you lower the tank’s thermostat. The overall savings depend on your usage patterns. If you use large amounts of hot water, the efficiency gains are more pronounced.

Q3: Do I need a permit for this installation?

A: In most US jurisdictions, yes. Any modification to plumbing and electrical systems typically requires a permit and inspection. This ensures your home remains safe and insurable. Check with your local building department before starting.

Q4: What size tankless heater should I use for a 40-gallon tank?

A: For a hybrid setup, you don’t necessarily need a massive whole-house unit. A mid-range electric tankless heater (e.g., 18kW–27kW) can effectively boost the temperature of the water entering the tank. Calculate based on your desired temperature rise and flow rate.

Q5: How long does the installation take?

A: For a professional plumber and electrician, it typically takes 4–6 hours. For a skilled DIYer, expect to spend a full weekend, especially if running new electrical lines from the panel.

Conclusion

Plumbing tankless water heater to a 40 gallon electric system is a strategic move for homeowners seeking enhanced hot water performance without the extreme costs of a full system replacement. By leveraging the storage capacity of your existing tank and the on-demand efficiency of tankless technology, you create a robust hybrid system that meets modern demands.

Remember, success lies in proper planning: check your electrical capacity, protect against scale, and follow safety protocols rigorously. If done correctly, this upgrade can provide years of reliable, efficient hot water.
