Mastering Pneumatics, Plumbing & Luer Fittings Guide

Have you ever faced a system failure simply because the wrong connector was used? Whether you are managing high-pressure air lines in a factory, fixing a leaky pipe at home, or assembling critical medical devices, the integrity of your connection is everything. A single mismatched fitting can lead to costly downtime, dangerous leaks, or even patient safety risks. In this comprehensive guide, we dive deep into the world of Pneumatics & Plumbing Fittings, Tube Fittings, Luer Fittings, and Luer Stopcocks, helping you choose the right components to ensure safety, efficiency, and reliability in your specific application.

What Are the Core Differences Between Pneumatic and Plumbing Fittings?

When users search for fittings, they often assume one size fits all. However, the requirements for moving air differ vastly from moving water or gas. Understanding these distinctions is the first step in system design.

Pressure and Material Requirements

Pneumatic systems typically operate with compressed air, which is compressible and can store significant energy. Consequently, pneumatic fittings are designed to handle rapid pressure changes and vibration without loosening. They are often made from lightweight materials like brass, stainless steel, or engineered plastics (such as nylon) to reduce overall system weight.

In contrast, plumbing fittings deal with incompressible fluids like water or sewage. These fittings must withstand constant static pressure and potential corrosion from water chemistry.

• Pneumatics: Focus on speed of connection/disconnection (push-to-connect) and vibration resistance.
• Plumbing: Focus on long-term seal integrity against corrosion and varying water temperatures.

Using a plumbing fitting in a high-vibration pneumatic environment can lead to catastrophic failure due to fatigue. Conversely, using a pneumatic push-fit fitting for high-temperature hot water plumbing may result in the seals melting and leaking.

How Do Tube Fittings Ensure Leak-Free Performance in High Pressure?

Tube fittings are the backbone of industrial fluid power systems. Unlike pipe fittings, which connect rigid pipes, tube fittings connect flexible or semi-rigid tubing. The question most engineers ask is: How do these small components hold back thousands of PSI?

The Mechanics of a Grip

High-quality tube fittings, such as those using a ferrule design (often associated with brands like Swagelok), work by biting into the outer diameter of the tube. When the nut is tightened:

1. The front ferrule creates a seal against the fitting body.
2. The back ferrule grips the tube, providing mechanical strength.
3. This dual-ferrule design isolates the seal from vibration and thermal cycling.

According to industry standards, a properly installed tube fitting can withstand pressure ratings exceeding 60,000 PSI depending on the material. This makes them indispensable in hydraulic systems, chemical injection lines, and high-purity gas delivery.

Pro Tip: Always ensure the tube is cut perfectly square and deburred before installation. A jagged edge can prevent the ferrule from seating correctly, leading to immediate leaks.

For a deeper understanding of fluid dynamics and standard piping specifications, you can refer to the detailed engineering resources on Wikipedia’s Piping page.

Why Are Luer Fittings Critical in Medical Applications?

Moving from industrial heavy lifting to precision medicine, Luer fittings represent a global standard for connecting medical devices. If you have ever seen a syringe connect to a needle or an IV line, you have seen a Luer connection in action.

The Standardization of Safety

The Luer taper is a standardized system of small-scale fluid fittings used for making a leak-free connection between a male-taper fitting and its matching female-taper on hypodermic needles, syringes, and intravenous lines. The standard taper is 6% (1 in 16), which allows for a tight friction fit.

There are two main types you must distinguish:

• Luer Slip: A simple friction fit. Used where quick connection is needed, but there is low pressure.
• Luer Lock: Features threads that allow the two parts to be screwed together. This prevents accidental disconnection under pressure or when handling hazardous fluids.

In 2016, the ISO introduced ISO 80369, a new series of standards designed to prevent “misconnections.” This ensures that a Luer fitting (used for liquids/gas) cannot accidentally connect to a feeding tube or catheter meant for other purposes, drastically improving patient safety.

What Is the Function of a Luer Stopcock and When Should You Use One?

A common follow-up question regarding Luer systems is: How do I control the flow without disconnecting the line? This is where the Luer Stopcock becomes essential.

Precision Flow Control

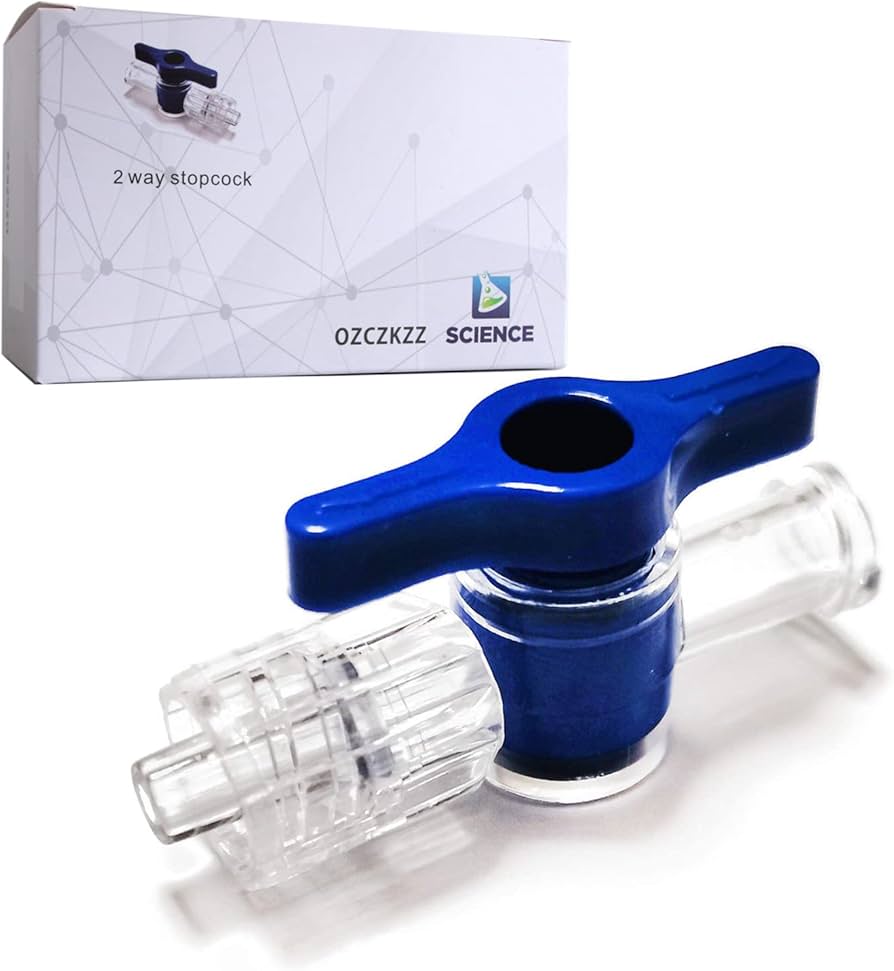

A Luer stopcock is a small valve used to regulate or stop the flow of liquid or gas in medical tubing. It typically features a rotating lever that opens, closes, or redirects flow between multiple ports.

Common Configurations:

1. Single Stopcock: Simple on/off control.
2. Multi-port Stopcock: Allows mixing of medications or redirecting flow to different lines (e.g., from an IV bag to a patient, or to a waste line).

Key Applications:

• Anesthesia: Precisely controlling the delivery of gases.
• Emergency Medicine: Rapidly switching between different medications without breaking the sterile field.
• Laboratory Settings: Diverting samples for testing.

When selecting a Luer stopcock, consider the pressure rating and the dead space (the internal volume where fluid remains). In pediatric care, low dead-space stopcocks are critical to ensure accurate dosing of potent medications.

Step-by-Step: How to Properly Install a Compression Tube Fitting

Improper installation is the leading cause of fitting failure. Follow this precise tutorial to ensure a leak-free seal every time.

Tools Needed:

• Tube cutter
• Deburring tool
• Two wrenches (one for holding, one for turning)
• Calipers (optional, for verification)

Installation Procedure:

1. Cut the Tube: Use a dedicated tube cutter to make a clean, 90-degree cut. Do not use a hacksaw, as it leaves burrs and uneven edges.
2. Deburr: Use the deburring tool to remove any sharp edges from both the inside and outside of the tube end. Note: Even a microscopic burr can compromise the seal.
3. Insert Components: Slide the nut onto the tube, followed by the ferrule(s). Ensure the tapered end of the ferrule faces toward the fitting body.
4. Insert Tube: Push the tube firmly into the fitting body until it hits the internal shoulder. You must feel it bottom out.
5. Hand Tighten: Screw the nut onto the body by hand until it is snug.
6. Mark the Nut: Use a marker to draw a line from the nut to the fitting body. This helps you track rotation.
7. Final Tightening: Hold the fitting body steady with one wrench. With the second wrench, turn the nut 1-1/4 turns (refer to specific manufacturer specs, as this varies). You should feel increased resistance as the ferrule bites into the tube.
8. Pressure Test: Always test the system with air or water at operating pressure before putting it into full service.

Frequently Asked Questions (FAQ)

1. Can I use a Luer Lock fitting with a Luer Slip needle?

Generally, yes. A Luer Lock male tip is designed to be compatible with a Luer Slip female hub. The threads on the Luer Lock will simply hang loose if connected to a slip hub, but the taper seal will still function. However, for high-pressure applications, always use Luer Lock-to-Luer Lock connections to prevent accidental separation.

2. What is the maximum pressure for standard plastic pneumatic fittings?

Standard nylon or polypropylene push-to-connect pneumatic fittings typically handle pressures up to 150 PSI (10 bar) at room temperature. However, this rating drops significantly as temperature increases. Always consult the manufacturer’s pressure-temperature curve before selection.

3. Are stainless steel tube fittings better than brass?

It depends on the environment. Stainless steel (316 SS) is superior for corrosive environments, high temperatures, and ultra-high purity applications (like semiconductor manufacturing). Brass is cost-effective and excellent for general-purpose pneumatic and hydraulic systems where corrosion is not a major factor.

4. How do I prevent cross-threading in plumbing fittings?

Always start threading by hand. If you cannot turn the fitting easily with your fingers for the first few turns, the threads are misaligned. Never use a wrench to force the initial engagement. Additionally, using thread seal tape (Teflon tape) correctly—wrapping in the direction of the threads—can help lubricate and guide the connection.

5. What does “ISO 80369” mean for Luer fittings?

ISO 80369 is a set of international standards that defines small-bore connectors for liquids and gases in healthcare. It ensures that connectors for different applications (e.g., enteral feeding vs. IV infusion) are physically incompatible to prevent deadly misconnections. Modern Luer fittings comply with the specific subset of this standard for fluid connections.

6. Can I reuse a compression tube fitting?

Technically, you can disassemble and reassemble a compression fitting on the same tube if the ferrule has not been fully set. However, once the ferrule has bitten into the tube and created a seal, it is generally recommended not to reuse the fitting on a new tube or after significant disassembly, as the seal integrity may be compromised. For critical applications, always use new fittings.

Conclusion

Navigating the complex world of Pneumatics & Plumbing Fittings, Tube Fittings, Luer Fittings, and Luer Stopcocks requires a clear understanding of your system’s specific needs. Whether you are securing high-pressure hydraulic lines with precision tube fittings or ensuring patient safety with standardized Luer locks, the right choice prevents leaks, saves money, and protects lives.

Remember, the cheapest fitting is often the most expensive in the long run if it fails. Prioritize quality, adhere to installation best practices, and always match the fitting material to your medium and environment.

Found this guide helpful? Share it with your engineering team, medical colleagues, or DIY community on social media to help others build safer, more efficient systems! Let’s connect and keep the flow going.
