PVC Plumbing 1 1/4 Under 2 Sinks Fittings Guide

Are you staring at a cramped cabinet under your double-basin kitchen sink, wondering how to fit all those pipes without creating a tangled mess? You are not alone. Many homeowners face the challenge of connecting two drains in limited space, often leading to leaks or blocked storage areas. Finding the right Pvc Plumbing 1 1 4 Under 2 Sinks Fittings is the key to a clean, efficient, and leak-free setup that maximizes your under-sink real estate.

In this guide, we will break down exactly which fittings you need, how to install them correctly, and how to avoid common pitfalls that plague DIY plumbers. Whether you are renovating an older home or fixing a persistent leak, this article will walk you through the process with professional clarity.

Why Choose PVC for Under-Sink Drainage?

Before diving into the specific fittings, it is essential to understand why PVC (Polyvinyl Chloride) is the standard for modern residential drainage, especially in tight spaces like under double sinks.

Durability and Cost-Effectiveness

PVC is resistant to corrosion, rust, and chemical damage from household cleaners. Unlike metal pipes, which can degrade over time due to exposure to moisture and harsh substances, PVC maintains its integrity for decades. According to industry standards, PVC piping has a lifespan of 50–100 years when installed correctly.

Ease of Installation

For DIY enthusiasts, PVC is a dream material. It is lightweight, easy to cut, and requires no soldering or heavy tools. The slip-joint connections allow for minor adjustments during installation, which is crucial when working in the confined space beneath a double sink.

Smooth Interior Walls

One of the hidden benefits of PVC is its smooth interior surface. This reduces friction and prevents grease, food particles, and hair from sticking to the pipe walls, significantly lowering the risk of clogs compared to older galvanized steel or cast iron systems.

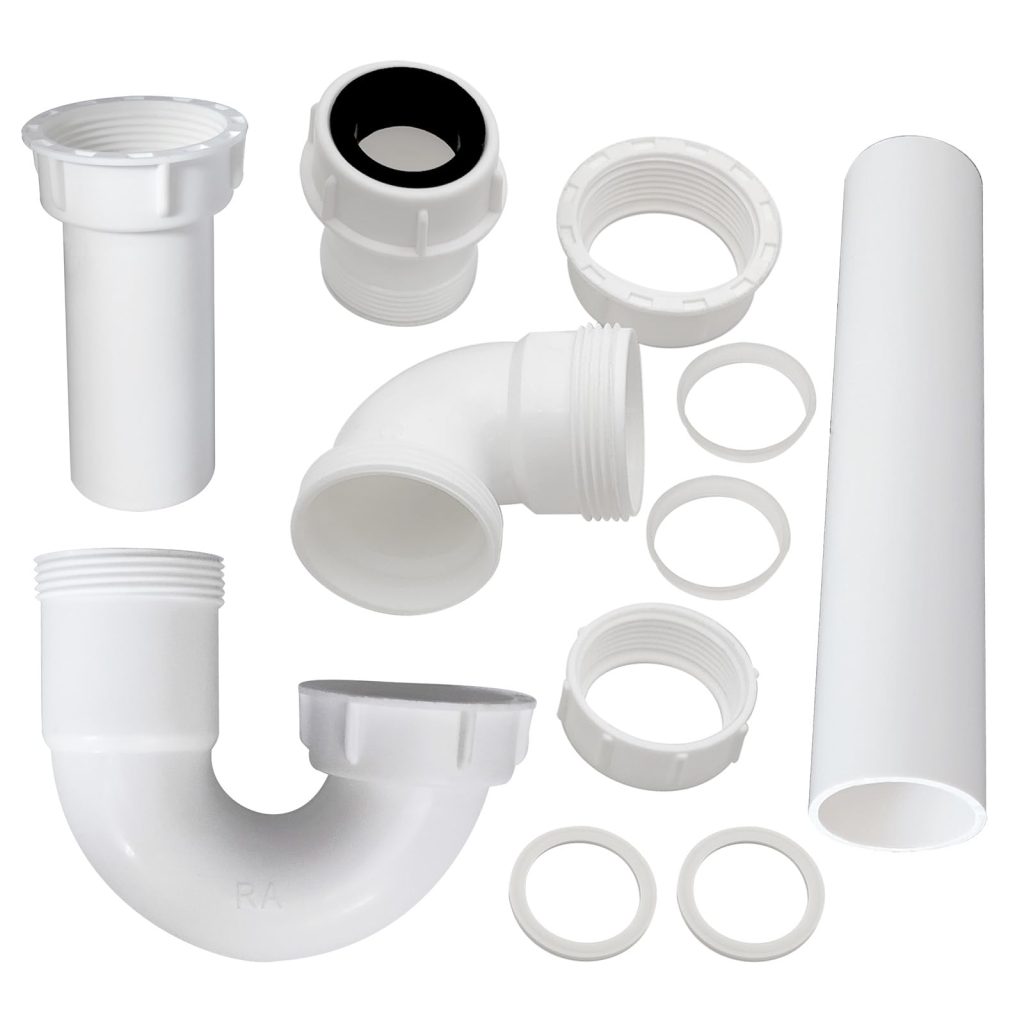

Essential Fittings for a Double Sink Setup

When dealing with two sinks, you cannot simply use a single straight pipe. You need a system that merges two drain lines into one main outlet while maintaining proper slope and venting. Here are the critical components you need to look for when shopping for Pvc Plumbing 1 1 4 Under 2 Sinks Fittings.

1. The Dual Outlet Waste Kit

The centerpiece of any double sink installation is the dual outlet waste kit. This typically includes:

• Two basket strainers (one for each sink).
• A horizontal connector tube.
• A central tee or Y-fitting that merges the flows.

Pro Tip: Look for kits specifically labeled as “1-1/4 inch” to match standard US residential sink drains. Avoid mixing sizes, as this will require additional adapters that increase leak points.

2. P-Traps: The Odor Barrier

Every sink drain must have a P-trap. This U-shaped bend holds water, creating a seal that prevents sewer gases from entering your home. For double sinks, you have two options:

• Double P-Trap Kit: A pre-assembled unit with two traps connected by a cross-piece.
• Individual P-Traps: Two separate traps connected to a common drain line.

Note: While individual traps offer more flexibility in tight spaces, a unified double trap kit is often easier to install and less prone to misalignment.

3. Slip-Joint Nuts and Washers

Never underestimate the importance of high-quality washers. Cheap rubber washers harden over time, leading to drips. Opt for neoprene or silicone washers, which remain flexible and provide a tighter seal. Ensure your nuts are hand-tightened plus a quarter turn with pliers—over-tightening can crack the PVC.

4. Tailpiece Extensions

If your sink basins are deep or the cabinet floor is low, you may need adjustable tailpieces. These allow you to customize the length of the pipe dropping from the sink strainer to the P-trap, ensuring a perfect fit without awkward angles.

Step-by-Step Installation Guide

Installing Pvc Plumbing 1 1 4 Under 2 Sinks Fittings requires precision. Follow these steps to ensure a professional result.

Step 1: Measure and Plan

Before buying anything, measure the distance between the two sink drains and the height from the drain holes to the wall outlet.

• Distance between drains: Typically 16–30 inches.
• Drop height: Measure from the bottom of the sink strainer to the top of the P-trap inlet.

Step 2: Remove Old Fixtures

Turn off the water supply (though not strictly necessary for drain work, it’s good practice). Place a bucket under the pipes to catch residual water. Unscrew the old slip nuts and remove the existing P-traps and tailpieces. Clean the sink flange area thoroughly.

Step 3: Install Basket Strainers

Apply a bead of plumber’s putty around the underside of the new basket strainer flange. Insert it into the sink hole from the top. From underneath, secure it with the locking nut and rubber gasket. Tighten firmly but do not overtighten, as this can squeeze out all the putty.

Step 4: Assemble the Horizontal Connector

Connect the two tailpieces to the horizontal bridge piece using slip nuts and washers. Ensure the washers are seated correctly—the tapered side should face the nut. This assembly connects the left and right sinks.

Step 5: Install the P-Trap(s)

Attach the P-trap to the center of the horizontal connector. If using a double trap kit, this is pre-assembled. Connect the other end of the P-trap to the wall drain pipe.

• Critical Check: Ensure there is a slight downward slope (1/4 inch per foot) toward the wall drain to facilitate gravity flow.

Step 6: Test for Leaks

Run water in both sinks simultaneously. Check every connection point for drips. If you see a leak, tighten the nut slightly. If it persists, disassemble and check the washer orientation.

Common Mistakes to Avoid

Even experienced DIYers make errors. Here are the most frequent issues with Pvc Plumbing 1 1 4 Under 2 Sinks Fittings:

Code Compliance and Safety

While PVC is widely accepted, local building codes vary. In the United States, the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) generally permit PVC for drain, waste, and vent (DWV) systems. However, some jurisdictions may require ABS (Acrylonitrile Butadiene Styrene) instead of PVC for certain applications.

Always check with your local building department before starting major plumbing work. For detailed national standards, you can refer to resources like Wikipedia’s overview of Plumbing Codes to understand the broader regulatory framework, though local amendments always take precedence.

Additionally, ensure your system is properly vented. A lack of venting can cause siphoning, where water is pulled out of the P-trap, breaking the seal and allowing sewer gas into your home. If you notice gurgling sounds when draining, you may have a venting issue that requires a professional plumber.

FAQ Section

Q1: Can I use 1-1/2 inch PVC instead of 1-1/4 inch?

A: Yes, 1-1/2 inch is actually more common for kitchen sinks in many modern homes because it handles higher volumes of water and is less prone to clogging. However, if your sink strainers are 1-1/4 inch, you will need adapter bushings. Using 1-1/2 inch throughout is often recommended for better flow, but ensure all fittings match.

Q2: Why is my double sink draining slowly?

A: Slow drainage is usually caused by a blockage in the horizontal connector or an improper slope. Food debris and grease tend to accumulate in the bridge piece between the two sinks. Regularly flush with hot water and dish soap. If the problem persists, check that the pipe slopes correctly toward the wall drain.

Q3: Do I need to use PVC primer and cement?

A: No. Under-sink drain assemblies typically use slip-joint connections, which rely on compression from nuts and washers, not chemical bonding. PVC primer and cement are used for permanent DWV (Drain-Waste-Vent) pipes inside walls or underground, not for the removable trap assembly under the sink.

Q4: How often should I clean the P-trap?

A: For a kitchen double sink, it is advisable to check and clean the P-trap every 6–12 months. If you frequently dispose of grease or fibrous foods, you may need to clean it more often. Regular maintenance prevents severe clogs and extends the life of your Pvc Plumbing 1 1 4 Under 2 Sinks Fittings.

Q5: What is the difference between PVC and ABS?

A: PVC is white and requires primer and cement for permanent joints. ABS is black and uses only cement. Both are approved for drainage in most US states, but you cannot glue PVC to ABS directly without a special transition cement. For under-sink slip joints, the material matters less than the quality of the washers and nuts.

Conclusion

Installing Pvc Plumbing 1 1 4 Under 2 Sinks Fittings doesn’t have to be a headache. By choosing the right components—such as high-quality washers, properly sized P-traps, and a durable dual-outlet kit—you can create a reliable, leak-free drainage system that stands the test of time. Remember, the key to success lies in precise measurement, correct slope, and avoiding the temptation to overtighten those plastic nuts.
