Building a home or commercial structure involves a complex dance of trades, where timing is everything. One of the most common questions contractors and DIY enthusiasts face is determining the correct order of operations to prevent costly rework. Specifically, many ask, “Which is first: installing plumbing or trenching grade beams?” Getting this sequence wrong can compromise the structural integrity of your foundation or lead to expensive plumbing repairs down the line. In this guide, we will break down the industry-standard workflow, explain the engineering logic behind it, and provide you with a clear, step-by-step process to ensure your project stays on track and up to code.
The Short Answer: Understanding the Critical Sequence
Before diving into the technical details, let’s address the core question directly. In the vast majority of residential and commercial construction projects involving slab-on-grade foundations, trenching for grade beams happens before the final installation of under-slab plumbing.
However, it is not a simple “one then the other” scenario. It is an integrated process. The grade beam trenches are dug first to establish the foundation’s footprint. Then, plumbing rough-ins are installed within those trenches or in designated channels cut into the compacted soil. Finally, the concrete for the grade beams and the slab is poured around and over these utilities.
Why is this order non-negotiable? Because grade beams are structural elements designed to transfer the building’s load to the soil. You cannot dig a trench for a pipe through a cured concrete grade beam without severely weakening it. Therefore, the path for the plumbing must be established before the concrete sets.
Why Grade Beams Are Trenched First
To understand why we start with the earthwork, we need to look at the purpose of a grade beam. A grade beam is a reinforced concrete beam that rests directly on the ground (or on piles in some cases) and supports the walls of the structure.
1. Establishing the Structural Footprint
The first step in any foundation work is excavation. Heavy machinery digs out the trenches according to the engineered plans. These trenches define where the weight of the house will sit. If you were to install plumbing pipes randomly across the site before digging, you would risk damaging them during excavation. By trenching first, you create a clean, defined workspace.
2. Soil Compaction and Stability
Once the trenches are dug, the soil at the bottom must be compacted. This is crucial for preventing settlement. If you laid pipes first, you couldn’t properly compact the soil beneath the future grade beams because the pipes would be in the way. Proper compaction ensures that the grade beam has a solid, unyielding base.
Integrating Plumbing Into the Foundation Process
Now that the trenches are ready, how does plumbing fit in? This is where coordination between the plumber and the foundation crew becomes critical.
The “Rough-In” Phase
Plumbers do not install the final fixtures at this stage. Instead, they perform the “rough-in.” This involves laying the main sewer lines, water supply lines, and electrical conduits that need to pass under the slab.
- Sewer Lines: These are typically gravity-fed and require a specific slope (usually 1/4 inch per foot). They are placed in the trench, often alongside or beneath the future grade beam location, but carefully positioned so they do not undermine the beam’s bearing area.
- Water Lines: These are pressurized and can be more flexible in routing, but they still need to be protected from the weight of the concrete.
Protective Measures

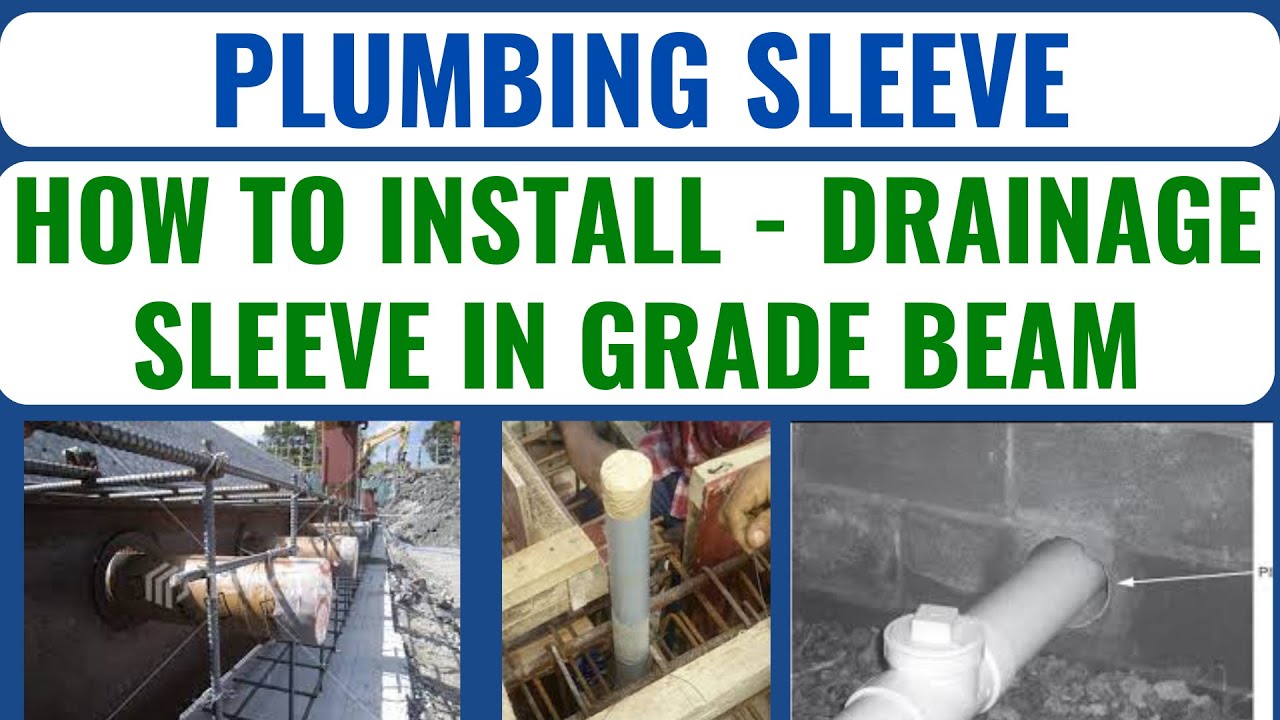

It is standard practice to wrap underground plumbing in sand or place them in protective sleeves when they cross under grade beams. This prevents the sharp edges of rocks in the concrete mix from puncturing the pipes and allows for slight movement without breaking the pipe.
Expert Insight: According to general engineering principles found in resources like Wikipedia’s entry on Deep Foundations, proper integration of utilities requires that loads are not transferred directly onto flexible utility lines. This reinforces the need for careful placement during the trenching phase.
Step-by-Step Guide: The Correct Order of Operations
To ensure you get it right, follow this logical flow. This sequence minimizes risk and maximizes efficiency.
- Site Clearing and Excavation: Remove topsoil and dig the trenches for the grade beams to the specified depth and width.
- Initial Compaction: Compact the bottom of the trenches to create a stable base.
- Plumbing Layout Marking: The plumber marks the exact path of the sewer and water lines on the compacted soil.
- Plumbing Rough-In Installation:
- Dig smaller sub-trenches within the main grade beam trench if necessary for deep sewer lines.
- Lay the PVC or ABS pipes.
- Ensure proper slope for drainage.
- Pressure test water lines and air-test sewer lines to check for leaks before covering them.
- Backfilling and Sand Bedding: Cover the pipes with a layer of sand or fine gravel to protect them. Do not use large rocks.
- Rebar Installation: Place the steel reinforcement bars (rebar) for the grade beams. Ensure the rebar cages do not crush the plumbing pipes. Use spacers to keep rebar off the ground.
- Formwork (If Required): Install wooden or metal forms if the grade beams are raised above the natural grade.
- Final Inspection: Have the building inspector approve both the plumbing rough-in and the rebar placement.
- Concrete Pour: Pour the concrete for the grade beams. The concrete will flow around the protected plumbing lines.
- Slab Preparation: Once grade beams are set, prepare the rest of the slab area, including any remaining plumbing stubs that come up through the slab.
Common Mistakes to Avoid
Even experienced crews can make errors. Here are the most frequent pitfalls:
| Mistake | Consequence | Solution |
|---|---|---|
| Digging plumbing trenches after pouring beams | Cracks in the beam, structural failure | Always plan plumbing routes before concrete arrives. |
| Poor compaction under pipes | Settling pipes, broken joints, slab cracks | Compact soil in lifts (layers) of 6 inches. |
| No protective sand bedding | Punctured pipes from concrete aggregate | Use 2–3 inches of sand above and below pipes. |
| Ignoring slope requirements | Sewer backups, slow drainage | Use a laser level to verify 1/4 inch per foot slope. |
FAQ: People Also Ask
1. Can I run plumbing through a grade beam?
Technically, you should avoid running large diameter sewer lines through the main structural part of a grade beam. If a pipe must cross a beam, it should be placed low in the trench, well below the rebar cage, and encased in a protective sleeve. Small water lines or electrical conduits are easier to accommodate than large sewer pipes.
2. What happens if I install plumbing after the grade beams are poured?
If you need to add plumbing after the concrete has cured, you will have to core drill through the grade beam. This is expensive, messy, and structurally risky. It requires engineering approval to ensure the drilling doesn’t compromise the beam’s ability to hold the building’s weight. It is always cheaper and safer to do it right the first time.
3. Do grade beams need to be deeper than plumbing lines?
Yes, generally. Grade beams must extend below the frost line (in colder climates) to prevent heaving. Sewer lines also need to be below the frost line to prevent freezing. However, the grade beam’s footing needs to be on undisturbed, compacted soil. Often, the sewer line runs parallel to the beam or crosses underneath it at a depth that doesn’t interfere with the beam’s bearing surface.
4. Who is responsible for coordinating this: the plumber or the framer?
Coordination is typically the responsibility of the General Contractor (GC). The GC ensures the excavator digs the right trenches, the plumber installs the pipes in the correct location, and the concrete crew pours around them. If you are acting as your own GC, you must manage this handoff personally.
5. Is there a difference between slab-on-grade and raised foundations regarding this sequence?
Yes. In a raised foundation (with a crawlspace), plumbing is often installed after the foundation walls and piers are built, hanging from the floor joists or running through the crawlspace. The “trenching first” rule applies primarily to slab-on-grade construction where utilities are buried in the earth beneath the concrete.
Conclusion
Determining which is first: installing plumbing or trenching grade beams is fundamental to a successful construction project. The clear answer is that trenching for grade beams comes first, followed by the strategic installation of plumbing rough-ins within those prepared trenches, and finally, the pouring of concrete.
By following this sequence, you ensure that your foundation remains structurally sound while your plumbing system remains protected and functional. Remember, communication between your excavator, plumber, and concrete crew is key. Don’t rush the compaction or skip the pressure tests.
