How to Remove a Tub Drain Shoe Without Cross Bars

Have you ever stared down into your bathtub drain, realizing the metal grate is gone, but the underlying “shoe” is stuck fast with nothing to grip? It is one of the most frustrating moments in home maintenance. You want to replace an old pipe or clear a stubborn clog, but you are blocked by a smooth, circular piece of metal with no cross bars to turn.

You are not alone. This is a common issue in older homes and newer installations alike. The good news is that you do not need to call a professional plumber just yet. In this guide, we will walk you through safe, effective methods for removing tub drain shoe with no cross bars plumbing fixtures. We will cover the tools you need, the step-by-step process, and how to avoid damaging your expensive tub surface.

Why Is My Drain Shoe So Hard to Remove?

Before we grab our tools, it helps to understand why this component is so stubborn. The drain shoe (also known as the drain flange) is threaded directly into the drain body beneath your tub. Over time, three main factors make removal difficult:

1. Corrosion and Rust: Water exposure leads to oxidation, effectively welding the threads together.
2. Plumber’s Putty or Silicone: Previous installers may have used excessive sealant, acting like glue.
3. Cross-Threading: If the original installation was slightly off, the threads can bind tightly.

According to general plumbing standards, these fittings are designed to be tight to prevent leaks. However, when there are no cross bars (the horizontal metal pieces found in older strainers), you lose your leverage point. This requires a shift in strategy from “twisting” to “gripping and expanding.”

Essential Tools for the Job

Success depends on having the right equipment. Do not attempt this with standard household screwdrivers, as they will slip and scratch your tub. Here is what you need:

• Needle-Nose Pliers: For initial inspection and minor adjustments.
• Channel-Lock Pliers (Tongue-and-Groove): These provide strong gripping power.
• Drain Key or Drain Extractor Tool: A specialized tool designed specifically for this purpose. Highly Recommended.
• Penetrating Oil (e.g., WD-40 Specialist or PB Blaster): To loosen rusted threads.
• Flashlight: To see deep into the drain pipe.
• Rag or Towel: To protect the tub surface from dropped tools.

Pro Tip: Invest in a dedicated drain extractor. It costs between $10–$20 at any hardware store and can save you hours of frustration. It works by expanding inside the drain hole to grip the inner walls.

Method 1: Using a Drain Extractor Tool (Best Approach)

This is the safest and most effective method for removing tub drain shoe with no cross bars plumbing components. It minimizes the risk of scratching your porcelain or acrylic tub.

Step-by-Step Instructions:

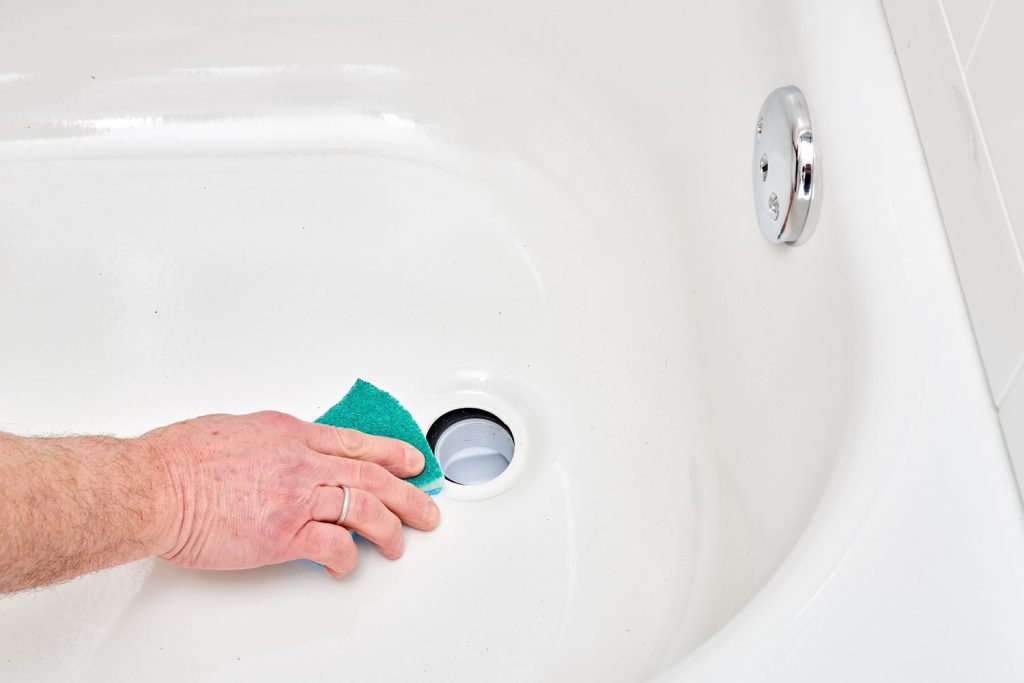

1. Clean the Area: Remove any hair, soap scum, or debris from the drain opening. Use a flashlight to ensure the inside of the shoe is visible.
2. Apply Penetrating Oil: Spray a generous amount of penetrating oil around the edges where the shoe meets the tub. Let it sit for 15–20 minutes. This allows the fluid to seep into the threads.
3. Insert the Extractor: Place the tapered end of the drain extractor into the center of the drain shoe. Ensure it is centered.
4. Expand the Tool: Turn the handle clockwise. As you turn, the tool’s jaws will expand outward, biting into the inner metal wall of the drain shoe. Keep turning until you feel a firm grip.
5. Unscrew Counter-Clockwise: Once locked in, hold the extractor steady and turn the entire tool counter-clockwise. Use slow, steady pressure. Do not jerk the tool, as this can break the internal mechanism.
6. Remove and Clean: Once loose, lift the shoe out. Clean the threads on the underlying drain body before installing a new fixture.

Method 2: The Needle-Nose Pliers Technique

If you do not have a drain extractor, you can use heavy-duty needle-nose pliers. This method requires more patience and care.

Step-by-Step Instructions:

1. Prepare the Surface: Lay a thick towel over the tub area surrounding the drain. This protects against accidental slips.
2. Position the Pliers: Open the needle-nose pliers and insert them into the drain hole. Expand the jaws so they press firmly against the inner walls of the drain shoe.
3. Create Leverage: Twist the handles of the pliers counter-clockwise. The goal is to use the friction between the plier tips and the metal shoe to rotate it.
4. Adjust Grip: If the pliers slip, reposition them higher or lower inside the hole. You may need to wiggle them slightly to find a solid grip point.
5. Turn Slowly: Apply steady torque. If it does not move after several attempts, stop. Forcing it can bend the pliers or crack the drain body.

Warning: Avoid using standard slip-joint pliers on the outside rim if the shoe is flush with the tub. You will likely scratch the finish. Always work from the inside if possible.

Method 3: The Screwdriver and Hammer (Last Resort)

Use this method only if the above techniques fail and you are willing to risk minor cosmetic damage. This involves destroying the old drain shoe to remove it.

1. Protect the Tub: Place a wooden block or thick cardboard over the tub surface near the drain.
2. Create Notches: Take a flathead screwdriver and a hammer. Carefully tap the screwdriver into the inner edge of the drain shoe to create small notches or dents. Do this at two opposite points.
3. Leverage Out: Insert two screwdrivers into these notches. Tap them gently to wedge them in. Then, use the screwdrivers as levers to twist the shoe counter-clockwise.
4. Break if Necessary: If the shoe is severely corroded, you may need to carefully cut it with a rotary tool (Dremel) or hack saw blade. Be extremely careful not to cut into the tub material.

For more information on standard plumbing fixtures and materials, you can refer to Wikipedia’s page on Plumbing to understand the broader context of residential piping systems.

Comparison: Removal Methods at a Glance

Common Mistakes to Avoid

• Using Excessive Force: Plumbing parts are often made of brittle brass or plastic. Snapping a tool inside the drain creates a much bigger problem.
• Ignoring Lubrication: Skipping the penetrating oil step makes the job 10x harder. Always let the oil work.
• Scratching the Tub: Porcelain and acrylic scratch easily. Always use a protective barrier when working with metal tools near the surface.
• Forgetting the Gasket: When reinstalling, ensure you use a new rubber gasket or plumber’s putty to prevent future leaks.

FAQ Section

Q1: What if the drain shoe breaks while I am removing it?

If the shoe fractures, do not panic. Use needle-nose pliers to grab the remaining fragments. Pull them out piece by piece. If a piece is stuck in the threads, you may need a small pick tool to pry it out gently.

Q2: Can I use vinegar instead of penetrating oil?

White vinegar can help dissolve minor mineral deposits, but it is not effective against heavy rust or seized metal threads. For removing tub drain shoe with no cross bars plumbing issues involving corrosion, a commercial penetrating oil like PB Blaster is far superior.

Q3: How do I know if I need a new drain shoe?

Inspect the old shoe for cracks, severe corrosion, or stripped threads. If the metal is thinning or pitted, replace it. It is also a good idea to replace it if you are changing the style of your drain cover.

Q4: Is it normal for the drain shoe to be very tight?

Yes. Manufacturers design these fittings to be tight to ensure a watertight seal. However, it should still turn with the right tool. If it feels completely welded, it is likely due to age and corrosion.

Q5: Can I remove the drain shoe without removing the tub?

Absolutely. In most cases, you can access and remove the drain shoe from above the tub. You only need to remove the tub if the drain body itself (the part underneath) is damaged or leaking into the ceiling below.

Conclusion

Dealing with a stuck drain can feel overwhelming, but removing tub drain shoe with no cross bars plumbing fixtures is a manageable DIY task with the right approach. By using a dedicated drain extractor or careful plier technique, you can save hundreds of dollars in plumber fees.

Remember to prioritize patience over force. Protect your tub surface, use penetrating oil, and choose the right tool for the job. Once removed, take the time to clean the threads and install a high-quality replacement to ensure years of leak-free performance.

Did this guide help you fix your drain? Share this article with friends or family who might be facing similar home repair challenges. Happy fixing!
