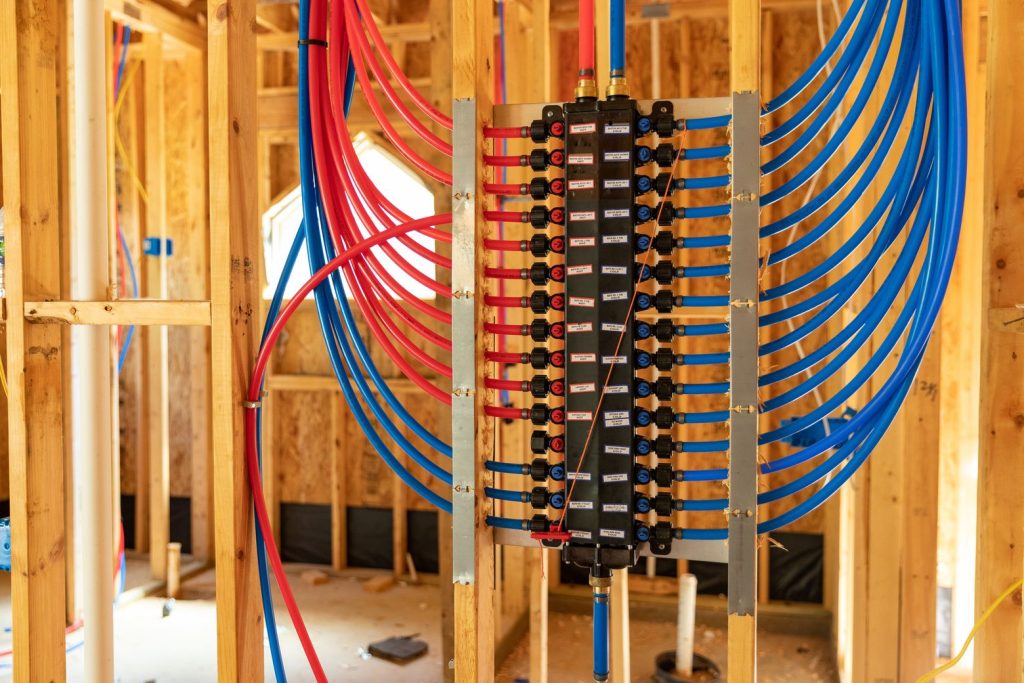

Have you ever dealt with the frustration of shutting off your entire home’s water supply just to fix a single leaky faucet? It is a common headache for homeowners that disrupts daily life and causes unnecessary stress. Modernizing your system with a residential plumbing manifold with plastic shut off valve handles offers a smarter, more efficient solution by allowing you to control water flow to individual fixtures independently. This guide will walk you through everything you need to know about this innovative plumbing component, from its benefits to proper maintenance.
What Is a Plumbing Manifold System?
Before diving into the specifics of plastic handles, it is essential to understand the core technology. A plumbing manifold acts as the central distribution hub for your home’s water supply. Unlike traditional “trunk-and-branch” piping, where one large pipe feeds multiple fixtures, a manifold system uses a central block with individual outlets for each fixture (sink, toilet, shower).
This setup is predominantly used with PEX (Cross-linked Polyethylene) tubing, which has revolutionized residential plumbing in the United States over the last two decades. The manifold allows for equal water pressure across all fixtures and significantly reduces the risk of leaks because there are fewer connections behind walls.
Why Choose Plastic Shut Off Valve Handles?
When selecting a manifold, you will often encounter two types of valve actuators: metal (usually brass or chrome-plated) and plastic (often high-grade polymer or reinforced nylon). While metal has a traditional appeal, plastic shut off valve handles have become the industry standard for several compelling reasons:
- Corrosion Resistance: Plastic does not rust or corrode when exposed to moisture and varying water qualities, ensuring long-term functionality.
- Cost-Effectiveness: High-quality engineering plastics are generally less expensive to manufacture than machined metal parts, lowering the overall cost of the manifold.
- Ease of Use: Plastic handles are often designed with ergonomic grips that are easier to turn, even for those with limited hand strength.
- Non-Conductive: Being non-metallic, they do not conduct heat or electricity, adding a layer of safety in complex utility spaces.
How Does a Manifold Improve Water Pressure?
One of the most frequent questions homeowners ask is whether switching to a manifold system will affect their water pressure. The answer is overwhelmingly positive. In traditional piping, if someone flushes a toilet while another person is showering, the shower temperature and pressure can fluctuate dramatically. This is known as “pressure drop.”
A residential plumbing manifold with plastic shut off valve handles mitigates this issue through dedicated lines. Each fixture receives its own direct line from the manifold. This means:
- Consistent Flow: Water travels directly to the fixture without competing for space in a shared pipe.
- Reduced Wait Time: Hot water reaches fixtures faster because the lines are typically smaller in diameter (3/8 inch or 1/2 inch) compared to main trunk lines, reducing the volume of cold water that must be purged first.
- Balanced Distribution: Professional installers can balance the flow rates at the manifold, ensuring that distant fixtures receive adequate pressure.
According to industry data, homes with properly balanced PEX manifold systems report up to a 30% improvement in perceived water consistency during peak usage times.
Installation Guide: Step-by-Step Overview
While hiring a licensed plumber is always recommended for major system overhauls, understanding the installation process helps you make informed decisions. Here is a simplified overview of how a manifold with plastic valves is integrated into a home.
Step 1: Location Selection
The manifold should be installed in an accessible area, such as a utility room, basement, or garage. It must be protected from freezing temperatures. Ensure there is enough clearance around the unit to operate the plastic shut off valve handles comfortably.
Step 2: Mounting the Manifold
Secure the manifold bracket to the wall studs using appropriate screws. The manifold body should be level to ensure proper drainage and aesthetic alignment. Most manifolds come with pre-drilled holes for easy mounting.
Step 3: Connecting the Main Supply
Connect the main hot and cold water lines from your water heater and municipal supply (or well pump) to the inlet ports of the manifold. Use high-quality brass adapters to transition from copper or CPVC to the PEX manifold inputs.
Step 4: Running PEX Lines
Run individual PEX tubes from each outlet port on the manifold to the corresponding fixture in the house. Label each line clearly (e.g., “Kitchen Sink Cold,” “Master Bath Shower”).
Step 5: Installing the Valves
If the manifold does not come with pre-installed valves, attach the ball valves to each outlet. Ensure the plastic shut off valve handles are aligned correctly. When the handle is parallel to the pipe, the water is ON. When perpendicular, the water is OFF.
Step 6: Pressure Testing
Before closing up walls, turn on the main water supply slowly. Open each plastic valve one by one and check for leaks at the connections. Use a pressure gauge to ensure the system holds steady at normal residential pressures (typically 40–60 PSI).
Pro Tip: Always use a PEX crimping tool or expansion tool compatible with your specific tubing brand (e.g., Uponor, Viega, or SharkBite) to ensure watertight seals.
Maintenance and Troubleshooting
A residential plumbing manifold with plastic shut off valve handles requires minimal maintenance, but periodic checks can prevent costly emergencies.
Regular Inspection Checklist
- Visual Check: Look for any signs of moisture or mineral buildup around the valve stems.
- Operation Test: Turn each plastic handle off and on once every six months. This prevents the internal ball from seizing due to sediment buildup.
- Pressure Monitor: Keep an eye on your home’s water pressure regulator. Excessive pressure (above 80 PSI) can stress the plastic components over time.
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| Valve Handle Stiff | Mineral deposit or debris | Apply silicone-based lubricant; do not use petroleum-based grease. |
| Leak at Valve Stem | Worn O-ring | Replace the O-ring kit specific to your manifold brand. |
| Handle Breaks | Excessive force or old age | Replace the handle assembly; avoid using pliers to turn plastic handles. |
| Low Flow at Fixture | Kinked PEX line or closed valve | Check the path of the PEX tube and ensure the plastic valve is fully open. |
For more detailed technical specifications on PEX materials and safety standards, you can refer to Wikipedia’s page on Cross-linked polyethylene, which provides an in-depth look at the chemical properties and manufacturing processes involved.
Plastic vs. Metal Handles: Which Is Better?
Choosing between plastic and metal handles often comes down to personal preference and budget, but there are functional differences to consider.
Advantages of Plastic Handles
- Lightweight: Easier to install and less stressful on the valve stem.
- Chemical Resistance: Immune to oxidation and resistant to many household cleaning agents.
- Color Coding: Often available in red (hot) and blue (cold) molded directly into the plastic, eliminating the need for tags.
Advantages of Metal Handles
- Aesthetic Appeal: Looks more premium in exposed utility areas.
- Durability Against Impact: Less likely to crack if struck by heavy objects.
- Heat Dissipation: Can handle slightly higher ambient temperatures without warping (though rare in residential settings).
For most residential applications, high-quality engineered plastic is more than sufficient and offers better long-term value due to its resistance to corrosion.
FAQ Section
1. Can I replace just the plastic handle if it breaks?
Yes, in most cases, the handle is a separate component from the valve body. You can purchase replacement handles from the manifold manufacturer. Ensure you match the spline pattern and size to your existing valve.
2. Are plastic valves durable enough for long-term use?
Absolutely. Modern plumbing manifolds use high-grade polymers like PPSU (Polyphenylsulfone) or reinforced nylon. These materials are designed to withstand decades of use, high pressure, and temperature fluctuations without degrading.
3. Do I need special tools to operate plastic shut off valves?
No, they are designed for hand operation. However, if a valve becomes stiff, you can use a strap wrench gently to avoid cracking the plastic. Never use channel locks or pliers directly on the handle, as this can cause breakage.
4. Is a manifold system compatible with my existing copper pipes?
Yes. Manifolds are designed to integrate with existing plumbing. You will need transition fittings (such as brass adapters) to connect your copper main lines to the PEX outputs of the manifold.
5. How often should I exercise the valves?
It is recommended to turn each valve off and on at least twice a year. This keeps the internal mechanism free-moving and prevents mineral deposits from locking the ball in place.
6. What happens if a plastic handle snaps off?
If the handle snaps, the valve stem may still be operable with a pair of pliers (gently) to shut off the water. However, you should replace the handle or the entire valve cartridge as soon as possible to restore ease of use and prevent accidental damage to the stem.
Conclusion
Upgrading to a residential plumbing manifold with plastic shut off valve handles is a smart investment for any homeowner looking to improve water efficiency, pressure consistency, and ease of maintenance. By moving away from outdated trunk-and-branch systems, you gain precise control over your home’s water distribution while benefiting from the durability and corrosion resistance of modern plastic components.
Whether you are building a new home or renovating an existing one, understanding the advantages of this system empowers you to make better decisions for your plumbing infrastructure. Remember, regular maintenance and gentle handling of the plastic valves will ensure your system runs smoothly for years to come.
